Is the 6GK7443-1EX30-0XE1 compatible with TIA Portal?

The CP 443-1 EX30 is primarily configured via SIMATIC STEP 7 V5.x and SIMATIC NCM PC. Limited TIA Portal support may be available via legacy device libraries. For new projects, SIEMENS recommends the CP 443-1 EX40 (6GK7443-1EX40-0XE0) which has full TIA Portal integration.

Can this module act as both PROFINET IO Controller and IO Device simultaneously?

Yes. The 6GK7443-1EX30-0XE1 supports simultaneous PROFINET IO Controller (up to 128 IO devices) and PROFINET IO Device operation, making it suitable for hierarchical and multi-controller network architectures.

What is the difference between 6GK7443-1EX30-0XE1 and 6GK7443-1EX11-0XE0?

The EX30 (Advanced) supports PROFINET IO Controller/Device, MRP ring redundancy, dual-port switch, and advanced IT functions. The EX11 is an earlier, more basic variant with fewer simultaneous connections and no integrated switch. The EX30 is the recommended choice for new installations.

Do you supply new, refurbished, or surplus units?

Konmask.com supplies both new (factory-sealed) and tested surplus units depending on availability. All units are clearly identified by condition in the quotation. We do not supply untested or unverified components.

What is the typical lead time for the 6GK7443-1EX30-0XE1?

Lead time varies by stock availability. In-stock units typically ship within 2–5 business days internationally. For out-of-stock items, sourcing lead time is typically 1–3 weeks. Contact us for real-time availability.

Is export documentation provided?

Yes. Full export documentation is provided with every international shipment, including commercial invoice, packing list, and certificate of origin upon request.

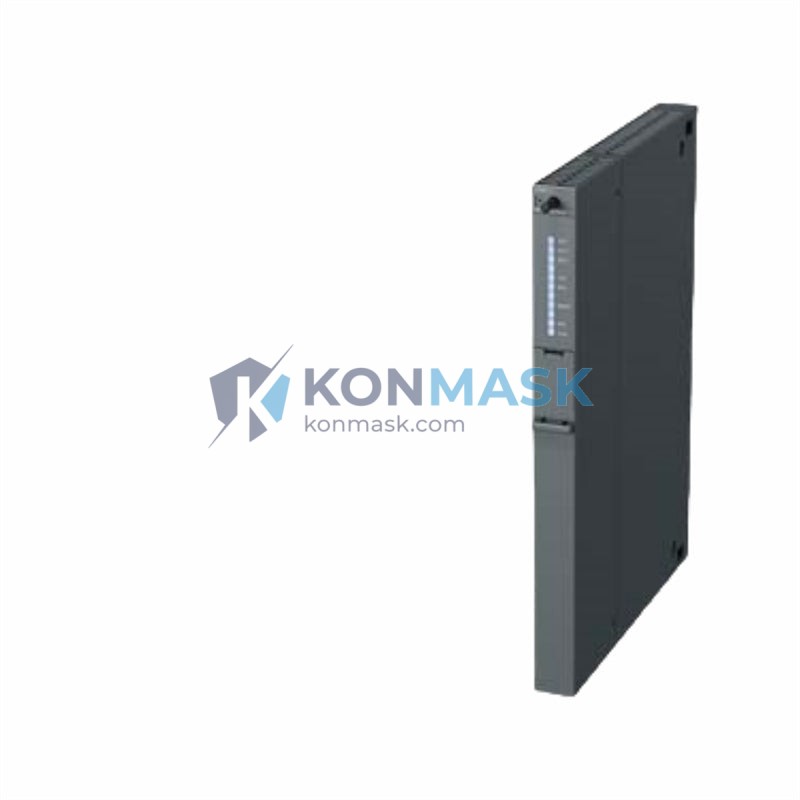

Genuine SIEMENS 6GK7443-1EX30-0XE1 SIMATIC NET CP 443-1 Advanced - Industrial Automation Part

SIEMENS 6GK7443-1EX30-0XE1 CP 443-1 Advanced Ethernet Communication Processor for S7-400

Request a Fast Quote Email Directly

Send your required quantity, target delivery time, and destination country. Konmask will reply with availability and lead time.

Series: Siemens SIMATIC S7-400

SKU: 6GK7443-1EX30-0XE1 Category: Siemens Tags: 6GK7443-1EX30-0XE1, Communication Processor, Industrial Automation, SIEMENS, SIMATIC NET CP 443-1

Description

SIEMENS 6GK7443-1EX30-0XE1 CP 443-1 Advanced Ethernet Communication Processor – SIMATIC NET S7-400 Series

When an S7-400 PLC loses its Ethernet communication backbone, the consequences cascade instantly: SCADA systems go blind, MES data pipelines stall, and plant operators are left managing critical processes without real-time visibility. In high-throughput manufacturing, pharmaceutical batch control, or power distribution substations, even minutes of communication downtime translate into production losses and safety risks. The SIEMENS 6GK7443-1EX30-0XE1 CP 443-1 Advanced is the communication processor engineered to prevent exactly this scenario — delivering deterministic, high-speed Industrial Ethernet connectivity that keeps your S7-400 system fully integrated with the plant network.

Within the SIMATIC NET CP 443-1 family, the 6GK7443-1EX30-0XE1 represents the Advanced tier — the highest-performance variant designed for demanding multi-protocol environments. Supporting PROFINET IO Controller/Device, ISO-on-TCP, TCP/IP, UDP, and S7 communication simultaneously, it is the preferred choice for system integrators building large-scale distributed control architectures. Globally, this module is deployed across automotive assembly lines, chemical process plants, energy management systems, and intelligent building automation — wherever the S7-400 platform demands enterprise-grade network integration.

Technical Specifications

Part Number / SKU: 6GK7443-1EX30-0XE1
Product Family: SIMATIC NET CP 443-1 Advanced
Compatible PLC: SIMATIC S7-400 (all CPU variants)
Network Interface: 2 × RJ45 Industrial Ethernet (10/100 Mbit/s, auto-sensing)
Supported Protocols: PROFINET IO (Controller + Device), S7 Communication, ISO-on-TCP, TCP/IP, UDP, SNMP, DCP, LLDP
PROFINET IO Controller Connections: Up to 128 IO devices
S7 Connections: Up to 64 configurable connections
Open IE Connections: Up to 64 (TCP/IP, UDP, ISO-on-TCP)
Integrated Switch: Yes (2-port, supports line/ring topology)
MRP (Media Redundancy Protocol): Supported (ring redundancy)
IT Functions: Web server (diagnostics), FTP client/server, NTP time synchronization, SMTP e-mail
Security: IP access control lists, SNMP v1/v3
Configuration Tool: STEP 7 / SIMATIC NCM PC / TIA Portal (via legacy support)
Power Supply: Via S7-400 backplane bus
Operating Temperature: 0 °C to +60 °C
Storage Temperature: -40 °C to +70 °C
Dimensions (W × H × D): 25 mm × 290 mm × 210 mm (single-width module)
Weight: Approx. 446 g
Certifications: CE, UL, cULus, ATEX (Zone 2), IECEx, DNV GL (marine)
Firmware: Upgradeable via STEP 7 / NCM

Key Features & Benefits

Dual-Port Integrated Switch: Enables line and ring network topologies without external switches, reducing hardware cost and cabinet space.
PROFINET IO Controller + Device Simultaneously: The 6GK7443-1EX30-0XE1 can act as both a PROFINET IO Controller (managing up to 128 IO devices) and a PROFINET IO Device in the same network — a critical capability for hierarchical automation architectures.
MRP Ring Redundancy: Achieves network reconfiguration times <200 ms, ensuring high availability in ring topologies for process-critical applications.
Multi-Protocol Parallel Operation: Run PROFINET IO, S7 communication, and open TCP/IP connections simultaneously without performance degradation.
Integrated Web Diagnostics: Built-in web server provides real-time module diagnostics, connection status, and network statistics — accessible from any standard browser without additional software.
FTP & SMTP Support: Enables automated data logging to FTP servers and alarm notification via e-mail directly from the PLC program.
NTP Time Synchronization: Keeps the S7-400 system clock synchronized with plant-wide or internet NTP servers for accurate event timestamping.
Backward Compatible: Fully compatible with existing S7-400 racks and STEP 7 V5.x projects, protecting your engineering investment during system upgrades.

Industry & Equipment Applications

Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, and final assembly stations requiring deterministic PROFINET IO communication.
Chemical & Petrochemical: Distributed control of reactors, distillation columns, and pipeline monitoring systems with ATEX Zone 2 certification.
Power Generation & Distribution: Substation automation, turbine control, and grid management systems demanding high-availability ring network topologies.
Pharmaceutical & Food Processing: Batch control systems requiring precise time synchronization and audit-trail data logging via FTP.
Water & Wastewater Treatment: Remote SCADA integration for pump stations, filtration systems, and treatment plant automation.
Intelligent Building & Infrastructure: HVAC control, energy management, and building automation systems integrated with enterprise IT networks.
Marine & Offshore: DNV GL-certified for use in shipboard automation and offshore platform control systems.

System Integration & Compatible Parts

The 6GK7443-1EX30-0XE1 is designed for seamless integration within the SIMATIC S7-400 ecosystem. Compatible and commonly paired components include:

S7-400 CPUs: 6ES7412-x, 6ES7414-x, 6ES7416-x, 6ES7417-x series
S7-400 Racks: 6ES7400-1JA01-0AA0 (UR1), 6ES7400-2JA00-0AA0 (UR2)
Power Supply Modules: 6ES7407-0DA02-0AA0, 6ES7407-0KA02-0AA0
SIMATIC NET Industrial Ethernet Switches: SCALANCE X series (e.g., X208, X308-2)
PROFINET IO Devices: ET 200M, ET 200S, ET 200SP distributed I/O stations
Programming Software: SIMATIC STEP 7 V5.5+, SIMATIC NCM PC V6.x
Replacement / Upgrade Path: 6GK7443-1EX40-0XE0 (CP 443-1 EX40, next generation)

Our Quality Assurance Process

At Konmask.com, every SIEMENS 6GK7443-1EX30-0XE1 unit we supply undergoes a rigorous multi-stage verification process before shipment:

Authenticity Verification: Cross-referenced against SIEMENS authorized supply chain documentation and serial number databases.
Visual Inspection: Full examination of housing, connectors, firmware label, and factory seals for signs of tampering or counterfeit indicators.
Functional Testing: Where applicable, modules are bench-tested for power-on self-test (POST) completion and basic communication response.
Packaging Integrity: Anti-static packaging with desiccant, shock-absorbing foam, and tamper-evident sealing for safe international transit.
Documentation: Each shipment includes a product inspection report and, where available, original SIEMENS documentation.

How to Order

Submit your inquiry via the Contact / RFQ form on this page with your required quantity and delivery timeline.
Our technical team will confirm availability, lead time, and provide a formal quotation within 1 business day.
Upon order confirmation, we arrange secure packaging and international shipping with full tracking.
Post-delivery technical support is available via e-mail and phone for integration assistance.

Minimum order quantity: 1 unit. Volume pricing available for orders of 5+ units. OEM and system integrator accounts welcome.

Why Choose Konmask.com?

✅ Specialized in Industrial Automation Components — SIEMENS, ABB, Schneider, Rockwell, Mitsubishi, and more.
✅ Global Sourcing Network — Access to both new and surplus industrial inventory from verified suppliers worldwide.
✅ Technical Expertise — Our team includes experienced automation engineers who understand your application requirements.
✅ Fast Response — RFQ responses within 24 hours; urgent orders prioritized.
✅ Secure International Shipping — DHL, FedEx, UPS with full insurance and customs documentation support.
✅ After-Sales Support — Technical guidance on installation, configuration, and system integration.

Frequently Asked Questions

Q: Is the 6GK7443-1EX30-0XE1 compatible with TIA Portal?: A: The CP 443-1 EX30 is primarily configured via SIMATIC STEP 7 V5.x and SIMATIC NCM PC. Limited TIA Portal support may be available via legacy device libraries. For new projects, SIEMENS recommends the CP 443-1 EX40 (6GK7443-1EX40-0XE0) which has full TIA Portal integration.
Q: Can this module act as both PROFINET IO Controller and IO Device simultaneously?: A: Yes. The 6GK7443-1EX30-0XE1 supports simultaneous PROFINET IO Controller (up to 128 IO devices) and PROFINET IO Device operation, making it suitable for hierarchical and multi-controller network architectures.
Q: What is the difference between 6GK7443-1EX30-0XE1 and 6GK7443-1EX11-0XE0?: A: The EX30 (Advanced) supports PROFINET IO Controller/Device, MRP ring redundancy, dual-port switch, and advanced IT functions. The EX11 is an earlier, more basic variant with fewer simultaneous connections and no integrated switch. The EX30 is the recommended choice for new installations.
Q: Do you supply new, refurbished, or surplus units?: A: Konmask.com supplies both new (factory-sealed) and tested surplus units depending on availability. All units are clearly identified by condition in the quotation. We do not supply untested or unverified components.
Q: What is the typical lead time for the 6GK7443-1EX30-0XE1?: A: Lead time varies by stock availability. In-stock units typically ship within 2–5 business days internationally. For out-of-stock items, sourcing lead time is typically 1–3 weeks. Contact us for real-time availability.
Q: Is export documentation (CO, packing list, commercial invoice) provided?: A: Yes. Full export documentation is provided with every international shipment, including commercial invoice, packing list, and certificate of origin upon request.
