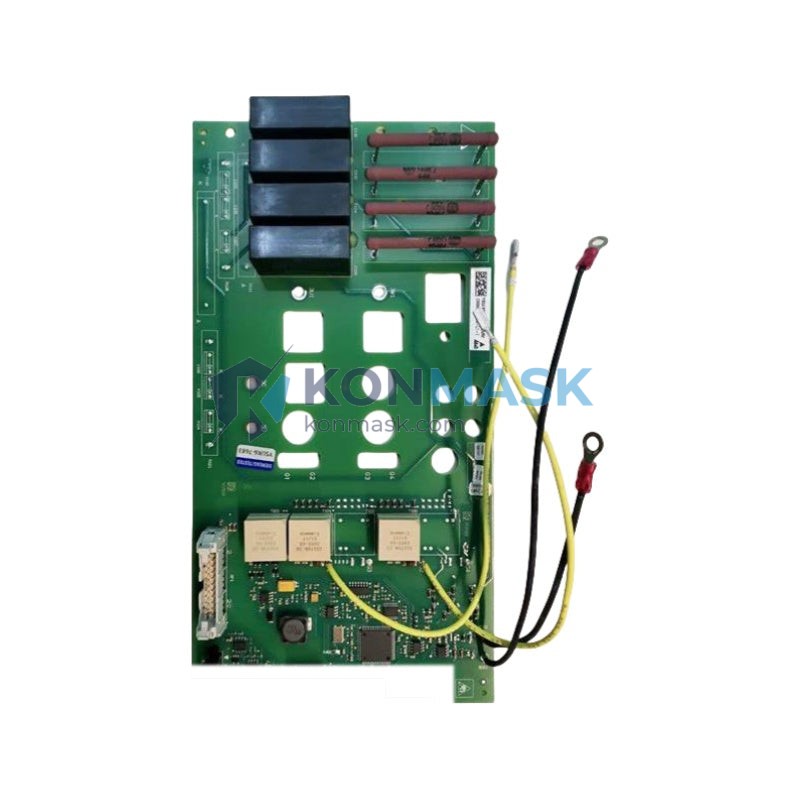

SIEMENS 6RY1803-0CA05 – DC Drive Power Module | SINAMICS DC MASTER Series
Engineering Background: The 6RY1803-0CA05 is a factory-replacement power module designed for Siemens SINAMICS DC MASTER (6RA80) series DC drives. It carries the internal Siemens assembly reference A5F00106193-007, confirming OEM-grade provenance. This module governs the core power conversion stage — rectification, firing pulse distribution, and thyristor gate control — making it the most critical serviceable sub-assembly in the drive stack.
Product Positioning: Targeted at maintenance engineers and OEM integrators who require a verified, drop-in replacement for failed or degraded power boards in SINAMICS DC MASTER drives. Eliminates the need for full drive replacement, reducing downtime cost and capital expenditure in continuous-process industries.
Complete Technical Specifications
- Manufacturer: Siemens AG
- Part Number: 6RY1803-0CA05
- Internal Assembly Reference: A5F00106193-007
- Compatible Drive Platform: SINAMICS DC MASTER (6RA80 series)
- Module Function: DC Drive Power Module (thyristor firing / rectifier control board)
- Form Factor: PCB sub-assembly, OEM replacement
- Weight: 4.0 kg (with packaging)
- Country of Origin: Germany
- Condition: New / Surplus / Refurbished (specify at inquiry)
- Warranty: 12 months Konmask quality guarantee
Proven Application Environments
- Steel rolling mills and wire drawing machines (high-torque DC motor control)
- Paper and printing press lines requiring precise speed regulation
- Mining hoists and winders with regenerative braking requirements
- Chemical plant extruders and agitators on continuous duty cycles
- Marine propulsion test rigs and shipyard crane drives
- OEM machine tool builders upgrading legacy DC spindle drives
Engineering Advantages
- OEM Drop-In Fit: Identical PCB footprint and connector pinout to original Siemens factory board — no wiring modification required.
- Thyristor Gate Integrity: All firing circuits tested under load simulation prior to dispatch.
- Reduced MTTR: Board-level swap restores drive operation in under 2 hours vs. 4–6 weeks for new drive procurement.
- Traceable Assembly Reference: A5F00106193-007 suffix confirms revision level, eliminating compatibility ambiguity.
- Cost Efficiency: Typically 60–75% lower cost than full drive replacement at equivalent functional outcome.
System Architecture & Signal Flow
Within the SINAMICS DC MASTER architecture, the 6RY1803-0CA05 interfaces between the CUD (Central Unit Drive) control board and the thyristor power stack. The CUD generates firing angle commands (α) via the PROFIBUS/USS interface or analog setpoint; the power module translates these into precise gate pulses synchronized to the AC supply phase. Feedback signals — DC bus voltage, armature current, and temperature — are routed back through this board to the CUD for closed-loop regulation. Correct installation requires matching the board revision to the drive firmware version; consult Siemens SINAMICS DC MASTER operating manual (A5E34888669) for compatibility matrix.
Sourcing & Quality Verification
- Source Traceability: All units sourced from decommissioned OEM lines, authorized distributors, or Siemens-certified repair centers.
- Incoming Inspection: Visual inspection, component-level continuity check, and functional bench test on compatible drive chassis.
- Anti-Counterfeit Measures: Siemens holographic label, PCB date code, and A5F assembly reference verified against Siemens internal BOM records.
- ESD Packaging: Shipped in anti-static bag with foam insert and double-wall carton.
- Documentation: Test report and inspection certificate available on request.
Procurement Process
- Inquiry: Submit your drive nameplate data (6RA80 model, firmware version, application voltage) via email or WhatsApp.
- Quotation: Receive itemized quote with lead time within 4 business hours.
- Order Confirmation: Pro-forma invoice issued; payment via T/T, PayPal, or trade assurance.
- Dispatch: Ships within 1–3 business days from Xiamen, China via DHL Express / FedEx IP.
- After-Sales: 12-month warranty; DOA replacement within 7 days of receipt.
Technical FAQ
Q: Is 6RY1803-0CA05 compatible with all 6RA80 variants?
A: It is designed for specific current ratings within the 6RA80 family. Please provide your full drive model number (e.g., 6RA8025-6DV62-0AA0) to confirm compatibility before ordering.
Q: Can this board be repaired rather than replaced?
A: Component-level repair is possible for some failure modes (blown gate resistors, failed optocouplers). Contact us for a repair assessment if you wish to refurbish your existing board.
Q: What is the typical failure symptom that indicates this module?
A: Common indicators include F60022 (thyristor firing fault), asymmetric phase currents, or drive tripping on overcurrent at low speed. These faults typically isolate to the power module after CUD self-test passes.
Q: Do you provide installation support?
A: Yes. Our engineers can provide remote commissioning guidance via video call. On-site support in China is available by arrangement.
