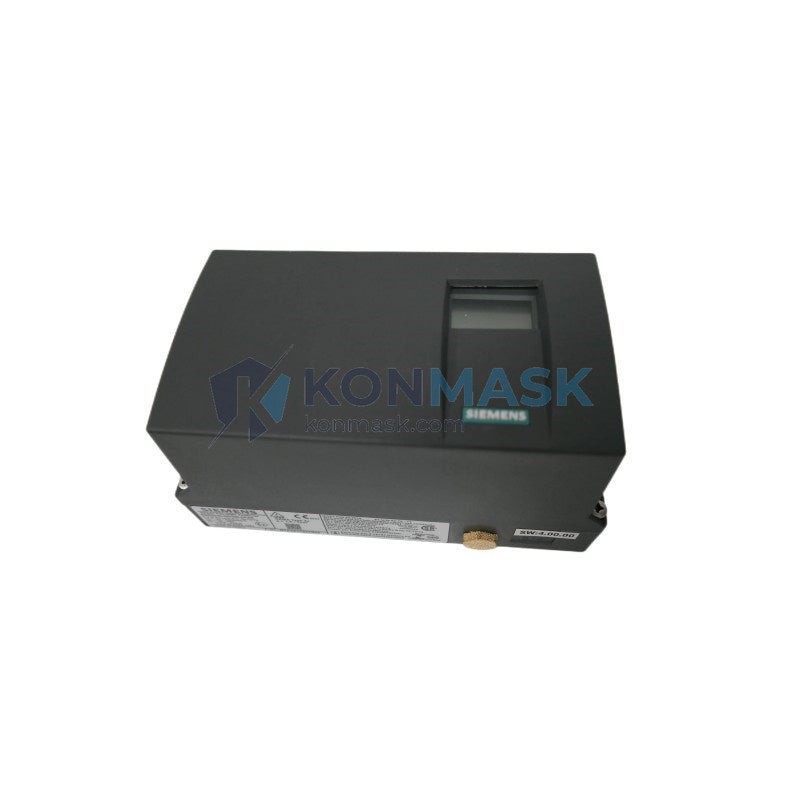

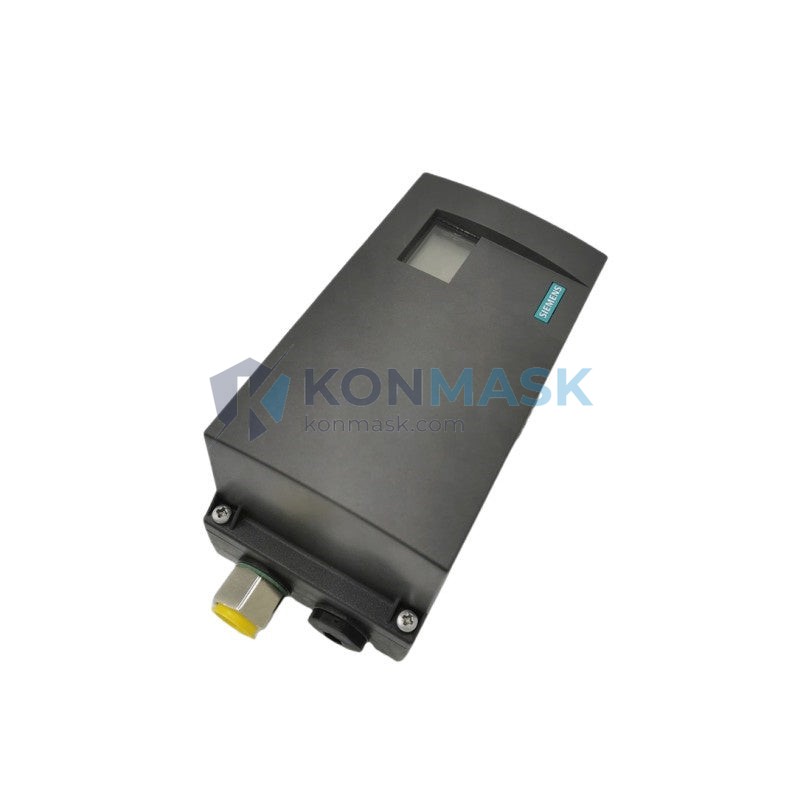

SIEMENS 6DR5220-0EN00-0AA0 Smart Electropneumatic Positioner – SIPART PS2 Series
When a control valve loses its positioner, the entire process loop goes blind. Pressure fluctuates unchecked, flow rates drift beyond setpoint, and in critical applications — chemical dosing, steam regulation, or gas injection — the consequences escalate from product loss to safety incidents within minutes. The electropneumatic positioner is not a peripheral accessory; it is the nerve ending that translates a 4–20 mA command signal into precise mechanical valve travel, closing the loop between the DCS and the physical process.
The SIEMENS 6DR5220-0EN00-0AA0 belongs to the SIPART PS2 family — Siemens’ flagship intelligent positioner platform deployed across tens of thousands of process plants worldwide. Within the PS2 lineup, the 6DR5220-0EN00-0AA0 is configured for single-acting pneumatic actuators with a standard analog input, making it the workhorse choice for conventional 4–20 mA control loops where reliability and ease of commissioning take priority over fieldbus complexity. Its self-calibration algorithm, tight split-range capability, and low air consumption have made it a reference design in refinery, chemical, and power generation applications across Europe, Asia, and the Americas.
Technical Specifications
Electrical
- Input Signal: 4–20 mA (2-wire), HART communication capable
- Setpoint Input: 4–20 mA analog
- Supply Voltage: 5.5–30 V DC (loop-powered)
- Fault Current: < 3.6 mA
- Electrical Connection: M20 × 1.5 cable entry
- Explosion Protection: Non-Ex version (0EN00)
Pneumatic
- Actuator Action: Single-acting (spring-return)
- Supply Air Pressure: 1.4–7 bar (20–105 psi)
- Output Air Pressure: 0 to supply pressure
- Air Consumption (steady state): < 0.5 Nl/min
- Pneumatic Connection: G ¼ or ¼ NPT (selectable)
- Leakage: < 0.5 Nl/min at max supply pressure
Mechanical
- Enclosure Rating: IP66 per IEC 60529
- Housing Material: Aluminum die-cast, powder-coated
- Mounting: VDI/VDE 3845 (NAMUR) direct mount or bracket mount
- Travel Range (linear): 3–130 mm
- Rotation Range (rotary): 30°–100°
- Weight: approx. 1.2 kg
Environmental
- Ambient Temperature: −30 °C to +80 °C (standard)
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 0–100% RH (non-condensing)
- Vibration Resistance: 2g / 10–2000 Hz per IEC 60068-2-6
Certifications & Standards
- CE Marking per EU Machinery Directive
- NAMUR NE 43 (fault signal), NE 53 (software), NE 107 (self-monitoring)
- IEC 61508 SIL 2 capable (with appropriate safety function configuration)
- Industry Standard Reference: IEC 60534 (control valve sizing and flow)
Key Features & Benefits
- Automatic Self-Calibration (AUTOADAPT) — Eliminates manual span/zero adjustment; the positioner characterizes the actuator in under 5 minutes, reducing commissioning time by up to 70% compared to conventional pneumatic positioners.
- Tight Positioning Accuracy ±0.1% of travel — Maintains setpoint fidelity even under supply pressure fluctuations, directly reducing process variability and off-spec product in continuous manufacturing lines.
- Ultra-Low Air Consumption < 0.5 Nl/min — In a plant with 200 positioners, switching from conventional devices to SIPART PS2 can reduce instrument air compressor load by 15–25%, lowering energy costs measurably.
- Integrated Valve Diagnostics — Monitors friction, hysteresis, and step response trends; enables predictive maintenance scheduling before valve failure causes unplanned downtime, compliant with NAMUR NE 107.
- Split-Range Operation — Supports 0–50% / 50–100% split-range configuration natively, allowing two valves to be controlled from a single 4–20 mA output without additional signal conditioners.
- Robust IP66 Enclosure — Rated for outdoor installation and washdown environments; aluminum die-cast housing withstands the mechanical stress of direct NAMUR mounting on rotary and linear actuators per VDI/VDE 3845.
Industry & Equipment Applications
- Oil & Gas — Upstream/Midstream: Wellhead choke valves, gas injection control, pipeline pressure regulation stations where fail-safe spring-return action is mandatory.
- Chemical & Petrochemical: Reactor feed control valves, distillation column reflux valves, and solvent dosing systems requiring ±0.1% repeatability to maintain product quality.
- Power Generation: Boiler feedwater control valves, turbine bypass valves, and flue gas desulfurization (FGD) slurry control in coal and gas-fired power plants.
- Pulp & Paper: Digester pressure control, bleaching chemical dosing valves, and steam pressure reducing stations in continuous kraft pulping lines.
- Water & Wastewater Treatment: Aeration basin flow control, chemical dosing (coagulant, chlorine), and sludge dewatering press feed valves in municipal and industrial treatment plants.
- Pharmaceutical & Food Processing: CIP/SIP-compatible valve control in hygienic piping systems where precise flow control and full traceability of valve position are required for batch validation.
System Integration & Compatible Parts
Upstream Components (Signal Source):
- SIEMENS SIMATIC S7-300/400/1500 PLC analog output modules (e.g., SM 332, AQ 4×U/I ST)
- SIEMENS SIMATIC PCS 7 / PCS neo DCS with 4–20 mA AO channels
- Any third-party DCS/PLC with isolated 4–20 mA analog output
Downstream Components (Actuator Side):
- Single-acting pneumatic actuators: Rotork, Auma, Biffi, Flowserve spring-return types
- NAMUR-mount globe, butterfly, and ball valve bodies (DN15–DN600)
Equivalent / Alternative Models:
- 6DR5210-0EN00-0AA0 — PS2 single-acting, without display; suitable replacement when local indication is not required (verify actuator compatibility before substitution)
- 6DR5220-0EG00-0AA0 — ATEX/IECEx Ex d version for Zone 1/21 hazardous areas; direct functional equivalent for Ex-rated installations
- Fisher DVC6200 — Third-party functional equivalent; note: different mounting bracket and calibration procedure required
- Metso ND9000 — Alternative for rotary actuators; confirm travel range compatibility
Our Quality Assurance Process
Every SIEMENS 6DR5220-0EN00-0AA0 unit shipped from Konmask.com passes through a four-step verification process:
- Source Verification: Units are sourced exclusively from authorized distributors or directly from Siemens-certified supply chains. Batch traceability records are maintained for every order.
- Physical Inspection: Housing integrity, nameplate data (model code, serial number, date code), connector condition, and pneumatic port thread integrity are checked against Siemens factory specifications.
- Functional Bench Test: Where applicable, units are powered and the AUTOADAPT self-calibration cycle is initiated to confirm electronics and pneumatic pilot valve operation prior to dispatch.
- Documentation Package: Each shipment can be accompanied by: Certificate of Conformity (CoC), Packing List with serial numbers, Siemens original datasheet, and — upon request — third-party inspection report or material test report (MTR).
How to Order
- Submit Your Inquiry: Send your required quantity, delivery timeline, and destination port to support@konmask.com or use the inquiry form on this page.
- Receive Quotation: Our technical team will confirm stock availability, lead time, and CIF/FOB pricing within 24 hours on business days.
- Confirm & Ship: Upon order confirmation and payment arrangement, we prepare documentation and dispatch with your preferred freight forwarder or our logistics partner.
Why Choose Konmask.com?
- Verified Supply Chain: We source from traceable, authorized channels — not grey-market brokers — so you receive genuine Siemens product with intact warranty eligibility.
- Technical Pre-Sales Support: Our team includes engineers with hands-on experience in SIPART PS2 commissioning and DCS integration, not just sales staff reading datasheets.
- Flexible Export Documentation: We handle commercial invoices, packing lists, CoC, and can coordinate third-party inspection for LC-based transactions and customs clearance in your country.
- Responsive Communication: 24-hour quotation turnaround, with direct engineer-to-engineer communication available for complex multi-item BOM inquiries.
- Global Shipping Experience: Regular shipments to Southeast Asia, the Middle East, Eastern Europe, and South America — we understand local import requirements and documentation standards.
Frequently Asked Questions
Q: What is the difference between SIEMENS 6DR5220-0EN00-0AA0 and 6DR5210-0EN00-0AA0 — which one should I order for my single-acting actuator?
A: Both models support single-acting actuators. The 6DR5220-0EN00-0AA0 includes a local LCD display and pushbuttons for on-site parameter adjustment and diagnostics, while the 6DR5210-0EN00-0AA0 is the display-less version intended for installations where all configuration is done remotely via HART or a handheld communicator. If your maintenance team needs to read valve position and fault codes locally at the valve, the 6DR5220 is the correct choice.
Q: Can the SIEMENS 6DR5220-0EN00-0AA0 be used in hazardous area Zone 2 installations without ATEX certification?
A: The 6DR5220-0EN00-0AA0 (suffix 0EN00) is the standard non-Ex version and is not certified for Zone 1 or Zone 2 hazardous areas under ATEX/IECEx. For Zone 2 installations, you would typically require the 6DR5220-0EG00 (Ex nA, Zone 2) or 6DR5220-0EB00 (Ex d, Zone 1) variants. Always verify the area classification with your safety engineer before selecting the positioner model.
Q: How do I configure split-range control with the SIEMENS SIPART PS2 6DR5220-0EN00-0AA0 for two valves on one 4–20 mA output?
A: Split-range is configured via parameter P11 (setpoint range) in the SIPART PS2 menu. Set the first positioner to respond to 4–12 mA (0–50% of span) and the second to 12–20 mA (50–100%). Both units must be individually calibrated with AUTOADAPT before split-range parameters are applied. Refer to Siemens Operating Instructions A5E00074631 for the full parameter table and commissioning sequence.
{
