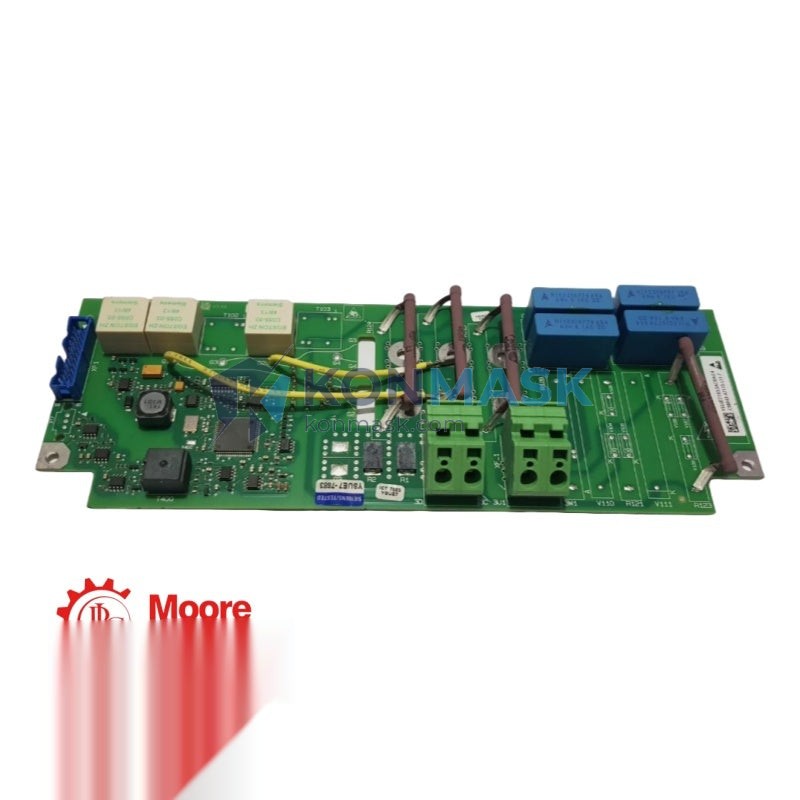

SIEMENS 6RY1803-0CA11 C98043-A7115-L21-7 Power Supply Module | SIMOREG DC-MASTER
Engineering Background
The SIEMENS 6RY1803-0CA11 (board reference C98043-A7115-L21-7) is an OEM power supply board engineered for the SIMOREG DC-MASTER series of fully digital DC drive converters. SIMOREG DC-MASTER (6RA70 / 6RA24 platform) is Siemens’ flagship DC drive family, widely deployed in heavy industry for precise speed and torque control of DC motors from 6.3 A to 3000 A output current.
Product Positioning
This internal power supply module provides regulated auxiliary voltages to the SIMOREG control electronics, gate-drive circuits, and field supply boards. It is a direct OEM replacement board — not an aftermarket substitute — ensuring full compatibility with existing firmware, parameter sets, and safety interlocks. Procurement engineers specify this part when the original board fails or when building a certified spare-parts inventory for critical production lines.
Complete Technical Specifications
- Manufacturer: SIEMENS AG (Germany)
- Part Number: 6RY1803-0CA11
- Board Reference: C98043-A7115-L21-7
- Product Family: SIMOREG DC-MASTER
- Module Function: Internal Auxiliary Power Supply
- Compatible Platform: SIMOREG 6RA70 / 6RA24 series DC converters
- Form Factor: PCB plug-in board (OEM internal assembly)
- Weight: approx. 4 kg (packaged)
- Country of Origin: Germany
- Condition: New / Refurbished OEM (specify at inquiry)
- Warranty: 12 months from shipment date
Proven Application Environments
- Steel rolling mills and continuous casting lines
- Paper and pulp production machinery
- Mining hoists and winders
- Marine propulsion and deck machinery
- Extruder and injection-moulding drives
- Crane and overhead conveyor systems
- Test bench and dynamometer rigs
Engineering Advantages
- OEM Authenticity: Genuine Siemens board — no reverse-engineered substitutes; full traceability to Siemens production batch records.
- Drop-in Replacement: Identical connector pinout and PCB footprint; no firmware changes or parameter re-entry required.
- Regulatory Compliance: Designed to CE / UL / cUL standards as part of the SIMOREG certified drive system.
- Extended Shelf Life: Stored in ESD-safe, climate-controlled warehouse; humidity and temperature logged.
- Rapid Dispatch: In-stock units ship within 24 hours of order confirmation; DHL / FedEx express options available.
System Architecture & Signal Flow
Within the SIMOREG DC-MASTER cabinet, the 6RY1803-0CA11 power supply board receives mains-derived AC input from the drive’s internal transformer secondary. It generates multiple regulated DC rails supplying:
- The CUD1/CUD2 closed-loop control boards (microprocessor and DSP logic)
- Gate-drive pulse amplifier boards (firing pulses to thyristor stacks)
- Field supply regulator board (excitation current control)
- Operator panel (AOP / BOP) interface power
- Auxiliary relay and I/O interface circuits
Failure of this board typically manifests as F060 / F061 fault codes (internal supply fault) or complete drive lockout. Replacement restores full drive operability without requiring recalibration of the power section.
Sourcing & Quality Verification
- All units sourced directly from Siemens authorised distribution channels or decommissioned OEM equipment with documented service history.
- Pre-shipment inspection: visual, dimensional, and powered bench-test where applicable.
- Serialisation and date-code verification performed against Siemens production records.
- ESD packaging with desiccant; outer carton rated for international air and sea freight.
- Certificate of Conformance (CoC) and test report available on request.
Procurement Process
- Submit RFQ — Email support@konmask.com with your required quantity, delivery timeline, and destination port.
- Receive Quotation — Formal quotation with unit price, lead time, and shipping options within 4 business hours.
- Order Confirmation — Pro-forma invoice issued; payment via T/T, PayPal, or credit card.
- Dispatch & Tracking — Shipment within 24 h of payment clearance; AWB/tracking number provided immediately.
- After-Sales Support — 12-month warranty; technical support from our automation engineers.
Technical FAQ
Q: Is 6RY1803-0CA11 compatible with all SIMOREG 6RA70 frame sizes?
A: This board is used across multiple SIMOREG frame sizes. Please confirm your drive’s full type designation (nameplate) when ordering to ensure exact board revision compatibility.
Q: What is the difference between 6RY1803-0CA11 and other 6RY18xx boards?
A: The 6RY18xx series covers various internal function boards (power supply, gate drive, field supply). The -0CA11 suffix identifies this specific power supply variant. Do not substitute with other suffixes without consulting the drive’s circuit diagram.
Q: Can you supply a refurbished unit if new stock is unavailable?
A: Yes. Refurbished units undergo full functional testing and carry the same 12-month warranty. Condition is clearly stated on the invoice.
Q: Do you provide installation support?
A: Our engineering team can provide remote guidance via email or video call. On-site commissioning support is available by arrangement.
Q: What export documentation is available?
A: We provide commercial invoice, packing list, CoC, and can arrange FORM E (ASEAN) or EUR.1 certificates where applicable.
