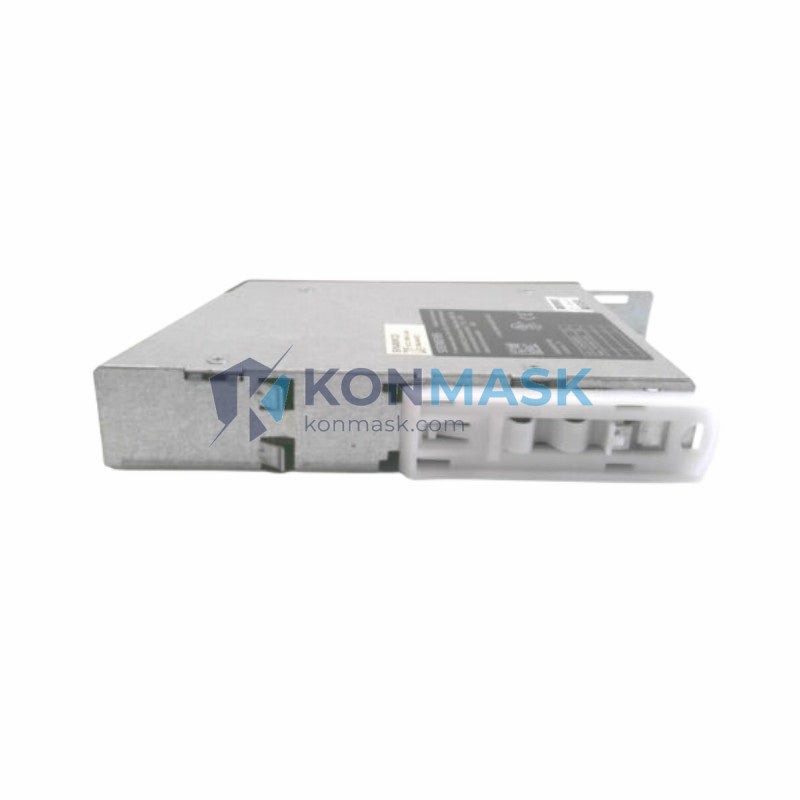

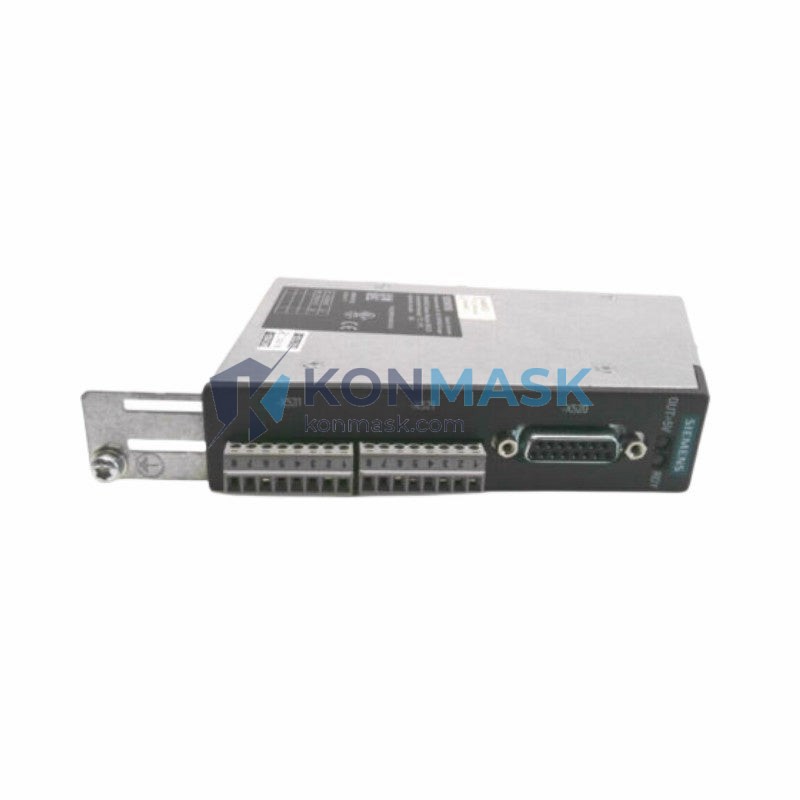

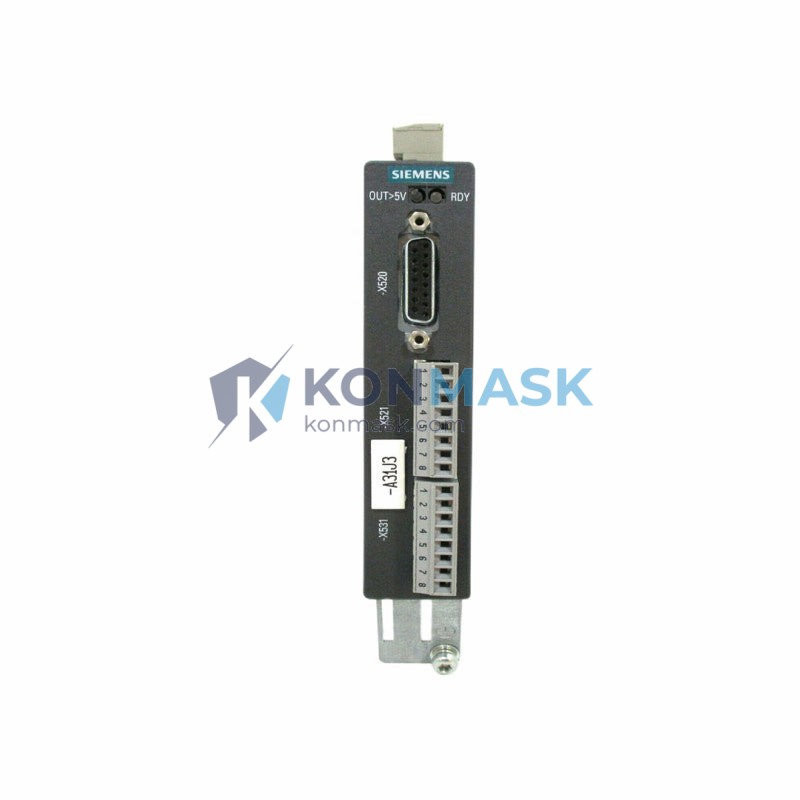

Genuine SIEMENS 6SL3055-0AA00-5CA2 SMC30 Sensor Module for Incremental Encoder | SINAMICS S120 Series – Verified Source
The SIEMENS 6SL3055-0AA00-5CA2 is an SMC30 Sensor Module Cabinet-Mounted designed for use with incremental encoders in SINAMICS S120 drive systems. Sourced directly through verified industrial supply channels, every unit we ship undergoes a rigorous multi-step authentication process before dispatch. Whether you are commissioning a new drive system or replacing a failed module in a critical production line, Konmask.com delivers the genuine part — on time, with full traceability.
Technical Specifications
- Manufacturer: Siemens AG
- Part Number: 6SL3055-0AA00-5CA2
- Module Type: SMC30 – Sensor Module Cabinet-Mounted
- Compatible Encoder Types: Incremental encoders (TTL / HTL), Resolver, SSI absolute encoders
- Drive System: SINAMICS S120
- Mounting: Cabinet-mounted (DIN rail compatible)
- Supply Voltage: 24 V DC (via DRIVE-CLiQ)
- Communication Interface: DRIVE-CLiQ
- Encoder Channels: 1× encoder input (X520), 1× DRIVE-CLiQ port (X500/X501)
- Max. Encoder Frequency: 300 kHz (TTL), 200 kHz (HTL)
- Operating Temperature: 0 °C to +55 °C
- Protection Class: IP20
- Weight: Approx. 410 g
- Firmware: Compatible with SINAMICS S120 firmware V4.x and above
Our 4-Step Quality Verification Process
Every 6SL3055-0AA00-5CA2 unit shipped from Konmask.com passes through our standardized verification protocol before it reaches you:
- Step 1 – Source Authentication: We procure exclusively from authorized distributors and verified OEM surplus channels. No grey-market or unverified third-party sources.
- Step 2 – Physical Inspection: Each unit is inspected for label integrity, housing condition, connector pin alignment, and factory seal status. Counterfeit indicators are cross-checked against Siemens published guidelines.
- Step 3 – Functional Pre-check: Where applicable, modules are bench-tested for DRIVE-CLiQ communication response and encoder signal pass-through prior to packaging.
- Step 4 – Documentation Review: Serial number, date code, and firmware version are logged and matched against procurement records. A traceability record is retained for 3 years.
Key Features & Benefits
- Enables precise speed and position feedback from incremental encoders to the SINAMICS S120 Control Unit
- Supports multiple encoder types on a single module — reduces spare-parts inventory complexity
- DRIVE-CLiQ interface enables automatic motor/encoder identification (SIEMENS Electronic Motor Nameplate)
- Cabinet-mounted design simplifies integration into existing control panel layouts
- Compact form factor with DIN rail mounting for space-efficient installations
- Genuine Siemens firmware ensures full compatibility with TIA Portal and STARTER commissioning tools
- Reduces commissioning time through plug-and-play DRIVE-CLiQ topology recognition
Typical Applications
- CNC machine tool spindle and axis drives
- Industrial conveyor and material handling systems
- Printing and packaging machinery
- Textile and winding machine drives
- Crane and hoist control systems
- Servo press and stamping equipment
- Retrofit and modernization of legacy SINAMICS S120 installations
Compatible System Components
- Control Units: CU320-2 DP, CU320-2 PN, CU310-2 DP/PN
- Power Modules: PM340, PM240-2 (via DRIVE-CLiQ adapter)
- Motor Modules: Single Motor Module, Double Motor Module (Booksize/Chassis)
- Encoder Types: Heidenhain ERN/ECN series, Sick Stegmann, standard TTL/HTL incremental encoders
- Software: TIA Portal V14+, STARTER V5.x, SCOUT TIA
Global Sourcing & Shipping Capabilities
Konmask.com operates as a specialist industrial automation parts supplier with global fulfillment capability:
- Stock Location: Mainland China (Fujian) with bonded warehouse access
- Lead Time: In-stock orders typically dispatched within 1–3 business days
- Shipping Methods: DHL Express, FedEx International Priority, SF International, sea freight for bulk orders
- Export Compliance: All shipments comply with applicable export control regulations. HS Code documentation provided upon request.
- Customs Support: Commercial invoice, packing list, and certificate of origin available for all international shipments
- Minimum Order: 1 unit (bulk pricing available for orders of 5+ units — contact us)
Certifications & Compliance Statement
- Product manufactured under Siemens ISO 9001:2015 certified quality management system
- CE marked — compliant with EU Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU)
- RoHS compliant (Directive 2011/65/EU)
- UL recognized component (where applicable per product revision)
- Konmask.com does not alter, re-label, or modify any manufacturer markings. All units are sold as-manufactured by Siemens AG.
How to Order
- Online: Add to cart and proceed to checkout. We accept T/T bank transfer, PayPal, and major credit cards.
- Inquiry / Bulk Order: Email support@konmask.com with your required quantity, delivery address, and preferred shipping method. We will respond within 1 business day.
- Phone / WhatsApp: +0086 19859288691 (Monday–Saturday, 09:00–18:00 CST)
- Lead Time Confirmation: For time-critical orders, please contact us before placing your order to confirm current stock availability and dispatch schedule.
Authenticity & Trust FAQ
Q: How do I know this is a genuine Siemens product?
A: Every unit is sourced from verified channels and passes our 4-step verification process. We retain procurement and serial number records for 3 years and can provide documentation upon request.
Q: Can you provide a certificate of conformity or test report?
A: Yes. For orders requiring formal documentation, please contact us at support@konmask.com before purchase to confirm availability for the specific batch.
Q: What is your return policy if the unit is defective on arrival?
A: We offer a 30-day DOA (Dead on Arrival) replacement guarantee. Units must be returned in original packaging with the serial number intact. Contact us within 7 days of receipt to initiate a claim.
Q: Do you offer warranty?
A: Yes — 12-month limited warranty against manufacturing defects. This does not cover damage caused by incorrect installation, overvoltage, or unauthorized modification.
Q: Can you source other SINAMICS S120 components?
A: Absolutely. We specialize in the full SINAMICS S120 ecosystem including Control Units, Motor Modules, Power Modules, and accessories. Send your BOM to support@konmask.com for a consolidated quote.
