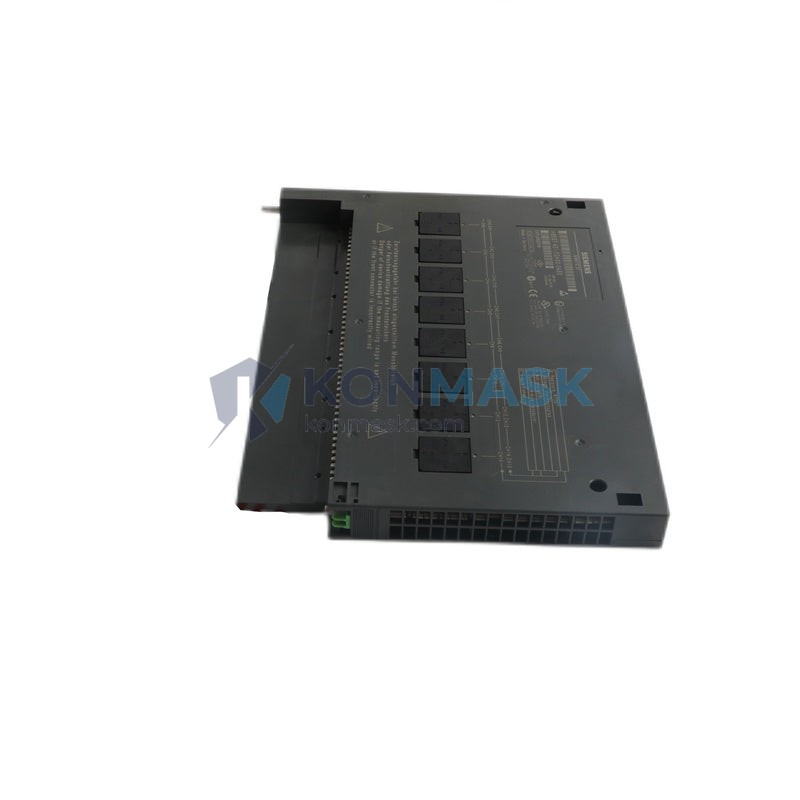

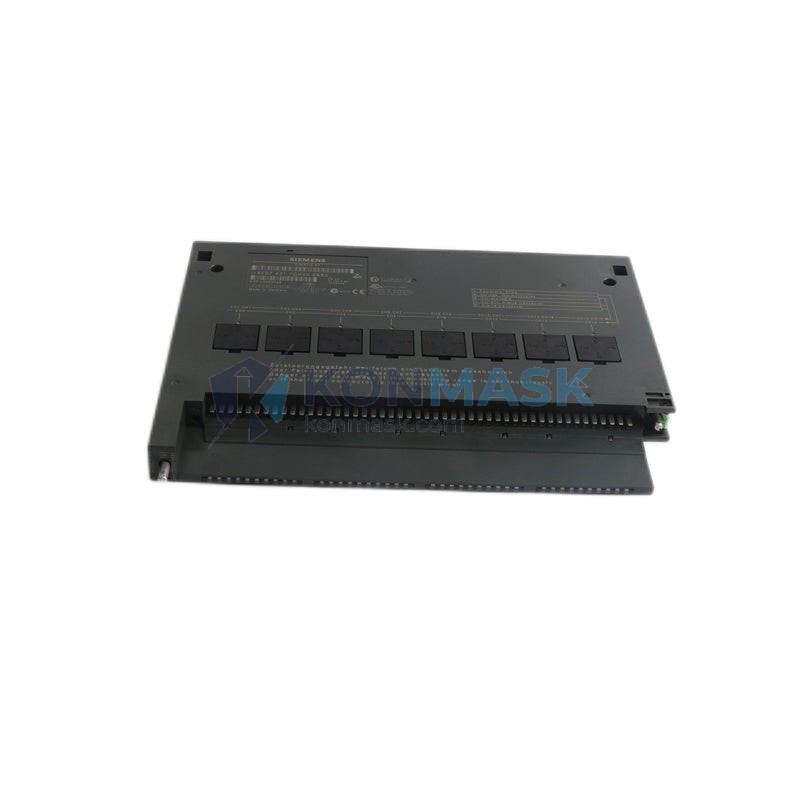

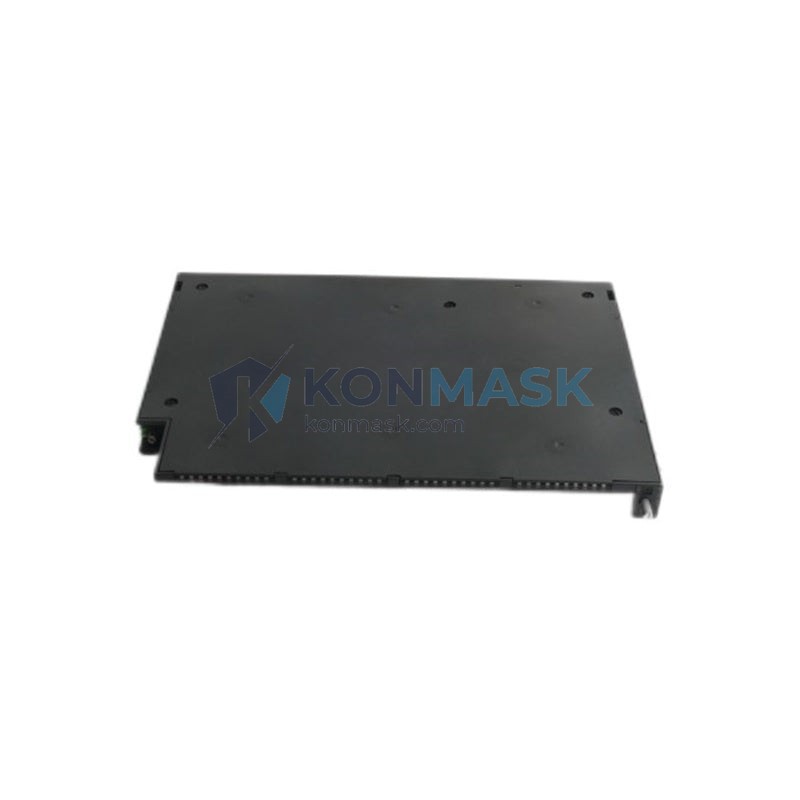

SIEMENS 6ES7431-7QH00-0AB0 Analog Input Module | S7-400 SM 431

SIEMENS 6ES7431-7QH00-0AB0 — 16-Channel High-Speed Analog Input Module | S7-400 SM 431 Platform

Engineering Background: The SIMATIC S7-400 is Siemens’ flagship high-performance PLC platform, engineered for mission-critical process automation in industries where system downtime carries direct safety and financial consequences — including petrochemical refining, power generation, and municipal water treatment. Within the S7-400 architecture, the SM 431 series analog input modules serve as the primary signal acquisition layer, converting real-world process variables into digital values that the CPU processes for closed-loop control, alarm management, and historian logging. The 6ES7431-7QH00-0AB0 is the high-channel-density variant of the SM 431 family, designed specifically for applications requiring simultaneous acquisition of multiple analog signals with high throughput and configurable input ranges.

Product Positioning: The 6ES7431-7QH00-0AB0 provides 16 analog input channels in a single slot, distinguishing it from the 8-channel 6ES7431-1KF10-0AB0 and the high-precision 6ES7431-7KF10-0AB0. Its primary advantage is channel density — ideal for distributed control cabinets where rack space is constrained. The module is suited for applications requiring moderate-to-high resolution (13-bit + sign) across voltage and current inputs simultaneously. It is not the preferred choice where per-channel galvanic isolation is mandatory for each signal; in those cases, the 6ES7431-7KF00-0AB0 with individual channel isolation should be evaluated.

Complete Technical Specifications

Electrical

• Number of Analog Inputs: 16 channels (configurable as voltage or current)
• Input Ranges (Voltage): ±10 V, ±5 V, ±2.5 V, 1–5 V, 0–10 V
• Input Ranges (Current): ±20 mA, 0–20 mA, 4–20 mA
• Resolution: 13 bits + sign (14-bit word)
• Conversion Time per Channel: 1 ms (at 50 Hz interference suppression)
• Cycle Time (all 16 channels): 16 ms
• Input Resistance (Voltage): ≥ 100 kΩ
• Input Resistance (Current): 50 Ω
• Permissible Input Voltage (continuous): ±15 V max
• Permissible Input Current (continuous): ±40 mA max
• Supply Voltage (backplane bus): 5 VDC via S7-400 backplane
• Load Voltage (L+): 24 VDC (20.4–28.8 V)
• Current Consumption from L+: Typ. 100 mA
• Power Dissipation: Typ. 3.5 W

Mechanical

• Form Factor: S7-400 single-width module (1 slot)
• Dimensions (W × H × D): 25 mm × 290 mm × 210 mm
• Weight: Approx. 500 g
• Connector Type: 48-pin front connector (6ES7492-1AL00-0AA0 required)
• Mounting: S7-400 UR1/UR2/UR2-H/CR2/CR3 racks

Environmental

• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: −40 °C to +70 °C
• Relative Humidity: 10% to 95% (non-condensing)
• Degree of Protection: IP20
• Vibration Resistance: IEC 60068-2-6 (5–9 Hz: 3.5 mm; 9–150 Hz: 1 g)
• Shock Resistance: IEC 60068-2-27 (15 g / 11 ms)
• EMC Immunity: EN 61000-6-2 (industrial environment)

Certifications

• CE (EU Declaration of Conformity)
• UL Listed (UL 508)
• cULus
• ATEX Zone 2 (with appropriate barriers)
• RCM (Australia/New Zealand)

Data source: Siemens SIMATIC S7-400 SM 431 Manual (A5E00105506), Siemens Industry Online Support (support.industry.siemens.com). Specifications subject to revision; verify against current Siemens documentation for safety-critical applications.

Proven Application Environments

• Petrochemical Refining: Crude distillation units — continuous acquisition of 16 thermocouple/RTD transmitter signals (4–20 mA) from column temperature sensors under sustained 55 °C ambient in enclosed control rooms.
• Thermal Power Generation: Boiler combustion control — simultaneous monitoring of furnace pressure, flue gas O₂, steam flow, and fuel flow transmitters; cycle time of 16 ms meets closed-loop PID update requirements.
• Municipal Water Treatment: Pump station SCADA — acquisition of pH, turbidity, dissolved oxygen, and flow transmitter signals across multiple process streams from a single module slot.
• Pharmaceutical Manufacturing: CIP/SIP skid automation — multi-channel temperature and pressure monitoring during sterilization cycles where data integrity and audit trail continuity are regulatory requirements.
• Steel & Metals Processing: Rolling mill tension control — high-speed voltage input acquisition (±10 V) from load cell amplifiers requiring consistent 1 ms per-channel conversion timing.
• Chemical Batch Processing: Reactor temperature profiling — 16-point simultaneous temperature acquisition from jacketed reactor zones, enabling precise exotherm detection and emergency shutdown logic.

Engineering Advantages

• For high-density signal acquisition applications, this analog input module delivers 16 channels in a single rack slot, because the SM 431 architecture integrates the multiplexer and A/D converter on a single board, eliminating the need for a second slot and reducing wiring complexity by 50% compared to dual 8-channel configurations.
• For mixed-signal installations, this module accepts both voltage (±10 V) and current (4–20 mA) inputs on the same module simultaneously, because each channel pair is independently configurable via STEP 7 hardware configuration without hardware jumpers.
• For noise-sensitive process environments, this module provides 50 Hz/60 Hz interference suppression selectable per module, because the integrated digital filter attenuates power-line frequency interference at the A/D conversion stage before data reaches the CPU.
• For high-availability control systems, this module supports hot-swap replacement on redundant S7-400H systems, because the S7-400 backplane architecture maintains CPU operation during module exchange without process interruption.
• For long-term maintenance scenarios, this module retains full compatibility with STEP 7 V5.x and TIA Portal V13+, because Siemens maintains backward-compatible GSD/hardware catalog entries across software generations.
• For applications requiring rapid fault diagnosis, this module provides channel-level diagnostic interrupts to the CPU, because each channel independently reports wire-break, overflow, and underflow conditions via the S7-400 diagnostic buffer without polling overhead.

System Architecture & Signal Flow

Field transmitters (4–20 mA or voltage sources) connect to the 48-pin front connector. Each channel passes through input protection circuitry, then to a multiplexed A/D converter. Converted digital values are written to the module’s process image, transferred via the S7-400 backplane P-bus to the CPU’s input process image (PAE) each scan cycle. The CPU executes PID or logic blocks against these values and writes outputs to the output process image (PAA).

Compatible Modules & System Components:

• 6ES7407-0KA02-0AA0 / 6ES7407-0KR02-0AA0 — PS 407 power supplies; provide the 24 VDC L+ required by this module.
• 6ES7412-2XK07-0AB0 / 6ES7414-3XM07-0AB0 — S7-400 CPUs; fully compatible via standard S7-400 backplane protocol.
• 6ES7492-1AL00-0AA0 — 48-pin front connector (screw terminals); mandatory accessory for field wiring termination.
• 6ES7431-1KF10-0AB0 — 8-channel SM 431 variant; direct substitute when only 8 signals are required and a spare slot is available.
• 6ES7431-7KF10-0AB0 — High-precision SM 431 variant; substitute when per-channel 15-bit resolution is required at the cost of reduced channel count.

Substitution Conditions: The 6ES7431-7QH00-0AB0 can replace the 6ES7431-1KF20-0AB0 (older 16-channel variant) directly in existing racks with STEP 7 hardware reconfiguration. Substitution for safety-rated (F-) modules is not applicable — F-modules require dedicated SIL-rated hardware.

Sourcing & Quality Verification

Units offered through Konmask.com are sourced from authorized industrial distributors, decommissioned OEM production lines, and verified secondary-market channels. Each unit undergoes a structured incoming inspection before listing.

4-Step Verification Process:

1. Label & Marking Inspection: Part number, firmware version, and date code verified against Siemens label specifications. Counterfeit indicators (font inconsistency, adhesive residue, incorrect hologram placement) checked under magnification.
2. Physical Condition Assessment: Connector pins, front connector latch, module locking tab, and PCB edge connector inspected for deformation, corrosion, or mechanical damage.
3. Functional Power-On Test: Module seated in S7-400 test rack, powered, and interrogated via STEP 7 for correct module identification, firmware version readback, and absence of hardware fault codes.
4. Channel Continuity Verification: Representative channel inputs stimulated with calibrated 4–20 mA source; digital output values verified within ±0.5% of expected conversion result.

Documentation Available Upon Request: Test report, incoming inspection checklist, Siemens product datasheet (original), declaration of conformity copy, and high-resolution label photographs.

Procurement Process

1. Inquiry Submission: Submit part number, required quantity, and delivery timeline via the product page inquiry form or directly to support@konmask.com. Include firmware version requirements if applicable.
2. Quotation & Stock Confirmation: A response with confirmed stock status, unit price, lead time, and shipping options will be provided within 24 hours on business days. Bulk quantity pricing available for orders of 3+ units.
3. Order Confirmation & Dispatch: Upon payment confirmation, units are packed in anti-static ESD bags with foam cushioning and dispatched with tracking. Export documentation (commercial invoice, packing list, COO) provided for international shipments.

Technical Support: Pre-sales engineering support is available for compatibility verification, rack slot planning, and STEP 7 configuration guidance. Post-sales support covers installation questions and DOA assessment within 7 days of receipt.

Technical FAQ

Q: Is the 6ES7431-7QH00-0AB0 compatible with both S7-400 and S7-400H (redundant) systems?
A: Yes. The module is fully compatible with standard S7-400 racks (UR1, UR2) and S7-400H redundant systems. In H-systems, both CPUs access the module via the standard backplane; hot-swap capability is maintained provided the rack supports it. No additional configuration is required beyond standard STEP 7 hardware setup.

Q: Can the 6ES7431-7QH00-0AB0 directly replace the older 6ES7431-1KF20-0AB0 in an existing installation?
A: Physical replacement is direct — both modules occupy one S7-400 slot and use the same 48-pin front connector. A STEP 7 hardware reconfiguration is required to update the module entry in the rack configuration. The channel count (16) and supported input ranges are equivalent; verify that the firmware version of the replacement unit meets any minimum version requirements specified in the existing project documentation.

Q: Does this module carry ATEX certification for use in Zone 1 hazardous areas?
A: The 6ES7431-7QH00-0AB0 itself is rated for Zone 2 (with appropriate Zener barriers or galvanic isolators in the signal loop). For Zone 1 installation, the module must remain in a purged/pressurized enclosure (Ex p) or signals must be routed through certified Ex ia/ib isolators. Direct Zone 1 installation without additional protective measures is not permitted. Consult the applicable IEC 60079 installation standard and the project’s area classification documentation before specifying.

---
