SIEMENS 6SL3060-4AB20-0AA0 DRIVE-CLiQ Cable | Replacement, Equivalent & Selection Guide

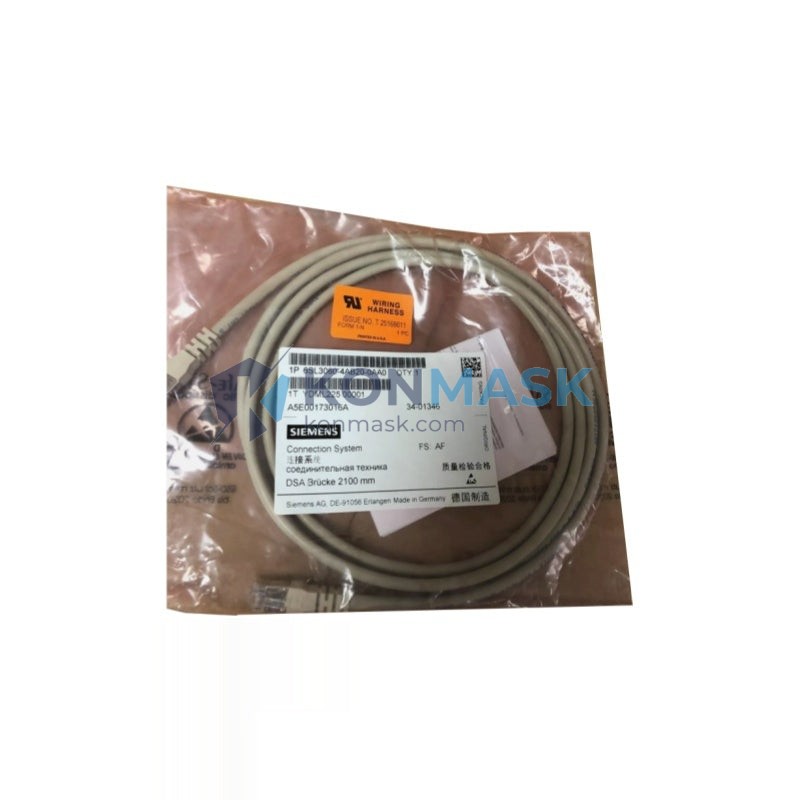

The SIEMENS 6SL3060-4AB20-0AA0 is a pre-assembled DRIVE-CLiQ signal cable designed for SINAMICS drive systems. It enables high-speed, reliable communication between SINAMICS components such as Control Units, Motor Modules, and encoders. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make the right choice.
Technical Specifications
- Part Number: 6SL3060-4AB20-0AA0
- Brand: SIEMENS
- Series: SINAMICS / DRIVE-CLiQ
- Cable Type: Pre-assembled DRIVE-CLiQ signal cable
- Connector: RJ45-style DRIVE-CLiQ plug on both ends
- Cable Length: 2.0 m (standard)
- Application: SINAMICS S120, S150, G120, G130, G150 drive systems
- Weight: Approx. 2,500 g (packaged)
- Compliance: CE, UL listed
- Operating Temperature: -20°C to +70°C
Compatible Replacement & Equivalent Models
The following SIEMENS DRIVE-CLiQ cables are functionally compatible or serve as direct replacements depending on cable length and connector type:
- 6SL3060-4AB10-0AA0 — DRIVE-CLiQ cable, 1.0 m (shorter alternative)
- 6SL3060-4AB30-0AA0 — DRIVE-CLiQ cable, 3.0 m (longer alternative)
- 6SL3060-4AB50-0AA0 — DRIVE-CLiQ cable, 5.0 m
- 6SL3060-4AB00-0AA0 — DRIVE-CLiQ cable, 0.35 m (ultra-short)
- 6SL3060-4AX20-0AA0 — DRIVE-CLiQ cable with 90° connector variant
Note: Always verify connector type and cable length against your system layout before substituting.
Why Choose the Original Model
- Factory-tested and certified for SINAMICS drive communication integrity
- Shielded construction minimizes EMI interference in high-frequency drive environments
- Plug-and-play compatibility — no configuration required
- Guaranteed signal fidelity for encoder feedback and drive-to-drive communication
- Backed by SIEMENS global warranty and traceability
Typical Applications
- SINAMICS S120 booksize and chassis drive systems
- SINAMICS G120 / G130 / G150 variable frequency drives
- CNC machine tool spindle and axis drive wiring
- Industrial robot and servo drive integration
- Conveyor, pump, and fan drive control panels
- Retrofit and upgrade projects replacing legacy drive cabling
System Compatibility
- Control Units: CU320-2 DP, CU320-2 PN, CU310-2 DP/PN
- Motor Modules: Single Motor Module, Double Motor Module (booksize)
- Power Modules: PM240-2, PM340
- Encoder Systems: SMC10, SMC20, SMC30 Sensor Module Cabinet-Mounted
- Line Modules: Active Line Module, Basic Line Module
Selection Guide
Use the table below to select the correct DRIVE-CLiQ cable length for your installation:
- ≤ 1.0 m: 6SL3060-4AB10-0AA0 — for compact cabinet layouts
- 2.0 m (this model): 6SL3060-4AB20-0AA0 — standard inter-module distance
- 3.0 m: 6SL3060-4AB30-0AA0 — for wider cabinet or cross-panel routing
- 5.0 m: 6SL3060-4AB50-0AA0 — for remote module placement
- 90° connector needed: 6SL3060-4AX20-0AA0 — for space-constrained connector areas
Tip: DRIVE-CLiQ cables must not exceed the maximum cable length specified in the SINAMICS system manual. Consult SIEMENS SINAMICS S120 Function Manual for topology rules.
Quality Assurance & Sourcing
- All units sourced from authorized SIEMENS distribution channels or verified surplus stock
- Each cable inspected for connector integrity, shielding continuity, and labeling accuracy
- Serialized traceability available upon request for MRO and OEM procurement
- Export documentation (CO, packing list, commercial invoice) provided for international orders
- Konmask.com specializes in industrial automation components for B2B buyers globally
How to Order
- Step 1: Confirm your required cable length and connector orientation
- Step 2: Add 6SL3060-4AB20-0AA0 to cart or contact us for bulk pricing
- Step 3: Provide your shipping destination for freight quote (DHL / FedEx / sea freight available)
- Step 4: Receive order confirmation with lead time and tracking
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I use a longer DRIVE-CLiQ cable as a replacement for 6SL3060-4AB20-0AA0?
A: Yes, provided the total cable length does not exceed SINAMICS topology limits. Refer to the system manual for maximum distances.
Q: Is 6SL3060-4AB20-0AA0 compatible with SINAMICS G120?
A: Yes, DRIVE-CLiQ cables are compatible across SINAMICS S120, G120, G130, and G150 platforms that use DRIVE-CLiQ topology.
Q: Can third-party DRIVE-CLiQ cables be used?
A: SIEMENS recommends using original DRIVE-CLiQ cables to ensure signal integrity and warranty compliance. Third-party cables may cause communication faults.
Q: What is the lead time for 6SL3060-4AB20-0AA0?
A: In-stock items ship within 1–3 business days. Contact us for current availability and bulk order lead times.
Q: Do you provide a certificate of origin or test report?
A: Yes, documentation is available upon request for all orders.
