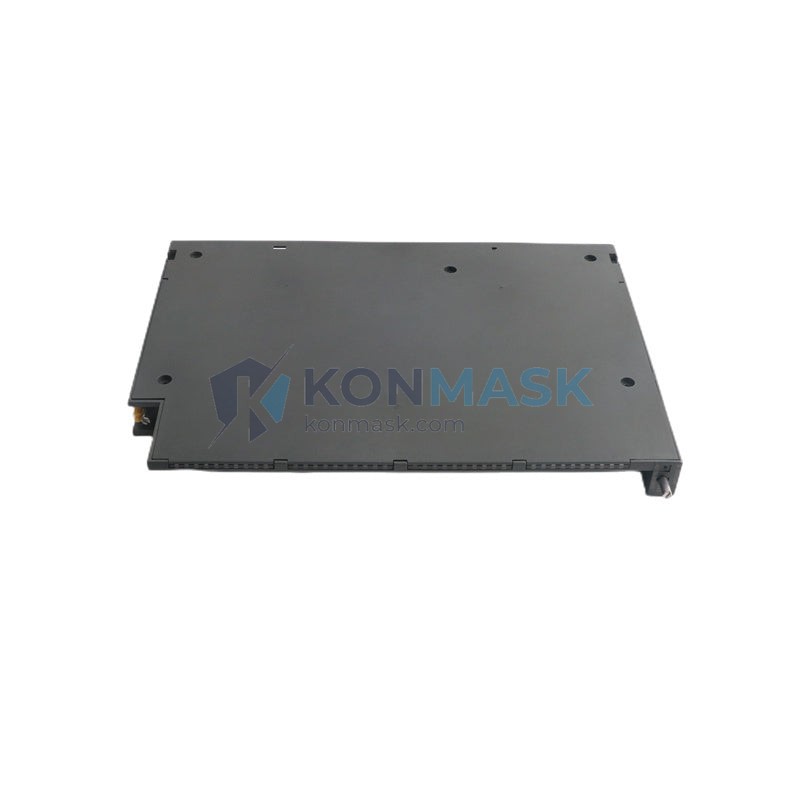

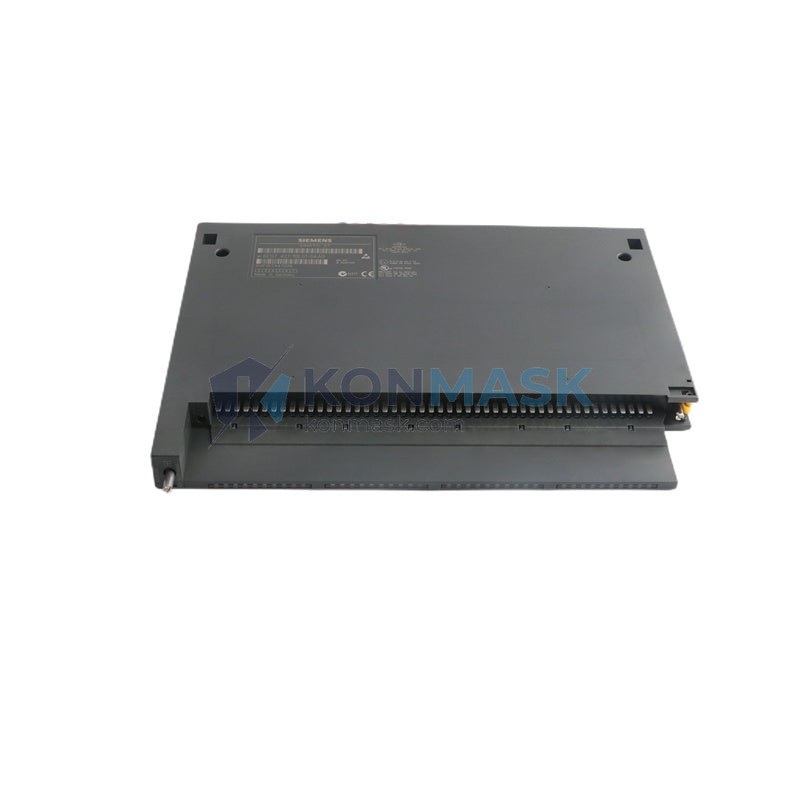

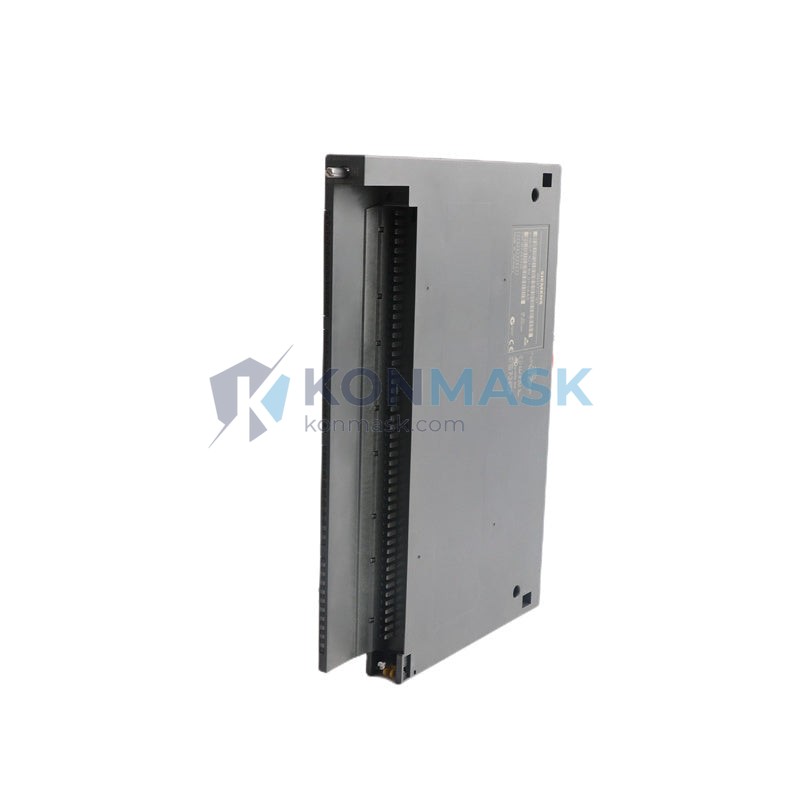

SIEMENS 6ES7421-1BL01-0AA0 32-Point Digital Input Module – SIMATIC S7-400 Series
When a digital input module fails mid-shift in a continuous process plant, the PLC loses visibility of field signals — limit switches go dark, proximity sensors stop reporting, and the safety interlock chain breaks. Operators are forced into manual override or emergency shutdown, costing thousands per hour in lost production. The 6ES7421-1BL01-0AA0 is the module that prevents this scenario: a 32-channel, 24 V DC digital input module engineered for the SIMATIC S7-400 rack, delivering deterministic signal acquisition with the electrical isolation and diagnostic depth that process-critical applications demand.
Within the S7-400 family — Siemens’ flagship controller platform for large-scale process and manufacturing automation — the 6ES7421-1BL01-0AA0 occupies the high-density input tier. Its 32 channels per slot deliver twice the I/O density of the 16-point SM 421 variants, making it the preferred choice for installations where rack space is constrained and channel count is non-negotiable. Deployed across petrochemical complexes, automotive body shops, and power generation facilities on every continent, this module has accumulated decades of field-proven reliability in environments where failure is not an option.
Technical Specifications
Electrical
- Number of inputs: 32 (galvanically isolated in groups of 16)
- Rated input voltage: 24 V DC
- Input voltage range: 15–30 V DC (signal “1”); 0–5 V DC (signal “0”)
- Input current at rated voltage: approx. 7 mA per channel
- Input delay (adjustable): 0.1 ms / 0.5 ms / 3 ms / 15 ms
- Backplane bus current consumption: max. 100 mA (5 V DC via S7-400 bus)
- Power dissipation: max. 3.5 W
- Isolation: 500 V AC between channels and backplane bus
Mechanical
- Form factor: S7-400 single-width module
- Connector: 48-pin front connector (not included; order 6ES7492-1AL00-0AA0)
- Weight: approx. 600 g
- Dimensions (W × H × D): 25 mm × 290 mm × 210 mm
Environmental
- Operating temperature: 0 °C to +60 °C
- Storage temperature: −40 °C to +70 °C
- Relative humidity: 10–95 % (non-condensing), per IEC 60068-2-30
- Degree of protection: IP20
- Vibration resistance: 10–58 Hz, 0.075 mm amplitude; 58–150 Hz, 1 g (IEC 60068-2-6)
Certifications & Standards
- CE, UL, cUL, FM, ATEX (Zone 2)
- Compliant with IEC 61131-2 (Programmable Controllers — Equipment Requirements)
Key Features & Benefits
- 32 channels per slot — Doubles I/O density versus 16-point alternatives, reducing rack slots required by 50% and lowering total hardware cost in large I/O-intensive installations.
- Adjustable input delay (0.1–15 ms) — Engineers can tune debounce time per application: 0.1 ms for high-speed encoder feedback, 15 ms for mechanical limit switches prone to contact bounce, eliminating spurious interrupts without additional filtering hardware.
- Group isolation (16 channels per group) — Galvanic isolation between channel groups and the backplane bus protects the CPU from field-side transients and ground loops, a requirement in mixed-voltage field environments.
- Diagnostic interrupt capability — The module reports wire-break and short-circuit faults directly to the CPU diagnostic buffer, enabling predictive maintenance routines and reducing mean time to repair (MTTR) by surfacing faults before they cause process trips.
- IEC 61131-2 compliant input thresholds — Guaranteed signal “1” recognition above 15 V DC and signal “0” below 5 V DC, ensuring interoperability with any IEC-compliant field device without threshold adjustment.
- Hot-swap compatible with S7-400 UR/ER racks — Modules can be replaced under power in redundant S7-400H configurations, supporting zero-downtime maintenance in continuous-process plants.
Industry & Equipment Applications
- Oil & Gas / Petrochemical: Wellhead control panels, compressor station safety interlock systems, pipeline pig-launcher position monitoring — environments requiring ATEX Zone 2 compliance and high channel density.
- Automotive Manufacturing: Body-in-white welding lines, transfer press limit-switch arrays, paint-shop conveyor position detection — high-speed, high-channel-count applications where 0.1 ms input delay is critical.
- Power Generation & Utilities: Turbine auxiliary control panels, switchgear position feedback, substation bay controllers — applications demanding 24/7 availability and diagnostic transparency.
- Pharmaceutical & Food Processing: CIP/SIP valve position monitoring, clean-room door interlock systems, batch reactor level switch arrays — GMP-regulated environments requiring full audit trails via CPU diagnostic buffer.
- Water & Wastewater Treatment: Pump station dry-run protection, filter backwash sequence control, overflow alarm aggregation — remote unmanned sites where diagnostic interrupts reduce truck-roll maintenance costs.
- Metals & Mining: Rolling mill pass-line detection, conveyor belt alignment switches, crusher overload interlock chains — high-vibration environments validated against IEC 60068-2-6.
System Integration & Compatible Parts
Compatible Racks: SIMATIC S7-400 UR1, UR2, UR2-H, ER1, ER2 expansion racks. Not compatible with S7-300 or S7-1500 backplanes.
Required Accessories:
- Front connector: 6ES7492-1AL00-0AA0 (48-pin, screw terminals) — must be ordered separately
- Labeling strips: 6ES7492-2XX00-0AA0
Upstream Components: S7-400 CPUs (e.g., 6ES7412-2XK07-0AB0, 6ES7414-3XM07-0AB0, 6ES7416-3XR05-0AB0); S7-400 PS 407 power supplies.
Downstream Field Devices: 24 V DC proximity switches (PNP/NPN sourcing/sinking), mechanical limit switches, pushbutton stations, photoelectric sensors.
Equivalent / Successor Models:
- 6ES7421-1BL00-0AA0 — earlier hardware revision; functionally identical, direct drop-in replacement. Verify firmware compatibility with CPU version before substitution.
- 6ES7421-7BH01-0AB0 — 16-point variant with individual channel isolation; use when per-channel isolation is required rather than group isolation.
Our Quality Assurance Process
Every 6ES7421-1BL01-0AA0 unit shipped from Konmask.com passes a four-stage inspection protocol:
- Visual & Mechanical Inspection: Housing integrity, connector pin condition, label authenticity, and firmware version verification against Siemens product lifecycle records.
- Powered Functional Test: Module is seated in an S7-400 test rack, all 32 input channels are exercised with calibrated 24 V DC test signals, and diagnostic buffer output is verified.
- Isolation & Insulation Test: Hi-pot test at 500 V AC between channel groups and backplane bus, confirming isolation integrity per module specification.
- Final Documentation & Packaging: Test report generated, serial number logged, ESD-safe packaging applied, and anti-static seal affixed.
Available Documentation: Test report, product datasheet (Siemens original), certificate of conformity, photos of actual unit, packing list.
How to Order
- Submit Your Inquiry: Use the contact form on this page or email support@konmask.com with your required quantity, delivery timeline, and destination country.
- Receive Your Quote: Our technical team reviews your request and responds within 24 hours with pricing, lead time, and shipping options tailored to your project.
- Confirm & Ship: Upon order confirmation, we prepare the unit, issue a proforma invoice, and dispatch with full tracking. Export documentation available for international shipments.
We respond to all inquiries within 24 hours, Monday through Saturday.
Why Choose Konmask.com?
- Verified Stock, Not Broker Listings: We physically hold the inventory we list. Every unit is inspected before listing and re-inspected before shipment — no drop-shipping from unknown sources.
- Technical Pre-Sales Support: Our team includes engineers with hands-on S7-400 commissioning experience. We can advise on compatibility, firmware versions, and system integration before you commit to a purchase.
- Transparent Documentation: We provide test reports, datasheets, and photos of the actual unit upon request — not stock photography.
- Global Export Experience: We ship to 50+ countries with full export documentation, including commercial invoices, packing lists, and certificates of origin. DDP and DAP Incoterms available.
- Responsive After-Sales: If a unit does not perform as specified upon arrival, we resolve the issue — replacement or refund — without bureaucratic delay.
Frequently Asked Questions
Q: Is the 6ES7421-1BL01-0AA0 compatible with S7-400H redundant CPU systems?
A: Yes. The module is fully compatible with S7-400H high-availability configurations. In redundant rack setups, it supports hot-swap replacement without requiring a CPU restart, provided the rack is an UR2-H or equivalent redundancy-capable chassis. Always verify the CPU firmware version supports the module hardware revision before installation.
Q: What is the difference between 6ES7421-1BL01-0AA0 and 6ES7421-1BL00-0AA0 — can I use them interchangeably?
A: The -1BL01- suffix denotes a later hardware revision with minor manufacturing updates; both modules share identical electrical specifications and firmware interface. They are direct drop-in replacements in the same rack slot. However, if your project documentation or FAT protocol specifies a particular revision, confirm with your system integrator before substituting.
Q: Does the 6ES7421-1BL01-0AA0 support IEC 61131-2 Type 1, 2, or 3 input characteristics?
A: The module conforms to IEC 61131-2 Type 1 input characteristics (24 V DC, current-sinking). Signal “1” is recognized at ≥15 V DC / ≥2 mA, and signal “0” at ≤5 V DC / ≤1 mA. This makes it compatible with the vast majority of 24 V DC PNP and NPN field devices used in industrial automation, without requiring external signal conditioning.
{
