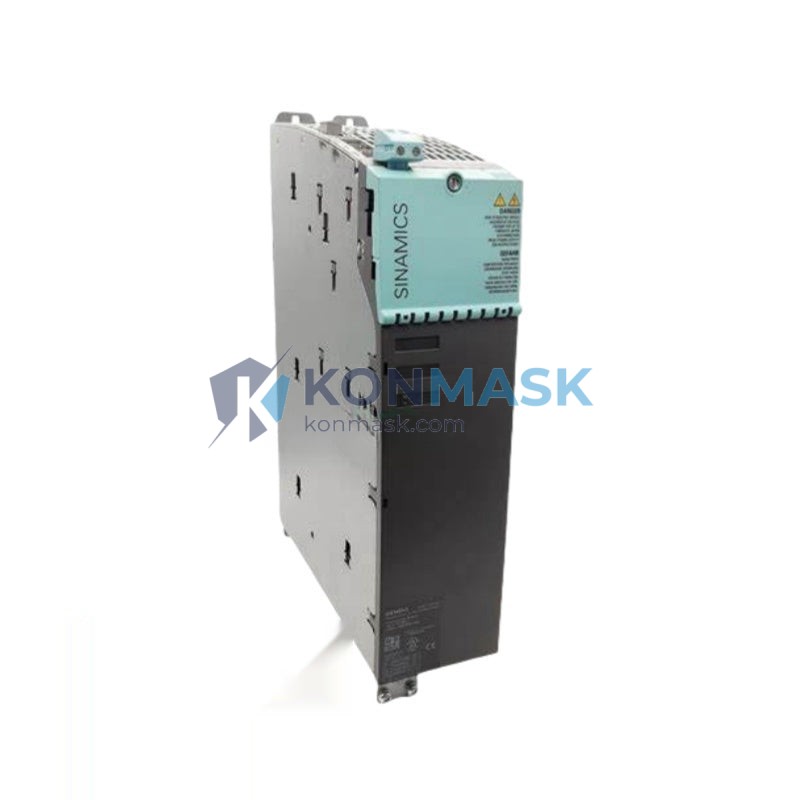

Genuine Siemens 6SL3120-1TE23 / 1TE26 / 1TE28 Single Motor Module | SINAMICS S120 – Verified Source
Konmask.com is a dedicated industrial automation components supplier specializing in genuine Siemens SINAMICS S120 drive systems. The Siemens 6SL3120-1TE2x Single Motor Module series is a booksize-format, single-axis power module designed for high-dynamic servo and vector drive applications. Every unit we supply is sourced through verified channels and undergoes our 4-step quality inspection before dispatch.
Technical Specifications
- Manufacturer: Siemens AG
- Product Family: SINAMICS S120
- Module Type: Single Motor Module (Booksize)
-
Part Numbers Covered:
- 6SL3120-1TE23-0AD0 — Output Current: 3 A (continuous)
- 6SL3120-1TE26-0AD0 — Output Current: 6 A (continuous)
- 6SL3120-1TE28-5AA3 — Output Current: 8.5 A (continuous)
- 6SL3120-1TE23-5AA3 — Output Current: 3.5 A (continuous)
- 6SL3120-1TE28-0AD0 — Output Current: 8 A (continuous)
- 6SL3120-1TE20-8AC0 — Output Current: 0.8 A (continuous)
- 6SL3120-1TE21-0AC0 — Output Current: 1 A (continuous)
- DC Link Voltage: 600 V DC
- Output Frequency: 0 – 650 Hz
- Cooling Method: Forced air cooling (integrated fan)
- Communication Interface: DRIVE-CLiQ
- Protection Class: IP20
- Ambient Temperature: 0 °C to +40 °C (derated to +55 °C)
- Standards: CE, UL, cUL, RoHS
- Weight: ~15 kg (varies by variant)
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All units are procured directly from Siemens-authorized distributors or verified OEM surplus channels. We reject any unit without traceable documentation.
- Step 2 – Physical Inspection: Each module is inspected for label integrity, firmware version, connector condition, and housing damage before acceptance into stock.
- Step 3 – Functional Pre-Test: Where applicable, units are bench-tested for power-on response, DRIVE-CLiQ communication handshake, and fault-code readout.
- Step 4 – Secure Packaging: Modules are packed in anti-static ESD bags, foam-lined boxes, and double-walled cartons with shock indicators for international freight.
Key Features & Benefits
- ✅ Genuine Siemens hardware — not refurbished, not counterfeit
- ✅ DRIVE-CLiQ plug-and-play — automatic parameter download from motor encoder
- ✅ Compact booksize design — maximizes cabinet space efficiency
- ✅ Shared DC bus architecture — energy regeneration between axes reduces operating costs
- ✅ Safe Torque Off (STO) — integrated SIL 2 / PLe safety function
- ✅ Wide current range — 0.8 A to 8.5 A variants cover most servo axis requirements
- ✅ Firmware-compatible — works with SINAMICS S120 CU320-2 and CU310-2 Control Units
Typical Applications
- CNC machine tool spindle and feed axis drives
- Packaging machinery with multi-axis synchronization
- Printing and converting line servo control
- Robotics and gantry positioning systems
- Textile and winding machine tension control
- Semiconductor and electronics assembly equipment
Compatible System Components
- Control Units: 6SL3040-1MA01-0AA0 (CU320-2 DP), 6SL3040-1MA00-0AA0 (CU320-2 PN)
- Line Modules: 6SL3130-6AE21-0AB1 (Active Line Module), 6SL3130-7TE21-6AA3 (Smart Line Module)
- Braking Resistors: 6SL3201-0BE21-0AA0 series
- SINAMICS S120 Motors: 1FK7, 1FT7, 1PH8 series synchronous/induction motors
- Encoder Systems: SMC20, SMC30 Sensor Module Cabinet-Mounted
Global Sourcing & Shipping Capabilities
Konmask.com ships to over 50 countries worldwide. We offer:
- Express Air Freight: DHL / FedEx / UPS — typical transit 3–7 business days
- Sea Freight: Available for bulk orders (5+ units) — 15–30 days
- Export Documentation: Commercial invoice, packing list, certificate of origin, and ECCN classification provided on request
- Customs Support: HS Code 8504.40 — we assist with import declaration documentation
- Lead Time: In-stock units ship within 1–3 business days; sourced units 7–14 business days
Certifications & Compliance Statement
All Siemens 6SL3120-1TE2x Motor Modules supplied by Konmask.com comply with the following standards:
- CE Marking — EU Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL / cUL Listed — UL 508C (Power Conversion Equipment)
- RoHS Compliant — Directive 2011/65/EU
- ISO 9001:2015 — Siemens manufacturing quality management
- Functional Safety: IEC 62061 SIL 2 / ISO 13849-1 PLe (STO function)
Konmask.com is an independent reseller and is not an official Siemens distributor. All brand names and part numbers are used for identification purposes only.
How to Order
- Confirm your exact part number — check the nameplate on your existing module or your machine’s BOM for the full 6SL3120-1TE2x-xAx0 code.
- Request a quote — email support@konmask.com or call +0086 19859288691 with your part number and required quantity.
- Confirm stock & lead time — we will reply within 24 hours with availability, pricing, and estimated ship date.
- Place your order — pay securely via T/T bank transfer, PayPal, or credit card. A proforma invoice is issued for all orders.
- Track your shipment — a tracking number is provided within 24 hours of dispatch.
Authenticity & Trust FAQ
Q: Are these genuine Siemens parts?
A: Yes. We source exclusively from verified supply chains. We do not sell counterfeit, cloned, or remanufactured units. If you have any doubt, we can provide sourcing documentation upon request.
Q: Do you offer a warranty?
A: Yes. All units carry a 12-month warranty against manufacturing defects from the date of shipment. DOA (Dead on Arrival) units are replaced or refunded within 30 days.
Q: Can you supply multiple variants of the 6SL3120-1TE2x series?
A: Yes. We stock or can source all current-rating variants. Please specify your exact part number when enquiring.
Q: Do you accept returns?
A: Yes. Unused, unopened units in original packaging may be returned within 14 days. Please contact us before returning any item.
Q: Can you provide a datasheet or wiring diagram?
A: Yes. We can provide the official Siemens SINAMICS S120 Booksize Power Units manual (6SL3097-4AB00-0BP5) and relevant wiring diagrams upon request.
