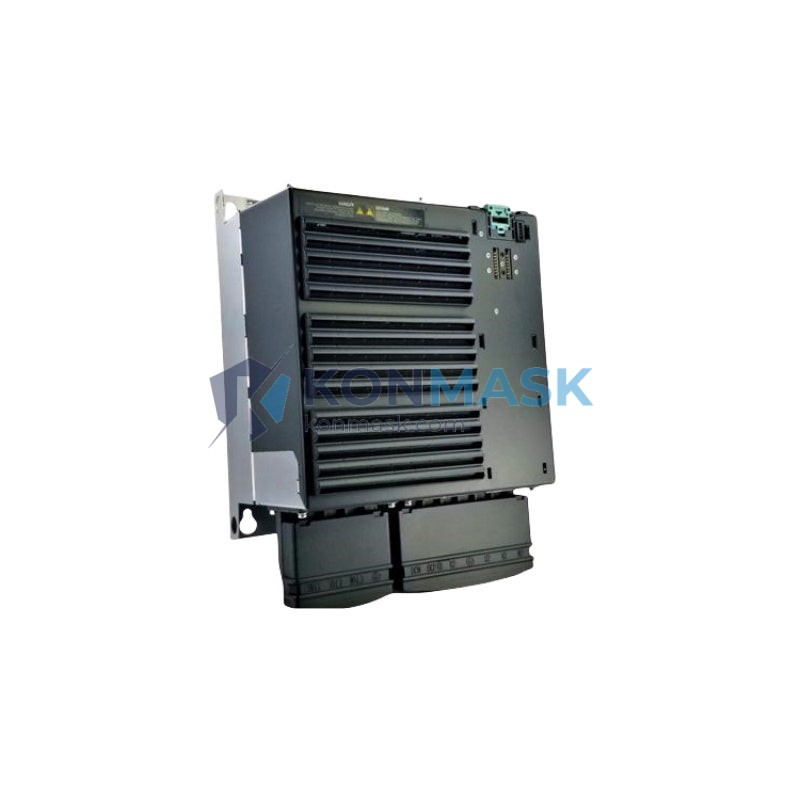

SIEMENS 6SL3224-0BE33-7AA0 – Three-Phase Power Module | SINAMICS S120 Platform
Engineering Background
The SINAMICS S120 drive system is Siemens’ flagship modular AC drive platform, engineered for high-performance motion control in demanding industrial environments. The S120 architecture separates the infeed and motor modules, enabling precise multi-axis coordination with a shared DC bus — a topology widely adopted in machine tools, packaging lines, printing presses, and robotics cells.
Product Positioning
The 6SL3224-0BE33-7AA0 is a booksize format Power Module within the SINAMICS S120 series, rated at 37 kW output power with a 3AC 380–480 V supply input. It operates as a self-contained single-axis drive unit — integrating the infeed and inverter functions — making it ideal for retrofit projects, standalone servo axes, and applications where a compact, cost-effective drive solution is required without a separate Active Line Module.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Order Number | 6SL3224-0BE33-7AA0 |
| Series / Platform | SINAMICS S120 Booksize |
| Module Type | Power Module (PM340) |
| Rated Output Power | 37 kW |
| Rated Output Current | 72 A |
| Supply Voltage | 3AC 380 V – 480 V (±10%) |
| Supply Frequency | 47 – 63 Hz |
| DC Link Voltage | 510 – 720 V DC |
| Output Frequency Range | 0 – 550 Hz |
| Overload Capability | 150% for 60 s (High Overload); 110% for 60 s (Low Overload) |
| Cooling Method | Internal fan (forced air) |
| Protection Class | IP20 |
| Ambient Temperature | 0 °C to +40 °C (derating above 40 °C) |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | ≤ 95% (non-condensing) |
| Altitude | Up to 1000 m without derating |
| Drive Control Interface | DRIVE-CLiQ |
| Braking | External braking resistor (optional) |
| Weight | 6.8 kg |
| Compliance / Certifications | CE, UL, cUL, RoHS |
| Siemens Product Lifecycle | Active |
Proven Application Environments
- Machine Tools: CNC milling, turning centers, and grinding machines requiring precise spindle and feed axis control.
- Packaging Machinery: High-speed form-fill-seal lines, cartoners, and palletizers with dynamic load profiles.
- Printing & Converting: Web tension control, register accuracy, and multi-axis synchronization in offset and flexo presses.
- Robotics & Handling: Servo-driven gantries, SCARA arms, and pick-and-place systems demanding fast torque response.
- Pump & Fan Drives: Variable-speed process pumps and HVAC fans in industrial plants requiring energy optimization.
- Textile & Wire Drawing: Constant tension winding and unwinding applications with regenerative load cycles.
Engineering Advantages
- Integrated Infeed + Inverter: Eliminates the need for a separate Line Module, reducing panel footprint and wiring complexity in single-axis applications.
- DRIVE-CLiQ Interface: Siemens’ proprietary digital drive bus enables automatic motor identification, encoder feedback integration, and seamless CU320-2 Control Unit pairing.
- High Dynamic Response: Vector control with encoder feedback supports torque rise times < 5 ms, critical for servo-quality positioning.
- Booksize Form Factor: Standardized mounting rail system allows modular cabinet assembly and future capacity expansion without redesign.
- Safe Torque Off (STO): Integrated SIL2 / PLd safety function per IEC 62061 / ISO 13849-1, reducing external safety relay requirements.
- Wide Voltage Tolerance: ±10% supply voltage tolerance ensures stable operation in facilities with fluctuating grid quality.
System Architecture & Signal Flow
In a SINAMICS S120 Booksize system, the 6SL3224-0BE33-7AA0 Power Module connects directly to the 3-phase supply and outputs variable-frequency AC to the motor. The DRIVE-CLiQ cable links the module to the CU320-2 Control Unit, which handles all closed-loop control algorithms, setpoint processing, and communication (PROFIBUS / PROFINET). An optional Smart Line Module or Active Line Module can be added upstream for regenerative energy feedback to the grid. The STO safety input connects directly to the machine safety PLC (e.g., SIMATIC S7-1500F) via a 24 V digital output.
Typical signal flow: Grid → Circuit Breaker → Line Filter → 6SL3224-0BE33-7AA0 PM → Motor → Encoder feedback via DRIVE-CLiQ → CU320-2 → PROFINET → S7-1500 PLC
Sourcing & Quality Verification
- Origin: Sourced from authorized Siemens distribution channels and verified OEM supply chains.
- Inspection: Each unit undergoes incoming inspection including label verification (order number, date code, serial number), physical integrity check, and firmware version confirmation where applicable.
- Authenticity: Siemens holographic labels and SIETRONIC traceability codes verified prior to dispatch.
- Packaging: Ships in original Siemens ESD-protective packaging with full documentation set (Declaration of Conformity, quick-start guide).
- Warranty: 12-month Konmask quality warranty covering manufacturing defects; Siemens OEM warranty terms apply where applicable.
Procurement Process
- Step 1 – Inquiry: Submit your BOM or part number via email to support@konmask.com or WhatsApp +0086 19859288691.
- Step 2 – Quotation: Receive a formal quotation with lead time, unit price (EXW/FOB/CIF options), and availability confirmation within 24 business hours.
- Step 3 – Order Confirmation: Issue a Purchase Order; proforma invoice issued for payment processing (T/T, L/C, or agreed terms).
- Step 4 – Inspection & Dispatch: Pre-shipment inspection report provided; shipment via DHL / FedEx / sea freight per customer preference.
- Step 5 – After-Sales: Technical support available for commissioning, parameter backup, and fault diagnosis via remote session.
Technical FAQ
Q: Can the 6SL3224-0BE33-7AA0 operate without a CU320-2 Control Unit?
A: No. As a Power Module, it requires a compatible Control Unit (CU310-2 or CU320-2) connected via DRIVE-CLiQ to execute drive control functions. It cannot operate standalone.
Q: Is an external line filter required?
A: Siemens recommends an external EMC line filter (e.g., 6SL3203 series) to meet EN 61800-3 Category C2 emission limits. Check your local grid requirements.
Q: What motor types are compatible?
A: Compatible with Siemens 1FK7, 1FT7, 1PH8 servo/induction motors and third-party motors with DRIVE-CLiQ encoder adapters (SMC modules).
Q: Can it handle regenerative braking?
A: The PM340 does not feed energy back to the grid. For regenerative applications, use an Active Line Module (ALM) topology. An external braking resistor (6SL3201 series) can be connected for dynamic braking.
Q: What firmware version is pre-loaded?
A: Firmware version varies by production date. Konmask confirms the firmware version upon order and can supply units with specific firmware on request for compatibility with existing CU firmware baselines.
Q: Is this module suitable for ATEX / hazardous area installations?
A: The standard 6SL3224-0BE33-7AA0 is rated IP20 and is not ATEX-certified. For hazardous area use, consult Siemens for appropriate enclosure and drive variants.
