Siemens 6SL3120-2TE15-0AA4 SINAMICS S120 Double Motor Module | Replacement, Equivalent & Selection Guide

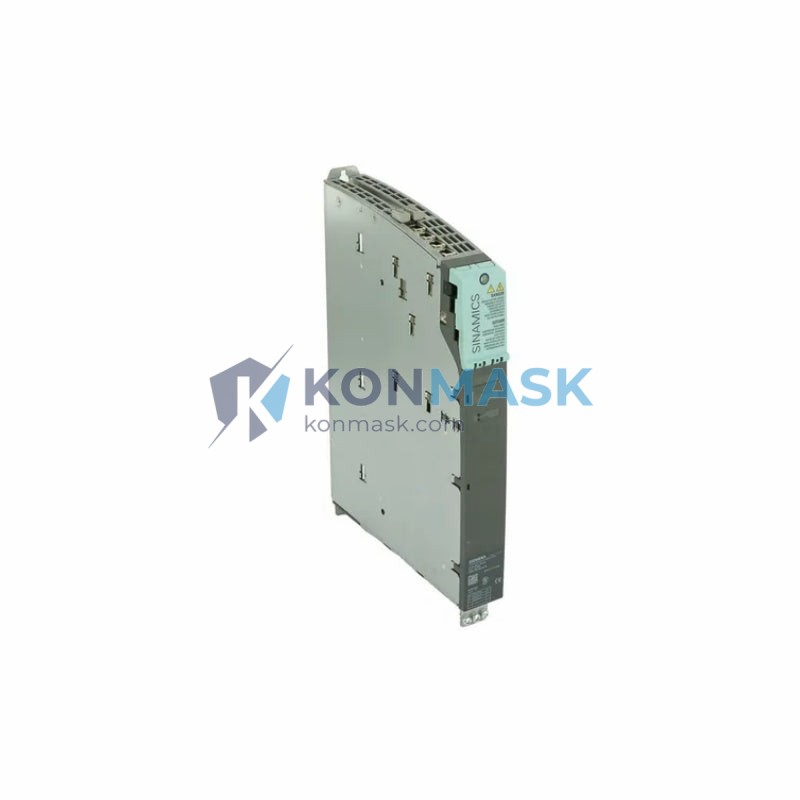

The Siemens 6SL3120-2TE15-0AA4 is a SINAMICS S120 Double Motor Module designed for booksize format multi-axis drive systems. It enables simultaneous control of two servo or induction motors from a single DC bus connection, making it ideal for compact, high-performance automation applications in manufacturing, machine tools, and process industries.
Technical Specifications
- Part Number / SKU: 6SL3120-2TE15-0AA4
- Brand: Siemens
- Series: SINAMICS S120
- Type: Double Motor Module (Booksize)
- Output Current (per axis): 5 A
- DC Bus Voltage: 600 V DC
- Format: Booksize
- Axes: 2 (dual-axis)
- Communication: DRIVE-CLiQ
- Cooling: Forced air cooling
- Protection Class: IP20
- Country of Origin: Germany
- HS Code: 853710
- Weight: approx. 5.3 kg
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or alternatives to the 6SL3120-2TE15-0AA4. Always verify electrical and mechanical compatibility before substitution:
- 6SL3120-2TE13-0AA3 – Previous generation double motor module, lower output current (3 A/axis); suitable for lighter loads
- 6SL3120-2TE21-0AA3 – Higher current variant (10 A/axis); drop-in upgrade for higher torque requirements
- 6SL3120-2TE21-8AA3 – Enhanced version with Safety Integrated functions
- 6SL3120-1TE23-0AA3 – Single motor module equivalent for single-axis applications
- 6SL3120-2TE15-0AD0 – Variant with different firmware/hardware revision; confirm compatibility with your CU320-2 or CU310-2 control unit
Note: Cross-referencing requires matching DC bus voltage, output current, DRIVE-CLiQ firmware version, and booksize form factor. Contact Konmask for verified compatibility checks.
Why Choose the Original Model
- ✅ Dual-axis efficiency – Controls two motors from one module, reducing cabinet space and wiring complexity
- ✅ Seamless SINAMICS S120 integration – Native DRIVE-CLiQ communication ensures plug-and-play compatibility with Siemens CU320-2, CU310-2, and ALM/SLM line modules
- ✅ Proven reliability – Manufactured to Siemens’ stringent quality standards with full CE/UL certification
- ✅ Safety Integrated ready – Supports STO (Safe Torque Off) and other SIL2/PLe safety functions when paired with compatible control units
- ✅ Long-term support – Backed by Siemens global spare parts and firmware update ecosystem
Typical Applications
- CNC machine tools (milling, turning, grinding centers)
- Packaging and printing machinery
- Textile and winding machines
- Robotics and multi-axis servo systems
- Conveyor and material handling systems
- Injection molding machines
System Compatibility
The 6SL3120-2TE15-0AA4 is designed to operate within the SINAMICS S120 Booksize drive system. Verified compatible components include:
- Control Units: CU320-2 DP, CU320-2 PN, CU310-2 DP, CU310-2 PN
- Line Modules: Active Line Module (ALM), Smart Line Module (SLM), Basic Line Module (BLM) – Booksize
- Supplementary modules: Braking Module, Capacitor Module, Voltage Sensing Module
- Motors: 1FK7, 1FT7, 1PH8 series and compatible third-party servo/induction motors
- Engineering software: STARTER, Startdrive (TIA Portal V14+)
Selection Guide
Use the table below to select the correct SINAMICS S120 Double Motor Module for your application:
| Parameter | Consideration |
|---|---|
| Output current per axis | Match to motor rated current × 1.1 safety factor |
| Number of axes | Double module (2 axes) vs. Single module (1 axis) |
| Safety requirements | Standard vs. Safety Integrated (SIL2/PLe) |
| DC bus voltage | Must match line module output (typically 600 V DC) |
| Cooling method | Internal fan (standard) vs. Cold plate (chassis) |
| Firmware version | Must be compatible with your CU firmware version |
Not sure which module fits your system? Send your motor nameplate data and control unit type to support@konmask.com for a free selection consultation.
Quality Assurance & Sourcing
- 🔍 Source: Authorized distribution channels and verified surplus stock
- 📦 Condition: New, refurbished, and tested-used options available — clearly labeled
- 🧪 Testing: All units undergo functional verification before shipment
- 📄 Documentation: CE declaration, test reports, and original Siemens packaging where available
- 🌍 Global shipping: DHL / FedEx / UPS with full export documentation
- 🔒 Warranty: 12-month warranty on new units; 6-month on refurbished
How to Order
- Add 6SL3120-2TE15-0AA4 to cart and proceed to checkout, or
- Email support@konmask.com with your quantity, required condition, and delivery timeline
- WhatsApp / Phone: +0086 19859288691 for urgent inquiries
- Bulk orders and OEM procurement welcome — request a formal quotation
Replacement & Compatibility FAQ
Q: Can I replace 6SL3120-2TE15-0AA4 with 6SL3120-2TE21-0AA3?
A: Yes, if your motor requires more than 5 A per axis. The 10 A variant is a direct form-factor replacement but verify firmware compatibility with your control unit.
Q: Is this module compatible with SINAMICS S120 Chassis format?
A: No. The 6SL3120-2TE15-0AA4 is Booksize format only. For Chassis format, refer to the 6SL3121 series.
Q: Can I use a third-party motor with this module?
A: Yes, with proper encoder interface configuration. DRIVE-CLiQ motors are plug-and-play; non-DRIVE-CLiQ motors require a Sensor Module (SMC/SME).
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For new factory orders, lead time is typically 8–14 weeks. Contact us for current availability.
Q: Do you provide a test report?
A: Yes. All refurbished and tested-used units include a functional test report upon request.
