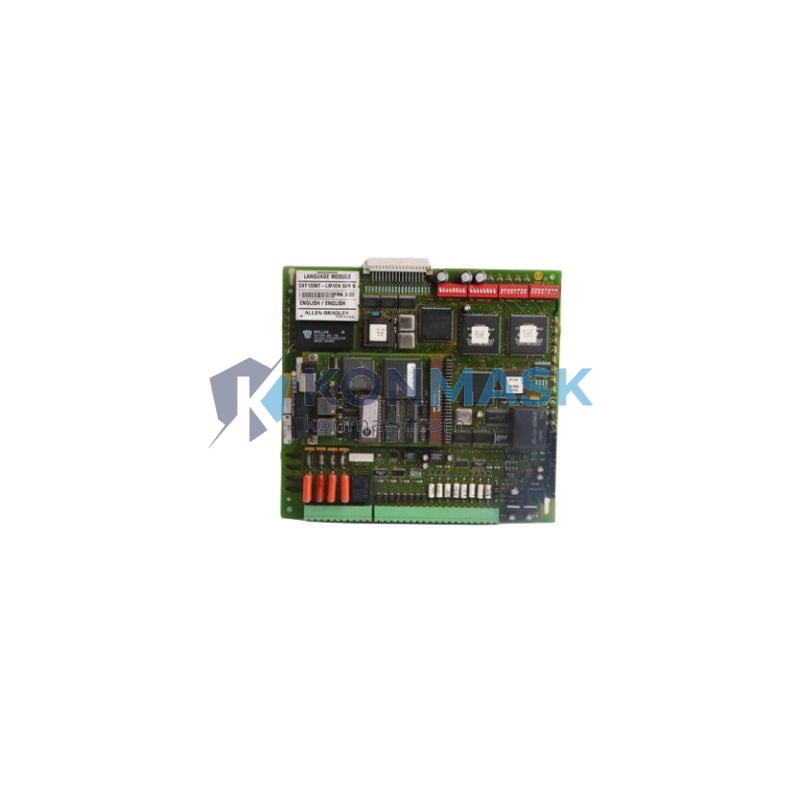

Allen-Bradley 74101-954-53 (1336T-GT3EN) – Control Board Drive | 1336 PLUS Series
Engineering Background
The Allen-Bradley 1336 PLUS series represents Rockwell Automation’s proven generation of AC variable-frequency drives, widely deployed across discrete manufacturing, process control, and material handling applications globally. The 74101-954-53 (1336T-GT3EN) is the dedicated control board assembly for this platform, serving as the central intelligence layer that governs PWM switching, speed regulation, fault diagnostics, and serial communications.
Product Positioning
This control board is the critical replacement component for 1336 PLUS drive systems experiencing control-layer failures — including communication faults, parameter loss, or gate-drive signal anomalies — without requiring full drive replacement. Procurement engineers sourcing this board can restore drive functionality at a fraction of the cost of a new drive unit.
Complete Technical Specifications
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Part Number | 74101-954-53 |
| Catalog / Series Code | 1336T-GT3EN |
| Product Family | 1336 PLUS AC Drive Series |
| Board Function | Main Control Board (PWM Control, I/O Interface, Communications) |
| Compatible Drive Platform | Allen-Bradley 1336 PLUS (1336T) Series AC Drives |
| Communication Protocol | DH-485 / Remote I/O (RIO) — per drive configuration |
| Control Architecture | Microprocessor-based closed-loop vector/V/Hz control |
| Parameter Storage | Non-volatile EEPROM |
| Fault Logging | Onboard fault queue with diagnostic codes |
| Operating Temperature | 0°C to +50°C (ambient, drive enclosure) |
| Weight | 480 g |
| Condition | Genuine OEM / Tested Surplus (specify at inquiry) |
Proven Application Environments
- Automotive Assembly Lines — Conveyor and transfer line drives requiring precise speed control and network integration
- Pulp & Paper Mills — Winder and unwinder drives with tension regulation via closed-loop feedback
- Water & Wastewater Treatment — Pump and blower drives with remote SCADA monitoring over RIO/DH-485
- Food & Beverage Processing — Mixer and filler line drives in washdown-adjacent environments
- Mining & Bulk Material Handling — Belt conveyor and crusher drives with high-cycle fault recovery requirements
- OEM Machine Retrofits — Legacy 1336 PLUS platforms requiring control board replacement to extend service life
Engineering Advantages
- Drop-in Replacement — Direct form-fit-function replacement for failed 1336T control boards; no drive chassis modification required
- Parameter Retention — EEPROM-based storage preserves drive parameters through power cycles and board swaps (re-commissioning recommended)
- Integrated Diagnostics — Onboard fault queue enables rapid root-cause analysis without external diagnostic tools
- Network-Ready — Native DH-485 and RIO support enables seamless integration into existing Allen-Bradley PLC networks (SLC 500, PLC-5)
- Cost-Effective Repair Path — Board-level replacement avoids full drive procurement lead times and capital expenditure
- Proven Field Reliability — 1336 PLUS platform has 20+ years of documented industrial deployment across global facilities
System Architecture & Signal Flow
The 74101-954-53 control board interfaces with the 1336 PLUS drive chassis at the following signal boundaries:
- Gate Drive Interface — Generates PWM firing signals to the IGBT/transistor power module; signal integrity directly governs motor output waveform quality
- Analog I/O — Accepts speed reference (0–10 VDC / 4–20 mA) and outputs process feedback signals to supervisory control systems
- Digital I/O — Interfaces with run/stop, fault reset, and multi-speed preset inputs from PLC or operator station
- Serial Communications Port — DH-485 or RIO network connection for parameter read/write and drive status monitoring from RSLogix/RSNetWorx
- Feedback Interface — Encoder or tachometer input for closed-loop speed/torque regulation (drive-configuration dependent)
Sourcing & Quality Verification
- Authenticity — All boards sourced from authorized dismantlers, OEM overstock, or certified repair facilities; counterfeit screening performed on every unit
- Functional Testing — Boards undergo power-on verification and communication port integrity checks prior to shipment
- Traceability — Date codes and revision levels documented; available upon request for MRO and compliance records
- Packaging — ESD-safe anti-static packaging with moisture barrier; suitable for long-term storage or immediate installation
- Warranty — 90-day functional warranty against defects in materials and workmanship (contact for extended warranty options)
Procurement Process
- Confirm Compatibility — Verify your drive’s nameplate catalog number matches 1336T series; cross-reference the existing control board part number against 74101-954-53
- Request Quote — Contact support@konmask.com or call +0086 19859288691 for current stock status, lead time, and volume pricing
- Submit PO — Purchase orders accepted via email; Net 30 terms available for qualified accounts
- Shipping — DHL / FedEx international express available; export documentation (commercial invoice, packing list, COO) provided for customs clearance
- Installation Support — Rockwell Automation publication 1336 PLUS User Manual (1336T-5.0) governs installation procedure; Konmask technical team available for pre-installation consultation
Technical FAQ
Q: Is the 74101-954-53 compatible with all 1336 PLUS drive ratings?
A: The 1336T-GT3EN control board is designed for the 1336 PLUS (1336T) platform. Compatibility across specific horsepower ratings and firmware revisions should be confirmed against the drive’s existing board revision. Contact our technical team for cross-reference support.
Q: Will I need to re-enter drive parameters after replacing the control board?
A: Yes. While the EEPROM retains parameters through power cycles, a board swap requires re-commissioning. We recommend backing up parameters via DriveExplorer or RSLogix 5000 before removal.
Q: Can this board be repaired rather than replaced?
A: Board-level repair is possible for certain failure modes (capacitor replacement, trace repair). Konmask can advise on repair vs. replace economics based on your failure description.
Q: What is the typical lead time?
A: In-stock units ship within 1–2 business days. Out-of-stock units typically have a 2–4 week sourcing lead time. Contact us for real-time availability.
Q: Do you provide a certificate of conformance?
A: Yes. A certificate of conformance and test report are available upon request for quality-system compliance.
