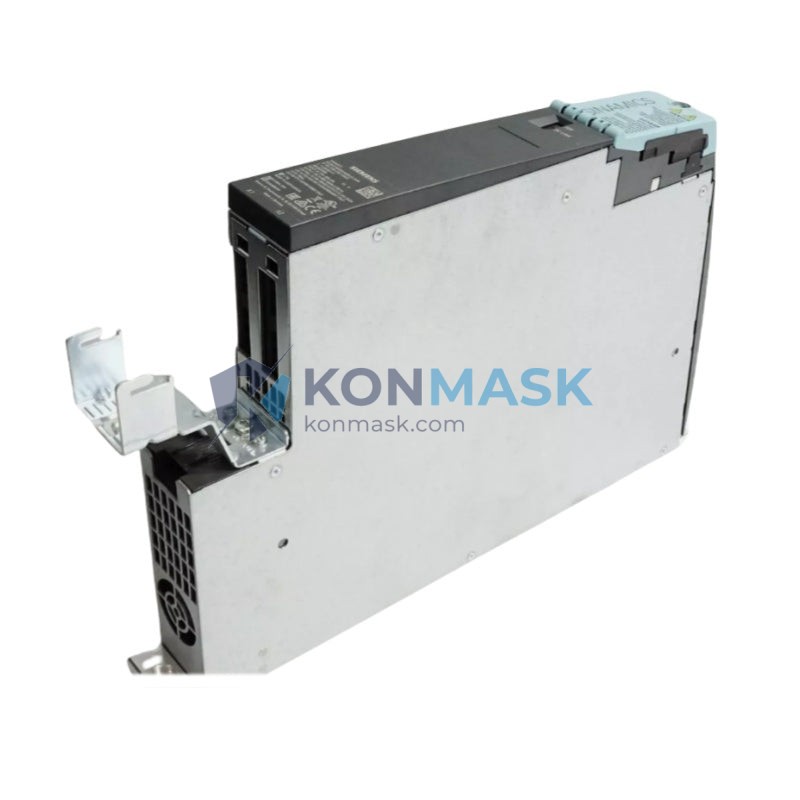

SIEMENS 6SL3120-2TE21-0AD0 – Dual-Axis Servo Motor Module | SINAMICS S120 Platform
Engineering Background: In high-precision CNC machining centers and multi-axis coordinated motion systems, a single failed motor module can halt an entire production line — triggering cascading downtime across spindle, feed, and auxiliary axes simultaneously. The cost of unplanned stoppage in automotive stamping or aerospace milling environments routinely exceeds thousands of dollars per hour. The SIEMENS 6SL3120-2TE21-0AD0 eliminates this single-point vulnerability by delivering independent dual-axis drive capability within a single compact booksize unit, ensuring that motion control continuity is maintained even under demanding multi-axis load profiles.
Product Positioning: The 6SL3120-2TE21-0AD0 is a Double Motor Module within the SINAMICS S120 booksize format — Siemens’ flagship modular drive platform for high-performance servo and vector control applications. Rated at 10A per axis, this module is engineered for coordinated dual-axis applications including gantry systems, dual-spindle lathes, and synchronized conveyor drives. Within the global industrial automation market, SINAMICS S120 holds a leading position in CNC retrofit, robotics integration, and precision motion OEM equipment, making this module a critical procurement item for maintenance engineers and system integrators worldwide.
Complete Technical Specifications
- Part Number: 6SL3120-2TE21-0AD0
- Series / Platform: SINAMICS S120 Booksize
- Module Type: Double Motor Module (Dual-Axis)
- Rated Output Current: 10A per axis
- DC Link Voltage: 600V DC (nominal)
- Axes Supported: 2 independent servo axes
- Form Factor: Booksize (rail-mounted, shared DC bus)
- Interface: DRIVE-CLiQ (digital encoder & communication)
- Cooling Method: Forced air (internal fan)
- Protection Rating: IP20
- Ambient Operating Temperature: 0°C to +40°C (derating above 40°C)
- Storage Temperature: -25°C to +70°C
- Manufacturer: Siemens AG, Germany
- Weight: Approx. 1.3 kg
Proven Application Environments
- CNC Machining Centers: Dual-axis feed drive control (X/Y or Y/Z axis pairs) in vertical and horizontal machining centers
- Gantry & Portal Systems: Synchronized dual-motor gantry motion for large-format cutting and milling machines
- Dual-Spindle Lathes: Independent spindle and sub-spindle servo coordination
- Robotics & Handling: Multi-joint servo control in SCARA and Cartesian robot architectures
- Packaging Machinery: Coordinated film feed and sealing axis drives
- Textile & Printing Equipment: Precision tension and registration control across dual web axes
- Semiconductor & Electronics Manufacturing: High-accuracy positioning in pick-and-place and wafer handling systems
Engineering Advantages
- Space Efficiency: Two independent servo axes in a single booksize slot — reduces cabinet footprint by up to 40% versus two single-axis modules
- Shared DC Bus Architecture: Energy regeneration between axes reduces net power consumption and eliminates individual braking resistors
- DRIVE-CLiQ Integration: Single-cable digital connection to motors with embedded encoder data, temperature, and ID — eliminates resolver wiring complexity
- Seamless SINUMERIK Integration: Native compatibility with SINUMERIK 840D sl/840D pl CNC controllers for plug-and-play axis commissioning
- Scalable Drive Train: Modular expansion with additional Single or Double Motor Modules on the same DC bus without reconfiguring the Control Unit
- Diagnostic Transparency: Real-time fault codes, current waveform monitoring, and thermal status via STARTER / Startdrive commissioning software
System Architecture & Signal Flow
The 6SL3120-2TE21-0AD0 operates within the SINAMICS S120 booksize drive line, connected to a shared DC bus supplied by a Line Module (Active Line Module or Smart Line Module). The Control Unit (CU320-2 DP or CU320-2 PN) communicates with this Double Motor Module via DRIVE-CLiQ, distributing setpoint commands and receiving actual-value feedback in real time. Each axis output connects directly to a SINAMICS-compatible servo motor equipped with a DRIVE-CLiQ encoder interface, completing a fully digital closed-loop servo chain. Safety functions (STO, SS1) are routed through the Control Unit’s safety channel, ensuring SIL 2 / PLe compliance without external safety relays.
Sourcing & Quality Verification
- All units sourced from authorized distribution channels or verified industrial surplus with full traceability
- Pre-shipment inspection: visual integrity check, label verification, firmware version confirmation where applicable
- Packaging: original Siemens ESD-safe packaging or equivalent anti-static protection with desiccant
- Documentation: CE declaration of conformity, test report available upon request
- Warranty: 12-month replacement warranty against manufacturing defects
Procurement Process
- Submit Inquiry: Contact us via the form below or email support@konmask.com with your required quantity and delivery timeline
- Receive Quote: Our technical team responds within 24 hours with pricing, lead time, and stock confirmation
- Order Confirmation: Approve the proforma invoice and confirm payment terms (T/T, L/C, or trade assurance)
- Quality Inspection: Pre-shipment inspection report issued before dispatch
- Shipping & Tracking: DHL / FedEx / sea freight with full tracking; export documentation (commercial invoice, packing list, COO) included
- After-Sales Support: Technical commissioning guidance available via email or video call
Technical FAQ
Q1: Is the 6SL3120-2TE21-0AD0 compatible with SINUMERIK 828D?
A: The 6SL3120-2TE21-0AD0 is designed for SINAMICS S120 booksize systems typically paired with SINUMERIK 840D sl. For 828D applications, the SINAMICS S120 Combi or S110 platform is more common. Please confirm your CNC controller model before ordering.
Q2: Can this module replace a 6SL3120-2TE21-0AA0?
A: The suffix difference (-0AD0 vs -0AA0) may indicate a hardware revision. Functional compatibility is generally maintained within the same current rating, but we recommend verifying via Siemens SIOS or consulting our technical team before substitution.
Q3: What Control Unit is required?
A: Compatible Control Units include CU320-2 DP (PROFIBUS) and CU320-2 PN (PROFINET). The CU must be configured with STARTER or Startdrive software to recognize and commission this Double Motor Module.
Q4: Do you provide a test report before shipment?
A: Yes. A pre-shipment inspection report is available upon request. For critical applications, we can arrange third-party inspection at additional cost.
Q5: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. We support both single-unit emergency replacement orders and bulk procurement for OEM or MRO programs.
