Genuine Siemens 6SL3130-7TE23-6AA3 Active Line Module | SINAMICS S120 – Verified Source

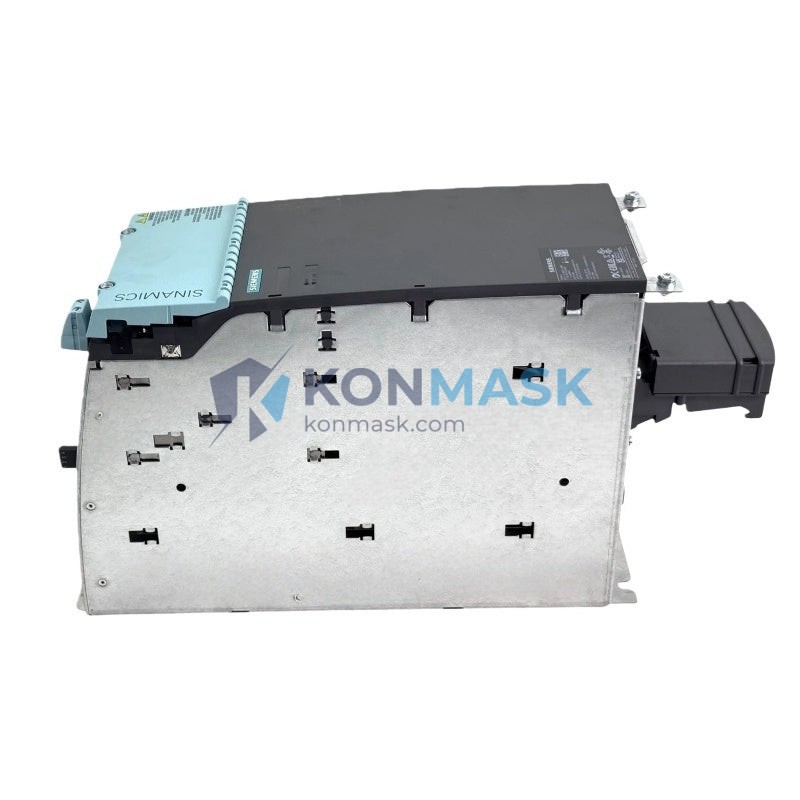

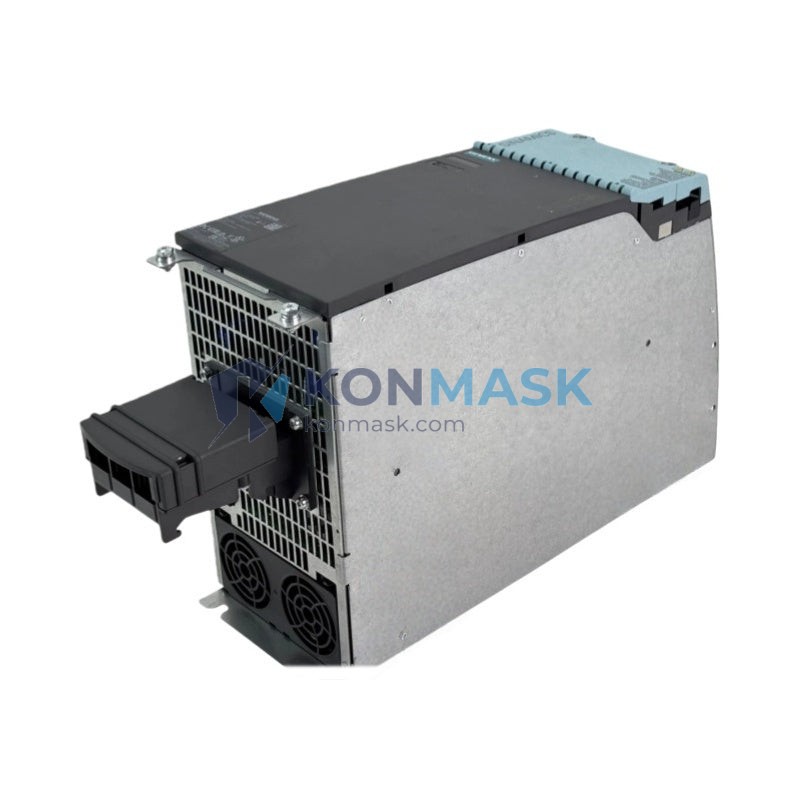

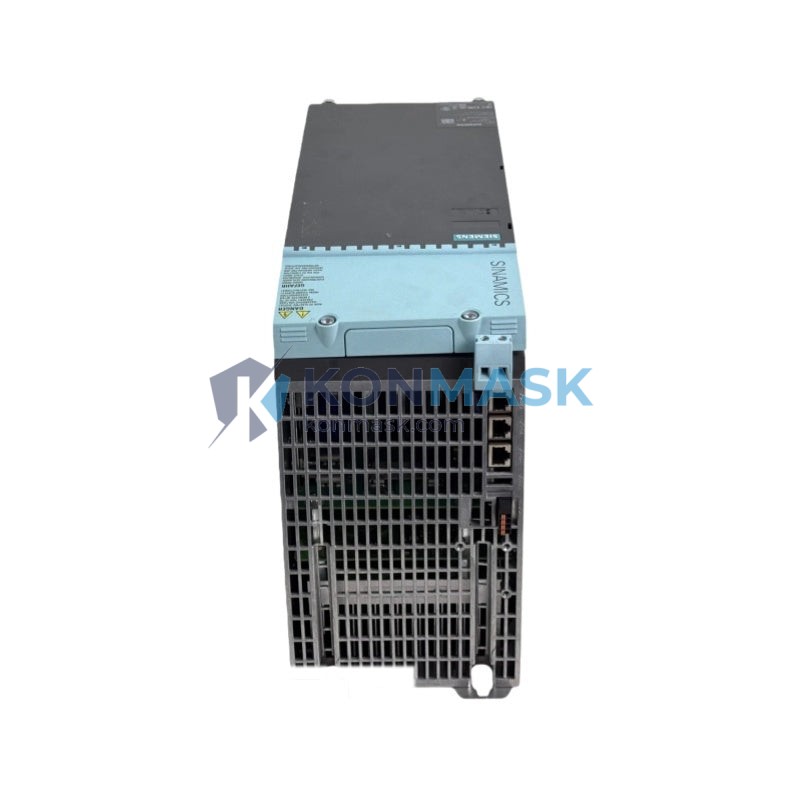

The Siemens 6SL3130-7TE23-6AA3 is a high-performance Active Line Module (ALM) from the SINAMICS S120 drive system family, rated at 36 kW input power. Designed for demanding industrial automation environments, this module delivers sinusoidal line currents, active power factor correction, and regenerative feedback capability — making it the preferred choice for energy-efficient multi-axis drive configurations.
At Konmask.com, every unit is sourced through verified supply channels and undergoes a rigorous 4-step quality inspection before shipment. We serve OEMs, system integrators, and MRO procurement teams worldwide.
Technical Specifications
- Part Number / SKU: 6SL3130-7TE23-6AA3
- Series: SINAMICS S120
- Module Type: Active Line Module (ALM)
- Rated Input Power: 36 kW
- Input Voltage: 3-phase AC 380–480 V (±10%)
- Input Frequency: 47–63 Hz
- DC Link Voltage: approx. 600–720 V DC
- Cooling Method: Forced air cooling (integrated fan)
- Protection Rating: IP20
- Communication Interface: DRIVE-CLiQ
- Weight: approx. 7.15 kg
- Manufacturer: Siemens AG
- Country of Origin: Germany / EU
- Compliance: CE, UL, cUL
Our 4-Step Quality Verification Process
- Step 1 — Source Authentication: All units are procured directly from Siemens-authorized distributors or verified secondary market channels with full traceability documentation.
- Step 2 — Physical Inspection: Each module is inspected for label integrity, firmware version, housing condition, and connector pin status upon receipt.
- Step 3 — Functional Bench Test: Where applicable, units are powered up and tested for basic operational response prior to packaging.
- Step 4 — Secure Packaging & Documentation: Shipped in anti-static, shock-resistant packaging with inspection report, datasheet, and certificate of conformity.
Key Features & Benefits
- ✅ Active Front End (AFE): Sinusoidal line current with near-unity power factor — reduces harmonic distortion and utility penalties.
- ✅ Regenerative Braking: Returns braking energy to the grid, reducing overall energy consumption by up to 30%.
- ✅ DRIVE-CLiQ Integration: Seamless plug-and-play communication with SINAMICS S120 Motor Modules and Control Units.
- ✅ Compact Booksize Format: Space-efficient design for cabinet integration in multi-axis systems.
- ✅ Wide Input Voltage Range: Tolerates ±10% voltage fluctuation — ideal for unstable grid environments.
- ✅ Genuine Siemens Hardware: Full OEM specifications, firmware compatibility, and warranty eligibility.
Typical Applications
- Multi-axis CNC machine tool drives
- Printing and packaging machinery
- Textile and winding equipment
- Conveyor and material handling systems
- Plastics injection molding machines
- Test bench and dynamometer systems
- Crane and hoist drive systems
Compatible System Components
- Control Units: CU320-2 DP, CU320-2 PN
- Motor Modules: SINAMICS S120 Single/Double Motor Modules (Booksize)
- Line Filters: 6SL3000-0BE23-6DA0 (recommended)
- Line Reactors: 6SL3000-0CE23-6AA0
- Braking Modules: Compatible with S120 Booksize Braking Module
- STARTER / Startdrive: Full parameter configuration via Siemens STARTER or TIA Portal Startdrive
Global Sourcing & Shipping Capabilities
Konmask.com maintains an active global procurement network to source both current-production and legacy Siemens SINAMICS components. We ship to over 80 countries with the following logistics options:
- Express Air Freight: DHL / FedEx / UPS — 3–7 business days worldwide
- Sea Freight: Available for bulk orders (MOQ applies)
- Export Documentation: Commercial invoice, packing list, certificate of origin, and customs HS code support provided
- Lead Time: In-stock units ship within 1–3 business days; sourced units within 7–15 business days
Certifications & Compliance Statement
The Siemens 6SL3130-7TE23-6AA3 is manufactured in compliance with the following international standards:
- CE Marking: Conforms to EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
- UL / cUL Listed: Recognized for North American market requirements
- RoHS Compliant: Restriction of Hazardous Substances Directive 2011/65/EU
- ISO 9001: Manufactured under Siemens AG certified quality management system
Konmask.com does not manufacture this product. We are an independent distributor. All trademarks belong to their respective owners.
How to Order
- Confirm Part Number: Verify 6SL3130-7TE23-6AA3 matches your system’s requirements using the SINAMICS S120 configuration manual.
- Request a Quote: Contact us at support@konmask.com for volume pricing, lead time confirmation, and export documentation.
- Place Your Order: Add to cart and complete checkout, or submit a purchase order via email for B2B invoicing.
- Track Your Shipment: Receive tracking number and inspection report within 24 hours of dispatch.
Authenticity & Trust FAQ
Q: Are these genuine Siemens products?
A: Yes. All units are sourced from verified supply channels. We provide documentation upon request including supplier invoices and inspection reports.
Q: Do you offer a warranty?
A: We offer a 12-month functional warranty on all units sold. Defective units are replaced or refunded subject to inspection.
Q: Can you source discontinued or hard-to-find Siemens part numbers?
A: Yes. Our global sourcing network covers both current and legacy SINAMICS, SIMATIC, and SINUMERIK components. Contact us with your full BOM.
Q: What if I order the wrong part?
A: Unused, unopened items may be returned within 14 days. Please contact support before returning any item.
Q: Do you provide export documentation for customs clearance?
A: Yes. We provide full export documentation including commercial invoice, packing list, certificate of origin, and HS code declaration.
