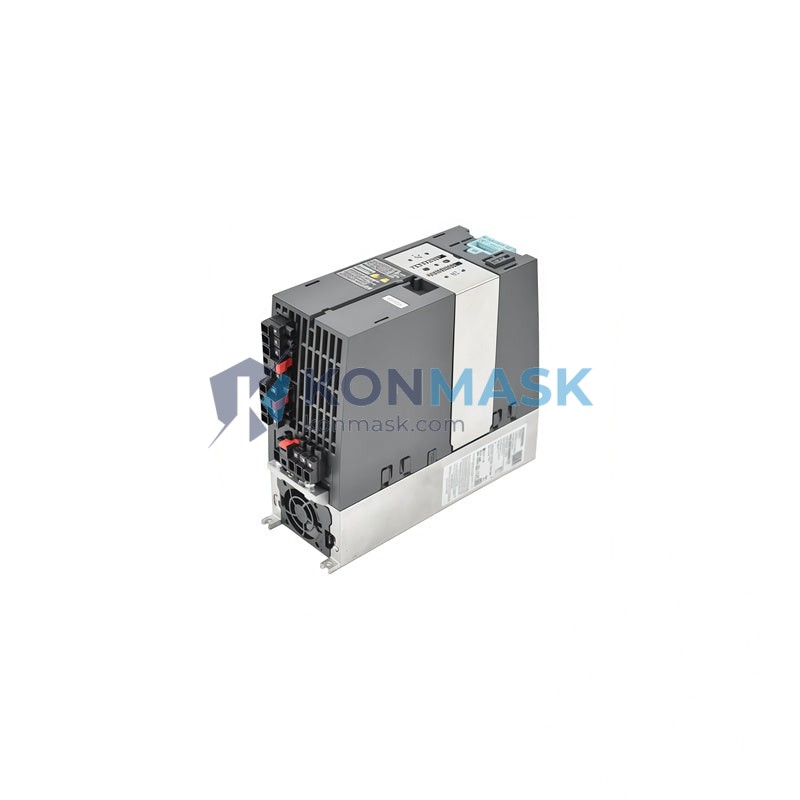

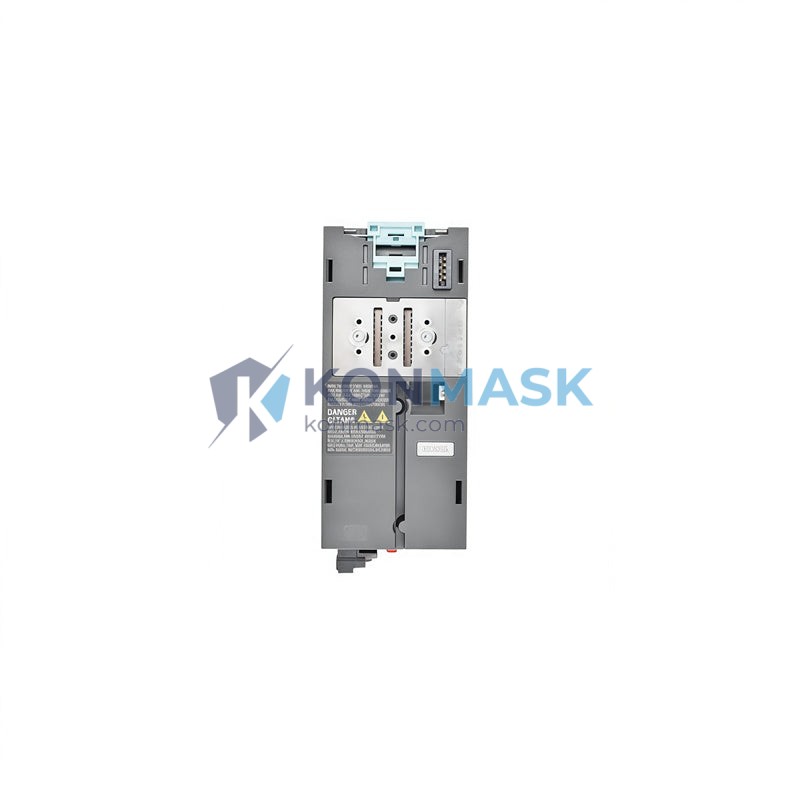

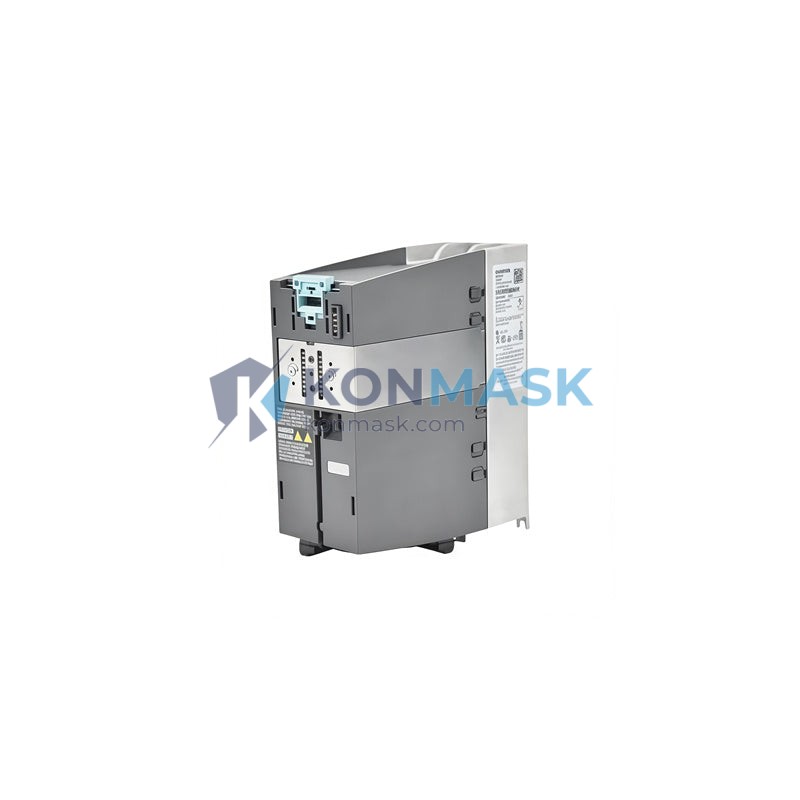

Siemens 6SL3210-1PE18-0UL1 SINAMICS S120 PM240-2 Power Module 7.5kW | Replacement, Equivalent & Selection Guide
The Siemens 6SL3210-1PE18-0UL1 is a SINAMICS S120 PM240-2 Power Module rated at 7.5 kW (10 HP) for three-phase 380–480 V AC applications. Designed for demanding industrial drive systems, it integrates seamlessly with the SINAMICS S120 modular drive platform. This page provides full technical specifications, compatible replacement models, selection guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number: 6SL3210-1PE18-0UL1
- Series: SINAMICS S120 PM240-2
- Rated Output Power: 7.5 kW (10 HP)
- Input Voltage: 3-phase AC 380–480 V ±10%
- Input Frequency: 47–63 Hz
- Output Current (Continuous): 18.0 A
- Output Current (Overload 150%): 27.0 A (60 s)
- DC Link Voltage: ~540–720 V DC
- Degree of Protection: IP20 (chassis)
- Cooling Method: Internal fan (forced air)
- Weight: approx. 1.38 kg
- Ambient Temperature: 0 °C to +40 °C (derated to +55 °C)
- Standards: CE, UL, cUL
- Communication: Via CU (Control Unit) — PROFIBUS, PROFINET, EtherNet/IP (CU-dependent)
Compatible Replacement & Equivalent Models
The table below lists functionally equivalent or drop-in replacement options for the 6SL3210-1PE18-0UL1. Always verify electrical ratings and mechanical dimensions before substitution.
| Brand | Model / Part No. | Power | Voltage | Notes |
|---|---|---|---|---|
| Siemens | 6SL3210-1PE21-1UL0 | 11 kW | 380–480 V | Next-size-up PM240-2; same series |
| Siemens | 6SL3210-1PE18-0AL0 | 7.5 kW | 380–480 V | PM240 (previous gen); functionally equivalent |
| Siemens | 6SL3224-0BE21-5UA0 | 7.5 kW | 380–480 V | SINAMICS G120 PM240-2; compatible with G120 CU |
| ABB | ACS580-01-018A-4 | 7.5 kW | 380–480 V | Cross-brand equivalent; requires rewiring |
| Yaskawa | CIMR-AC4A0018FAA | 7.5 kW | 380–480 V | A1000 series; cross-brand alternative |
Note: Cross-brand replacements require full parameter re-commissioning and mechanical adaptation. Contact Konmask for pre-sales compatibility assessment.
Why Choose the Original Model
- Plug-and-play with SINAMICS S120 CU320-2: No additional adaptation required — native DRIVE-CLiQ interface.
- Proven reliability: PM240-2 platform is field-proven in thousands of global installations across automotive, packaging, and material handling.
- Firmware & parameter compatibility: Retains all existing drive parameters when replacing a like-for-like unit — minimizes downtime.
- OEM warranty support: Siemens factory warranty and global service network coverage.
- Regulatory compliance: CE / UL / cUL certified — meets IEC 61800-5-1 safety requirements.
Typical Applications
- Conveyor and material handling systems
- Pump and fan variable-speed drives
- Packaging machinery and filling lines
- CNC machine tool spindle drives
- Automotive assembly line actuators
- HVAC air handling units
- Textile and printing machinery
System Compatibility
- Control Units: CU320-2 DP, CU320-2 PN, CU310-2 DP, CU310-2 PN
- Line Modules: Active Line Module (ALM), Basic Line Module (BLM), Smart Line Module (SLM) — 380–480 V range
- Motor Types: Siemens 1FK7, 1FT7, 1PH8 servo/induction motors; third-party motors with compatible encoder interface
- Encoder Interface: Via SMC (Sensor Module Cabinet-Mounted) or SME (Sensor Module External)
- Software: STARTER v5.x / Startdrive v15+, TIA Portal V15.1 and above
Selection Guide
Use the following criteria to confirm the 6SL3210-1PE18-0UL1 is the correct module for your application:
- Step 1 — Power rating: Motor rated power ≤ 7.5 kW at 400 V? ✔ This module fits.
- Step 2 — Supply voltage: Three-phase 380–480 V AC available at the cabinet? ✔ Compatible.
- Step 3 — Overload requirement: Need 150% overload for 60 s (e.g., conveyors, hoists)? ✔ Supported.
- Step 4 — Control Unit: Using CU320-2 or CU310-2? ✔ Native DRIVE-CLiQ connection.
- Step 5 — Cooling: Cabinet with forced-air ventilation or open chassis mounting? ✔ IP20 chassis design.
- Step 6 — Certifications: Project requires CE + UL? ✔ Both included.
If any step does not match, contact [email protected] for an alternative recommendation.
Quality Assurance & Sourcing
- Source: Authorized distribution channels and verified surplus stock — no counterfeit risk.
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on test before shipment.
- Packaging: Original or equivalent ESD-safe packaging with anti-static foam protection.
- Traceability: Batch/serial number recorded for every shipment.
- Warranty: 12-month Konmask warranty on all units; OEM warranty honored where applicable.
How to Order
- Add 6SL3210-1PE18-0UL1 to cart and proceed to checkout, or
- Email [email protected] with your quantity, delivery address, and required lead time.
- For bulk orders (>5 units) or project quotations, request a formal quote — typical response within 4 business hours.
- Payment: T/T, PayPal, credit card, and trade-term options (EXW/FOB Xiamen) available.
Replacement & Compatibility FAQ
Q: Can I replace 6SL3210-1PE18-0UL1 with 6SL3210-1PE18-0AL0 (PM240)?
A: Functionally similar, but PM240 and PM240-2 have different mechanical footprints and connector layouts. A direct swap requires bracket and wiring adaptation. Recommended only if PM240-2 is unavailable.
Q: Is this module compatible with SINAMICS G120?
A: No. The S120 PM240-2 uses DRIVE-CLiQ and is designed for the S120 platform. G120 uses a different Power Module interface (e.g., 6SL3224-xxxx). Use the G120 PM240-2 series for G120 systems.
Q: Can I use a third-party VFD as a replacement?
A: Yes, with caveats. Cross-brand replacements (ABB, Yaskawa, Danfoss) require full rewiring, parameter setup, and may not support PROFINET/PROFIBUS natively. Suitable for standalone pump/fan applications, not for multi-axis S120 systems.
Q: What is the lead time for 6SL3210-1PE18-0UL1?
A: In-stock units ship within 1–3 business days. For out-of-stock, typical lead time is 4–8 weeks from Siemens factory. Contact us for real-time availability.
Q: Do you provide a test report or certificate of conformity?
A: Yes. CoC and inspection reports are available upon request for all shipments.
