PROFIBUS DP Master/Slave Solution – SST SST-PB3-VME-2-E | PB3 Series

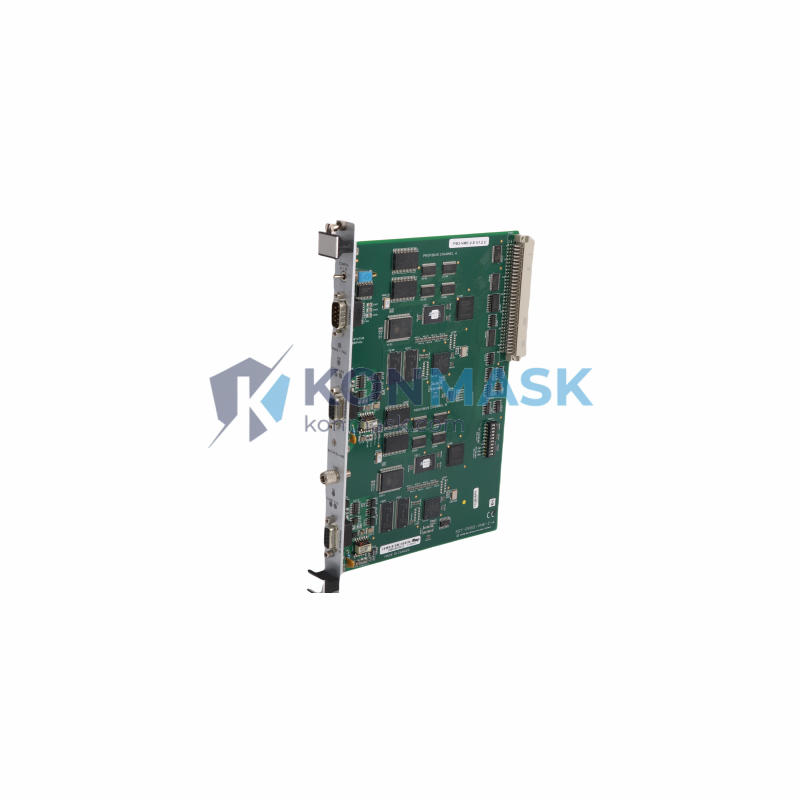

The SST SST-PB3-VME-2-E is a high-performance PROFIBUS DP communication board designed for VME bus-based industrial control systems. Engineered for demanding automation environments, this board enables seamless PROFIBUS DP master or slave communication within VME chassis, making it the preferred choice for system integrators and control engineers working with distributed I/O, drives, and field devices.
Where This Product Is Used
The SST-PB3-VME-2-E is deployed across a wide range of industrial sectors where VME-based controllers must communicate with PROFIBUS DP field devices:
- Automotive Manufacturing: Robot cell controllers and body-in-white assembly lines using VME-based PLCs communicating with PROFIBUS-enabled servo drives and I/O blocks.
- Oil & Gas / Petrochemical: DCS systems in hazardous-area control rooms where VME rack controllers interface with remote PROFIBUS field instruments (pressure transmitters, valve positioners).
- Power Generation & Utilities: Turbine control and substation automation systems requiring deterministic PROFIBUS DP communication from VME-hosted controllers.
- Semiconductor Fabrication: Process equipment controllers (etch, CVD, lithography) using VME platforms to coordinate PROFIBUS-connected actuators and sensors.
- Water & Wastewater Treatment: SCADA-integrated VME controllers managing PROFIBUS DP pump drives, flow meters, and remote I/O stations.
- Railway & Transportation: Trackside and rolling-stock control systems where VME ruggedness meets PROFIBUS field device ecosystems.
Technical Specifications
- Part Number / SKU: SST-PB3-VME-2-E
- Manufacturer: SST (Woodhead / Molex SST)
- Series: PB3 PROFIBUS Interface Series
- Form Factor: VME Bus (6U VME)
- Protocol: PROFIBUS DP (EN 50170 / IEC 61158)
- Operating Mode: DP Master Class 1 / DP Slave (configurable)
- PROFIBUS Port: 1 × DB9 female (RS-485), up to 12 Mbps
- Bus Interface: VMEbus (A24/D16, A32/D32)
- Onboard Memory: Dual-port RAM for host/PROFIBUS data exchange
- Max DP Slaves: Up to 125 slave nodes (as DP Master)
- Power Supply: Supplied via VME backplane (+5 V DC)
- Weight: 260 g
- Operating Temperature: 0 °C to +60 °C
- Compliance: CE, UL recognized
- Software Support: SST PROFIBUS Configuration Tool, VxWorks, LynxOS, Windows driver libraries
Why Engineers Specify This Model
- Proven VME Integration: Native VMEbus interface eliminates the need for external gateways, reducing latency and single points of failure in the communication chain.
- Dual-Port RAM Architecture: Enables high-speed, deterministic data exchange between the host CPU and PROFIBUS network without DMA contention.
- Master & Slave Flexibility: A single board supports both DP Master Class 1 and DP Slave modes, reducing spare-parts inventory for multi-role deployments.
- Mature Ecosystem: SST PB3 series boards have been deployed in production environments for over two decades, with extensive third-party driver support (VxWorks, Linux, Windows).
- Rugged Industrial Design: Conformal-coat option and wide operating temperature range suit harsh plant-floor and outdoor enclosure installations.
- Long-Term Availability: Konmask maintains sourced stock of legacy SST VME boards to support ongoing maintenance and system life-extension projects.
Complete System Bill of Materials
For a complete PROFIBUS DP VME communication solution, engineers typically specify the following alongside the SST-PB3-VME-2-E:
- VME 6U chassis with backplane (e.g., Elma, Schroff, or Pixus)
- VME host CPU board (e.g., Motorola MVME, Emerson CPCI)
- PROFIBUS DP cable (shielded, twisted-pair, IEC 61158-2 compliant)
- PROFIBUS bus termination resistors (active terminator at each cable end)
- DB9 PROFIBUS connector with integrated termination (e.g., Phoenix Contact PROFIBUS connector)
- SST PROFIBUS Configuration & Diagnostic Software
- PROFIBUS DP field devices: remote I/O (e.g., Siemens ET 200), drives (e.g., ABB ACS880), or instruments
Compliance & Industry Standards
- PROFIBUS: EN 50170, IEC 61158, IEC 61784 (CPF 3)
- VMEbus: ANSI/IEEE 1014-1987 (VMEbus Standard)
- EMC: CE Marking (EMC Directive 2014/30/EU)
- Safety: UL recognized component
- RoHS: Compliant (EU Directive 2011/65/EU)
Quality Assurance & Sourcing
Konmask.com sources the SST-PB3-VME-2-E exclusively through verified industrial distribution channels and authorized surplus networks. Every unit undergoes the following before dispatch:
- Visual inspection for physical damage, corrosion, and component integrity
- Label and serial number verification against manufacturer records
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Certificate of conformance available upon request
We do not sell counterfeit, remarked, or unverified components. All products are backed by our quality guarantee and return policy.
How to Source This Part
The SST-PB3-VME-2-E may be listed as in-stock, available-to-order, or sourced on request depending on current inventory. To confirm availability and lead time:
- Online: Add to cart directly from this page if stock is shown.
- RFQ: Email [email protected] with your required quantity and delivery timeline.
- Phone / WhatsApp: +0086 19859288691 for urgent requirements.
- Bulk / Project Orders: Contact us for volume pricing and project-based procurement support.
Application-Specific FAQ
Q: Can the SST-PB3-VME-2-E operate as both a PROFIBUS DP Master and Slave on the same board?
A: Yes. The board is configurable in firmware/software to operate as either DP Master Class 1 or DP Slave. It cannot simultaneously act as both on a single board instance.
Q: Which operating systems are supported?
A: SST provides driver libraries for VxWorks, LynxOS, and Windows (32/64-bit). Linux support is available via community and third-party drivers. Contact us for the latest software package availability.
Q: Is this board compatible with all 6U VME chassis?
A: The SST-PB3-VME-2-E conforms to the ANSI/IEEE 1014 VMEbus standard and is compatible with standard 6U VME backplanes. Verify slot availability and power budget with your chassis specification.
Q: What is the maximum PROFIBUS DP baud rate supported?
A: Up to 12 Mbps, covering all standard PROFIBUS DP baud rates (9.6 kbps to 12 Mbps).
Q: Can Konmask provide a datasheet or configuration guide?
A: Yes. Email [email protected] with your part number and we will supply the available technical documentation.
Q: What warranty is provided?
A: Konmask offers a standard 90-day warranty on all verified components. Extended warranty options are available for project-based purchases.
