Allen-Bradley 1747-AICR Isolated Link Coupler | Replacement, Equivalent & Selection Guide

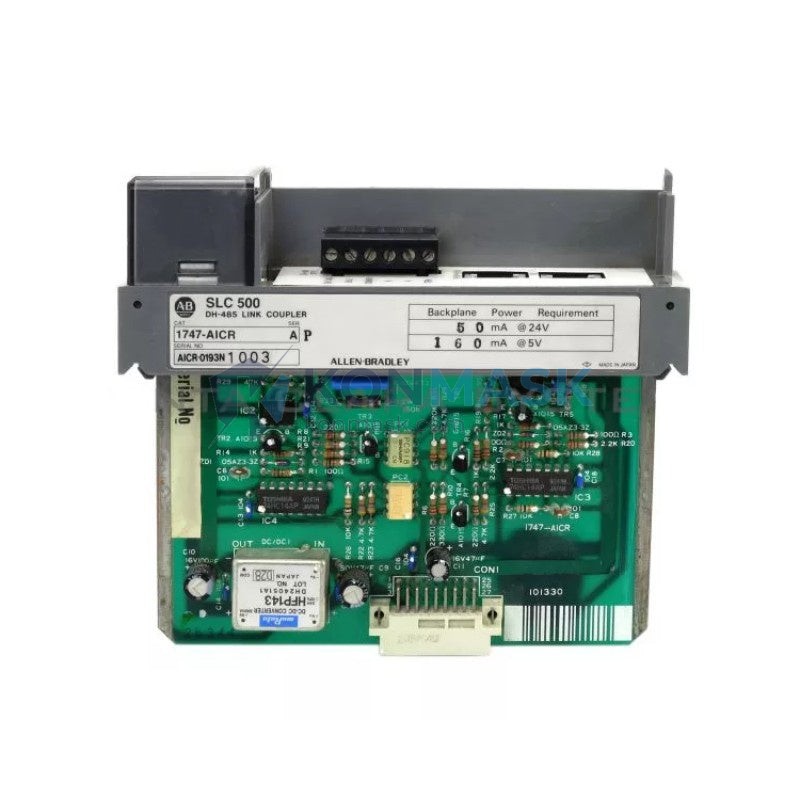

The Allen-Bradley 1747-AICR is an Isolated Link Coupler module designed for use in Rockwell Automation’s SLC 500 programmable controller platform. It provides electrical isolation between the SLC 500 backplane and the DH-485 communication network, protecting both the controller and field devices from ground loops and transient noise in demanding industrial environments.
Selection Background
Buyers searching for a 1747-AICR replacement or 1747-AICR equivalent typically face one of three scenarios: the original module has reached end-of-life availability, a cost-optimized substitute is required for a retrofit project, or a cross-brand alternative is needed for a multi-vendor system integration. Understanding which category applies to your application is critical before selecting any replacement or equivalent part. This guide is designed to help engineers and procurement teams make an informed decision — and to clarify when only the original 1747-AICR will meet system requirements.
Technical Specifications
- Part Number: 1747-AICR
- Manufacturer: Allen-Bradley / Rockwell Automation
- Module Type: Isolated Link Coupler
- Compatible Platform: SLC 500 (1746 chassis)
- Network Protocol: DH-485 (Data Highway 485)
- Isolation Voltage: 500V DC (galvanic isolation between backplane and network) ⚠️ Key parameter for replacement decisions
- Communication Speed: 1.2K / 2.4K / 9.6K / 19.2K baud (auto-detect)
- Network Nodes Supported: Up to 32 nodes per segment
- Power Consumption: 130 mA @ 5V DC (from backplane)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Dimensions (H × W × D): 1-slot SLC 500 module form factor
- Weight: Approx. 300 g
- Certifications: UL, CE, CSA
- Product Series: SLC 500 Communication Modules
⚠️ Isolation voltage, baud rate compatibility, and backplane slot form factor are the three parameters most critical to any replacement or equivalent selection.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These modules are functionally and physically identical to the 1747-AICR and can be installed without any configuration changes:
- 1747-AICR (Remanufactured / Refurbished) — Tested and restored OEM units. Verify firmware revision matches your existing system. Konmask supplies tested units with full inspection reports.
- 1747-AICR (New Old Stock / NOS) — Unused OEM units from authorized surplus channels. Confirm manufacture date and storage conditions before installation.
2. Functional Equivalents
These modules perform the same DH-485 isolation function but may require minor configuration or wiring adjustments:
- 1747-AIC — Non-isolated link coupler for DH-485. Suitable only if galvanic isolation is not required by your system design. ⚠️ Do not substitute if ground loop protection is a system requirement.
- 1761-NET-AIC — Advanced Interface Converter supporting DH-485 and RS-232. Functional equivalent for communication bridging applications; verify node addressing and baud rate settings.
3. Cross-Brand Alternatives
Third-party or cross-brand modules that provide DH-485 isolated coupling functionality:
- ProSoft Technology MVI46-series gateways — For applications requiring protocol conversion alongside isolation. Not a direct substitute; requires engineering review.
- Spectrum Controls / third-party SLC 500 communication modules — Verify backplane compatibility, isolation rating, and Rockwell software recognition before deployment.
⚠️ All cross-brand alternatives require validation testing in a non-production environment before deployment. Konmask recommends consulting your system integrator or contacting us for application-specific guidance.
Why Choose the Original 1747-AICR
- Certified Isolation Performance: Factory-rated 500V DC galvanic isolation — validated to Rockwell Automation’s internal test standards, not approximated by third-party equivalents.
- Full SLC 500 Platform Certification: Recognized natively by RSLogix 500 / Studio 5000 without driver workarounds or compatibility patches.
- Backplane Slot Compliance: Designed to exact 1746 chassis mechanical and electrical specifications — no fitment risk.
- Rockwell Technical Support Eligibility: OEM units qualify for Rockwell Automation TechConnect support contracts and firmware update access.
- Warranty & Traceability: Konmask-supplied units include inspection documentation, serial number traceability, and a minimum 12-month warranty.
- Long-Term Reliability: Proven field MTBF in continuous industrial operation — critical for safety-related or high-availability SLC 500 systems.
Typical Applications
- Automotive Manufacturing: DH-485 network isolation in body-in-white welding lines with high electromagnetic interference.
- Water & Wastewater Treatment: Isolating SLC 500 controllers from field instrumentation in wet, corrosive environments.
- Food & Beverage Processing: Protecting PLC backplanes from ground faults in washdown production areas.
- Oil & Gas Upstream: Communication isolation in remote RTU panels subject to ground potential differences.
- Building Automation & HVAC: Multi-node DH-485 networks spanning multiple electrical panels with different ground references.
- Pharmaceutical Manufacturing: Validated SLC 500 systems requiring documented, traceable OEM components for FDA compliance.
System Compatibility
The 1747-AICR is compatible with the following Allen-Bradley / Rockwell Automation components:
- 1746-A4 / A7 / A10 / A13 — SLC 500 chassis (4, 7, 10, 13 slot)
- 1747-L20 / L30 / L40 / L511 / L514 / L524 / L531 / L532 / L541 / L542 / L543 / L551 / L552 / L553 — SLC 5/01 through SLC 5/05 processors
- 1747-SDN — DeviceNet Scanner (for mixed-network SLC 500 systems)
- 1761-CBL-PM02 / 1761-CBL-HM02 — DH-485 network cables
- 1747-PIC — Personal Interface Converter (programming terminal connection)
- RSLogix 500 / RSLinx Classic — Rockwell Automation programming and communication software
Selection Guide
Answer these three questions before confirming your replacement or equivalent selection:
- Is galvanic isolation required? If your system has multiple ground references, ground loop risk, or is installed in a high-EMI environment — only the 1747-AICR or a verified isolated equivalent is acceptable. The non-isolated 1747-AIC is not a valid substitute in this case.
- What is your current DH-485 baud rate and node count? Confirm the replacement module supports your network’s configured baud rate (up to 19.2K) and that total node count remains within the 32-node limit per segment.
- Does your application require OEM traceability or regulatory documentation? For FDA-validated, ISO-certified, or safety-rated systems, only original Allen-Bradley 1747-AICR units with full documentation are appropriate. Contact Konmask for sourcing with inspection reports.
📩 Not sure which option fits your system? Contact Konmask at support@konmask.com — our engineers respond within 24 hours.
Quality Assurance & Sourcing
Sourcing Channels: Konmask sources 1747-AICR units through authorized industrial surplus distributors, OEM decommission programs, and verified secondary market channels. All units are inspected before shipment.
4-Step Inspection Process:
- Visual Inspection: PCB condition, connector integrity, label verification, and physical damage assessment.
- Electrical Bench Test: Power-on test, backplane communication verification, and isolation voltage check.
- Functional Test: DH-485 network communication test at all supported baud rates with SLC 500 processor.
- Final Documentation: Serial number logging, test result recording, and packaging with anti-static protection.
Available Documentation: Inspection report, test certificate, serial number record, and optional third-party calibration certificate on request.
How to Order
- Submit Your Inquiry: Email support@konmask.com with your part number (1747-AICR), required quantity, and any documentation requirements. Or use the “Add to Cart” button above for standard orders.
- Receive Confirmation & Quote: Konmask will confirm stock availability, unit condition (new/refurbished), lead time, and pricing within 24 hours.
- Order & Ship: Upon order confirmation, units are packaged with anti-static protection and shipped with full documentation. Express shipping available for urgent requirements.
Replacement & Compatibility FAQ
Q: Can I use the 1747-AIC as a direct replacement for the 1747-AICR?
A: Only if your application does not require galvanic isolation. The 1747-AIC is a non-isolated link coupler — it is a functional substitute for DH-485 coupling only in systems where ground loop protection is not a design requirement. For isolated applications, the 1747-AICR or a verified isolated equivalent must be used.
Q: Is the 1761-NET-AIC compatible with SLC 500 systems as a 1747-AICR equivalent?
A: The 1761-NET-AIC can serve as a functional equivalent for DH-485 communication in many SLC 500 applications, but it is not a direct drop-in substitute — it connects externally rather than occupying a backplane slot. Verify your network topology and RSLinx driver configuration before using it as a 1747-AICR replacement.
Q: Where can I find a reliable 1747-AICR substitute for an end-of-life SLC 500 system?
A: Konmask specializes in sourcing tested 1747-AICR units — both OEM refurbished and new old stock — for legacy SLC 500 systems. We provide full inspection documentation and can advise on compatible alternatives if the original part is unavailable. Contact us at support@konmask.com or +0086 19859288691.
