TECHNO DRIVE KR-505M Stepper Driver | Replacement, Equivalent & Selection Guide

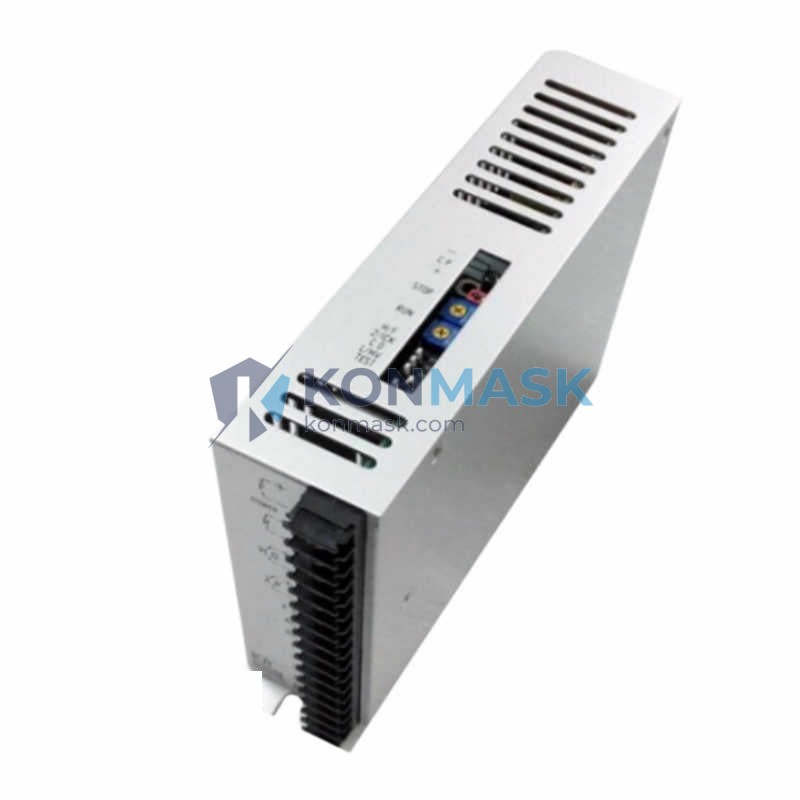

The TECHNO DRIVE KR-505M is a professional-grade stepper motor driver designed for precision motion control in industrial automation systems. This page provides complete technical specifications, verified compatible replacements, equivalent models from alternative brands, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Model | KR-505M |
| Brand | TECHNO DRIVE |
| Type | Stepper Motor Driver |
| SKU | DRIVE KR-505M |
| Weight | 200 g |
| Control Interface | Pulse/Direction (PUL/DIR) |
| Microstep Resolution | Up to 1/128 (model-dependent) |
| Protection | Over-current, over-voltage, short-circuit |
| Cooling | Natural convection / optional forced air |
| Mounting | DIN rail or panel mount |
Note: Contact us to confirm full electrical ratings (input voltage, output current range) for your specific application.
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as drop-in or functional replacements for the KR-505M. Compatibility depends on your wiring, motor specifications, and controller interface — always verify before substitution:
- Leadshine M542 — widely used 2-phase stepper driver, similar current range and PUL/DIR interface
- Leadshine DM542T — digital upgrade with auto-tuning, direct functional equivalent
- Gecko G201X — high-performance alternative for demanding servo-like stepper applications
- Yako YKD2608M — cost-effective equivalent with comparable microstep settings
- Rtelligent ECT60 — closed-loop stepper driver for applications requiring position feedback
- STEPPERONLINE DM542T — OEM-equivalent widely stocked for replacement use
Need help confirming compatibility? Contact our technical team with your motor datasheet and controller specs.
Why Choose the Original Model
- Proven field reliability — validated in production environments across Asia and Europe
- OEM-matched performance — eliminates re-tuning and parameter reconfiguration
- Guaranteed pin and signal compatibility — no wiring modifications required
- Warranty continuity — using OEM parts preserves machine warranty in many cases
- Reduced commissioning risk — critical for high-uptime production lines
Typical Applications
- CNC routers, laser cutters, and engraving machines
- Automated packaging and labeling equipment
- Textile and printing machinery
- Conveyor indexing and positioning systems
- Medical device assembly automation
- Semiconductor handling and wafer transport
System Compatibility
The KR-505M is compatible with the following control environments:
- PLC controllers: Siemens S7-1200/1500, Mitsubishi FX/Q series, Omron CP/CJ series, Delta DVP series
- Motion controllers: Leadshine EtherCAT, TRIO, Delta ASDA series
- CNC systems: Mach3/Mach4, LinuxCNC, GRBL-based controllers
- Signal standard: 5V or 24V differential/single-ended PUL/DIR/ENA
Selection Guide
Use the following criteria to select the correct stepper driver for your application:
- Motor phase current: Match driver peak output current to motor rated current (±10%)
- Supply voltage: Select driver input voltage range that covers your DC bus voltage with headroom
- Microstep requirement: Higher microstep = smoother motion but lower torque at speed
- Interface voltage: Confirm 5V or 24V logic compatibility with your controller output
- Closed-loop vs open-loop: Choose closed-loop (e.g., Rtelligent ECT60) if stall detection or position feedback is required
- Form factor: Verify DIN rail or panel-mount compatibility with your cabinet layout
Not sure which model fits? Send us your motor nameplate data and controller model — we’ll recommend the right driver within 24 hours.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified OEM channels
- Pre-shipment inspection: visual, functional, and packaging integrity checks
- Counterfeit screening applied to all high-demand models
- Traceability documentation available on request (batch records, COC)
- Stock held in climate-controlled warehouse; ESD-safe packaging for sensitive components
How to Order
- Add the KR-505M to your cart and proceed to checkout, or
- Email support@konmask.com with your PO or RFQ
- For bulk orders (>5 units), request a volume quote — lead time and pricing confirmed within 1 business day
- Shipping: DHL / FedEx / SF Express — tracked, insured, export-compliant
Replacement & Compatibility FAQ
Q: Can I use a Leadshine DM542T as a direct replacement for the KR-505M?
A: In most cases yes — both use PUL/DIR interface and similar current ratings. Verify supply voltage and microstep DIP switch settings before swapping.
Q: Is the KR-505M compatible with 24V PLC output signals?
A: Compatibility depends on the driver’s input optocoupler spec. Contact us with your PLC output card model for confirmation.
Q: Do you supply original TECHNO DRIVE units or aftermarket?
A: We supply OEM-original units by default. Verified functional equivalents are offered as alternatives with clear labeling.
Q: What is the warranty on the KR-505M?
A: 12 months from shipment date. DOA units replaced within 7 business days upon confirmation.
Q: Can you help me identify the right replacement if my original unit is damaged?
A: Yes — send photos and nameplate data to support@konmask.com and we’ll identify a compatible replacement.
