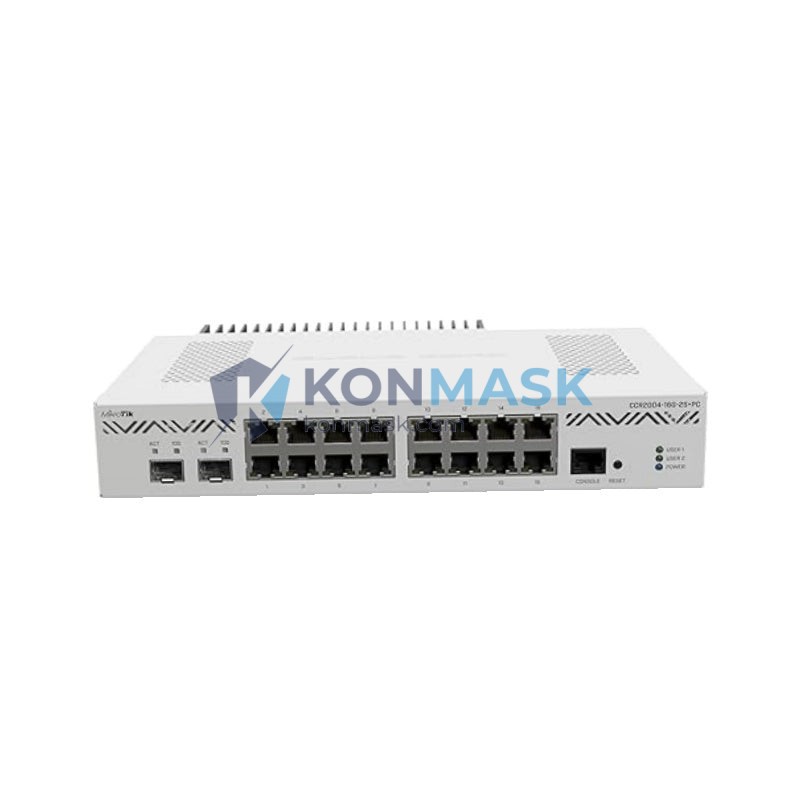

MikroTik CCR2004-16G-2S+ High-Performance Cloud Core Router – Cloud Core Router Series
Imagine a mission-critical industrial network suddenly losing its routing backbone — production lines halt, SCADA systems go blind, and every second of downtime translates directly into financial loss. In high-throughput industrial environments, the router is not a commodity; it is the central nervous system of your entire operation. Without a reliable, high-capacity routing platform, even the most sophisticated automation infrastructure becomes fragile and vulnerable.
The MikroTik CCR2004-16G-2S+ is engineered precisely to eliminate that vulnerability. As a flagship model in MikroTik’s Cloud Core Router (CCR) series, the CCR2004-16G-2S+ occupies the sweet spot between enterprise-grade throughput and cost-effective deployment. Powered by the AL21400 Annapurna Labs quad-core ARM Cortex-A57 processor running at 1.7 GHz, this router delivers wire-speed Layer 3 forwarding across all 16 Gigabit Ethernet ports and 2 x 10G SFP+ uplink cages — making it a globally recognized solution for industrial automation networks, ISP edge routing, and large-scale enterprise backbones.
Technical Specifications
- Model / SKU: CCR2004-16G-2S+
- CPU: AL21400 Quad-Core ARM Cortex-A57 @ 1.7 GHz
- RAM: 4 GB DDR4
- Storage: 128 MB NAND Flash
- Ethernet Ports: 16 x Gigabit Ethernet (RJ45)
- SFP+ Uplinks: 2 x 10G SFP+ Cages
- Operating System: RouterOS v7 (License Level 6)
- Switching Capacity: Up to 36 Gbps
- Forwarding Rate: Up to 26.7 Mpps
- Power Input: Dual redundant PSU (AC)
- Form Factor: 1U Rack-Mount
- Weight: 900 g
- Operating Temperature: -20°C to +60°C
- Certifications: CE, FCC, RoHS
Key Features & Benefits
- Wire-Speed Routing: AL21400 quad-core ARM architecture ensures zero packet loss at full line rate across all 18 ports simultaneously.
- Dual 10G SFP+ Uplinks: Seamlessly connect to fiber backbone or aggregate uplinks for high-bandwidth industrial or ISP deployments.
- RouterOS Level 6: Unlocks the full MikroTik feature set — BGP, OSPF, MPLS, VPN tunnels, advanced firewall, traffic shaping, and more.
- Redundant Power Supply: Dual PSU design eliminates single points of failure, critical for 24/7 industrial uptime requirements.
- Compact 1U Rack Form Factor: Maximizes rack density without sacrificing port count or throughput.
- Low Latency Forwarding: Ideal for time-sensitive industrial protocols including PROFINET, EtherNet/IP, and Modbus TCP over IP.
- Advanced QoS & Traffic Management: Prioritize OT traffic over IT traffic to protect real-time control data.
Industry & Equipment Applications
- Industrial Automation: Core routing for PLC/DCS/SCADA network segments in manufacturing plants and process industries.
- Oil & Gas: Ruggedized network backbone for remote pipeline monitoring and control systems.
- Power & Utilities: Substation automation networks requiring deterministic, low-latency routing.
- ISP / Carrier Edge: Cost-effective BGP edge router for small-to-medium ISPs and data centers.
- Smart Factory / Industry 4.0: Converged OT/IT network routing supporting IIoT gateway aggregation.
- Transportation & Logistics: High-availability routing for warehouse management and automated conveyor control networks.
System Integration & Compatible Parts
The CCR2004-16G-2S+ integrates natively within MikroTik’s ecosystem and is compatible with a broad range of industrial networking components:
- MikroTik CRS Series Switches — Layer 2/3 managed switches for downstream network segmentation
- MikroTik SFP+ Modules (S+85DLC03D, S+RJ10) — 10G fiber and copper uplink transceivers
- MikroTik CHR (Cloud Hosted Router) — Virtual routing complement for hybrid cloud architectures
- Third-Party SFP+ Transceivers — Compatible with standard IEEE 802.3ae 10GBase-SR/LR modules
- Industrial Managed Switches (Siemens SCALANCE, Hirschmann, Moxa) — Downstream OT network integration
Our Quality Assurance Process
At Konmask.com, every MikroTik CCR2004-16G-2S+ unit undergoes a rigorous multi-stage verification process before shipment:
- ✅ Authenticity Verification: Serial number cross-checked against MikroTik’s official database
- ✅ Functional Power-On Test: Full boot sequence and RouterOS license validation
- ✅ Port-Level Inspection: All 16 GbE ports and 2 SFP+ cages tested for link integrity
- ✅ Firmware Version Check: Latest stable RouterOS v7 pre-installed and verified
- ✅ Packaging Integrity: Anti-static packaging with tamper-evident sealing for safe international transit
How to Order
- Submit an Inquiry: Contact us via the form below or email support@konmask.com with your required quantity and delivery destination.
- Receive a Quotation: Our technical sales team will respond within 24 hours with pricing, lead time, and shipping options.
- Confirm & Pay: We accept T/T bank transfer, PayPal, and other B2B payment methods.
- Shipment & Tracking: Orders are dispatched via DHL, FedEx, or UPS with full tracking provided.
- After-Sales Support: Technical assistance available post-delivery for configuration and integration queries.
Why Choose Konmask.com?
- 🏭 Industrial Automation Specialists: Focused exclusively on PLC, DCS, networking, and automation hardware — not a generalist marketplace.
- 🌍 Global Export Experience: Serving B2B buyers across Europe, Southeast Asia, the Middle East, and the Americas.
- 📦 In-Stock Availability: Maintain buffer stock of high-demand MikroTik models for rapid order fulfillment.
- 🔧 Pre-Sales Technical Consultation: Our engineers help you select the right model for your network topology and traffic requirements.
- 📋 Full Documentation: Datasheet, CE/FCC certificates, and test reports provided upon request.
- 🔒 Secure Transactions: All orders processed with full commercial invoice and packing list for customs clearance.
Frequently Asked Questions
Q: Is the MikroTik CCR2004-16G-2S+ suitable for BGP routing in an ISP environment?
A: Yes. With RouterOS Level 6 license and the AL21400 quad-core CPU, the CCR2004-16G-2S+ fully supports BGP with large routing tables (tested with full internet routing tables exceeding 800K prefixes).
Q: Can this router handle MPLS and VPN tunnels simultaneously?
A: Absolutely. RouterOS v7 supports MPLS, L2TP, IPsec, OpenVPN, and WireGuard concurrently. Hardware offloading on the AL21400 ensures minimal CPU overhead.
Q: What SFP+ transceivers are compatible with the CCR2004-16G-2S+?
A: The SFP+ cages support standard IEEE 802.3ae 10GBase-SR (850nm multimode) and 10GBase-LR (1310nm single-mode) modules. MikroTik’s own S+85DLC03D and S+31DLC10D modules are fully validated.
Q: Does Konmask.com ship internationally?
A: Yes. We ship worldwide via DHL Express, FedEx International Priority, and UPS Worldwide. Export documentation including commercial invoice and packing list is provided for all international orders.
Q: What is the warranty on this product?
A: We provide a 12-month warranty against manufacturing defects. MikroTik’s standard warranty terms apply. Extended warranty options are available — please inquire.
Q: Can I request a sample unit before placing a bulk order?
A: Yes. Sample orders are accepted. Please contact our sales team to discuss sample pricing and lead time.
