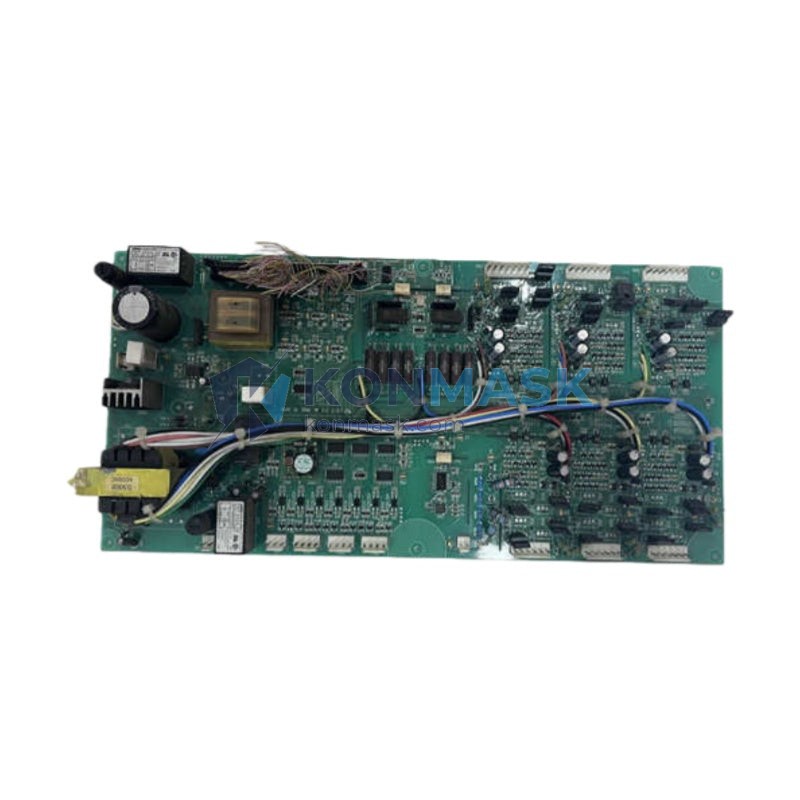

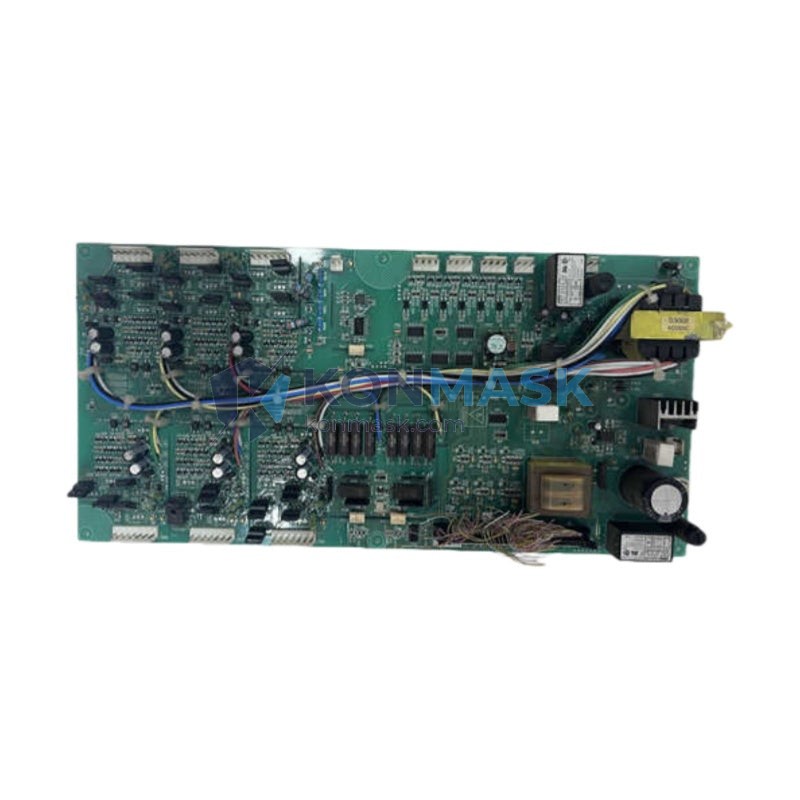

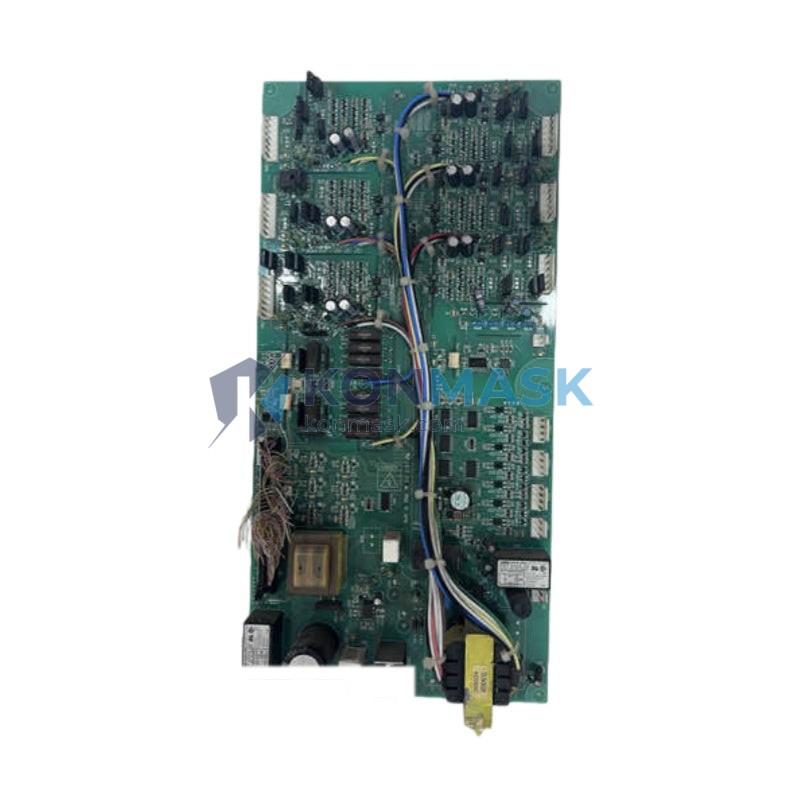

Industrial Drive Control Solution – TMEIC ARND-3119 Top Board Master | TMdrive Series
Where This Product Is Used
The TMEIC ARND-3119 Top Board Master is a critical control board deployed in high-power industrial drive and DCS (Distributed Control System) applications. Engineers specify this board in the following environments:
- Steel & Rolling Mill Plants – Main drive control for hot/cold rolling lines requiring precise torque and speed regulation
- Power Generation & Utilities – Excitation and auxiliary drive control in thermal and hydro power stations
- Cement & Mining Operations – Kiln drive, conveyor, and crusher motor control systems
- Petrochemical & Refinery Plants – Pump, compressor, and fan variable-speed drive control
- Pulp & Paper Mills – Section drive synchronization and tension control
- Marine & Offshore Platforms – Thruster and winch drive control in harsh environments
Technical Specifications
| Part Number | ARND-3119 |
| Manufacturer | TMEIC (Toshiba Mitsubishi-Electric Industrial Systems) |
| Series | TMdrive / DCS Control Series |
| Board Type | Top Board Master (Main Control / Master CPU Board) |
| Function | Master control coordination, signal processing, inter-board communication |
| Form Factor | PCB Module, rack-mount compatible |
| Weight | Approx. 300 g |
| Condition | New / Refurbished (tested & verified) |
| Compatibility | TMEIC TMdrive-10, TMdrive-30, TMdrive-70 series and compatible DCS racks |
Why Engineers Specify This Model
- Master Coordination Logic – Acts as the top-level controller orchestrating sub-boards, I/O modules, and communication interfaces within the drive cabinet
- High Reliability Architecture – Designed for 24/7 continuous operation in demanding industrial environments with wide temperature tolerance
- Seamless OEM Replacement – Direct drop-in replacement for existing TMEIC drive systems; no firmware re-engineering required
- Reduced Downtime Risk – Stocking a spare ARND-3119 eliminates multi-week lead times from OEM channels during unplanned failures
- Proven Field Record – Widely deployed across Asia-Pacific, Middle East, and European industrial facilities
Complete System Bill of Materials
The ARND-3119 typically operates alongside the following TMEIC components in a complete drive control stack:
- TMEIC ARND-3118 – Gate Drive Interface Board
- TMEIC ARND-3120 – I/O Expansion Board
- TMEIC ARND-3121 – Power Supply Board
- TMEIC ARND-3122 – Communication Interface Board
- TMEIC TMdrive Fiber Optic Link Module
Contact us to source a complete BOM package for your drive system overhaul.
Compliance & Industry Standards
- Manufactured under ISO 9001 quality management systems
- Compatible with IEC 61800 (Adjustable Speed Electrical Power Drive Systems)
- Suitable for installations compliant with NEMA, CE, and UL framework requirements (verify with your local authority)
- RoHS-compliant materials where applicable
Quality Assurance & Sourcing
Every TMEIC ARND-3119 unit shipped from Konmask.com undergoes the following verification process:
- ✅ Visual inspection for PCB damage, burnt components, and connector integrity
- ✅ Functional bench test against TMEIC reference parameters
- ✅ Anti-static packaging with humidity indicator card
- ✅ Traceable sourcing from authorized distributors or decommissioned OEM equipment
- ✅ 90-day warranty on all verified units
How to Source This Part
To place an order or request a quote for the TMEIC ARND-3119:
- 📧 Email: support@konmask.com
- 📞 Phone/WhatsApp: +0086 19859288691
- 🌐 Website: https://konmask.com
- Lead time: In-stock units ship within 1–3 business days; sourced units within 7–14 days
- Shipping: DHL / FedEx / UPS worldwide; sea freight available for bulk orders
Application-Specific FAQ
Q: Is the ARND-3119 compatible with all TMdrive series?
A: It is primarily designed for TMdrive-10 and TMdrive-30 series. Compatibility with TMdrive-70 should be confirmed against your drive cabinet revision. Contact us with your drive nameplate data for verification.
Q: Can this board be used as a direct replacement without reprogramming?
A: In most cases, yes — the ARND-3119 retains drive parameters stored in non-volatile memory on companion boards. However, we recommend a qualified TMEIC engineer verify parameter integrity after installation.
Q: Do you offer exchange/repair services?
A: Yes. We offer board-level repair and exchange programs. Send us your faulty unit for evaluation and we will provide a repair quote or exchange with a tested spare.
Q: What is the typical failure mode for this board?
A: Common failure modes include capacitor degradation, FPGA/DSP faults from voltage spikes, and communication IC failures. Our bench test covers all these failure points.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes, a CoC is available upon request for all verified units.
