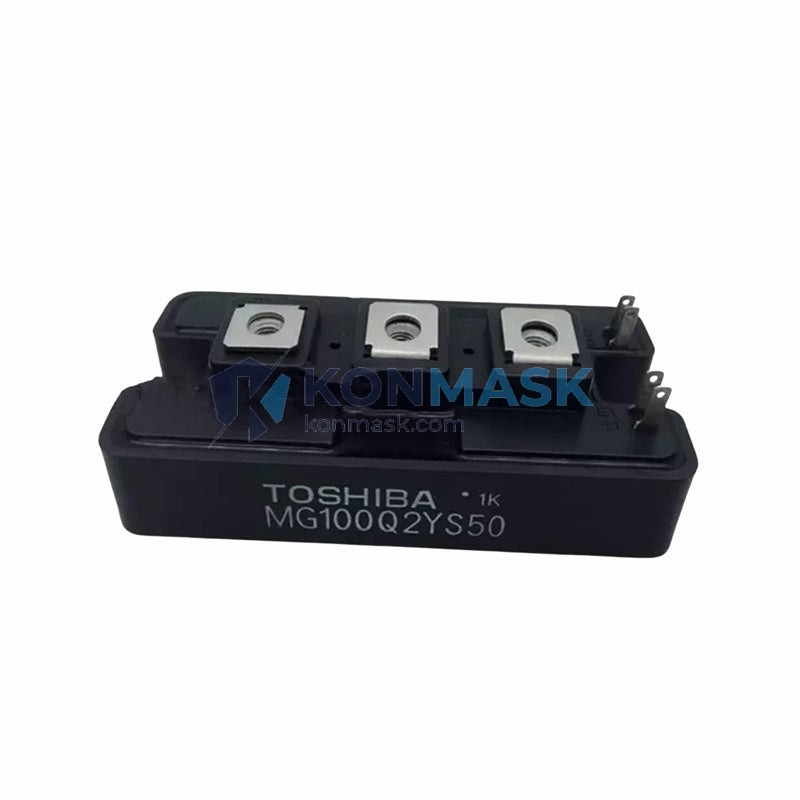

TOSHIBA MG100Q2YS50 IGBT Power Module – MG-Q2YS Series
In high-power industrial drive systems, inverters, and servo controllers, the power module is the heart of energy conversion. When an IGBT power module fails or becomes unavailable, the entire production line halts — motors stop, drives fault out, and costly downtime begins. For engineers maintaining Toshiba-based drive systems, finding an exact-match replacement like the TOSHIBA MG100Q2YS50 is not optional; it is mission-critical.
The MG100Q2YS50 belongs to Toshiba’s MG-Q2YS Series of high-performance IGBT power modules, rated at 100A / 500V. This series is widely deployed in industrial variable frequency drives (VFDs), UPS systems, welding equipment, and AC servo amplifiers across global manufacturing facilities. Toshiba’s IGBT modules are recognized for their low saturation voltage, fast switching characteristics, and robust thermal performance — making the MG100Q2YS50 a trusted component in demanding industrial automation environments worldwide.
Technical Specifications
- Part Number / SKU: MG100Q2YS50
- Manufacturer: TOSHIBA
- Series: MG-Q2YS Series
- Module Type: IGBT Power Module
- Collector Current (IC): 100A
- Collector-Emitter Voltage (VCES): 500V
- Package Type: Standard IGBT Module Package
- Application: Inverter, Converter, Motor Drive, UPS
- Weight: Approx. 4,560g (module + packaging)
Note: All specifications are based on Toshiba’s official datasheet. Contact us for the full datasheet PDF.
Key Features & Benefits
- High Current Capacity: 100A rated collector current supports heavy-duty industrial motor drive applications.
- 500V Voltage Rating: Suitable for standard 3-phase 380V AC industrial power systems with adequate safety margin.
- Low Saturation Voltage (VCE(sat)): Reduces conduction losses and improves overall system efficiency.
- Fast Switching Speed: Minimizes switching losses in high-frequency PWM inverter applications.
- Integrated Freewheeling Diodes: Simplifies circuit design and reduces component count in inverter topologies.
- Robust Thermal Design: Optimized for reliable operation under continuous high-load industrial conditions.
- Direct OEM Replacement: Exact form-factor and electrical compatibility for Toshiba drive systems.
Industry & Equipment Applications
- Variable Frequency Drives (VFDs): AC motor speed control in pumps, fans, compressors, and conveyors.
- Industrial Servo Systems: Toshiba AC servo amplifiers and motion control systems.
- Uninterruptible Power Supplies (UPS): High-power UPS inverter stages in data centers and critical infrastructure.
- Welding Equipment: Inverter-based MIG/TIG welding machines requiring stable high-current switching.
- Elevator & Crane Drives: Regenerative drive systems in vertical transport and heavy lifting equipment.
- Renewable Energy Inverters: Solar and wind power conversion systems.
- Industrial HVAC Systems: Large-scale air handling and chiller drive applications.
System Integration & Compatible Parts
The MG100Q2YS50 is designed for seamless integration into Toshiba drive platforms and compatible third-party inverter systems. When replacing or upgrading, consider the following compatible and associated components:
- Toshiba IGBT Gate Driver Boards (matching drive voltage and isolation requirements)
- Thermal Interface Materials / Heatsink Compounds for proper module mounting
- Compatible Toshiba VFD Series: VF-S15, VF-MB1, VF-nC3 and related platforms
- Snubber Capacitors and DC Bus Capacitors for inverter circuit protection
- Current Sensors and Temperature Sensors for drive protection circuits
Contact our technical team at support@konmask.com for system integration guidance and cross-reference support.
Our Quality Assurance Process
At Konmask.com, every IGBT power module undergoes a rigorous multi-stage quality verification process before shipment:
- Source Verification: All units are sourced from authorized distributors or directly from manufacturer-certified channels.
- Visual Inspection: 100% inspection for physical damage, marking authenticity, and package integrity.
- Electrical Parameter Testing: Key parameters including VCES, IC, and VCE(sat) are verified against datasheet specifications.
- Anti-Static Packaging: All modules are packed in ESD-safe bags with foam protection to prevent transit damage.
- Traceability: Batch records and test reports available upon request for quality-critical procurement.
How to Order
- Submit an Inquiry: Use the inquiry form on this page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote: Our team will respond within 24 hours with pricing, availability, and lead time.
- Confirm & Pay: Confirm your order and complete payment via T/T, PayPal, or other agreed methods.
- Shipment & Tracking: We ship globally via DHL, FedEx, UPS, or sea freight. Tracking number provided upon dispatch.
- After-Sales Support: Our technical team is available for installation guidance and warranty claims.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation Components — PLC modules, servo drives, IGBT modules, and DCS parts from leading global brands.
- ✅ Genuine Parts Guaranteed — Strict sourcing and quality control to eliminate counterfeit risk.
- ✅ Fast Global Shipping — Worldwide delivery with full customs documentation support.
- ✅ Expert Technical Support — Engineers available to assist with cross-referencing, compatibility, and installation.
- ✅ Competitive Pricing — Direct sourcing relationships enable cost-effective pricing for B2B buyers.
- ✅ Responsive Inquiry Handling — 24-hour response commitment for all RFQ submissions.
Frequently Asked Questions
Q1: Is the TOSHIBA MG100Q2YS50 in stock?
A: Stock availability varies. Please submit an inquiry or contact us directly for real-time availability and lead time.
Q2: Can you provide the official datasheet for MG100Q2YS50?
A: Yes. Contact us at support@konmask.com and we will provide the Toshiba official datasheet PDF.
Q3: Do you ship IGBT modules internationally?
A: Yes. We ship globally via DHL, FedEx, UPS, and sea freight with full export documentation.
Q4: What is the warranty on the MG100Q2YS50?
A: We offer a standard warranty period. Please contact us for specific warranty terms applicable to your order.
Q5: Can the MG100Q2YS50 replace other IGBT modules in the same series?
A: Cross-referencing depends on exact electrical and mechanical specifications. Our technical team can assist with compatibility verification.
Q6: What payment methods do you accept?
A: We accept T/T (bank transfer), PayPal, Western Union, and other methods by arrangement.
