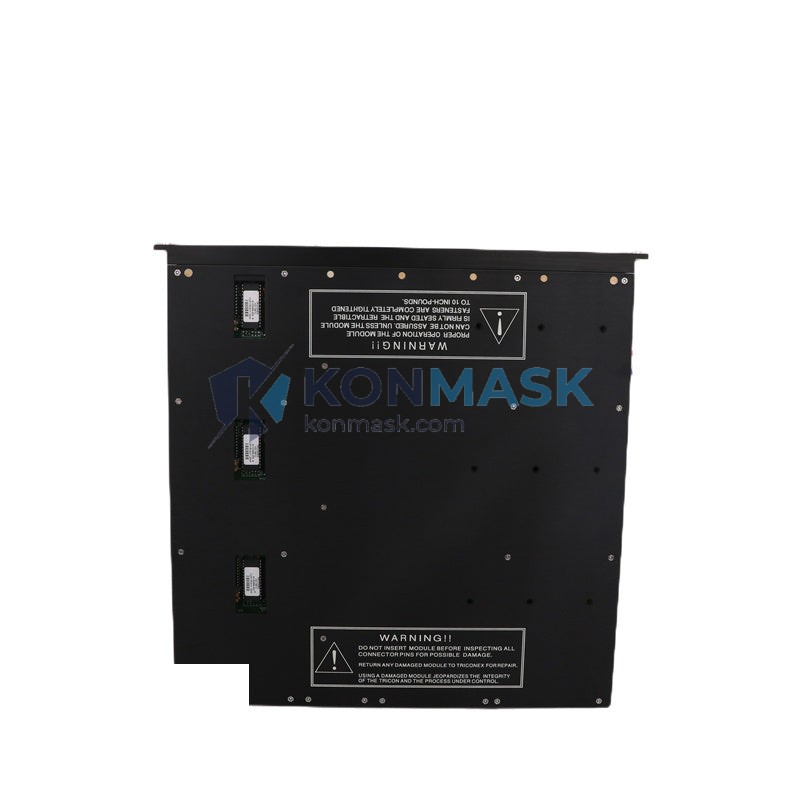

TRICONEX 3504A – 32-Channel Digital Input Module | Tricon Triple Modular Redundant (TMR) Safety Platform
Engineering Background
The TRICONEX 3504A is a high-density digital input module engineered for deployment within the Tricon Triple Modular Redundant (TMR) safety system — one of the most widely adopted Safety Instrumented System (SIS) platforms in global process industries. Developed by Triconex (now a Schneider Electric brand), the Tricon architecture achieves fault tolerance through three independent processing legs that vote on every I/O signal, ensuring continuous operation even in the presence of a single-point hardware failure.
Product Positioning
The 3504A module serves as the primary field-signal acquisition interface for discrete on/off process signals in safety-critical loops. It is the preferred choice for procurement engineers specifying replacement or expansion I/O for existing Tricon systems in oil & gas, petrochemical, power generation, and nuclear facilities where SIL 2 / SIL 3 integrity must be maintained without system shutdown.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 3504A |
| Module Type | Digital Input (DI) |
| Channel Count | 32 channels per module |
| Input Voltage Range | 24 VDC nominal (18–32 VDC operating range) |
| Input Logic Threshold | ON: ≥ 11 VDC; OFF: ≤ 5 VDC |
| Input Current (per channel) | Approx. 7 mA @ 24 VDC |
| Isolation | Optical isolation, channel-to-backplane |
| Scan Time | < 1 ms per channel group |
| Diagnostic Coverage | > 99% (TMR voting architecture) |
| Safety Integrity Level | SIL 2 / SIL 3 capable (IEC 61511) |
| Platform Compatibility | Tricon v9 / v10 / v11 chassis |
| Backplane Interface | Tricon proprietary TMR backplane bus |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Power Consumption | Approx. 4.5 W typical |
| Module Form Factor | Single-slot Tricon I/O card |
| Weight | 500 g (approx.) |
| Certifications | TÜV, FM, CE, IEC 61508 SIL 3 |
| Country of Origin | USA |
Proven Application Environments
- Oil & Gas: Emergency Shutdown (ESD) systems, High Integrity Pressure Protection Systems (HIPPS), compressor and turbine protection
- Petrochemical & Refining: Burner Management Systems (BMS), reactor interlock loops, fired heater safety
- Power Generation: Turbine trip systems, boiler protection, generator protection relays
- Nuclear: Reactor protection systems requiring IEC 61513 compliance
- Offshore Platforms: Fire & Gas (F&G) detection input acquisition, deluge system triggers
- Pipeline & Terminals: Valve position monitoring, pump interlock status acquisition
Engineering Advantages
- Hot-Swap Capable: Module can be replaced under power without system shutdown, preserving process continuity and SIL integrity during maintenance windows.
- TMR Voting Logic: Three independent signal paths vote 2-out-of-3 (2oo3) on every input, eliminating common-cause failures and spurious trips.
- High Channel Density: 32 DI channels per slot maximizes cabinet utilization and reduces per-channel installed cost in large safety systems.
- Optical Isolation: Full galvanic isolation between field wiring and backplane protects controller integrity from field-side transients and ground faults.
- Extensive Diagnostics: Built-in self-test routines continuously monitor channel health, reporting faults to the Tricon Main Processor without interrupting process control.
- Long Service Life: Designed for 20+ year operational life in continuous-duty industrial environments.
System Architecture & Signal Flow
In a Tricon TMR chassis, the 3504A occupies a standard I/O slot and interfaces directly with the TMR backplane. Field wiring connects to the module’s terminal assembly (field termination panel or direct wiring depending on chassis generation). Each of the 32 input channels is read independently by all three Tricon legs (Leg A, Leg B, Leg C). The Main Processor Module (MPM) performs 2oo3 voting on the three independent readings before presenting a single validated digital state to the application program. Diagnostic data is continuously logged and accessible via the TriStation 1131 programming environment or the Tricon Communication Module (TCM) for SCADA/DCS integration.
Sourcing & Quality Verification
- Genuine Parts: All TRICONEX modules at Konmask.com are sourced from authorized distributors, decommissioned plant inventories, or certified surplus channels — never counterfeit or grey-market.
- Pre-Shipment Testing: Each unit undergoes functional power-on verification and visual inspection prior to dispatch.
- Traceability: Serial number and firmware revision documented; available upon request for your site’s MOC (Management of Change) records.
- Packaging: ESD-safe anti-static bags, foam-lined cartons, and climate-controlled storage ensure module integrity during transit.
- Warranty: 12-month replacement warranty against manufacturing defects and functional failure.
Procurement Process
- Inquiry: Submit your RFQ via the product page or email support@konmask.com with your required quantity, delivery timeline, and any site-specific documentation requirements.
- Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and available stock confirmation.
- Order Confirmation: Purchase order accepted via Shopify checkout, bank transfer (T/T), or corporate PO for approved accounts.
- Inspection & Documentation: Pre-shipment test report, photos, and serial number list provided upon request before payment release.
- Shipping: DHL / FedEx / UPS express worldwide; sea freight available for bulk orders. Export documentation (commercial invoice, packing list, COO) included.
- After-Sales Support: Technical support available for installation verification and TriStation configuration guidance.
Technical FAQ
Q: Is the 3504A compatible with Tricon v9 chassis?
A: Yes. The 3504A is backward-compatible with Tricon v9, v10, and v11 chassis generations. Confirm your chassis slot type (standard vs. enhanced) before ordering.
Q: Can this module be used in a Trident or Tri-GP system?
A: No. The 3504A is designed exclusively for the Tricon TMR platform. Trident and Tri-GP use different module form factors and backplane interfaces.
Q: What firmware version does the supplied unit carry?
A: Firmware versions vary by production batch. Please contact us with your TriStation version to confirm compatibility before ordering.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC and functional test report are available upon request at no additional charge.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. Out-of-stock lead time is typically 2–4 weeks depending on sourcing channel.
Q: Can you supply multiple units for a plant-wide spares program?
A: Yes. Volume pricing is available for orders of 3+ units. Contact us for a blanket order arrangement.
