SIEMENS 505-7003 High Speed Counter | Replacement, Equivalent & Selection Guide

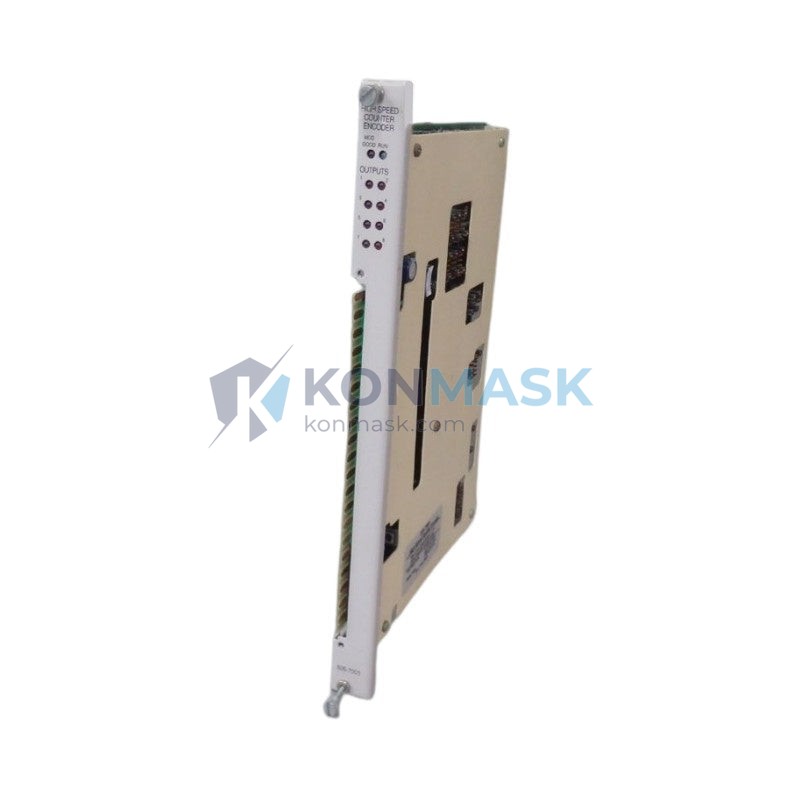

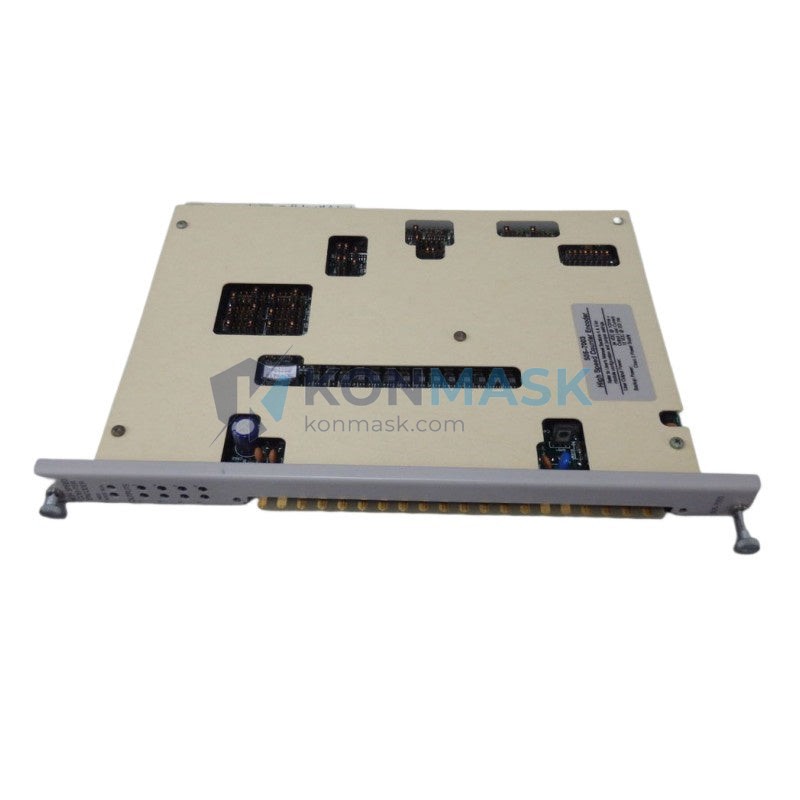

The SIEMENS 505-7003 is a High Speed Counter module designed for use within the SIMATIC TI 505 series programmable logic controller (PLC) platform. It provides high-frequency pulse counting capabilities essential for precision motion control, encoder feedback, and process monitoring in industrial automation environments.
As the TI 505 platform ages, procurement teams and maintenance engineers increasingly search for replacement and equivalent options for the 505-7003. Whether you are sourcing a direct drop-in, a functional equivalent, or a cross-brand substitute, this guide is designed to help you make an informed selection decision — and Konmask is here to support every step of that process.
Technical Specifications
- Manufacturer: SIEMENS (formerly Texas Instruments / Siemens TI)
- Part Number: 505-7003
- Module Type: High Speed Counter (HSC)
- Platform: SIMATIC TI 505 Series PLC
- Counting Modes: Up, Down, Up/Down (quadrature)
- Max Input Frequency: Up to 50 kHz (key parameter for replacement evaluation)
- Counter Resolution: 32-bit
- Input Voltage: 24 VDC
- Isolation: Optically isolated inputs
- Outputs: Configurable preset/compare outputs
- Backplane Interface: TI 505 local/remote I/O bus
- Operating Temperature: 0°C to 60°C
- Dimensions: Standard TI 505 single-slot module form factor
- Certifications: UL, CE (verify with documentation)
⚠ Key parameters for replacement decisions: max input frequency, counter resolution, backplane bus compatibility, and I/O voltage level.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These modules are physically and electrically interchangeable with the 505-7003 on the TI 505 backplane with no configuration changes required:
- SIEMENS 505-7003A — Revised hardware revision of the same module; functionally identical, same firmware compatibility
- SIEMENS 505-7003B — Later production variant; confirm firmware version compatibility with your CPU before installation
2. Functional Equivalents
These modules offer equivalent high-speed counting functionality within the TI 505 ecosystem but may require minor I/O mapping or configuration adjustments:
- SIEMENS 505-7002 — Lower-frequency HSC variant; suitable if your application operates below 10 kHz
- SIEMENS 505-7004 — Enhanced HSC with additional preset outputs; upward-compatible in most applications
⚠ Prerequisite: Verify backplane slot assignment and I/O table mapping in your TI 505 CPU configuration before substitution.
3. Cross-Brand Alternatives
For system migrations or when original TI 505 hardware is unavailable, these platforms offer comparable HSC functionality but require engineering evaluation and possible rewiring:
- Allen-Bradley / Rockwell 1746-HSCE2 (SLC 500 platform) — 100 kHz HSC, requires SLC 500 chassis; suitable for system migration projects
- Schneider Electric TSX CTY2A (Modicon TSX Micro) — Dual-channel HSC, 40 kHz; cross-brand substitute with I/O rewiring required
- Mitsubishi FX3U-4HSX-ADP — High-speed input adapter for FX3U series; suitable for greenfield replacement of TI 505 HSC functions
⚠ Cross-brand alternatives require full engineering review, rewiring, and software reprogramming. Contact Konmask for migration support.
Why Choose the Original Model
- Precision & Accuracy: Factory-calibrated 32-bit counter with guaranteed frequency response up to 50 kHz — no performance compromise
- OEM Certification: Carries original SIEMENS UL/CE certifications, ensuring compliance with plant safety and insurance requirements
- Backplane Compatibility: Guaranteed plug-and-play fit on all TI 505 chassis without firmware or configuration changes
- System Stability: Eliminates integration risk associated with functional equivalents or cross-brand substitutes
- Technical Support: Konmask provides pre-sales configuration advice and post-sales technical support for original modules
- Warranty & Traceability: Sourced with full traceability documentation; eligible for Konmask quality warranty coverage
Typical Applications
- Automotive Manufacturing: Encoder feedback for robotic arm positioning and conveyor speed control
- Packaging Lines: High-speed product counting and batch control on filling and labeling machines
- Textile Industry: Yarn length measurement and loom cycle counting with quadrature encoder input
- Water Treatment: Flow pulse counting from turbine or magnetic flow meters for volumetric totalization
- Printing & Paper: Web speed synchronization and register mark detection in high-speed press lines
- Material Handling: Position tracking for overhead cranes, hoists, and automated storage/retrieval systems (AS/RS)
System Compatibility
The 505-7003 is designed for use within the following SIMATIC TI 505 system components:
- 505-6860 / 505-6870 — TI 505 CPU modules (local rack host)
- 505-6850 — TI 505 CPU with expanded memory; compatible host processor
- 505-4410 / 505-4420 — Local I/O chassis (5-slot and 10-slot); direct backplane mounting
- 505-4450 — Remote I/O chassis; compatible via TI 505 remote I/O bus
- 505-7101 / 505-7102 — Incremental encoder interface modules; commonly paired with 505-7003 for closed-loop positioning
- 505-8001 — TI 505 power supply module; required in each chassis
Selection Guide
Before ordering, confirm the following to ensure the 505-7003 or its equivalent is the right fit for your system:
- What is your maximum encoder or pulse input frequency? If your application exceeds 50 kHz, the 505-7003 may not be sufficient — contact Konmask to evaluate the 505-7004 or a cross-brand alternative.
- Are you replacing a failed module in an existing TI 505 system, or migrating to a new platform? For direct replacement, the original 505-7003 is the lowest-risk option. For platform migration, Konmask can provide a cross-brand equivalent assessment.
- Do you require specific certifications (UL, CE, ATEX) for your installation environment? Original SIEMENS modules carry factory certifications; third-party equivalents may require re-certification. Contact support@konmask.com for documentation support.
📩 Not sure which model fits your system? Contact Konmask at support@konmask.com — our engineers will review your application and recommend the optimal solution within 24 hours.
Quality Assurance & Sourcing
Konmask sources the SIEMENS 505-7003 through authorized distribution channels and verified secondary market suppliers with full traceability. Every unit undergoes our 4-step inspection process before shipment:
- Visual Inspection: Housing integrity, label authenticity, connector condition, and absence of counterfeit indicators
- Functional Test: Power-on verification and counter input/output response testing using TI 505-compatible test bench
- Firmware Version Check: Firmware revision logged and matched to customer CPU compatibility requirements
- Documentation Package: Serial number traceability record, test report, and certificate of conformance issued with each unit
Available documentation upon request: Certificate of Conformance (CoC), Test Report, Material Safety Data Sheet (MSDS), and customs/export documentation.
How to Order
- Submit Your Inquiry: Email support@konmask.com with your part number (505-7003), required quantity, and any firmware or certification requirements
- Receive Quote & Availability Confirmation: Konmask will respond within 24 hours with pricing, lead time, and stock status
- Confirm & Ship: Upon order confirmation, units are inspected, documented, and dispatched with full traceability package
📞 Phone/WhatsApp: +0086 19859288691 | 📧 Email: support@konmask.com
Replacement & Compatibility FAQ
Q1: Can I use the SIEMENS 505-7004 as a direct replacement for the 505-7003?
The 505-7004 is a functional equivalent with enhanced preset output capabilities. In most TI 505 applications, it can substitute for the 505-7003 without hardware changes, but you should verify I/O table mapping in your CPU configuration. Contact Konmask if you need a compatibility review before ordering.
Q2: Is the SIEMENS 505-7003 compatible with all TI 505 chassis and CPUs?
Yes — the 505-7003 is compatible with all standard TI 505 local and remote I/O chassis. It is compatible with all TI 505 CPU models that support special function modules. Confirm your CPU firmware supports HSC module addressing if using older CPU revisions.
Q3: What is the best cross-brand substitute for the 505-7003 if I am migrating away from the TI 505 platform?
The most commonly used cross-brand equivalents are the Allen-Bradley 1746-HSCE2 (SLC 500) and Schneider TSX CTY2A (Modicon). However, all cross-brand substitutes require full engineering evaluation, rewiring, and software reprogramming. Konmask can provide a migration assessment — contact us at support@konmask.com to get started.
