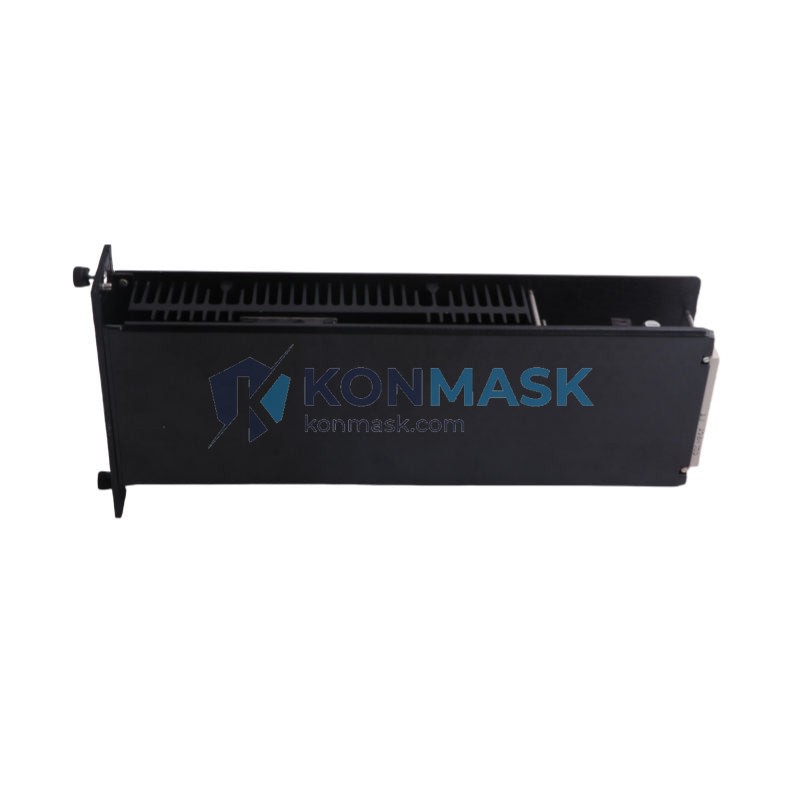

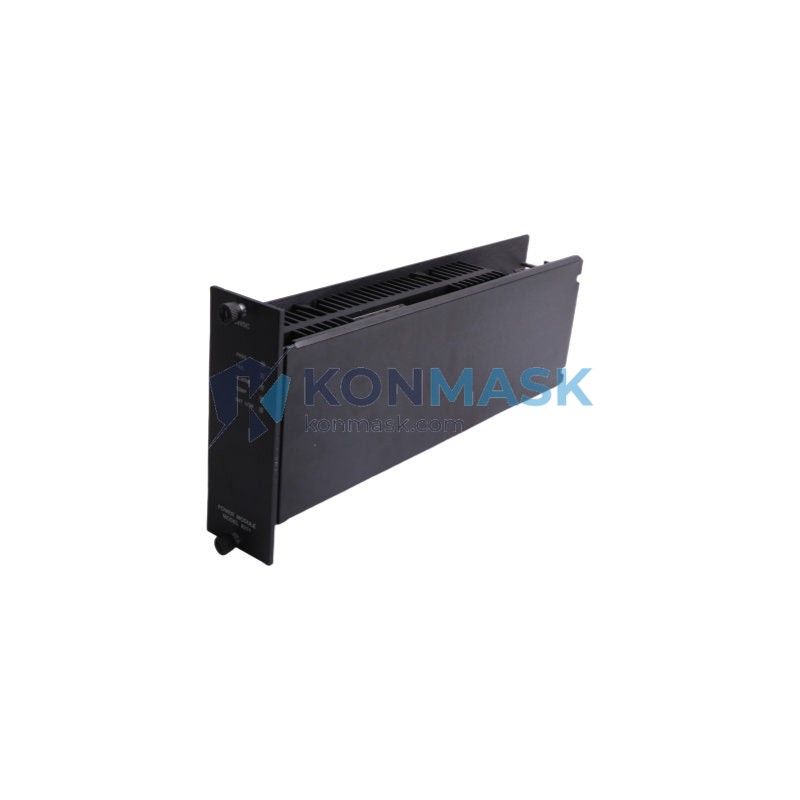

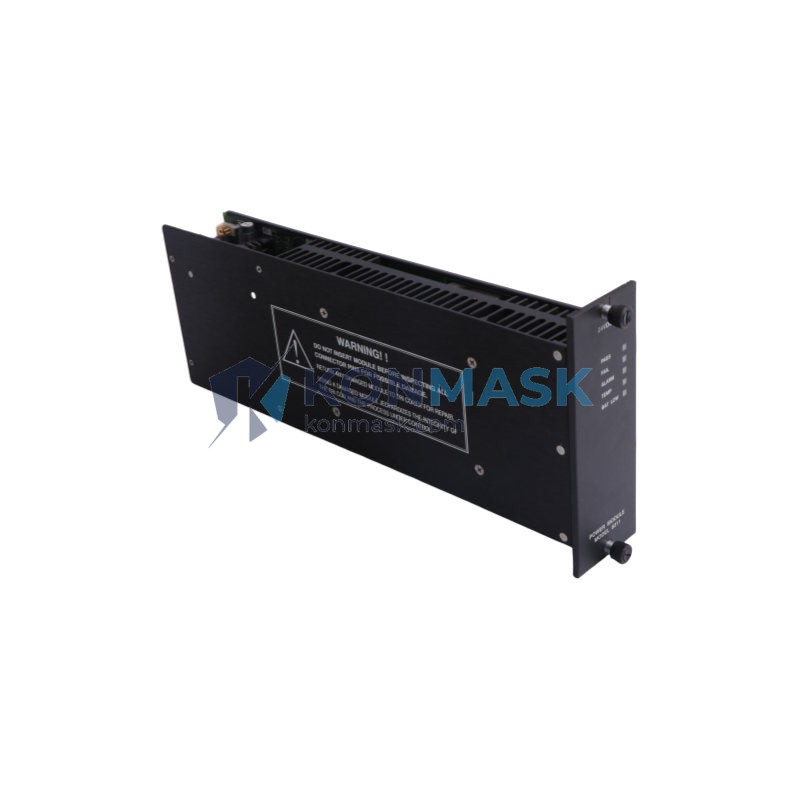

Triconex 8311 Terminal Board – Field Wiring Interface | Tricon Triple Modular Redundant (TMR) Safety System
Imagine a critical process shutdown triggered not by a real hazard, but by a loose field wire or a failed I/O connection point. In high-stakes environments — oil & gas platforms, chemical reactors, nuclear facilities — a single wiring interface failure can cascade into unplanned downtime worth millions of dollars, or worse, a safety incident. The Triconex 8311 Terminal Board exists precisely to eliminate that risk. As the dedicated field wiring termination module for the Tricon TMR architecture, it provides the robust, fault-tolerant connection layer between your field instruments and the safety logic solver — ensuring signal integrity is never the weak link in your Safety Instrumented System (SIS).
The 8311 occupies a foundational role within the Triconex Tricon product family — one of the most widely deployed TMR safety platforms globally, certified to IEC 61511 and IEC 61508 SIL 3. Triconex, a brand under Schneider Electric, has set the benchmark for high-availability safety controllers across the process industries for over three decades. The 8311 Terminal Board is the trusted field interface that keeps this architecture performing at its certified safety integrity level, installed in thousands of facilities across more than 80 countries.
Technical Specifications
- Part Number: 8311
- Manufacturer: Triconex (Schneider Electric)
- Product Type: Terminal Board / Field Wiring Termination Module
- Compatible Platform: Tricon TMR Safety System
- Architecture: Triple Modular Redundant (TMR) — three independent I/O paths
- Safety Certification: IEC 61508 SIL 3, IEC 61511
- Weight: 2,600 g (approx.)
- Application: Field signal termination for Tricon I/O modules
- Mounting: Tricon chassis-compatible rail mount
- Operating Environment: Industrial — suitable for hazardous process environments
Note: Detailed electrical specifications (voltage, current ratings, channel count) should be confirmed against the official Triconex 8311 datasheet or contact our technical team for documentation support.
Key Features & Benefits
- TMR Signal Integrity: Maintains three independent signal paths per channel, consistent with Tricon’s fault-tolerant architecture — no single point of failure at the field wiring level.
- Plug-and-Play Termination: Designed for direct mating with Tricon I/O modules, eliminating custom wiring adapters and reducing installation errors.
- Robust Industrial Construction: Built to withstand vibration, temperature cycling, and EMI-rich environments typical of petrochemical and power generation facilities.
- Simplified Maintenance: Field wiring remains connected to the terminal board during module replacement, enabling hot-swap maintenance without process interruption.
- Long Service Life: Manufactured to Triconex’s stringent quality standards, ensuring compatibility and reliability over the full lifecycle of your Tricon system.
- SIL 3 System Compatibility: Supports the overall SIL 3 integrity of the Tricon platform when installed and maintained per Triconex specifications.
Industry & Equipment Applications
- Oil & Gas: Upstream wellhead control, midstream pipeline ESD, downstream refinery process safety
- Petrochemical & Chemical: Reactor protection systems, burner management systems (BMS), high-integrity pressure protection (HIPPS)
- Power Generation: Turbine protection, boiler safety shutdown, nuclear auxiliary systems
- LNG & Terminals: Loading arm interlocks, storage tank protection, compressor ESD
- Offshore Platforms: Fire & gas detection integration, emergency shutdown (ESD) systems
- Water & Wastewater: Critical pump protection and process isolation
System Integration & Compatible Parts
The Triconex 8311 Terminal Board is designed to integrate seamlessly within the Tricon TMR ecosystem. Compatible and commonly paired components include:
- Tricon Main Chassis and Expansion Chassis
- Triconex Digital Input / Digital Output modules (e.g., 3501, 3503, 3601, 3603 series)
- Triconex Analog Input / Analog Output modules (e.g., 3700A, 3703E series)
- Triconex Communication modules (e.g., 4351B, 4119A)
- Tricon Power Supply modules (e.g., 8312, 8110)
Contact our engineering team to verify exact compatibility with your installed Tricon system revision and chassis configuration.
Our Quality Assurance Process
At Konmask.com, every Triconex 8311 Terminal Board is subject to a rigorous multi-stage verification process before shipment:
- Visual Inspection: Full physical examination for connector integrity, PCB condition, and label authenticity
- Authenticity Verification: Cross-referenced against Triconex/Schneider Electric part databases and serial number records
- Functional Pre-check: Where applicable, bench-tested against known-good Tricon reference systems
- Traceability Documentation: Full sourcing chain documentation available upon request for regulated industries
- Secure Packaging: ESD-safe packaging with shock-absorbing materials for international freight
How to Order
- Submit your inquiry via the Contact / Request a Quote form on this page
- Provide your required quantity, delivery timeline, and destination country
- Our technical team will confirm availability, lead time, and issue a formal quotation within 24 hours
- Upon PO confirmation, we arrange export documentation, customs clearance support, and tracked international shipping
- Post-delivery technical support available via email and phone
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation & Safety Systems — deep technical knowledge of Triconex, Emerson, Siemens, ABB, and Honeywell platforms
- ✅ Global Export Experience — serving engineering firms, EPCs, and plant operators in 50+ countries
- ✅ Verified Inventory — all parts authenticated and quality-checked before dispatch
- ✅ Fast Response — quotations within 24 hours, emergency sourcing support available
- ✅ Full Documentation Support — COO, packing list, commercial invoice, and test reports available
- ✅ After-Sales Technical Support — our engineers are available to assist with installation and integration questions
Frequently Asked Questions
- Q: Is the Triconex 8311 a new or refurbished part?
- A: We supply both new-in-box and professionally refurbished units depending on availability. Condition is clearly stated in every quotation. All units pass our QA process regardless of condition.
- Q: What is the lead time for the 8311 Terminal Board?
- A: In-stock units typically ship within 3–5 business days internationally. For out-of-stock items, our sourcing team can usually locate and deliver within 2–4 weeks. Contact us for current availability.
- Q: Can you provide a certificate of conformance or test report?
- A: Yes. Traceability documentation, inspection reports, and certificates of conformance are available upon request, particularly for regulated industries such as nuclear, oil & gas, and pharmaceuticals.
- Q: Is the 8311 compatible with all Tricon chassis versions?
- A: The 8311 is designed for the Tricon TMR platform. Compatibility may vary by chassis revision and I/O module generation. Please share your system configuration details and our engineers will confirm compatibility before you order.
- Q: Do you ship to my country?
- A: Yes. We export globally and have experience with customs documentation for most major markets including the EU, Middle East, Southeast Asia, and the Americas. Contact us with your destination for a shipping quote.
