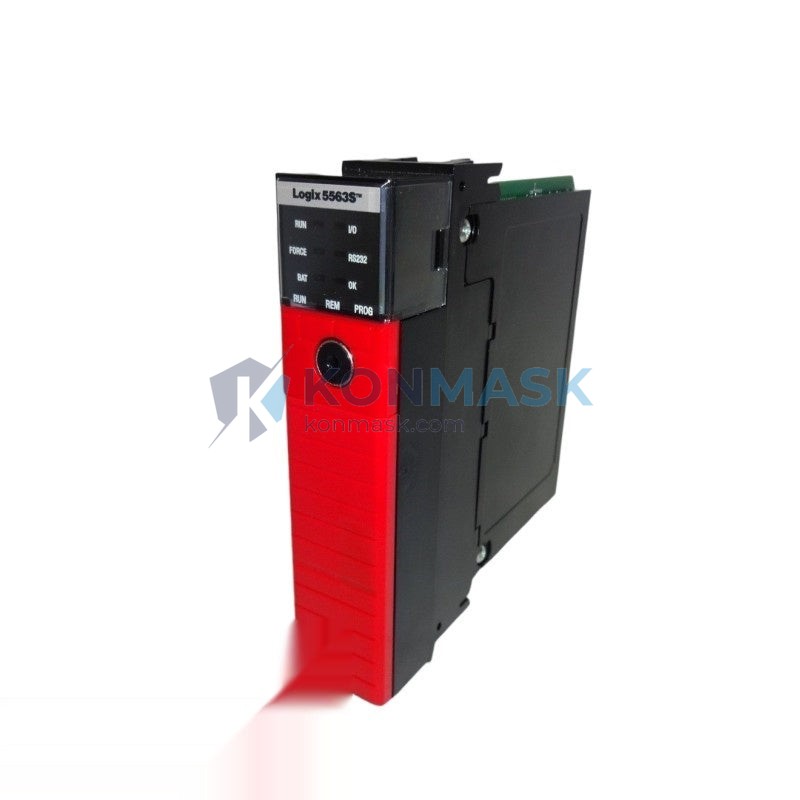

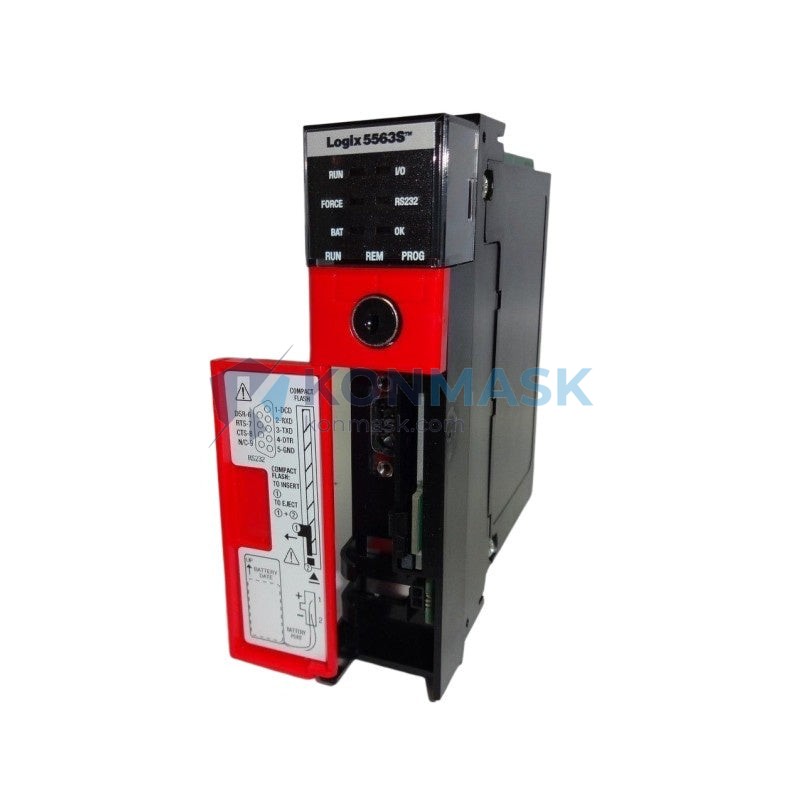

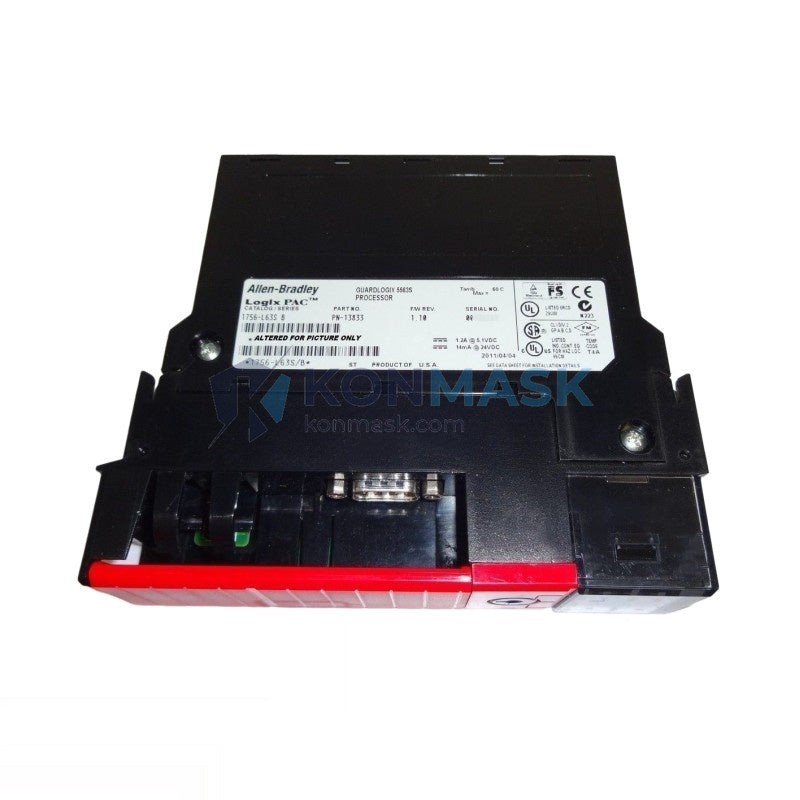

Safety PLC Application Solution – Allen-Bradley 1756-L63S | ControlLogix Logix5563 Processor Ser A
In modern industrial facilities — automotive assembly lines, chemical reactors, oil & gas platforms, and power generation plants — a single undetected control-system fault can trigger cascading failures costing millions in downtime, regulatory penalties, or, critically, human injury. Industry data shows that inadequate safety-layer integration accounts for over 40 % of process-industry incidents where a PLC-class controller was involved. Plants running standard (non-safety-rated) processors in safety-critical loops face audit non-conformances under IEC 61511 and OSHA PSM regulations, forcing costly retrofits and production halts.
The Allen-Bradley 1756-L63S ControlLogix Logix5563 Safety Processor (Series A) resolves this at the architecture level. By integrating a TÜV-certified SIL 2 / SIL 3-capable safety execution engine directly into the ControlLogix chassis alongside standard control tasks, it eliminates the need for a separate, standalone safety PLC. Engineers get a single programming environment (Studio 5000 Logix Designer with Safety Task), deterministic dual-channel I/O diagnostics, and hardware-enforced safe-state logic — all within the proven ControlLogix backplane ecosystem. The result: reduced panel footprint, unified asset management, and a verifiable safety lifecycle from design to decommission.
Where This Product Is Used
1. Automotive Body & Powertrain Assembly
- Robot cell guarding: monitors light curtains and door interlocks; executes Category 3 / PLd stop functions per ISO 13849-1 within ≤10 ms response time.
- Weld gun pressure control: dual-channel pressure-sensor monitoring prevents over-force events on body panels; environment: 40–60 °C, high EMI from welding inverters.
- Conveyor E-stop networks: coordinates distributed safe-torque-off (STO) across 50+ servo drives via CIP Safety on EtherNet/IP, meeting ANSI/RIA R15.06.
2. Oil & Gas Upstream / Midstream
- Emergency Shutdown (ESD) systems: executes SIL 2 shutdown logic for wellhead Christmas-tree valve closure; classified area rating C1D2 / ATEX Zone 2 (controller in purged enclosure).
- High-integrity pressure protection (HIPPS): monitors dual redundant pressure transmitters; trips isolation valves within 100 ms to prevent overpressure per IEC 61511-1.
- Pipeline pig-launcher interlocks: sequences valve open/close with position confirmation; operates at –20 °C to +60 °C ambient.
3. Chemical & Petrochemical Process Plants
- Reactor runaway prevention: reads thermocouple and flow inputs via 1756-IB16IS safety I/O; initiates quench-water dump valve in <500 ms; SIL 2 loop per IEC 61511.
- Toxic gas detection interlock: integrates with Modbus RTU gas detectors via safety-rated gateway; triggers area evacuation and HVAC isolation.
- Distillation column pressure relief: monitors redundant pressure transmitters; arms and disarms relief-valve bypass with full audit trail in non-volatile memory.
4. Power Generation & Utilities
- Turbine overspeed protection: dual-channel speed-sensor voting (2oo3 logic) with trip output to fuel-shutoff solenoid; response <20 ms; meets NFPA 85 and IEC 61508 SIL 3.
- Boiler burner management system (BMS): executes purge, light-off, and flame-failure sequences per NFPA 85; integrates with DCS via OPC-UA for alarm annunciation.
- Substation protection relay coordination: monitors breaker status and coordinates auto-reclosure inhibit during maintenance windows.
5. Food & Beverage / Pharmaceutical
- CIP (Clean-In-Place) chemical dosing interlock: prevents caustic injection when product is present in line; SIL 1 loop; washdown environment IP65 enclosure.
- Autoclave over-temperature shutdown: dual thermocouple input with discrepancy alarm; meets FDA 21 CFR Part 11 audit-trail requirements via FactoryTalk Audit.
- Packaging line guard door monitoring: RFID-coded safety switch inputs; PLe / Cat 4 stop per ISO 13849-1.
6. Mining & Material Handling
- Conveyor belt slip / speed monitoring: dual-channel speed sensors detect belt slip >15 %; initiates controlled stop to prevent fire; dusty environment, –10 °C to +55 °C.
- Crusher jam detection and safe-stop: monitors motor current and position; executes STO via CIP Safety to drive; meets AS 4024 machinery safety standard.
- Hoist overload and over-travel protection: dual limit-switch inputs with cross-fault detection; SIL 2 per IEC 61508.
Technical Specifications
| Part Number | 1756-L63S |
| Series | A |
| Brand / Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Family | ControlLogix Safety |
| Processor | Logix5563 (dual-core safety architecture) |
| User Memory | 8 MB (standard) + 8 MB (safety) — supports large safety task programs in complex ESD applications |
| I/O Capacity | Up to 128,000 I/O points — scales to plant-wide safety architectures |
| Safety Integrity Level | SIL 2 (single controller) / SIL 3 (redundant pair) per IEC 61508 |
| Safety Task Execution | Periodic safety task, configurable 1–500 ms — critical for turbine overspeed <20 ms response |
| Communication Ports | 1 × RS-232 (DF1); backplane CIP Safety via EtherNet/IP bridge modules |
| Backplane Compatibility | 1756 ControlLogix chassis (4, 7, 10, 13, 17 slot) |
| Power Supply | Via 1756-PA72 / 1756-PB72 (chassis-mounted) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95 % non-condensing |
| Vibration | 2 g @ 10–500 Hz (IEC 60068-2-6) |
| Shock | 30 g operational (IEC 60068-2-27) |
| Weight | ~300 g |
| Firmware | Compatible with Studio 5000 Logix Designer v21+ |
| Non-volatile Memory | SD card slot for program backup and audit log retention |
| Certifications | TÜV SIL 2/3, CE, UL, cUL, ATEX (with purged enclosure), IECEx |
Why Engineers Specify This Model
- In ESD and HIPPS applications, the 1756-L63S delivers deterministic <100 ms trip response because its dedicated safety task pre-empts all standard tasks, meeting IEC 61511-1 SIL 2 response-time requirements.
- In robot cell guarding, the 1756-L63S delivers Category 3 / PLd dual-channel stop functions because its cross-fault detection hardware identifies single-point failures before the next safety scan, meeting ISO 13849-1 requirements.
- In turbine overspeed protection, the 1756-L63S delivers 2oo3 voting logic with <20 ms execution because the safety task runs at highest priority on the Logix5563 dual-core engine, meeting IEC 61508 SIL 3 requirements.
- In multi-axis servo safety, the 1756-L63S delivers coordinated CIP Safety STO commands across 50+ drives because it communicates natively over EtherNet/IP without external safety relays, meeting ANSI/RIA R15.06 requirements.
- In pharmaceutical autoclave control, the 1756-L63S delivers full audit-trail logging with tamper-evident timestamps because its non-volatile SD memory retains safety event records across power cycles, meeting FDA 21 CFR Part 11 requirements.
- In mining conveyor protection, the 1756-L63S delivers reliable operation in –10 °C to +55 °C dusty environments because its conformal-coated PCB and sealed module housing resist particulate ingress, meeting AS 4024 machinery safety requirements.
Complete System Bill of Materials
| Item | Part Number | Function & Relationship to 1756-L63S |
|---|---|---|
| Safety Processor (this unit) | 1756-L63S | Executes safety and standard control tasks in one chassis slot |
| ControlLogix Chassis (10-slot) | 1756-A10 | Backplane carrier; hosts processor and all I/O modules |
| AC Power Supply | 1756-PA72 | Provides 1.2 A backplane power; required for chassis operation |
| Safety Digital Input Module | 1756-IB16IS | Dual-channel 24 VDC safety inputs; connects field sensors to safety task |
| Safety Digital Output Module | 1756-OB16IS | Dual-channel 24 VDC safety outputs; drives solenoids and relays |
| Standard Analog Input Module | 1756-IF8 | 4–20 mA process inputs (pressure, temperature) for standard task monitoring |
| EtherNet/IP Bridge Module | 1756-EN2T | Connects chassis to plant EtherNet/IP network for CIP Safety and HMI comms |
| ControlNet Bridge (optional) | 1756-CN2 | Legacy ControlNet integration for existing plant infrastructure |
| Programming Software | Studio 5000 Logix Designer v21+ | Safety task programming, SIL verification reports, and firmware management |
| SD Memory Card | 1784-SD1 | Program backup and non-volatile audit-log storage for the 1756-L63S |
| Safety Relay (external, optional) | 1732DS-IB8XOBV4 | Distributed safety I/O for remote field devices via CIP Safety |
| UPS / Battery Backup | 1756-BATT | Maintains real-time clock and SRAM during power interruption |
Compliance & Industry Standards
- IEC 61508 (SIL 2 / SIL 3) — Issued by IEC; TÜV-certified functional safety for E/E/PE systems. Gives buyers the documented SIL claim required for insurance and regulatory approval of safety instrumented functions.
- IEC 61511-1 — Process industry safety instrumented systems standard. Confirms the 1756-L63S is suitable for use in SIS loops in oil & gas, chemical, and power plants.
- ISO 13849-1 (PLd / PLe) — Machine safety performance levels. Enables use in robot cell guarding and conveyor E-stop applications without additional safety relays.
- IEC 62061 (SIL CL 2) — Safety of machinery functional safety standard. Provides an alternative compliance path for machine-builder OEMs in EU markets.
- CE Marking — European conformity; required for sale and installation in EU member states.
- UL / cUL Listed — Underwriters Laboratories; required for North American panel installations and insurance compliance.
- ATEX / IECEx (Zone 2 / C1D2 with purged enclosure) — Hazardous-area certification; enables deployment in oil & gas and chemical classified areas when installed in a certified Ex p enclosure.
- NFPA 85 — Boiler and combustion systems code; referenced for BMS applications in power generation.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the 1756-L63S exclusively through authorized Rockwell Automation distribution channels and verified surplus-market partners with documented chain-of-custody records. We do not source from anonymous brokers or unverified secondary markets.
4-Step Inspection Process:
- Visual & Physical Inspection: Label authenticity, series marking, housing integrity, connector pin condition, and absence of re-marking or sanding.
- Firmware & Boot Verification: Module is powered and booted; firmware version is confirmed against Rockwell’s published release matrix.
- Functional Bench Test: Installed in a 1756 chassis with Studio 5000; safety task execution and I/O diagnostics verified.
- Documentation Package Assembly: Test report, photos, and traceability records compiled before shipment.
Available Documentation: Certificate of conformance (CoC) · Inspection report with photos · Firmware version record · Packing list with serial number · Original Rockwell datasheet (linked)
How to Source This Part
- Submit Your Inquiry: Contact us via the product page form or email support@konmask.com with your required quantity, delivery timeline, and any project-specific documentation requirements (e.g., CoC, ATEX cert copy).
- Receive Quote & Availability Confirmation: Our team responds within 24 hours with pricing, lead time, and stock status. For urgent ESD or safety-system shutdowns, flag your message as URGENT for priority handling.
- Order, Inspect & Ship: Upon order confirmation, units undergo our 4-step inspection. We ship globally via DHL Express, FedEx International Priority, or sea freight for bulk orders — with full export documentation (commercial invoice, packing list, HS code 8537.10) for customs clearance.
Application-Specific FAQ
Q1: Can the 1756-L63S be used as the sole safety controller in a SIL 2 Emergency Shutdown system without a redundant pair?
Yes. A single 1756-L63S achieves SIL 2 capability per IEC 61508 when the safety task is correctly configured with appropriate proof-test intervals (typically ≤1 year) and the overall Safety Instrumented Function (SIF) PFDavg calculation is within SIL 2 limits. For SIL 3 ESD applications — common in high-pressure gas pipelines — a redundant 1756-L63S pair in a 1756-SB chassis is required.
Q2: In a robot cell guarding application, can the 1756-L63S replace a standalone safety relay module for door interlock monitoring?
In most cases, yes. When paired with 1756-IB16IS safety input modules, the 1756-L63S can directly monitor dual-channel door switches and light curtains, execute Category 3 / PLd stop logic, and output STO commands to servo drives via CIP Safety — eliminating the need for discrete safety relays. This simplifies wiring, reduces panel space by up to 30 %, and centralizes safety diagnostics in one Studio 5000 project.
Q3: Our plant uses an existing ControlLogix 1756-L63 (non-safety) for process control. Can we add a 1756-L63S to the same chassis to handle the safety instrumented system layer?
Yes — this is a common architecture. The 1756-L63S and a standard 1756-L63 can coexist in the same chassis. The safety processor runs its own isolated safety task; standard I/O modules serve the standard processor; safety I/O modules (1756-IB16IS / 1756-OB16IS) are owned exclusively by the safety processor. This integrated architecture is fully supported by Studio 5000 and is the recommended approach for brownfield plants adding a safety layer to existing ControlLogix infrastructure.
