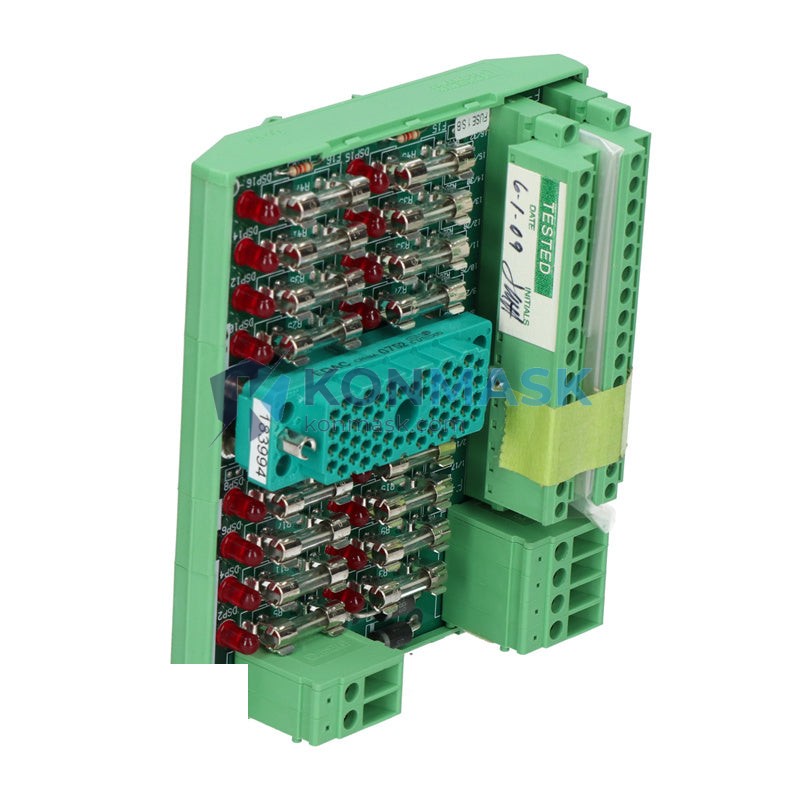

Safety Instrumented System Solution – TRICONEX 9563-810 | Tricon Digital Input Termination Panel
Where This Product Is Used
The TRICONEX 9563-810 Digital Input Termination Panel is a field-wiring interface component designed for use within the Tricon Triple Modular Redundant (TMR) Safety System. It is deployed in Safety Instrumented Systems (SIS) across the most demanding process industries:
- Oil & Gas: Emergency Shutdown (ESD) systems on offshore platforms, FPSOs, and onshore terminals
- Petrochemical & Refining: Burner Management Systems (BMS), high-integrity pressure protection (HIPPS)
- Power Generation: Turbine trip systems, boiler protection, and generator protection panels
- LNG & Pipeline: Compressor control and shutdown logic for critical pipeline segments
- Chemical Processing: Reactor safety interlocks and process shutdown systems
- Nuclear & Utilities: Auxiliary safety logic where IEC 61511 / IEC 61508 compliance is mandatory
Engineers specify this termination panel wherever clean, reliable field-to-controller signal routing is required in a certified TMR architecture.
Technical Specifications
| Part Number | 9563-810 |
| Manufacturer | TRICONEX (Schneider Electric) |
| Series | Tricon TMR Safety System |
| Module Type | Digital Input Termination Panel |
| Signal Type | Digital Input (DI) |
| Architecture | Triple Modular Redundant (TMR) – 2oo3 voting |
| Mounting | Tricon Main Chassis / Expansion Chassis |
| Field Wiring | Screw-terminal field wiring interface |
| Weight | 2,750 g (approx.) |
| Compatibility | Tricon v9 / v10 / v11 controller platforms |
| Certifications | IEC 61508 SIL 3, TÜV-certified |
| Operating Environment | Industrial – suitable for control room and marshalling cabinet installation |
Why Engineers Specify This Model
- TMR Redundancy: Supports 2oo3 voting logic, eliminating single points of failure in safety-critical digital input channels
- Clean Field Interface: Provides a dedicated, organized termination point between field instruments and the Tricon DI module, reducing wiring errors and simplifying maintenance
- SIL 3 Certified: Meets IEC 61508 Safety Integrity Level 3 requirements — the highest level for process safety applications
- Proven Platform: The Tricon system has decades of installed base in tier-1 EPC and operator environments globally
- Simplified Commissioning: Plug-and-play compatibility with Tricon chassis reduces integration time during plant startup
- Long Service Life: Designed for 20+ year operational lifecycles typical of process plant infrastructure
Complete System Bill of Materials
The 9563-810 termination panel is typically specified alongside the following Tricon system components:
- Tricon Digital Input Module (e.g., 3501E, 3503E)
- Tricon Main Chassis or Expansion Chassis
- Tricon Power Supply Module
- Tricon Communication Module (TCM)
- Tricon Cable Assembly (field-to-panel)
- TriStation 1131 Engineering Workstation Software
Contact us for complete BOM support and cross-reference assistance.
Compliance & Industry Standards
- IEC 61508 – Functional Safety of E/E/PE Safety-related Systems (SIL 3)
- IEC 61511 – Functional Safety for the Process Industry Sector
- NFPA 72 / NFPA 85 – Applicable fire and combustion safety standards
- TÜV Rheinland – Third-party safety certification
- CE Marking – European conformity for industrial equipment
- RoHS Compliant – Restriction of Hazardous Substances
Quality Assurance & Sourcing
At Konmask.com, every TRICONEX component is subject to a rigorous sourcing and inspection protocol:
- Sourced from authorized distributors, certified resellers, and verified industrial surplus channels
- Visual inspection and functional verification prior to dispatch
- Serialized traceability records maintained for each unit
- Secure anti-static packaging with humidity indicators for international shipment
- 30-day return policy on verified non-defective units
How to Source This Part
- Submit your RFQ via [email protected] with your required quantity and delivery timeline
- Receive a formal quotation within 1 business day
- Confirm order — we support T/T, L/C, and major B2B payment terms
- Dispatch within 3–7 business days; express options available for urgent plant shutdowns
- Full documentation package (datasheet, test report, packing list) included
Application-Specific FAQ
Q: Is the 9563-810 compatible with both Tricon v9 and v10/v11 platforms?
A: Yes. The 9563-810 termination panel is designed for use across Tricon v9, v10, and v11 controller generations. Always verify chassis slot compatibility with your system integrator.
Q: Can this panel be used in a hot-standby or online replacement scenario?
A: The Tricon TMR architecture supports online module replacement (OLR) without process shutdown. Consult your Tricon system documentation for specific OLR procedures for termination panels.
Q: What is the lead time for the 9563-810?
A: Subject to stock availability. Contact us for real-time inventory status. Expedited sourcing is available for shutdown and turnaround situations.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes. A CoC and inspection report are available upon request for all units shipped from Konmask.com.
Q: Can Konmask supply a complete Tricon spare parts kit?
A: Yes. We specialize in complete BOM fulfillment for Tricon systems. Send us your spare parts list and we will provide a consolidated quotation.
