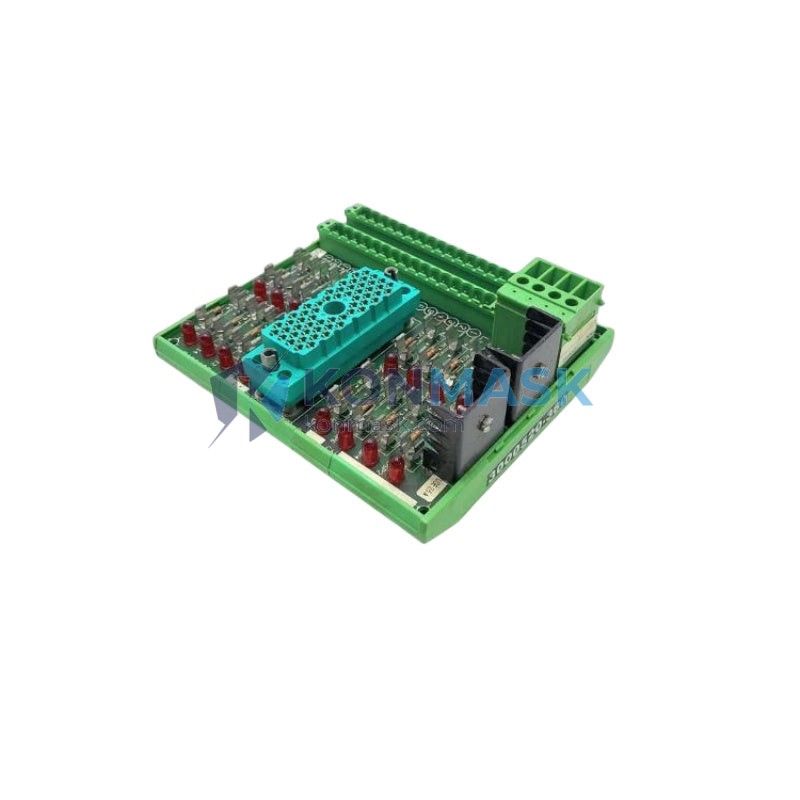

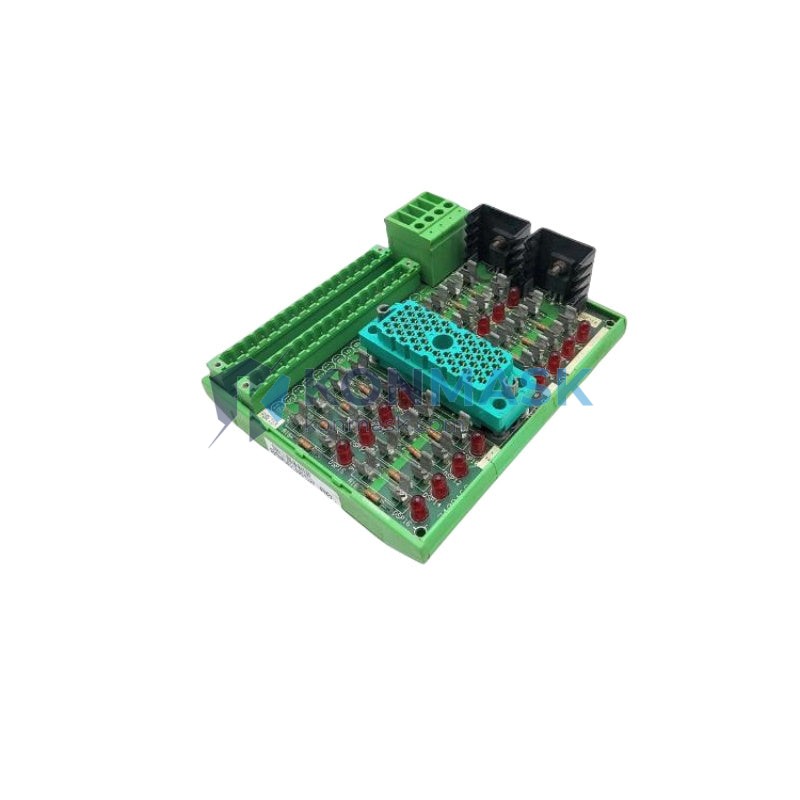

Triconex 9662-810 Termination Panel | Replacement, Equivalent & Selection Guide
The Triconex 9662-810 is a dedicated termination panel designed for use within Schneider Electric’s Triconex Tricon TMR (Triple Modular Redundant) safety system architecture. It provides a structured, reliable field-wiring interface for I/O modules, ensuring signal integrity and simplified maintenance in safety-critical process environments. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement specialists.
Technical Specifications
- Part Number: 9662-810
- Manufacturer: Triconex (Schneider Electric)
- Type: Termination Panel / Field Wiring Assembly
- Compatible System: Triconex Tricon TMR Safety System
- Weight: 560 g
- Mounting: DIN rail / panel mount (system chassis integrated)
- Wiring Interface: Screw-terminal field wiring connections
- Application Class: SIL 2 / SIL 3 capable (as part of certified Tricon system)
- Operating Temperature: 0°C to 60°C (typical Triconex range)
- Compliance: IEC 61511, IEC 61508
Compatible Replacement & Equivalent Models
When sourcing a replacement for the Triconex 9662-810, the following models may serve as functional equivalents or direct substitutes depending on your system revision and I/O module pairing:
- Triconex 9662-810 — Original OEM part (this listing)
- Triconex 9662-800 — Earlier revision termination panel; verify I/O module compatibility before substitution
- Triconex 9663-810 — Alternative termination panel for different I/O module types; confirm pinout mapping
- Triconex 9664-810 — Higher-density variant; check chassis slot and wiring harness compatibility
- Third-party compatible panels — Some certified integrators offer drop-in termination assemblies; always validate against your Tricon system revision documentation
Note: Always cross-reference the termination panel part number with your specific I/O module (e.g., 3703E, 3805E) and system revision before ordering a replacement.
Why Choose the Original Model
- OEM Certified: Designed and validated by Triconex/Schneider Electric for use in SIL-rated safety loops
- Guaranteed Compatibility: Eliminates integration risk with Tricon TMR chassis and I/O modules
- Traceability: Full OEM documentation, revision history, and certification records available
- Long-term Support: Backed by Schneider Electric’s global spare parts and service network
- Reduced Validation Effort: No re-qualification required when replacing like-for-like in a certified safety system
Typical Applications
- Oil & gas upstream/downstream safety instrumented systems (SIS)
- Petrochemical and refinery emergency shutdown (ESD) systems
- Power generation turbine and boiler protection
- Pipeline SCADA and compressor station safety loops
- Chemical plant process safety management (PSM) systems
- Offshore platform fire & gas (F&G) detection systems
System Compatibility
The 9662-810 termination panel is designed for integration within the following Triconex system families:
- Triconex Tricon v9.x / v10.x — Primary target platform
- Triconex Tricon CX — Verify chassis revision and I/O module type
- Triconex Trident — Not compatible; Trident uses a separate termination panel series
- Triconex Tri-GP — Not compatible; different I/O architecture
Always consult your Tricon system hardware manual (document 9600-series) to confirm termination panel-to-module pairing before installation.
Selection Guide
Use the following criteria to confirm the 9662-810 is the correct termination panel for your application:
- Step 1 — Identify your I/O module: Match the termination panel to your specific Tricon I/O module part number (e.g., 3703E Digital Input, 3805E Analog Input).
- Step 2 — Confirm system revision: Check your Tricon chassis revision (v9 vs. v10) as termination panel pinouts may differ.
- Step 3 — Verify wiring harness: Ensure the field wiring harness or cable assembly is compatible with the 9662-810 connector layout.
- Step 4 — Check slot position: Termination panels are slot-specific in some Tricon configurations; confirm physical fit.
- Step 5 — Review SIL documentation: For safety-critical replacements, confirm the replacement panel is included in your system’s SIL certification scope.
Quality Assurance & Sourcing
- Source: Konmask.com sources Triconex components from authorized distributors and verified surplus channels.
- Inspection: All units undergo visual inspection and functional verification prior to shipment.
- Condition: New, refurbished, or tested-used stock available — condition specified at time of inquiry.
- Documentation: Certificate of conformance and test reports available upon request.
- Warranty: 12-month warranty against manufacturing defects on all shipped units.
How to Order
- Online: Add to cart directly from this product page.
- Email: Send your PO or RFQ to support@konmask.com with part number, quantity, and required delivery date.
- Phone/WhatsApp: +0086 19859288691 — available for urgent inquiries and bulk orders.
- Lead Time: Typically 3–7 business days for in-stock units; contact us for expedited options.
- Payment: T/T (wire transfer), PayPal, and major credit cards accepted.
- Export: We ship worldwide; export documentation and customs support available.
Replacement & Compatibility FAQ
Q: Can the 9662-810 replace a 9662-800?
A: In many cases yes, but you must verify the I/O module revision and wiring harness connector type. Contact us with your module part number for confirmation.
Q: Is the 9662-810 compatible with Triconex Trident systems?
A: No. The Trident platform uses a different termination panel series. Please provide your system model for the correct recommendation.
Q: Do you supply the matching I/O module alongside the termination panel?
A: Yes. We can source matched sets of termination panels and I/O modules. Contact us with your full BOM for a bundled quote.
Q: What is the lead time for the 9662-810?
A: In-stock units ship within 3–7 business days. For urgent requirements, contact us directly for expedited options.
Q: Can I use a third-party termination panel as a replacement?
A: Third-party panels may be used in non-SIL-certified applications, but for safety-rated systems we strongly recommend OEM parts to maintain certification integrity.
