Triconex CM3201 Communication Module – Peer-to-Peer Network Interface | Tricon Safety PLC Platform
Engineering Background

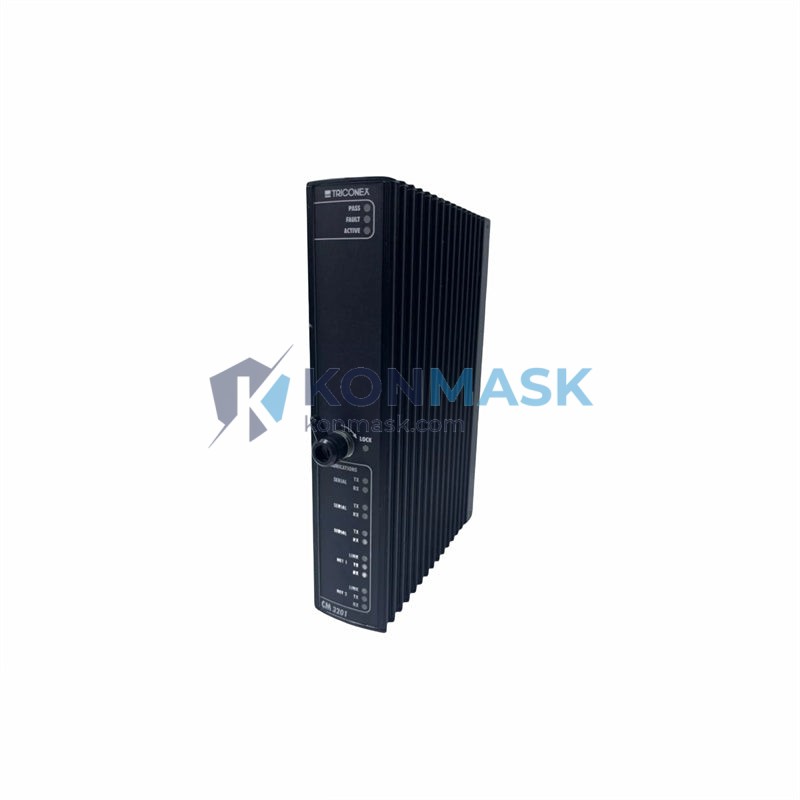

The Triconex CM3201 is a dedicated peer-to-peer communication module engineered for the Tricon Triple Modular Redundant (TMR) Safety PLC platform. Developed by Triconex (a Schneider Electric brand), it enables high-integrity, deterministic data exchange between Tricon controllers in distributed safety architectures — a critical requirement in process industries where SIL 2/3 certified control loops must maintain continuous, fault-tolerant communication.
Product Positioning
Designed for procurement engineers and system integrators sourcing replacement or expansion modules for existing Tricon installations, the CM3201 delivers proven interoperability within the Tricon v9/v10 chassis ecosystem. Konmask.com supplies factory-tested, serialized units with full traceability documentation to support MRO and capital project procurement workflows.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | CM3201 |
| Manufacturer | Triconex (Schneider Electric) |
| Platform | Tricon Safety PLC (TMR Architecture) |
| Module Type | Peer-to-Peer Communication Module |
| Communication Protocol | Tricon Peer-to-Peer (proprietary high-speed) |
| Architecture | Triple Modular Redundant (TMR) — 3 independent processing legs |
| Safety Integrity Level | SIL 2 / SIL 3 capable (IEC 61508) |
| Chassis Compatibility | Tricon v9.x / v10.x main chassis |
| Slot Type | Communication slot (non-I/O) |
| Power Consumption | Refer to Tricon system power budget documentation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | 1,660 g (module with housing) |
| Certifications | TÜV, FM, CE (per Triconex system certification) |
| Country of Origin | USA |
Proven Application Environments
- Oil & Gas: Emergency Shutdown Systems (ESD), High Integrity Pressure Protection Systems (HIPPS), compressor/turbine control
- Petrochemical & Refining: Burner Management Systems (BMS), reactor safety interlocks, distillation column protection
- Power Generation: Turbine trip systems, boiler protection, nuclear auxiliary safety systems
- Offshore Platforms: Fire & Gas (F&G) detection integration, wellhead control, subsea interface
- Pipeline & Terminal: Distributed ESD networks requiring peer-to-peer controller synchronization across long distances
Engineering Advantages
- True TMR Redundancy: All three legs of the Tricon architecture participate in communication — no single point of failure in the data path
- Deterministic Latency: Peer-to-peer protocol ensures predictable scan-cycle-aligned data exchange, critical for coordinated safety shutdowns
- Hot-Swap Capable: Supports online replacement within the Tricon chassis without process interruption (per Triconex maintenance procedures)
- Seamless TriStation Integration: Fully configurable via TriStation 1131 programming environment — no third-party driver required
- Long Service Life: Designed for 20+ year operational lifecycle typical of safety instrumented systems in continuous process plants
System Architecture & Signal Flow
The CM3201 occupies a dedicated communication slot in the Tricon main chassis. Each of the three TMR legs independently processes and validates peer data frames. The Tricon voter logic arbitrates between legs to ensure only validated, majority-agreed data is passed to the application program. This architecture maintains SIL integrity even during single-leg faults or communication degradation events.
Typical topology: Tricon Controller A (CM3201) ↔ Peer Network ↔ Tricon Controller B (CM3201) — enabling coordinated multi-controller ESD logic across plant segments.
Sourcing & Quality Verification
- All CM3201 units supplied by Konmask.com are sourced from authorized distribution channels or verified MRO surplus with full serialization records
- Each unit undergoes visual inspection, firmware version verification, and functional power-on testing prior to shipment
- Serialized test reports and original manufacturer documentation available upon request for critical safety system procurement
- Anti-counterfeit verification: physical label authentication, PCB revision cross-check, and Triconex part number validation
Procurement Process
- Confirm compatibility: Verify your Tricon chassis version (v9.x or v10.x) and slot availability with your system documentation or TriStation project file
- Request a quote: Contact support@konmask.com with your PO requirements, required delivery timeline, and any documentation needs (CoC, test report, datasheet)
- Order & fulfillment: Orders confirmed within 1 business day; standard lead time 3–7 business days; expedited options available for shutdown/turnaround projects
- Shipping: Secure ESD-safe packaging; DHL / FedEx international express available; export documentation provided for cross-border shipments
Technical FAQ
Q: Is the CM3201 compatible with Tricon v10 chassis?
A: Yes. The CM3201 is compatible with both Tricon v9.x and v10.x main chassis platforms. Always verify slot assignment in your TriStation project configuration.
Q: Can the CM3201 be used for Modbus or OPC communication?
A: No. The CM3201 is specifically designed for Tricon peer-to-peer communication between Tricon controllers. For Modbus TCP/RTU or OPC-DA/UA connectivity, refer to the Triconex TCM (Tricon Communication Module) product line.
Q: What firmware version does the CM3201 require?
A: Firmware compatibility is managed through the Tricon Main Processor (MP) and TriStation 1131 software version. Consult your Triconex system release notes for the applicable CM3201 firmware baseline.
Q: Is a Certificate of Conformance (CoC) available?
A: Yes. Konmask.com provides CoC documentation for all safety-critical module shipments upon request at time of order.
Q: What is the lead time for urgent shutdown projects?
A: Expedited fulfillment is available. Contact support@konmask.com or call +0086 19859288691 to discuss priority shipping options.
