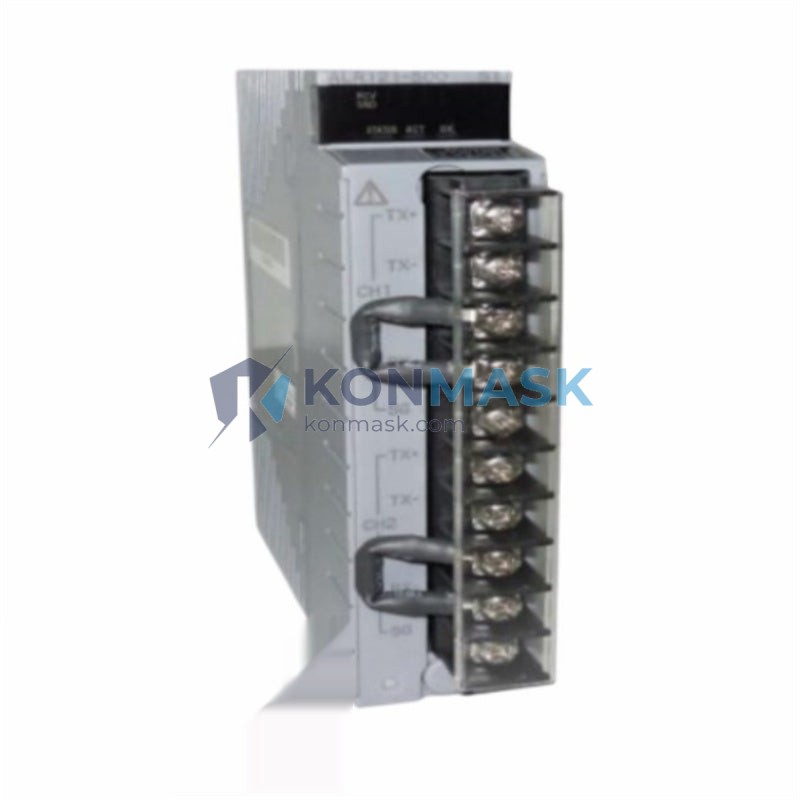

Yokogawa ALR121-S50 S1 — Communication Module | CENTUM VP Platform
Engineering Background
The Yokogawa ALR121-S50 S1 is a dedicated communication module engineered for integration within Yokogawa’s CENTUM VP Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in refining, petrochemical, power generation, and advanced manufacturing. Designed to handle high-integrity data exchange between field devices and the control network, the ALR121 series delivers deterministic, low-latency communication performance in demanding 24/7 continuous-process environments.
Product Positioning
Targeted at procurement engineers and automation specialists sourcing verified replacement or expansion modules for existing CENTUM VP installations, the ALR121-S50 S1 offers a direct OEM-compatible solution that eliminates integration risk. Whether supporting a planned maintenance cycle, an emergency replacement, or a capacity expansion project, this module ships ready for rack installation with full traceability documentation available upon request.
Complete Technical Specifications
- Manufacturer: Yokogawa Electric Corporation
- Part Number: ALR121-S50 S1
- Module Type: Communication Module
- Compatible Platform: CENTUM VP DCS
- Communication Standard: Vnet/IP (Yokogawa proprietary high-speed control network)
- Mounting: Standard CENTUM VP field control station (FCS) rack
- Power Supply: Supplied via backplane (rack-mounted)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5% to 95% RH (non-condensing)
- Weight: Approx. 1,500 g (module + packaging)
- Compliance: CE, UL/cUL (refer to Yokogawa datasheet for full certification list)
- Firmware: Compatible with CENTUM VP R4.xx / R5.xx / R6.xx (verify with site engineering team)
Note: Full datasheet and wiring diagrams available upon request. Contact support@konmask.com.
Proven Application Environments
- Oil & Gas Refining: Continuous process monitoring and control loop communication in crude distillation and hydrocracking units
- Petrochemical Plants: Ethylene, polyethylene, and aromatics production facilities running CENTUM VP as the primary DCS backbone
- Power Generation: Boiler management systems and turbine control networks requiring deterministic communication latency
- Pulp & Paper: Multi-loop process control with high I/O density field control stations
- Pharmaceutical Manufacturing: GMP-compliant batch control systems with validated DCS configurations
- Water & Wastewater Treatment: SCADA-integrated DCS architectures for large municipal treatment facilities
Engineering Advantages
- OEM Compatibility: Direct drop-in replacement for existing ALR121-S50 S1 slots — no firmware patching or hardware modification required
- Deterministic Communication: Vnet/IP protocol ensures cycle-accurate data exchange between FCS nodes and the HIS/EWS engineering workstations
- High Availability Design: Supports redundant module configurations within CENTUM VP FCS racks for fault-tolerant operation
- Minimal Commissioning Time: Plug-and-play rack insertion with automatic node recognition by the CENTUM VP system builder
- Long Service Life: Yokogawa’s industrial-grade component selection ensures reliable operation across extended maintenance intervals
- Traceability: Each unit sourced with batch/lot documentation; serialized units available upon request
System Architecture & Signal Flow
Within a CENTUM VP architecture, the ALR121-S50 S1 resides in the Field Control Station (FCS) rack and manages communication between the FCS processor and the Vnet/IP control network. Data flows from field I/O modules → FCS processor → ALR121 communication module → Vnet/IP switch → Human Interface Station (HIS) / Engineering Workstation (EWS). The module handles real-time tag data, alarm events, and configuration downloads with deterministic cycle times, ensuring process integrity across all connected nodes.
For redundant configurations, a paired ALR121 module in the same rack provides automatic failover with bumpless switchover, maintaining continuous process visibility and control during primary module maintenance or failure events.
Sourcing & Quality Verification
- Stock Origin: Sourced from authorized distributors, decommissioned plant inventories, and verified OEM channels
- Inspection Standard: Each module undergoes visual inspection, connector integrity check, and firmware version verification prior to shipment
- Condition Options: New (factory-sealed), Refurbished (tested to OEM spec), or Surplus (as-removed, tested) — specify condition requirement at inquiry
- Documentation: Certificate of conformance, test report, and original Yokogawa datasheet available upon request
- Warranty: 12-month operational warranty on all verified units; terms available in writing
Procurement Process
- Submit Inquiry: Contact support@konmask.com with your required quantity, condition preference, and delivery timeline
- Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options
- Order Confirmation: Issue PO or confirm via email; proforma invoice issued for prepayment or net-terms accounts
- Quality Check & Packing: Module inspected, serialized, and packed in anti-static ESD packaging with foam protection
- Shipment: Dispatched via DHL / FedEx / SF Express with full tracking; export documentation (commercial invoice, packing list, COO) included
- After-Sales Support: Technical support available via email or WhatsApp for installation and commissioning queries
Technical FAQ
Q: Is the ALR121-S50 S1 compatible with CENTUM CS 3000?
A: No. The ALR121 series is designed specifically for the CENTUM VP platform. CS 3000 uses a different communication architecture (V-net). Please confirm your DCS generation before ordering.
Q: Can this module be used in a non-redundant FCS configuration?
A: Yes. The ALR121-S50 S1 operates in both simplex and redundant FCS rack configurations. Redundancy is configured via the CENTUM VP System Builder software.
Q: What firmware version is pre-installed?
A: Firmware version varies by unit batch. We recommend verifying compatibility with your site’s CENTUM VP revision before installation. Our technical team can advise based on your system version.
Q: Do you provide installation support?
A: Yes. Remote technical support is available via email and video call for qualified engineers performing installation and commissioning. Contact support@konmask.com.
Q: What is the lead time for urgent orders?
A: In-stock units ship within 1–3 business days. For out-of-stock items, lead time is typically 2–4 weeks depending on sourcing channel. Express procurement available for critical plant shutdowns.
