Genuine Triconex RO-3451S2 Tricon Safety System (TMR Architecture) - Industrial Automation Part

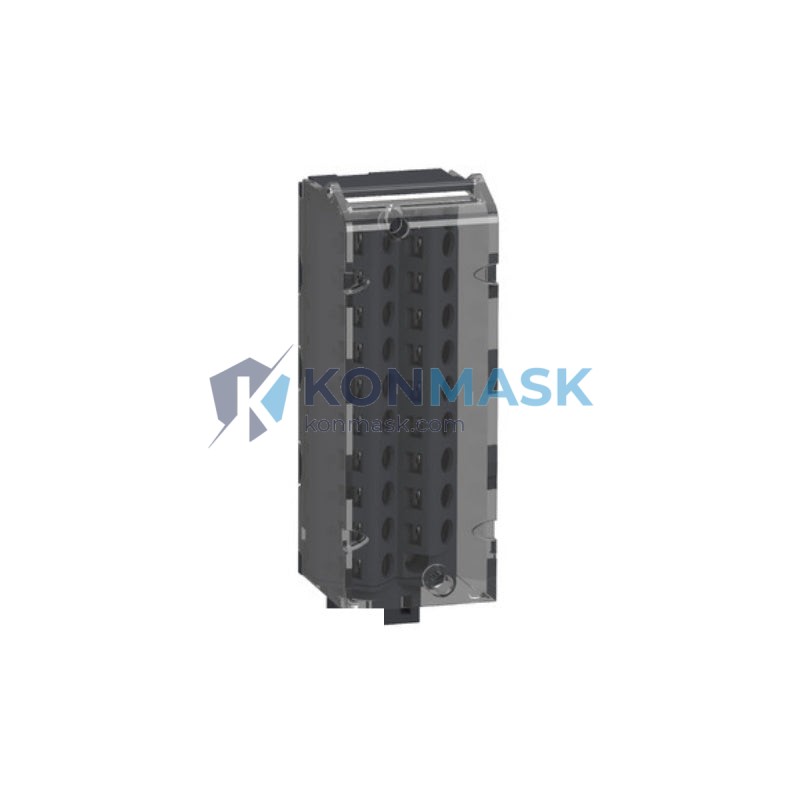

Triconex RO-3451S2 Relay Output Communication Module | Tricon Safety System

Name: Triconex RO-3451S2 Relay Output Communication Module | Tricon Safety System
SKU: RO-3451S2

Send your required quantity, target delivery time, and destination country. Konmask will reply with availability and lead time.

Series: Invensys Triconex Tricon

SKU: RO-3451S2 Category: Invensys Triconex Tags: communication-module, RO-3451S2, safety PLC, Tricon, triconex

Description

Triconex RO-3451S2 – Relay Output Communication Module | Tricon Triple Modular Redundancy Safety Platform

Engineering Background: The Triconex Tricon system is the world’s leading Triple Modular Redundancy (TMR) safety controller, widely deployed in oil & gas, petrochemical, nuclear, and power generation facilities. Developed by Triconex (a Schneider Electric brand), the Tricon architecture achieves SIL 3 / IEC 61511 compliance through three independent processing legs that vote on every I/O decision in real time.

Product Positioning: The RO-3451S2 is a Relay Output module designed for the Tricon chassis backplane. It provides hardwired relay contact outputs for critical shutdown and interlock circuits, delivering galvanic isolation and fail-safe de-energize-to-trip (DTT) behavior. This module is a direct replacement and expansion component for existing Tricon safety instrumented systems (SIS) requiring discrete relay-driven field devices.

Complete Technical Specifications

Part Number: RO-3451S2
Manufacturer: Triconex / Schneider Electric
Module Type: Relay Output (RO) Communication Module
Platform: Tricon Safety System (TMR Architecture)
Output Type: Dry contact relay outputs
Output Channels: 16 relay output channels (per module)
Contact Rating: 2 A @ 30 VDC / 0.5 A @ 125 VAC (resistive load)
Isolation: Galvanic isolation between field and system bus
Fail-Safe Mode: De-energize-to-trip (DTT) on power loss or fault
Safety Integrity Level: SIL 3 capable (IEC 61508 / IEC 61511)
Redundancy: Triple Modular Redundancy (TMR) – 2oo3 voting
Backplane Interface: Tricon chassis backplane (compatible with Tricon v9/v10/v11)
Operating Temperature: 0 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Humidity: 5% to 95% RH, non-condensing
Power Consumption: Supplied via chassis backplane
Weight: Approx. 500 g
Certifications: CE, UL, FM, TÜV (SIL 3), ATEX (zone-dependent installation)
HS Code: 853710
Country of Origin: United States

Proven Application Environments

Oil & Gas: Emergency Shutdown Systems (ESD), High Integrity Pressure Protection Systems (HIPPS), compressor and turbine trip circuits
Petrochemical & Refining: Burner Management Systems (BMS), reactor interlock loops, fired heater safety
Power Generation: Turbine protection, boiler safety, generator trip relay control
Nuclear: Reactor protection systems requiring IEC 61513 compliance
Offshore Platforms: Fire & Gas (F&G) systems, process shutdown (PSD) panels
Chemical Processing: SIL 3 interlock loops for exothermic reaction control

Engineering Advantages

True TMR Architecture: Three independent processing legs with 2oo3 voting eliminates single-point failure — no spurious trips, no undetected faults.
Online Replacement: Hot-swap capable within the Tricon chassis — replace the RO-3451S2 without process shutdown, maintaining continuous SIL 3 coverage.
Galvanic Isolation: Full optical and relay isolation protects the safety bus from field-side transients, ground loops, and EMI.
Deterministic Response: Tricon’s fixed scan cycle ensures relay output response times are predictable and auditable for functional safety assessments.
Diagnostic Coverage: Continuous self-diagnostics detect relay coil faults, contact weld, and backplane communication errors — reported to the Tricon Main Processor in real time.
Long Service Life: Designed for 20+ year operational life in harsh industrial environments with minimal preventive maintenance.

System Architecture & Signal Flow

The RO-3451S2 slots into the Tricon chassis backplane and communicates with all three Main Processor Modules (MPMs) simultaneously. Each MPM independently computes the output state; the 2oo3 voter logic within the module drives the relay coil only when at least two of three legs agree. The signal flow is:

Field Device → Wiring Panel → RO-3451S2 Terminal Block → Relay Contact → Backplane Bus → MPM (×3) → 2oo3 Vote → Relay Coil Drive

This architecture ensures that a single leg failure (hardware or software) neither causes a spurious trip nor masks a real demand — the fundamental requirement of IEC 61511 SIL 3 loop design.
