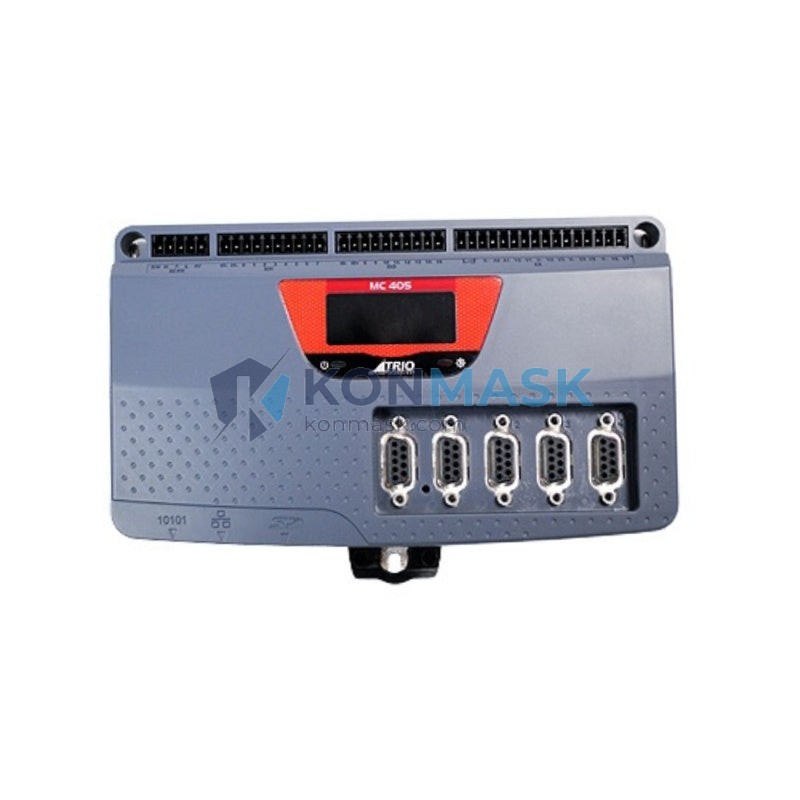

Trio Motion Technology MC405 P826 Advanced 5-Axis Stepper Motion Controller – MC400 Series
Imagine a high-speed CNC machining center or a multi-axis pick-and-place system suddenly losing coordinated axis control mid-cycle — the result is scrapped workpieces, unplanned downtime, and costly production losses. The motion controller is the central nervous system of any automated machine, and when it fails or is under-specified, the entire line stops. The Trio MC405 P826 eliminates this risk by delivering precise, synchronized 5-axis stepper motor control within a compact, industrially hardened platform designed for demanding manufacturing environments.
Within the Trio MC400 Series, the MC405 P826 occupies a strategic position as a high-axis-count stepper controller, bridging the gap between entry-level single-axis drives and full servo-based multi-axis systems. Trio Motion Technology, a globally recognized leader in motion control since 1987, has deployed MC400 Series controllers across industries including packaging machinery, semiconductor handling, medical devices, and precision laser systems — making the MC405 P826 a trusted choice for OEMs and system integrators worldwide.
Technical Specifications
- Part Number: MC405 P826
- Brand: Trio Motion Technology
- Series: MC400 Series
- Axes: Up to 5 stepper motor axes
- Programming Language: TrioBASIC / IEC 61131-3 compatible
- Communication Interfaces: USB, RS-232, Ethernet (model-dependent)
- I/O: Digital inputs and outputs onboard (expandable)
- Power Supply: 24 VDC (nominal)
- Mounting: DIN rail mountable
- Operating Temperature: 0°C to +50°C
- Weight: Approx. 350 g
- Compliance: CE marked
Note: Always refer to the official Trio Motion Technology MC405 P826 datasheet for complete and authoritative specifications before system design.
Key Features & Benefits
- 5-Axis Coordinated Motion: Simultaneous control of up to 5 stepper axes enables complex multi-dimensional motion profiles essential for CNC routing, laser cutting, and robotic gantry systems.
- TrioBASIC Programming: Intuitive high-level motion language reduces commissioning time and simplifies complex trajectory programming without deep low-level coding expertise.
- Compact DIN Rail Form Factor: Space-efficient design integrates cleanly into standard control cabinets, reducing panel footprint and wiring complexity.
- Real-Time Motion Execution: Dedicated motion processor ensures deterministic, jitter-free axis control critical for precision applications.
- Expandable I/O Architecture: Onboard digital I/O with expansion capability supports complex machine sequencing and sensor integration.
- Multi-Protocol Communication: USB and serial interfaces enable seamless HMI, SCADA, and PC-based supervisory integration.
- Proven Industrial Reliability: Designed and tested to withstand industrial EMI, vibration, and thermal cycling conditions.
Industry & Equipment Applications
- CNC Machining & Routing: Multi-axis coordinated cutting paths for wood, plastic, and soft metal machining centers.
- Laser Cutting & Engraving: Precise XY (and Z-focus) axis control for CO₂ and fiber laser systems.
- Packaging Machinery: High-speed pick-and-place, filling, and sealing machine axis synchronization.
- Semiconductor & Electronics Assembly: Sub-micron positioning for PCB drilling, SMT placement, and wafer handling.
- Medical Device Manufacturing: Controlled motion for dispensing, assembly, and inspection equipment.
- Textile & Printing Machinery: Multi-axis web tension and registration control.
System Integration & Compatible Parts
The Trio MC405 P826 is designed to integrate within broader Trio Motion Technology ecosystems and standard industrial automation architectures. Compatible and complementary components include:
- Trio MC400 Series expansion I/O modules
- Trio stepper drive modules (P-series drives)
- Standard NEMA 17 / NEMA 23 stepper motors
- Trio Motion Perfect PC software development environment
- Third-party HMI panels via RS-232 / USB / Ethernet
- Industrial power supplies (24 VDC, DIN rail type)
Contact Konmask.com for system-level BOM support and compatible spare parts sourcing.
Our Quality Assurance Process
At Konmask.com, every Trio MC405 P826 unit we supply undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: Units are sourced exclusively from authorized distributors and verified original-manufacturer channels.
- Visual & Physical Inspection: Each unit is inspected for label authenticity, connector integrity, and packaging condition.
- Documentation Check: Serial numbers and firmware versions are cross-referenced against manufacturer records where applicable.
- Anti-Counterfeit Screening: All units pass our internal counterfeit-detection protocol aligned with industry best practices for industrial automation components.
- Secure Packaging: ESD-safe packaging with moisture barrier protection ensures safe transit to your facility.
How to Order
- Submit an inquiry via the Contact Us page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a formal quotation within 1 business day.
- Confirm order and provide shipping details.
- Payment processed via agreed terms (T/T, L/C, or other).
- Unit dispatched with full shipping documentation and tracking.
For urgent requirements or large-volume orders, call us directly at +0086 19859288691.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation Components — PLC modules, motion controllers, DCS parts, and drives from leading global brands.
- ✅ Genuine Parts Guaranteed — Strict sourcing and anti-counterfeit protocols protect your production line.
- ✅ Fast Global Shipping — Experienced in cross-border export logistics to Europe, Southeast Asia, the Middle East, and beyond.
- ✅ Technical Pre-Sales Support — Our engineers help you confirm compatibility before you order.
- ✅ Competitive Pricing — Direct sourcing relationships enable cost-effective pricing for OEMs and MRO buyers.
- ✅ Responsive After-Sales Service — Dedicated support team available for post-delivery technical queries.
Frequently Asked Questions
Q: Is the Trio MC405 P826 in stock?
A: Stock availability varies. Please contact us at support@konmask.com or via the inquiry form for real-time availability and lead time confirmation.
Q: Can the MC405 P826 control servo motors instead of stepper motors?
A: The MC405 P826 is optimized for stepper motor control. For servo axis applications within the Trio MC400 Series, please inquire about alternative MC400 variants. Our technical team can advise on the correct model for your application.
Q: What programming software is required?
A: The MC405 P826 is programmed using Trio’s Motion Perfect software environment, which supports TrioBASIC and IEC 61131-3 structured text. It is available from Trio Motion Technology’s official website.
Q: Do you provide a warranty?
A: Yes. All units supplied by Konmask.com carry a standard warranty against manufacturing defects. Warranty terms are confirmed at the time of order. Contact us for details.
Q: Can you supply other Trio MC400 Series parts?
A: Yes. Konmask.com stocks and sources a wide range of Trio Motion Technology products. Submit your full BOM or part list for a consolidated quotation.
Q: What are your payment and shipping terms?
A: We support T/T (bank transfer), L/C, and other standard B2B payment methods. Shipping is via DHL, FedEx, UPS, or sea freight depending on order size and destination. Full export documentation is provided.
{
