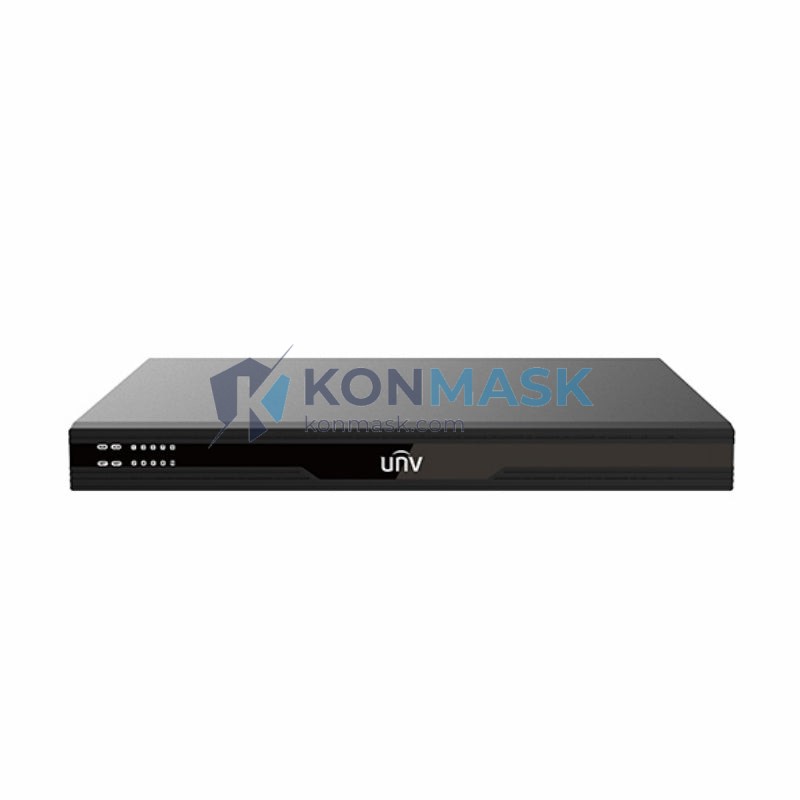

Uniview DC5506 – 6-Channel High Definition Video Decoder | EZ Series Decoding Platform
Engineering Background
The Uniview DC5506 is a professional-grade 6-channel HD video decoder engineered for centralized video wall management and large-scale surveillance deployments. Designed within Uniview’s EZ Series platform, it bridges IP camera streams and display infrastructure with deterministic, low-latency decoding performance.
Product Positioning
Targeted at system integrators, security engineers, and procurement teams building command-center or multi-monitor surveillance environments. The DC5506 delivers reliable multi-stream decoding without the overhead of a full NVR, making it the preferred decoding node in hybrid VMS architectures.
Complete Technical Specifications
- Model: DC5506
- Brand: Uniview (UNV)
- Series: EZ Series Video Decoder
- Decoding Channels: 6 channels simultaneous
- Max Resolution: Up to 4K (3840×2160) per channel
- Supported Protocols: RTSP, ONVIF, Uniview Private Protocol
- Video Compression: H.265 / H.264 / MJPEG
- Network Interface: 1× RJ45 10/100/1000 Mbps Ethernet
- Video Output: HDMI / VGA (model-dependent configuration)
- Audio: 1× Audio input, 1× Audio output
- Operating Temperature: -10°C to +55°C
- Power Supply: DC 12V / AC adapter
- Dimensions: Compact desktop/rack-mount form factor
- Weight: ~400 g
- Certifications: CE, FCC, RoHS
- Country of Origin: China
Proven Application Environments
- Security command centers and video wall control rooms
- Transportation hubs: airports, metro stations, toll plazas
- Smart city surveillance and traffic monitoring centers
- Industrial facility perimeter monitoring
- Retail chain centralized video management
- Campus and hospital security operations
Engineering Advantages
- Multi-stream simultaneous decoding: 6 independent channels with no cross-channel interference
- 4K output capability: Supports ultra-high-definition display for critical monitoring applications
- H.265 compression support: Reduces bandwidth consumption by up to 50% vs H.264
- ONVIF compliance: Seamless integration with third-party IP cameras and VMS platforms
- Stable thermal design: Fanless or low-noise cooling for 24/7 continuous operation
- Compact form factor: Easy rack integration or desktop deployment in space-constrained environments
System Architecture & Signal Flow
IP Camera Streams (RTSP/ONVIF) → Network Switch (GbE) → DC5506 Decoder → HDMI/VGA Output → Display Wall / Monitor Array
The DC5506 operates as a dedicated decoding node within a Uniview or third-party VMS ecosystem. It receives encoded video streams over the network, performs real-time hardware-accelerated decoding, and outputs decoded video to connected displays. Compatible with Uniview EZStation VMS and standard ONVIF-compliant management platforms.
Sourcing & Quality Verification
- Source: Authorized distribution channel – genuine Uniview OEM hardware
- Inspection: Each unit undergoes functional power-on and port verification before shipment
- Packaging: Original manufacturer retail box with accessories and documentation
- Warranty: 12-month hardware warranty; DOA replacement policy within 7 days of receipt
- Traceability: Serial number and batch records available upon request for enterprise procurement
Procurement Process
- Submit inquiry or place order via Konmask.com product page
- Receive proforma invoice with lead time confirmation (typically 1–3 business days for in-stock units)
- Payment via T/T, PayPal, or approved credit terms for qualified accounts
- Shipment via DHL / FedEx / SF Express with full tracking; export documentation provided
- Post-delivery technical support available via email or WhatsApp
Technical FAQ
Q: Is the DC5506 compatible with non-Uniview cameras?
A: Yes. The DC5506 supports ONVIF Profile S/G, enabling integration with any ONVIF-compliant IP camera regardless of brand.
Q: Can it decode streams from cloud-based NVR platforms?
A: The DC5506 is designed for LAN/WAN RTSP stream decoding. Cloud platform compatibility depends on the VMS provider’s RTSP export capability.
Q: What is the maximum total decoding bandwidth?
A: Aggregate decoding throughput supports up to 6 simultaneous HD/4K streams; total bandwidth is subject to network infrastructure capacity.
Q: Is rack-mount hardware included?
A: Rack-mount brackets are available as optional accessories. Contact us for bundle pricing.
Q: Can I request a datasheet or compliance certificate?
A: Yes. Full technical datasheets, CE/FCC certificates, and ONVIF conformance documents are available upon request for qualified procurement teams.
