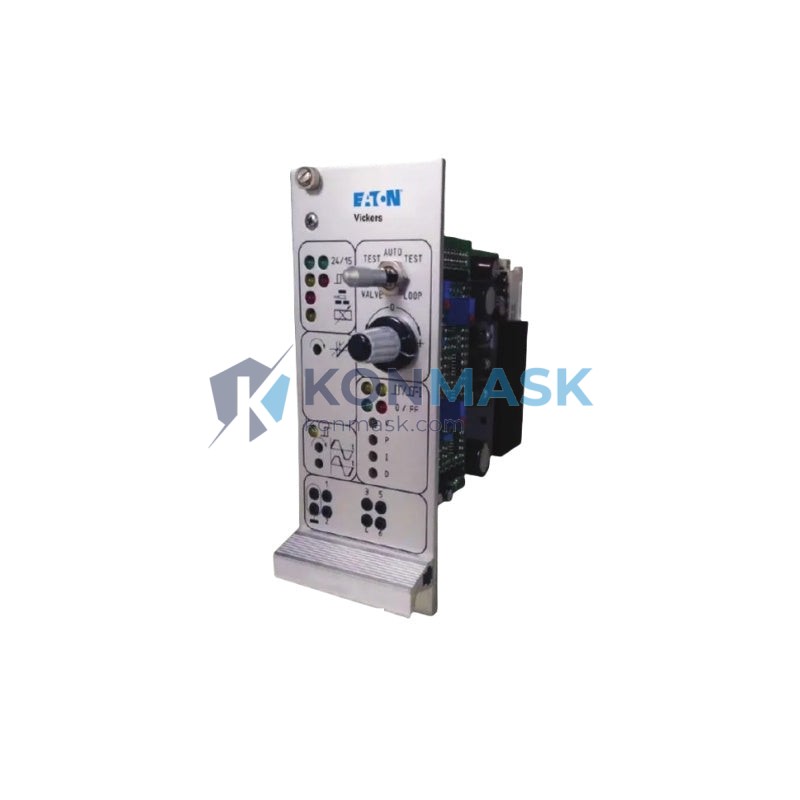

Vickers EEA-PAM513A32-EN53 – Proportional Amplifier Card | EEA Series Hydraulic Control Platform
Engineering Background
The Vickers EEA (Electronic Amplifier) series represents Eaton Vickers’ flagship line of proportional valve amplifier cards, engineered for precision closed-loop and open-loop hydraulic control in demanding industrial environments. These cards serve as the electronic interface between a machine controller (PLC/DCS) and proportional hydraulic valves, translating analog command signals into precisely regulated solenoid drive currents.
Product Positioning
The EEA-PAM513A32-EN53 (OEM Part No. 6025852-001) is a DIN-rail or panel-mount proportional amplifier card designed for use with Vickers proportional directional and pressure control valves. It provides stable, temperature-compensated solenoid current output with integrated ramp, dither, and enable functions — making it the preferred choice for procurement engineers specifying hydraulic motion control upgrades or OEM machine builds.
Complete Technical Specifications
| Manufacturer | Vickers (Eaton Hydraulics) |
| Part Number | EEA-PAM513A32-EN53 |
| OEM Reference | 6025852-001 |
| Series | EEA (Electronic Amplifier) — PAM Sub-series |
| Function | Proportional Solenoid Amplifier Card |
| Supply Voltage | 24 VDC (±10%) |
| Command Input | ±10 VDC analog / 4–20 mA (configuration-dependent) |
| Output Current | Regulated PWM solenoid drive (A-channel & B-channel) |
| Ramp Function | Independent acceleration / deceleration ramp adjustment |
| Dither | Adjustable frequency and amplitude for hysteresis compensation |
| Enable Input | Digital enable/disable (24 VDC logic) |
| Fault Output | Relay or open-collector fault signal |
| Mounting | DIN rail / panel mount |
| Operating Temperature | 0°C to +55°C |
| Protection Class | IP20 (card), IP65 (with enclosure) |
| Weight | 2.6 kg (packaged) |
| Compliance | CE, RoHS |
Proven Application Environments
- Injection Molding Machines — Precise velocity and pressure profiling via proportional valve control
- Metal Forming Presses — Synchronized multi-axis hydraulic motion with ramp control
- Steel Mill Rolling Equipment — High-cycle, high-temperature hydraulic servo loops
- Marine & Offshore Hydraulics — Deck machinery, thruster control, and stabilizer systems
- Mobile Heavy Equipment — Crane, excavator, and drilling rig proportional control upgrades
- Test & Simulation Rigs — Fatigue testing, material testing, and hardware-in-the-loop (HIL) systems
Engineering Advantages
- Drop-in Compatibility — Direct replacement for existing Vickers EEA-PAM series installations; no rewiring required
- Integrated Ramp & Dither — Eliminates need for external signal conditioning; reduces panel complexity
- Temperature-Compensated Output — Maintains consistent solenoid current across ambient temperature variations
- Dual-Channel Architecture — Supports bidirectional proportional valve control (A/B solenoid) from a single card
- Diagnostic LED Indicators — Real-time power, enable, and fault status for rapid field troubleshooting
- Wide Input Compatibility — Accepts both voltage and current command signals for flexible PLC/DCS integration
System Architecture & Signal Flow
The EEA-PAM513A32-EN53 operates within a standard proportional hydraulic control loop as follows:
- Command Signal Input — PLC/DCS analog output (±10 VDC or 4–20 mA) feeds the card’s command input terminal
- Signal Conditioning — Internal ramp generator smooths step commands; dither circuit superimposes high-frequency oscillation to overcome valve spool stiction
- Current Regulation — PWM output stage drives solenoid coil(s) with precisely regulated current proportional to command signal magnitude
- Feedback & Fault Monitoring — Card monitors solenoid continuity and supply voltage; asserts fault output on anomaly detection
- Enable Logic — Digital enable input allows safe integration with machine safety circuits (E-stop, safety relay)
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels with full traceability
- Pre-shipment functional inspection: power-on test, enable/disable verification, output current measurement
- Original manufacturer labeling and part markings intact — no remarked or counterfeit components
- Packaging: anti-static bag + foam-lined carton; suitable for international air and sea freight
- Documentation available: datasheet, wiring diagram, and calibration guide upon request
Procurement Process
- Confirm Part Number — Verify EEA-PAM513A32-EN53 / 6025852-001 against your BOM or existing card label
- Request Quote — Contact support@konmask.com for volume pricing, lead time, and export documentation
- Order & Payment — Secure checkout via Konmask.com; T/T wire transfer available for B2B orders
- Shipping — DHL / FedEx express (3–7 days worldwide); sea freight available for bulk orders
- After-Sales Support — Technical commissioning guidance and warranty claim handling via dedicated support line
Technical FAQ
Q: Is EEA-PAM513A32-EN53 compatible with all Vickers proportional valves?
A: It is designed for Vickers PAM-series proportional directional and pressure valves. Confirm solenoid coil resistance and current rating against your valve datasheet before installation.
Q: Can this card accept a 4–20 mA command signal from my PLC?
A: Yes, the EN53 suffix indicates current input compatibility. Verify jumper/DIP switch configuration per the wiring diagram supplied with the unit.
Q: What is the difference between EEA-PAM513A32-EN53 and similar EEA part numbers?
A: Suffix codes denote input type (voltage vs. current), channel count, and feature set. Contact our technical team for cross-reference assistance.
Q: Do you provide a warranty?
A: Yes. All units carry a 12-month warranty against manufacturing defects. Warranty claims are processed within 5 business days.
Q: Can I get a test report or inspection certificate?
A: Pre-shipment inspection reports are available upon request for orders above minimum quantity thresholds.
