CNC Plasma Cutting Motion Control Solution – Hypertherm PCBS-0057 REV A | H1 Series
Where This Product Is Used

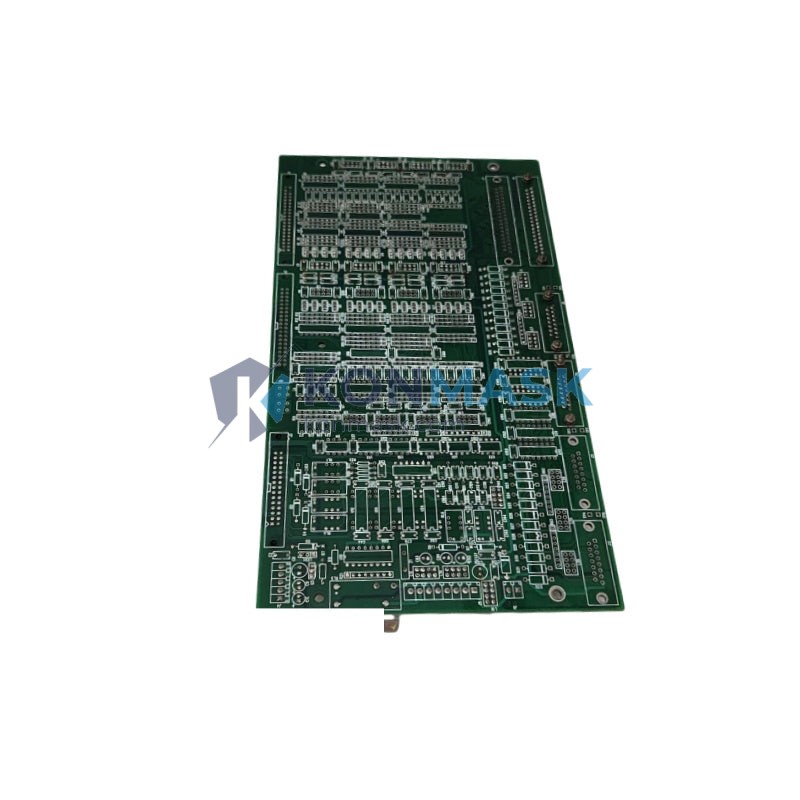

The Hypertherm PCBS-0057 REV A H1 Servo I/O Interface Board is a critical motion-control PCB designed for use in Hypertherm H1-series CNC plasma cutting systems. It serves as the communication bridge between the CNC controller and servo drive axes, enabling precise torch positioning and coordinated multi-axis motion. Typical deployment environments include:
- Industrial CNC plasma cutting tables (gantry and cantilever configurations)
- Automated steel fabrication and structural steel cutting lines
- Shipbuilding and heavy equipment manufacturing facilities
- Metal service centers requiring high-duty-cycle plasma operations
- OEM machine builders integrating Hypertherm H1 motion platforms
Technical Specifications
- Part Number: PCBS-0057
- Revision: REV A
- Series: H1 (Hypertherm CNC Motion Platform)
- Board Type: Servo I/O Interface Board
- Function: Servo axis I/O signal routing and interface between CNC controller and servo amplifiers
- Manufacturer: Hypertherm, Inc.
- Weight: 2,600 g (packaged)
- Condition: New / OEM-equivalent replacement
- Compatibility: Hypertherm H1-series CNC plasma cutting systems
Why Engineers Specify This Model
- OEM-matched signal integrity: PCBS-0057 REV A maintains exact I/O timing and voltage levels required by H1 servo amplifiers, eliminating tuning drift caused by non-OEM substitutes.
- Drop-in replacement: Identical connector layout and firmware handshake protocol — no re-wiring or parameter re-mapping required.
- Proven field reliability: Hypertherm’s H1 platform is deployed in thousands of industrial cutting tables globally; this board is a known-good, high-cycle-life component.
- Minimizes downtime: Stocking a spare PCBS-0057 reduces unplanned downtime from servo communication faults — a common failure mode in high-duty-cycle plasma environments.
Complete System Bill of Materials
For a full H1 servo motion system restoration or preventive maintenance kit, engineers typically source the following alongside PCBS-0057:
- Hypertherm H1 CNC Controller Main Board
- H1-compatible Servo Amplifier / Drive Module
- Encoder feedback cables (axis-specific)
- I/O ribbon cables and connectors (OEM spec)
- Hypertherm plasma power supply (Powermax or HyPrecision series, application-dependent)
Contact support@konmask.com for BOM sourcing assistance.
Compliance & Industry Standards
- Manufactured to Hypertherm OEM quality standards
- Compatible with CE-marked H1 CNC system configurations
- RoHS compliance status: per OEM documentation (confirm with Hypertherm for specific revision)
- Suitable for use in UL-listed industrial control panel assemblies when installed per OEM guidelines
Quality Assurance & Sourcing
Konmask.com sources industrial automation components through verified supply channels. Every unit undergoes:
- Visual inspection for physical damage, corrosion, and connector integrity
- Part number and revision verification against OEM documentation
- Anti-static packaging with humidity indicator cards for PCB protection during transit
- Traceability documentation available upon request for MRO and maintenance records
How to Source This Part
- Add PCBS-0057 to cart and proceed to checkout — we accept T/T, PayPal, and major credit cards.
- For bulk orders (>3 units) or urgent requirements, email support@konmask.com for priority lead time and volume pricing.
- International shipping available — DHL Express, FedEx International Priority, and sea freight for pallet quantities.
- Export documentation (commercial invoice, packing list, COO) provided for all international orders.
Application-Specific FAQ
Q: Is PCBS-0057 REV A backward-compatible with earlier H1 controller revisions?
A: REV A is the baseline release. Compatibility with later controller firmware revisions should be confirmed with Hypertherm technical support or your system integrator before installation.
Q: What symptoms indicate a failed Servo I/O Interface Board?
A: Common fault indicators include servo axis communication errors on the CNC HMI, erratic axis motion or position drift, and servo amplifier fault codes related to I/O signal loss. Always perform a board swap test with a known-good unit before condemning the board.
Q: Can this board be repaired rather than replaced?
A: Component-level repair is possible for experienced electronics technicians, but OEM replacement is recommended for production-critical machines to ensure signal integrity and warranty compliance.
Q: What is the lead time for PCBS-0057?
A: In-stock units ship within 1–2 business days. Contact us for real-time availability confirmation.
