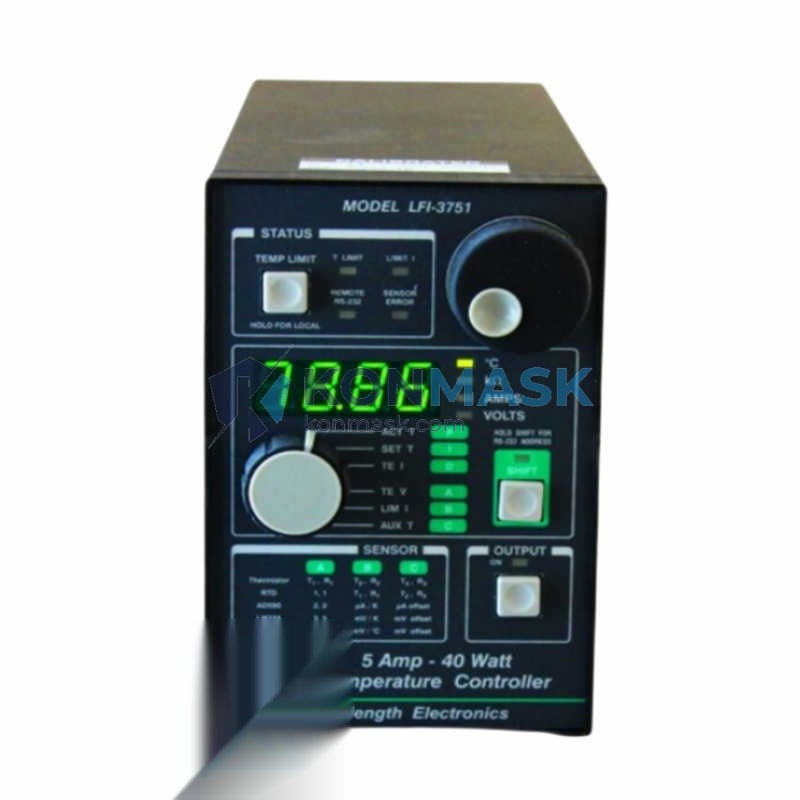

Laser Diode & TEC Temperature Control Solution — Wavelength Electronics LFI-3751 | LFI Series
Where This Product Is Used
The Wavelength Electronics LFI-3751 is a high-precision temperature controller engineered for demanding photonics, semiconductor, and laboratory environments where thermal stability is mission-critical. Typical deployment scenarios include:
- Laser Diode Stabilization — Maintains wavelength accuracy in CW and pulsed laser systems by holding junction temperature to ±0.001°C, preventing mode-hop and output drift.
- Thermoelectric Cooler (TEC) Drive — Provides bipolar current output to drive Peltier modules in optical transceivers, LIDAR assemblies, and fiber-coupled modules.
- Optical Coherence Tomography (OCT) — Stabilizes swept-source and broadband SLD sources for medical imaging platforms requiring sub-millikelvin repeatability.
- Spectroscopy & Sensing — Controls temperature of DFB and DBR lasers in gas-detection, TDLAS, and Raman spectroscopy instruments.
- Photonics R&D Benchtop — Used in university labs and OEM prototype stations for characterizing laser diodes, VCSELs, and quantum cascade lasers.
- Defense & Aerospace Payloads — Integrated into ruggedized electro-optical systems where thermal management directly impacts MTBF and pointing accuracy.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | LFI-3751 |
| Manufacturer | Wavelength Electronics |
| Series | LFI (Laser & TEC Controller) |
| Temperature Stability | ±0.001°C (typical) |
| TEC Output Current | Up to 4.0 A |
| TEC Output Voltage | Up to ±8 V |
| Sensor Compatibility | 10 kΩ NTC Thermistor |
| Control Algorithm | PID with auto-tune capability |
| Set-Point Resolution | 0.001°C |
| Display | 4-digit LED, actual & set-point |
| Interface | RS-232 serial (optional) |
| Input Voltage | ±15 VDC (dual supply) |
| Form Factor | Benchtop / OEM module |
| Weight | 1,900 g |
| Compliance | CE, RoHS |
Specifications are based on published Wavelength Electronics datasheet. Contact Konmask for application-specific derating or custom configurations.
Why Engineers Specify This Model
- Sub-millikelvin stability — The LFI-3751’s low-noise analog control loop achieves ±0.001°C stability, a benchmark rarely matched by digital-only controllers in this price class.
- Bipolar TEC drive — Supports both heating and cooling without relay switching, eliminating thermal transients that degrade laser lifetime.
- Plug-and-play thermistor interface — Compatible with standard 10 kΩ NTC sensors used across major laser diode packages (TO-can, butterfly, C-mount), reducing BOM complexity.
- Proven OEM heritage — Wavelength Electronics has supplied precision laser drivers and temperature controllers to photonics OEMs for over 30 years; the LFI series is a field-validated platform.
- Compact benchtop footprint — Fits standard 19″ rack shelves and lab benches; OEM PCB variants available for embedded integration.
- RS-232 automation — Optional serial interface enables scripted set-point sweeps, data logging, and integration with LabVIEW / Python test frameworks.
Complete System Bill of Materials
For a fully operational laser diode temperature-stabilization station, engineers typically pair the LFI-3751 with:
- Laser Diode Driver — Wavelength Electronics LDD series or equivalent constant-current source
- Thermoelectric Module (TEC) — Laird / Ferrotec Peltier module matched to thermal load (W) and ΔT requirement
- 10 kΩ NTC Thermistor — Integrated in laser diode package or externally mounted on heat spreader
- Heat Sink / Cold Plate — Aluminum or copper spreader with forced-air or liquid cooling for TEC hot-side dissipation
- ±15 VDC Dual Power Supply — Linear regulated supply recommended to minimize noise injection
- Laser Diode Mount — Thorlabs, Newport, or custom butterfly/TO-can fixture
- RS-232 to USB Adapter — For PC-based monitoring and set-point control (if serial option fitted)
Compliance & Industry Standards
- CE Marking — Conforms to EU Low Voltage Directive (LVD) and EMC Directive
- RoHS Compliant — Restriction of Hazardous Substances Directive 2011/65/EU
- IEC 61010-1 — Safety requirements for electrical equipment for measurement, control, and laboratory use
- ESD Handling — Manufactured and tested under ANSI/ESD S20.20 protocols to protect sensitive laser diode interfaces
Quality Assurance & Sourcing
Konmask sources the LFI-3751 exclusively through authorized distribution channels and verified secondary-market suppliers with full traceability documentation. Every unit offered on Konmask.com undergoes the following before dispatch:
- Visual inspection for physical damage, counterfeit markers, and label authenticity
- Functional power-on verification and set-point response check
- Date-code and lot-code cross-reference against manufacturer records where available
- Anti-static packaging with humidity indicator card for international shipment
Certificates of conformance (CoC) and test reports are available upon request for volume orders.
How to Source This Part
The LFI-3751 is a specialty instrument with variable lead times depending on production schedules. Konmask maintains stock of new, refurbished, and surplus units to support urgent project timelines.
- In-Stock Orders — Add to cart and complete checkout; same-day dispatch available for orders placed before 14:00 CST on business days.
- Volume / OEM Pricing — Contact support@konmask.com for quantity breaks of 3+ units.
- Repair & Calibration — Konmask can coordinate factory-authorized repair and NIST-traceable calibration for units requiring service.
- Export & Cross-Border — We ship globally; contact us for export documentation, HS code confirmation, and freight options for your destination.
Application-Specific FAQ
Q: Can the LFI-3751 control temperature below 0°C?
A: Yes. With an appropriately sized TEC and adequate hot-side cooling, the LFI-3751 can drive sub-zero set points. Minimum achievable temperature depends on TEC ΔT_max and thermal load — contact us for application sizing support.
Q: Is the LFI-3751 compatible with PT100 or PT1000 RTD sensors?
A: The standard unit is optimized for 10 kΩ NTC thermistors. RTD compatibility requires an external signal conditioning module. Wavelength Electronics offers accessory boards for alternative sensor types.
Q: What is the maximum TEC current output?
A: The LFI-3751 delivers up to 4.0 A continuous TEC drive current, suitable for single-stage Peltier modules up to approximately 40 W cooling capacity.
Q: Can I integrate the LFI-3751 into an automated test system?
A: Yes. The optional RS-232 interface supports remote set-point control, status readback, and alarm monitoring. ASCII command set is documented in the Wavelength Electronics programming manual.
Q: Do you offer calibration certificates?
A: NIST-traceable calibration certificates are available as an add-on service. Please specify at time of order or contact support@konmask.com.
