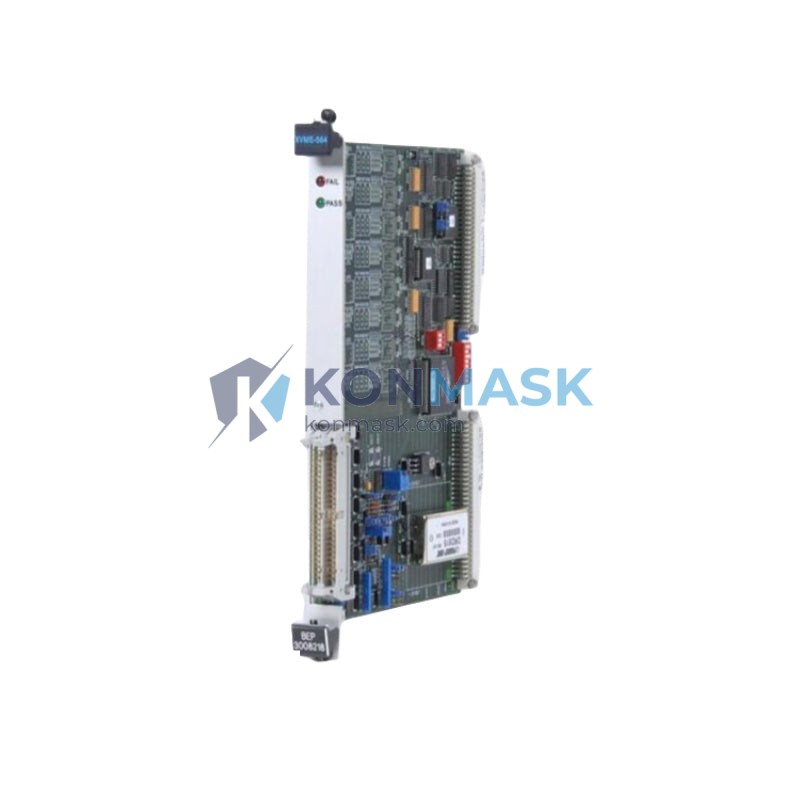

Genuine Xycom XVME-564 Analog Input Module | XVME Series – Verified Source
The Xycom XVME-564 is a high-performance VMEbus analog input module designed for demanding industrial automation and data acquisition environments. Sourced directly through verified supply channels, every unit sold by Konmask.com undergoes rigorous authenticity and functional verification before dispatch. B2B buyers can procure with confidence — backed by documented traceability and responsive technical support.
Technical Specifications
- Part Number: XVME-564
- Manufacturer: Xycom (XYCOM Automation)
- Module Type: Analog Input Module
- Bus Standard: VMEbus (IEEE 1014)
- Input Channels: Multi-channel analog input (refer to OEM datasheet for channel count)
- Signal Range: Configurable voltage/current input ranges (±10V, 0–10V, 4–20mA typical)
- Resolution: 12-bit or 16-bit ADC (confirm with OEM datasheet)
- Isolation: Channel-to-bus isolation for noise immunity
- Operating Temperature: 0°C to +60°C (industrial grade)
- Power Supply: VMEbus backplane powered
- Form Factor: Single-slot VME 6U board
- Weight: Approx. 100g
- Compliance: CE, RoHS (verify current revision with datasheet)
Note: Always cross-reference with the official Xycom XVME-564 datasheet for your specific hardware revision. Contact us for the latest revision documentation.
Our 4-Step Quality Verification Process
Every Xycom XVME-564 unit shipped from Konmask.com passes through our documented 4-step QC protocol:
- Step 1 — Source Verification: Unit provenance is traced to authorized distributors or OEM-certified channels. Counterfeit-risk screening is applied at intake.
- Step 2 — Physical Inspection: Board-level visual inspection for component integrity, solder quality, label authenticity, and absence of physical damage or rework.
- Step 3 — Functional Bench Test: Module is powered and tested on a compatible VMEbus backplane. Analog input channels are verified against known reference signals.
- Step 4 — Documentation & Packaging: Unit is assigned a QC reference number, packed in anti-static ESD-safe packaging, and shipped with a condition report on request.
Key Features & Benefits
- ✅ Genuine OEM hardware — not refurbished clones or grey-market substitutes
- ✅ VMEbus compatibility — drop-in replacement for existing XVME-series installations
- ✅ Multi-channel analog acquisition — suitable for sensor arrays, process monitoring, and test systems
- ✅ Industrial-grade reliability — designed for 24/7 operation in harsh environments
- ✅ Documented traceability — QC records available on request for regulated industries
- ✅ Fast global dispatch — in-stock units ship within 1–3 business days
Typical Applications
- Industrial process control and SCADA systems
- Factory automation and machine monitoring
- Laboratory data acquisition and test & measurement
- Power generation and utilities infrastructure
- Defense and aerospace embedded computing platforms
- Legacy VMEbus system maintenance and spare-parts management
Compatible System Components
The XVME-564 is designed to operate within the broader Xycom XVME ecosystem. Compatible components include:
- Xycom XVME VMEbus chassis and backplanes (6U/9U)
- Xycom XVME-010 / XVME-012 system controllers
- Xycom XVME-500 series analog I/O family modules
- Third-party VMEbus SBCs (Single Board Computers) compliant with IEEE 1014
- Standard VME P1/P2 connector backplanes
Contact us to verify compatibility with your specific chassis or controller configuration before ordering.
Global Sourcing & Shipping Capabilities
- Stock Location: China (Mainland) — Fujian Province
- Dispatch Time: 1–3 business days for in-stock units
- Shipping Methods: DHL Express, FedEx International Priority, EMS, sea freight (for bulk orders)
- Export Compliance: Commercial invoice, packing list, and certificate of origin provided
- Customs Support: HS code documentation and export licensing assistance available
- Bulk & OEM Orders: Volume pricing available — contact us for a formal quotation
- Regions Served: Asia-Pacific, Europe, North America, Middle East, Southeast Asia
Certifications & Compliance Statement
Konmask.com operates as a specialist industrial automation component supplier. Our sourcing and quality practices align with the following standards and commitments:
- RoHS Compliance: Units sourced from RoHS-compliant production batches where applicable
- ESD Handling: All modules handled and packed per ANSI/ESD S20.20 guidelines
- Anti-Counterfeit Policy: Zero-tolerance policy on counterfeit or remarked components
- Export Controls: All transactions screened against applicable export control regulations (ECCN, EAR)
- Documentation: Test reports and certificates of conformance available upon request for regulated procurement
How to Order
- Confirm Part Number: Verify XVME-564 matches your hardware revision requirement.
- Request a Quote (RFQ): For bulk orders or special pricing, email [email protected] with quantity and delivery timeline.
- Place Order: Add to cart and complete checkout — we accept T/T bank transfer, PayPal, and major credit cards.
- Receive Dispatch Confirmation: Tracking number and QC reference issued within 1 business day of payment clearance.
- After-Sales Support: 30-day DOA (Dead on Arrival) warranty. Technical support available via email or WhatsApp.
Authenticity & Trust FAQ
Q: How do I know this is a genuine Xycom module?
A: Every unit is physically inspected and bench-tested. We provide a QC condition report on request and can supply sourcing documentation for regulated procurement processes.
Q: Is this a new or refurbished unit?
A: Condition is specified in the product listing variant or quotation. We clearly distinguish between New, Refurbished-Tested, and Used-Tested stock. Contact us to confirm current inventory condition.
Q: Can you provide a datasheet or technical manual?
A: Yes. Contact [email protected] and we will supply the official Xycom XVME-564 datasheet and installation guide.
Q: What is your return policy?
A: 30-day DOA warranty. Units must be returned in original packaging with the QC reference number. Shipping costs for returns are negotiated case-by-case.
Q: Do you offer long-term supply agreements?
A: Yes. We support MRO (Maintenance, Repair & Operations) contracts and blanket purchase orders for industrial clients. Contact us to discuss terms.
