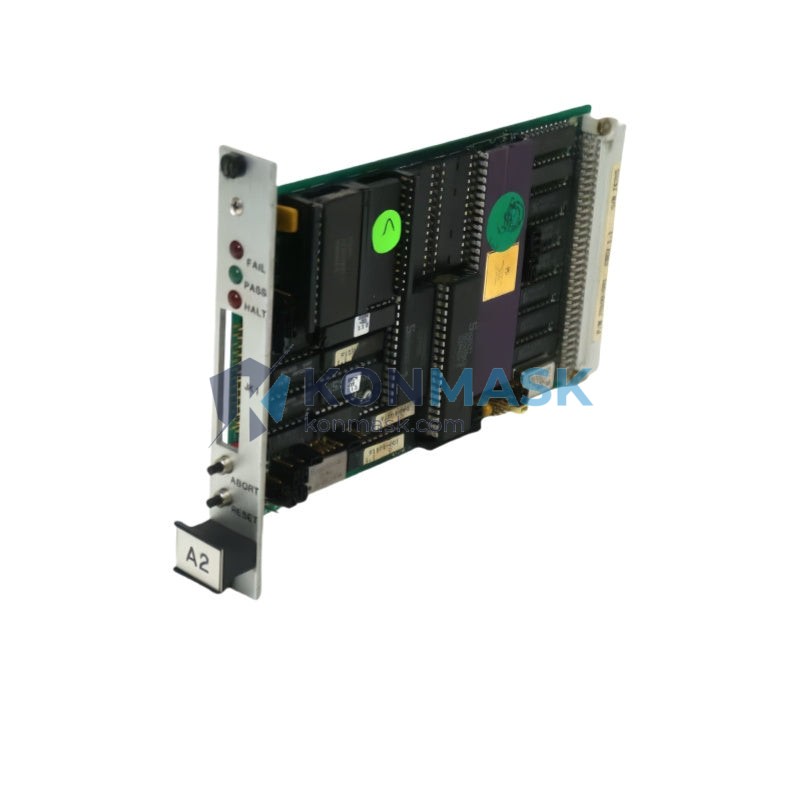

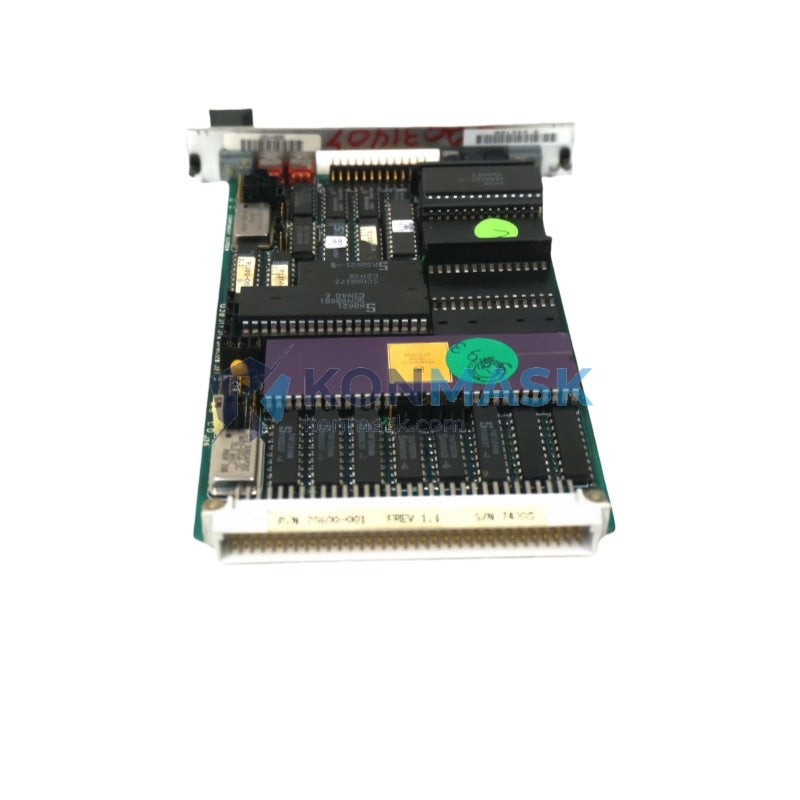

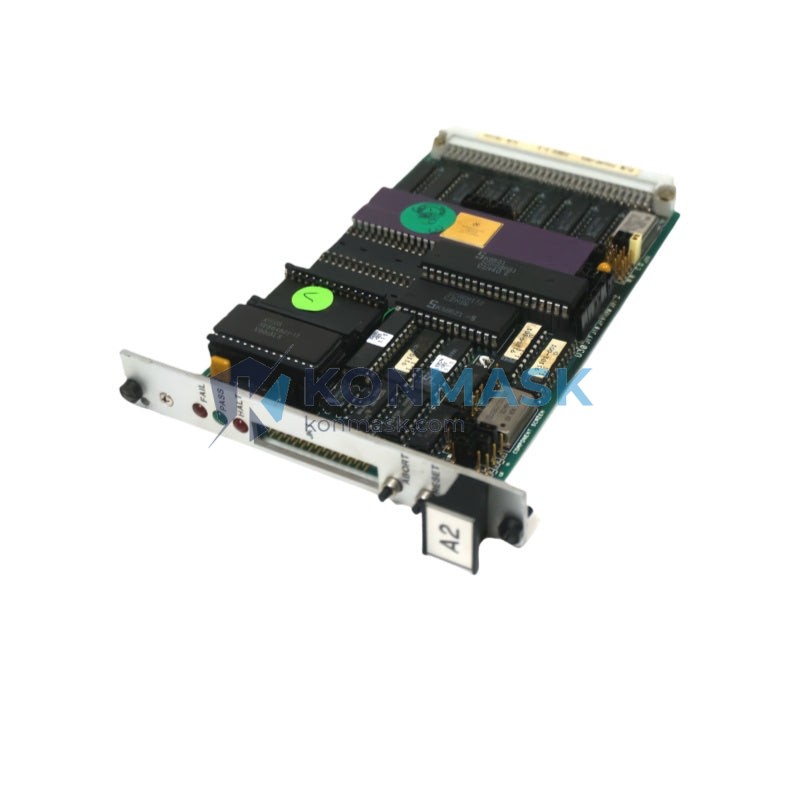

Industrial Automation Solution – XYCOM XVME-600 (70600-002) | VMEbus Processor Series
Where This Product Is Used
The XYCOM XVME-600 (P/N 70600-002) is a high-performance VMEbus processor module engineered for demanding industrial environments. It is widely deployed in:
- SCADA & DCS Systems – Serves as the central processing node in distributed control architectures for oil & gas, water treatment, and power generation plants.
- Factory Automation – Integrates with VMEbus backplanes in automotive assembly lines, semiconductor fabrication, and precision manufacturing cells.
- Defense & Aerospace Test Equipment – Used in ruggedized VME chassis for avionics testing, radar signal processing, and mission-critical data acquisition.
- Process Control – Deployed in chemical plants and refineries where real-time deterministic processing is required for safety instrumented systems (SIS).
- Legacy System Maintenance & Retrofit – A direct replacement module for existing XYCOM XVME-600 installations, extending operational life without full system redesign.
Technical Specifications
| Manufacturer | XYCOM (now part of Curtiss-Wright) |
| Part Number | 70600-002 |
| Model / Series | XVME-600 / VMEbus Processor Series |
| Form Factor | VMEbus (IEEE 1014) Single-Board Computer |
| Bus Standard | VMEbus (VME64 compatible) |
| Module Type | Processor / CPU Module |
| Weight | 340 g (approx.) |
| Operating Environment | Industrial grade; suitable for extended temperature ranges |
| Condition Available | Refurbished / Tested / New Old Stock (NOS) |
Note: Full datasheet available upon request. Contact support@konmask.com for detailed electrical specifications.
Why Engineers Specify This Model
- Proven VMEbus Architecture – The XVME-600 series is a trusted platform with decades of field deployment in mission-critical applications, offering exceptional reliability and long MTBF.
- Drop-In Replacement – Pin-compatible and firmware-compatible with existing XVME-600 installations, minimizing downtime during maintenance or emergency replacement.
- Deterministic Real-Time Performance – Designed for hard real-time control loops where latency and jitter must be tightly bounded.
- Rugged Industrial Design – Conformal coating options and wide operating temperature tolerance make it suitable for harsh plant-floor environments.
- Broad OS & BSP Support – Compatible with VxWorks, LynxOS, and other real-time operating systems commonly used in industrial and defense applications.
Complete System Bill of Materials
For a complete VMEbus control system using the XVME-600, engineers typically specify the following complementary components:
- VMEbus Chassis / Backplane (6U, 3U, or 9U form factor)
- VMEbus Power Supply Module
- XYCOM I/O Modules (analog input/output, digital I/O)
- VMEbus Serial Communication Module (RS-232/422/485)
- VMEbus Ethernet Interface Module
- System Controller / Slot-1 Module
- Real-Time Operating System (VxWorks / LynxOS) License
Contact support@konmask.com for BOM assistance and compatible part sourcing.
Compliance & Industry Standards
- VMEbus Standard: IEEE 1014 / IEC 821
- EMC: Designed to meet CE / FCC Class A requirements
- RoHS: Consult datasheet for specific revision compliance
- Functional Safety: Suitable for use in SIL-rated systems when integrated per IEC 61508 guidelines
- Export Control: Subject to EAR/ITAR regulations — please confirm end-use before ordering
Quality Assurance & Sourcing
All XYCOM XVME-600 (70600-002) modules supplied by Konmask.com undergo a rigorous quality process:
- Visual Inspection – PCB, connectors, and component integrity checked against OEM reference standards.
- Functional Power-On Test – Module is powered and verified for basic operational status prior to shipment.
- Anti-Static Packaging – Shipped in ESD-safe bags with foam cushioning to prevent transit damage.
- Traceable Sourcing – Units sourced from decommissioned industrial systems, authorized distributors, or NOS inventory with documented chain of custody.
- 90-Day Warranty – All tested units carry a 90-day warranty against defects in materials and workmanship.
How to Source This Part
- Add to Cart – Click the purchase button above to place your order directly online.
- Request a Quote – For volume orders (>5 units) or urgent requirements, email support@konmask.com for a dedicated quote within 24 hours.
- Verify Compatibility – Share your system configuration (chassis model, backplane revision, OS) and our engineers will confirm compatibility before shipment.
- Lead Time – In-stock units ship within 1–3 business days. Out-of-stock items can be sourced within 7–21 business days depending on availability.
- Global Shipping – We ship worldwide via DHL, FedEx, and UPS with full tracking and customs documentation support.
Application-Specific FAQ
Q: Is the XVME-600 (70600-002) compatible with my existing XYCOM VMEbus chassis?
A: Yes, the XVME-600 is designed for standard 6U VMEbus backplanes. Confirm your chassis slot pitch and power connector type. Contact us with your chassis model for a definitive compatibility check.
Q: Can this module run VxWorks?
A: The XVME-600 series supports VxWorks and other RTOS environments. BSP availability depends on the specific processor revision. We can assist with BSP sourcing.
Q: Do you supply the module with firmware pre-loaded?
A: Units are supplied as-is from decommissioned systems or NOS stock. Firmware loading is the responsibility of the end user. We can provide guidance on boot configuration.
Q: What is the lead time for multiple units?
A: For orders of 2–5 units, standard lead time is 3–7 business days. For larger quantities, contact us for a sourcing timeline.
Q: Is this product export-controlled?
A: VMEbus processor modules may be subject to EAR controls (ECCN 3A002 or similar). Buyers are responsible for verifying export compliance for their jurisdiction and end-use.
