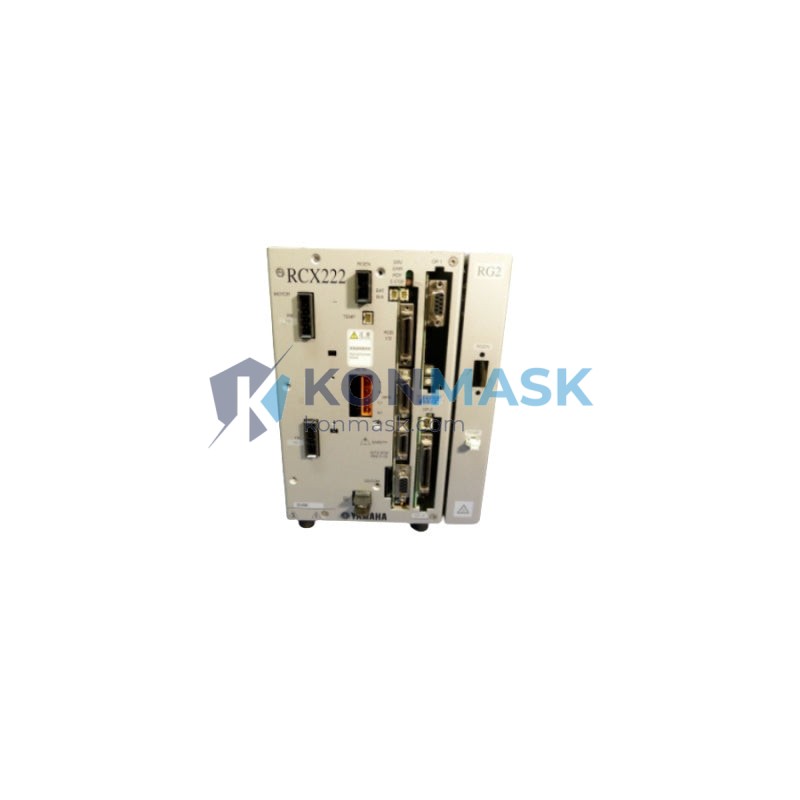

Pick-and-Place & Assembly Automation Solution – YAMAHA RCX222 | RCX Series Compact Robot Controller
Where This Product Is Used
The YAMAHA RCX222 is a dedicated 2-axis robot controller engineered for compact, high-speed automation tasks across a wide range of industrial environments. Engineers and system integrators specify this controller in the following applications:
- Electronics Assembly Lines – PCB component placement, connector insertion, and sub-assembly handling where compact footprint and precise positioning are critical.
- Pick-and-Place Automation – Paired with YAMAHA SCARA or Cartesian robots for high-cycle-rate bin picking, tray loading, and part transfer operations.
- Adhesive Dispensing & Coating – Synchronized 2-axis path control for consistent bead dispensing on automotive and consumer electronics substrates.
- Laboratory & Medical Device Automation – Cleanroom-compatible motion control for pipetting, sample handling, and diagnostic cartridge assembly.
- Packaging & Labeling – Integration into secondary packaging lines for product orientation, label application, and carton loading.
- Semiconductor & FPD Manufacturing – Wafer handling and flat-panel display component alignment requiring sub-millimeter repeatability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RCX222 |
| Manufacturer | YAMAHA Motor Co., Ltd. (IM Division) |
| Controlled Axes | 2 axes (expandable via network) |
| Compatible Robots | YAMAHA SCARA (YK series), Cartesian (XY, XYZ), single-axis (FLIP-X, PHASER) |
| Programming Language | YAMAHA BASIC (RCX-BASIC) |
| I/O Points | 16 inputs / 16 outputs (standard); expandable |
| Communication Interfaces | RS-232C, USB; optional CC-Link, DeviceNet, PROFIBUS, EtherNet/IP |
| Power Supply | Single-phase AC 200–230 V, 50/60 Hz |
| Ambient Temperature | 0–40 °C (operating); –10–60 °C (storage) |
| Humidity | 35–85 % RH (non-condensing) |
| Protection Class | IP20 (controller unit) |
| Weight | Approx. 3.0 kg |
| Dimensions (W×H×D) | Refer to YAMAHA RCX222 installation manual for exact panel cutout dimensions |
| Safety Standards | CE Marking, UL/cUL (region-dependent) |
Why Engineers Specify This Model
- Compact 2-Axis Architecture – Eliminates the cost and complexity of a full multi-axis controller when only 2 coordinated axes are required, reducing panel space by up to 40% versus larger RCX series units.
- Seamless YAMAHA Ecosystem Integration – Native compatibility with the full YAMAHA robot lineup means zero driver conflicts and factory-validated motion tuning parameters.
- Fieldbus Flexibility – Optional network cards support CC-Link, DeviceNet, PROFIBUS-DP, and EtherNet/IP, enabling drop-in integration with Mitsubishi, Siemens, Rockwell, and Omron PLC architectures.
- RCX-BASIC Programming – Structured, ladder-friendly syntax reduces commissioning time; existing programs are portable across the RCX controller family.
- Proven Reliability in High-Cycle Environments – Designed for 24/7 continuous operation in electronics and automotive Tier-1 supplier facilities.
- Compact Panel-Mount Form Factor – DIN-rail or panel-mount installation suits both standalone cells and integrated production lines.
Complete System Bill of Materials
A fully operational YAMAHA RCX222-based automation cell typically includes the following components. Konmask.com can source all items:
- YAMAHA RCX222 Controller (this unit)
- YAMAHA SCARA Robot – YK400XG / YK600XG / YK800XG (application-dependent)
- Teaching Pendant – YAMAHA PB-3 or equivalent handheld programmer
- Motor Cable & Encoder Cable Set (robot-specific length)
- I/O Expansion Unit (if >16 I/O points required)
- Fieldbus Option Card (CC-Link / EtherNet/IP / PROFIBUS – specify at order)
- 24 VDC Power Supply (for I/O circuit)
- Emergency Stop & Safety Relay Module (per ISO 13849-1 PLd requirement)
- Control Panel Enclosure (IP54 minimum recommended for shop-floor installation)
Compliance & Industry Standards
- CE Marking – Machinery Directive 2006/42/EC; Low Voltage Directive 2014/35/EU; EMC Directive 2014/30/EU
- UL/cUL Listed – Available for North American market configurations (confirm at order)
- RoHS Compliant – Directive 2011/65/EU; suitable for export to EU markets
- ISO 10218-1 – Industrial robot safety requirements (system integrator responsibility for full cell compliance)
- IEC 61131-3 – RCX-BASIC conforms to structured text programming principles
Quality Assurance & Sourcing
Konmask.com specializes in the procurement of genuine industrial automation components for B2B buyers, system integrators, and MRO teams. Every YAMAHA RCX222 unit we supply is:
- Sourced from authorized YAMAHA distribution channels or verified secondary-market suppliers with full traceability documentation.
- Inspected prior to shipment – Visual inspection, label verification, and where applicable, power-on functional check.
- Shipped with original packaging and available documentation (manuals, certificates) where supplied by the manufacturer.
- Backed by Konmask’s sourcing guarantee – If a unit does not match the advertised specification, we arrange replacement or full refund.
How to Source This Part
- Confirm your robot model – Verify your YAMAHA robot series (YK-X, YK-XG, FLIP-X, etc.) is compatible with the RCX222 controller. Refer to the YAMAHA robot-controller compatibility matrix or contact us.
- Specify fieldbus option – If PLC integration is required, identify your network protocol (CC-Link, EtherNet/IP, PROFIBUS, DeviceNet) before ordering the option card.
- Request a quote – Contact support@konmask.com with your required quantity, delivery timeline, and any special documentation requirements (COC, test report).
- Place your order – Add to cart or submit a purchase order via email. We accept T/T bank transfer, PayPal, and major credit cards.
- Receive & commission – Units ship from our warehouse within 1–3 business days. Express DHL/FedEx available for urgent requirements.
Application-Specific FAQ
Q: Can the RCX222 control a 4-axis SCARA robot?
A: No. The RCX222 is a 2-axis controller. For 4-axis SCARA robots (e.g., YK-XG series), the YAMAHA RCX340 or RCX240 is required. Contact us for the correct model.
Q: Is the RCX222 compatible with YAMAHA’s ERCX and DRCX legacy robots?
A: Compatibility depends on the specific robot generation. The RCX series replaced the ERCX/DRCX line; mechanical and electrical adapters may be required. Please provide your robot nameplate data for confirmation.
Q: Can I connect the RCX222 to a Mitsubishi MELSEC PLC via CC-Link?
A: Yes, with the optional CC-Link interface card installed. The RCX222 operates as a CC-Link remote device station. Provide your CC-Link version (V1.10 / V2.00) when ordering.
Q: What programming software is required?
A: YAMAHA’s RCX-Studio (PC-based IDE) is used for program development, monitoring, and parameter backup. It connects via USB or RS-232C. Contact us if you need software media or license information.
Q: Do you supply the teaching pendant separately?
A: Yes. The YAMAHA PB-3 teaching pendant and compatible cables are available. Specify when requesting a quote.
Q: What is the lead time for an RCX222 unit?
A: In-stock units ship within 1–3 business days. For bulk orders or units requiring specific option cards, lead time is 5–15 business days. Contact us for current stock status.
