Motion Control Solution – YASKAWA DESIG-3PCB | DESIG Series Circuit Board
Where This Product Is Used

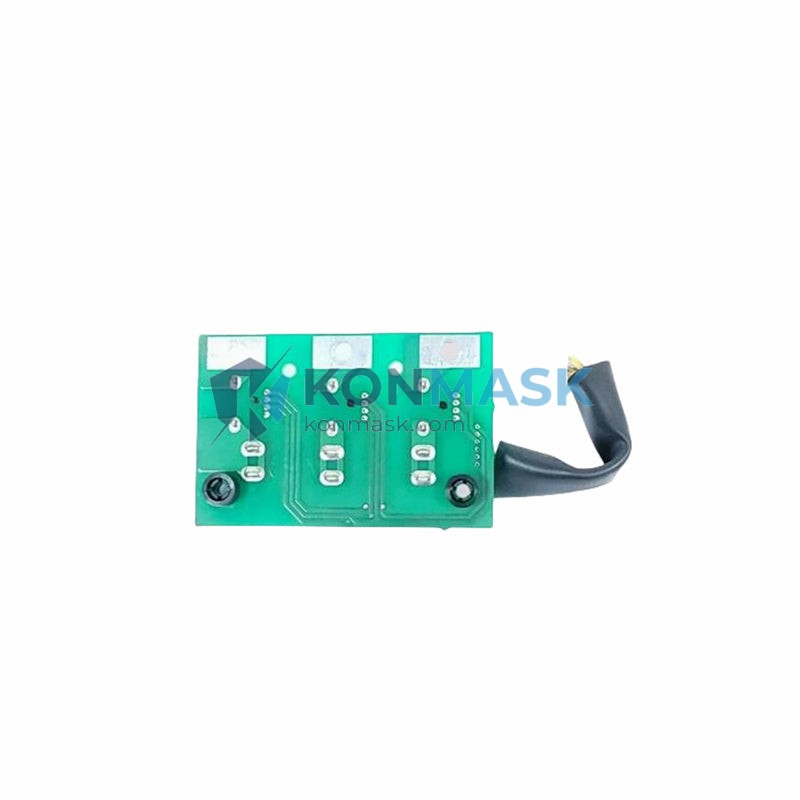

The YASKAWA DESIG-3PCB is a precision circuit board (PCB) module designed for use within YASKAWA DESIG Series servo drives and motion control systems. It is widely deployed across demanding industrial environments where reliable signal processing and drive control are critical:
- CNC Machining Centers – Provides stable axis control feedback for multi-axis milling, turning, and grinding machines.
- Robotic Welding & Assembly Lines – Supports high-cycle servo positioning in automotive and electronics manufacturing.
- Packaging & Labeling Machinery – Enables precise speed and torque regulation in high-throughput packaging lines.
- Semiconductor & Electronics Manufacturing – Used in pick-and-place and wafer-handling equipment requiring micron-level repeatability.
- Textile & Printing Equipment – Maintains synchronization across multi-axis web-tension and registration systems.
- Material Handling & Conveyor Systems – Integrated into variable-speed drive systems for logistics and warehousing automation.
Technical Specifications
| Part Number (SKU) | DESIG-3PCB |
| Manufacturer | YASKAWA Electric Corporation |
| Series | DESIG Series |
| Component Type | Circuit Board / PCB Module |
| Application | Servo Drive Internal Control Board |
| Form Factor | Plug-in PCB Assembly |
| Weight | 6,280 g (shipping weight) |
| Condition | New / Surplus / Refurbished (specify on inquiry) |
| Compliance | CE, RoHS |
Why Engineers Specify This Model
- OEM-Matched Replacement – Direct drop-in replacement for YASKAWA DESIG Series drives; no firmware re-flashing required in most configurations.
- High Signal Integrity – Multi-layer PCB construction minimizes EMI interference in high-frequency switching environments.
- Proven Field Reliability – YASKAWA’s DESIG platform is a globally recognized standard in servo motion control with decades of deployment history.
- Reduced Downtime – Stocking this board as a spare eliminates extended lead times during unplanned drive failures.
- Broad Compatibility – Compatible with YASKAWA DESIG Series servo amplifiers used across multiple machine generations.
Complete System Bill of Materials
For a complete YASKAWA DESIG Series servo system, engineers typically source the following components:
- YASKAWA DESIG Series Servo Amplifier (main drive unit)
- YASKAWA DESIG-3PCB Circuit Board (this item – internal control PCB)
- YASKAWA Servo Motor (matched to drive rating)
- Encoder Feedback Cable (motor-to-drive)
- Power Supply Unit (matched to drive input voltage)
- DIN Rail Terminal Blocks & I/O Wiring Accessories
- EMC Line Filter (recommended for CE-compliant installations)
Compliance & Industry Standards
- CE Marking – Conforms to EU Machinery Directive and Low Voltage Directive requirements.
- RoHS Compliant – Manufactured without restricted hazardous substances per EU Directive 2011/65/EU.
- ISO 9001 – YASKAWA operates under ISO 9001-certified quality management systems.
- IEC 61800 – Designed for use within variable-speed electrical power drive systems per IEC standards.
Quality Assurance & Sourcing
At Konmask.com, every YASKAWA component is subject to a multi-stage verification process before dispatch:
- Visual inspection for physical damage, corrosion, and counterfeit markers
- Part number and date code verification against YASKAWA documentation
- Functional bench test where applicable
- Anti-static packaging with humidity indicator cards for PCB shipments
- Traceable sourcing from authorized distributors and certified surplus channels
How to Source This Part
To place an order or request a formal quotation for the YASKAWA DESIG-3PCB:
- Online: Add to cart and complete checkout at Konmask.com
- Email: support@konmask.com – include your required quantity, delivery timeline, and any certification requirements.
- Phone/WhatsApp: +0086 19859288691 – available for urgent procurement and technical pre-sales consultation.
- Lead Time: In-stock units ship within 1–3 business days. Ex-stock and special-order items quoted on request.
Application-Specific FAQ
Q: Is the YASKAWA DESIG-3PCB compatible with all DESIG Series drives?
A: The DESIG-3PCB is designed for the YASKAWA DESIG Series platform. Compatibility depends on the specific drive model and revision. Please contact us with your drive nameplate data for confirmation before ordering.
Q: Can this board be repaired instead of replaced?
A: Board-level repair is possible for some failure modes (e.g., blown capacitors, damaged connectors). However, for production-critical applications, replacement with a verified new or surplus unit is recommended to minimize downtime risk.
Q: Do you provide a warranty on this PCB?
A: Yes. Konmask.com provides a standard 90-day warranty on all components against defects in materials and workmanship. Extended warranty options are available on request.
Q: What packaging is used for international shipment?
A: PCB modules are shipped in anti-static bags, foam-padded boxes, and outer cartons with fragile labeling. Export documentation including commercial invoice and packing list is provided for customs clearance.
Q: Can you supply multiple units for a maintenance stock program?
A: Yes. We support blanket orders and scheduled releases for MRO and spare-parts programs. Contact us to discuss volume pricing and consignment options.
