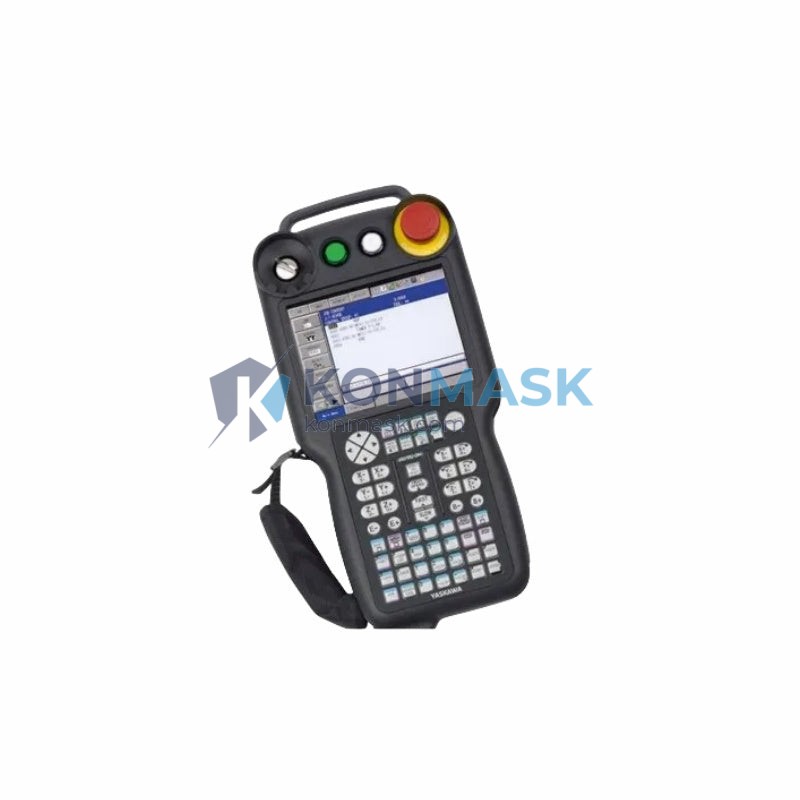

Yaskawa JZRCR-YPP21-1 Teach Pendant – Motoman DX200 Robot Controller Series
When a teach pendant fails on a Motoman robotic arm, the entire production line comes to a halt. Operators lose the ability to jog axes, modify waypoints, or execute program edits — leaving expensive robotic cells idle and costing manufacturers thousands of dollars per hour in downtime. The Yaskawa JZRCR-YPP21-1 is the OEM-specified teach pendant engineered to restore full operator control of DX200-based robot systems without compromise.
Within the Motoman DX200 controller ecosystem, the JZRCR-YPP21-1 occupies the role of primary human-machine interface. The DX200 controller — Yaskawa’s flagship multi-axis robot controller supporting up to 72 axes — is deployed across automotive assembly, arc welding, material handling, and precision dispensing lines worldwide. As the dedicated pendant for this platform, the JZRCR-YPP21-1 is one of the most sought-after replacement components in the global industrial robotics aftermarket.
Technical Specifications
- Part Number: JZRCR-YPP21-1
- Compatible Controller: Yaskawa Motoman DX200
- Manufacturer: Yaskawa Electric Corporation
- Product Series: Motoman DX200
- Product Type: Robot Teach Pendant
- Interface: Color LCD touchscreen with physical keypad
- Safety Device: 3-position enable switch (deadman switch)
- Emergency Stop: Integrated E-stop button
- Connection: Dedicated DX200 controller cable interface
- Weight: Approx. 323 g
- Condition Available: New, Refurbished, Used-Tested
Key Features & Benefits
- OEM-Specified Compatibility: Designed exclusively for the Motoman DX200 controller — plug-and-play replacement with no firmware conflicts.
- Full Axis Control: Supports jogging, teaching, and program editing across all robot axes supported by the DX200 platform (up to 72 axes in coordinated motion).
- 3-Position Enable Switch: Meets ISO 10218-1 safety requirements for collaborative and industrial robot operation.
- Integrated E-Stop: Hardwired emergency stop for immediate robot halt — critical for operator safety in live production environments.
- Intuitive Interface: Color LCD display with dedicated function keys reduces operator training time and minimizes input errors during program teach-in.
- Durable Industrial Construction: Built to withstand factory floor conditions including vibration, dust, and repeated handling.
- Direct Replacement: Eliminates the need for controller reconfiguration — swap and resume operations.
Industry & Equipment Applications
- Automotive Manufacturing: Spot welding, body assembly, and paint shop robotic cells using Motoman robots.
- Arc Welding: MIG/TIG welding stations with DX200-controlled Motoman MA, VA, or EA series robots.
- Material Handling: Palletizing, pick-and-place, and conveyor-integrated robotic systems.
- Precision Dispensing: Adhesive, sealant, and coating application lines requiring accurate path teaching.
- Electronics Assembly: High-precision robotic assembly cells in consumer electronics and semiconductor manufacturing.
- Food & Beverage: Hygienic robotic packaging and sorting lines with DX200 controllers.
System Integration & Compatible Parts
The JZRCR-YPP21-1 is designed to integrate directly with the Yaskawa Motoman DX200 controller cabinet. Compatible and commonly co-ordered components include:
- Yaskawa DX200 Controller Cabinet (JZNC-YRK21-1E / JZNC-YRK21-2E)
- Motoman Robot Series: MA1400, MA1900, VA1400, HP20D, MH5, MH12, MH24, ES165D
- DX200 Teach Pendant Cable Assembly
- Yaskawa SGDV / SGDH Servo Drives (for multi-axis DX200 cells)
- Yaskawa JZNC-YRK21 CPU Board
If you need assistance confirming compatibility with your specific robot model or controller revision, contact our technical team at support@konmask.com.
Our Quality Assurance Process
Every Yaskawa JZRCR-YPP21-1 unit sourced through Konmask.com undergoes a structured verification process before shipment:
- Visual Inspection: Screen integrity, keypad function, cable connector condition, and housing checked for damage.
- Functional Verification: Where applicable, units are powered and tested against a DX200 controller to confirm display output, key response, and enable switch operation.
- Authenticity Check: Part number, label, and serial number verified against Yaskawa OEM documentation.
- Secure Packaging: Anti-static and foam-padded packaging to prevent transit damage.
- Documentation: Test report and packing list included with every shipment.
How to Order
- Submit an inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, preferred condition (new / refurbished / used-tested), and delivery timeline.
- Receive a formal quotation within 1 business day.
- Confirm order and arrange payment via T/T, PayPal, or other agreed method.
- Shipment dispatched with tracking number and commercial invoice within agreed lead time.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, robot controllers, and automation components — not a general electronics marketplace.
- Global B2B Supply: Serving MRO buyers, system integrators, and OEM procurement teams across North America, Europe, Southeast Asia, and the Middle East.
- Fast Sourcing: Extensive supplier network enables rapid sourcing of hard-to-find or obsolete Yaskawa parts.
- Technical Support: Our team includes engineers with hands-on experience in Yaskawa Motoman systems.
- Transparent Process: Clear quotation, documented QC, and traceable shipment — no surprises.
Frequently Asked Questions
Q: Is the JZRCR-YPP21-1 compatible with DX100 or FS100 controllers?
A: No. The JZRCR-YPP21-1 is specifically designed for the Motoman DX200 controller. It is not cross-compatible with DX100, FS100, or YRC1000 controllers. Please contact us if you need a pendant for a different controller generation.
Q: Can I use a refurbished unit in a production environment?
A: Yes. Our refurbished units are functionally tested and verified before shipment. Many MRO and maintenance teams use refurbished pendants as cost-effective replacements or spares. We provide a test report with each unit.
Q: What is the lead time for the JZRCR-YPP21-1?
A: Lead time depends on current stock availability. In-stock units typically ship within 2–5 business days. For sourced units, lead time is 7–15 business days. Contact us for real-time availability.
Q: Do you provide a warranty?
A: Yes. We offer a limited warranty on all units. Warranty terms vary by condition (new vs. refurbished). Details are provided in the quotation.
Q: Can you supply multiple units for a fleet maintenance program?
A: Yes. We support bulk and blanket purchase orders. Contact us to discuss volume pricing and scheduled delivery arrangements.
