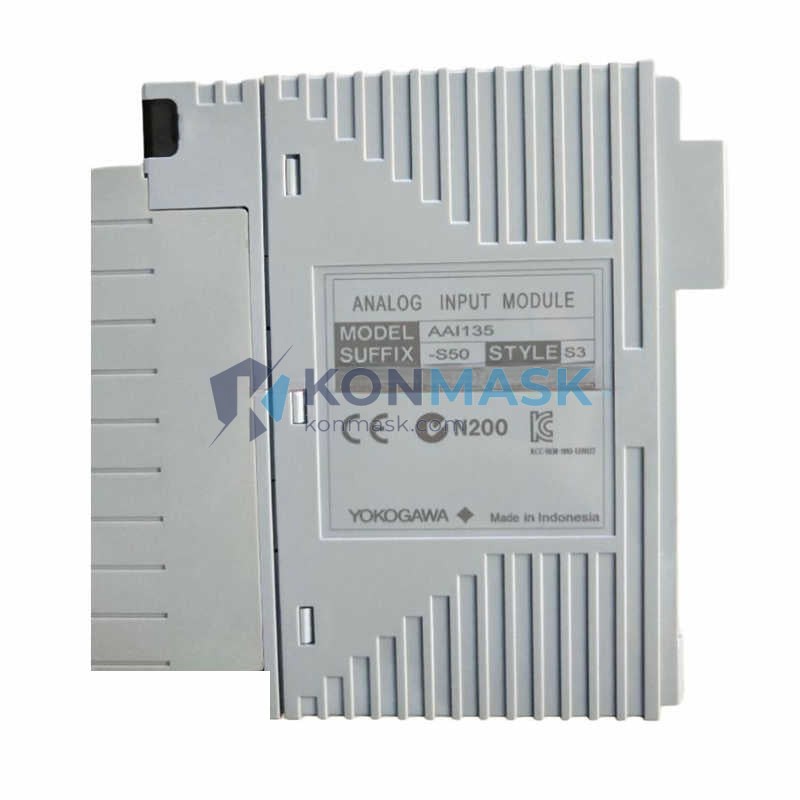

Yokogawa AAI135-S50 S3 – 16-Channel Analog Input/Output Module | CENTUM VP DCS Platform
Engineering Background
The AAI135-S50 S3 is a high-density analog I/O module engineered for Yokogawa’s CENTUM VP Distributed Control System (DCS). Designed to meet the rigorous demands of continuous process industries, this module delivers precise signal conditioning and reliable field-device interfacing in a compact, hot-swappable form factor. It is a direct successor in the AAI1xx series, maintaining backward compatibility with existing CENTUM VP field control station (FCS) chassis installations.
Product Positioning
Targeted at instrumentation and control engineers responsible for process automation in oil & gas, petrochemical, power generation, and pharmaceutical facilities, the AAI135-S50 S3 provides a proven, OEM-sourced solution for expanding or maintaining CENTUM VP analog I/O capacity. Konmask.com supplies this module with full traceability documentation and pre-shipment functional verification.
Complete Technical Specifications
| Part Number | AAI135-S50 S3 |
| Manufacturer | Yokogawa Electric Corporation |
| Series / Platform | CENTUM VP / CS 3000 FCS |
| Module Type | Analog Input/Output (Mixed AI/AO) |
| Channel Count | 16 channels (configurable AI/AO ratio) |
| Signal Range (Input) | 4–20 mA DC (with HART communication support) |
| Signal Range (Output) | 4–20 mA DC |
| Resolution | 16-bit A/D & D/A conversion |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Power Consumption | ≤ 5 W (typical) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Mounting | FCS Node Unit slot (hot-swap capable) |
| Weight | Approx. 330 g |
| Compliance | CE, UL, IECEx (refer to Yokogawa GS sheet) |
| Firmware Revision | S3 (3rd generation silicon revision) |
| HART Support | HART 5/6/7 pass-through via FCS |
Proven Application Environments
- Oil & Gas: Upstream wellhead monitoring, midstream pipeline SCADA integration, downstream refinery DCS expansion
- Petrochemical & Chemical: Reactor temperature/pressure loop control, batch process analog signal aggregation
- Power Generation: Boiler control systems, turbine governor analog feedback loops
- Pharmaceutical & Life Sciences: FDA 21 CFR Part 11-compliant process monitoring, clean-room HVAC control
- Pulp & Paper / Water Treatment: Multi-loop analog I/O consolidation in legacy CENTUM VP installations
Engineering Advantages
- Hot-Swap Capability: Replace or insert the module without shutting down the FCS node — minimizes process downtime during maintenance windows.
- High-Density I/O: 16 channels per slot reduces cabinet footprint and wiring complexity versus discrete single-channel transmitters.
- HART Pass-Through: Enables asset management and device diagnostics via Yokogawa’s PRM (Plant Resource Manager) without additional hardware.
- 16-Bit Resolution: Delivers ±0.1% full-scale accuracy, meeting ISA-5.1 and IEC 61511 SIL loop accuracy requirements.
- Backward Compatibility: Drop-in replacement for AAI135-S50 S1/S2 revisions in existing CENTUM VP and CS 3000 chassis.
- Robust Isolation: Channel-to-channel isolation prevents ground loop interference in multi-transmitter field wiring topologies.
System Architecture & Signal Flow
The AAI135-S50 S3 installs into a CENTUM VP Field Control Station (FCS) Node Unit. Field transmitters connect via marshalling cabinets or directly to the module’s terminal block. The module performs A/D conversion on input channels and D/A conversion on output channels, transmitting process values to the FCS CPU over the internal V-net/IP or ESB bus. HART digital signals are multiplexed over the 4–20 mA loop and passed through to the FCS for device management. The S3 silicon revision incorporates enhanced EMC filtering and improved A/D linearity over prior revisions.
Sourcing & Quality Verification
- Origin: Sourced from authorized Yokogawa distributors and verified OEM supply chains — no gray-market or counterfeit risk.
- Pre-Shipment Inspection: Each unit undergoes visual inspection, label/firmware verification, and functional power-on test before dispatch.
- Documentation Package: Certificate of conformance, original Yokogawa GS (General Specifications) sheet, and packing list provided on request.
- Warranty: 12-month Konmask warranty against manufacturing defects; DOA replacement within 7 business days.
- Traceability: Serial number and firmware revision recorded at time of shipment for full audit trail.
Procurement Process
- Confirm Compatibility: Verify your FCS Node Unit slot type and CENTUM VP software version (R5.xx or later recommended for S3 revision).
- Submit RFQ: Contact [email protected] with quantity, required delivery date, and destination port.
- Receive Quotation: Konmask issues a formal quotation within 1 business day including unit price, lead time, and shipping options (DHL/FedEx/sea freight).
- Place Order & Payment: T/T (wire transfer), PayPal, or Shopify secure checkout accepted. Pro-forma invoice issued upon order confirmation.
- Dispatch & Tracking: Ships within 3–7 business days from verified stock. Full tracking number provided via email.
- Incoming Inspection Support: Konmask technical team available to assist with incoming QC and installation commissioning queries.
Technical FAQ
Q: Is the AAI135-S50 S3 compatible with CS 3000?
A: Yes. The AAI135 series is cross-compatible with both CENTUM CS 3000 and CENTUM VP FCS chassis, subject to firmware version alignment.
Q: Can I mix AI and AO channels on the same module?
A: Channel allocation (AI vs. AO) is configured via the CENTUM VP engineering environment (System View). The physical module supports mixed configuration within its 16-channel capacity.
Q: Does the S3 revision require a firmware update on the FCS?
A: Yokogawa recommends FCS firmware R5.03 or later for full S3 feature support. Earlier firmware versions will operate the module in compatibility mode.
Q: What is the lead time for bulk orders (>10 units)?
A: Typical lead time is 2–4 weeks for quantities above 10 units. Contact us for priority sourcing options.
Q: Do you provide installation and commissioning support?
A: Konmask provides remote technical support for installation. On-site commissioning services can be arranged via our partner network — contact us for details.
