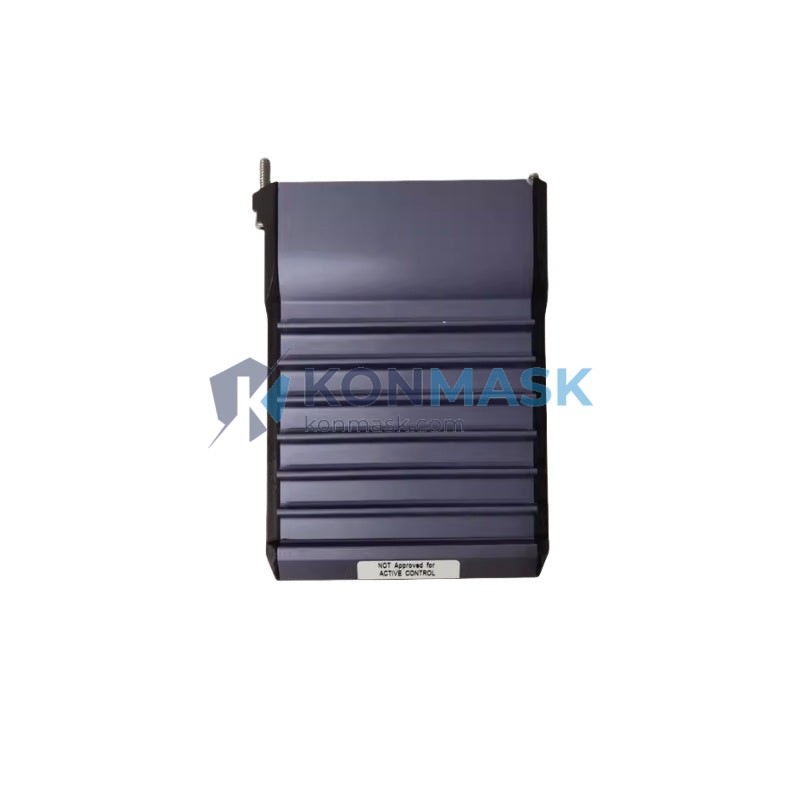

Foxboro FBM205 P0914XG Analog Input & Output Module – I/A Series Distributed Control System
When a field bus module fails mid-process, the consequences are immediate: analog signals go dark, control loops open, and operators lose visibility across the entire process unit. In refining, chemical, and power generation environments, even a brief loss of analog I/O can trigger emergency shutdowns, product quality deviations, or safety system activations. The Foxboro FBM205 (P0914XG) is the precision analog interface that keeps those loops closed — delivering reliable signal conditioning for both input measurement and output control within the Foxboro I/A Series DCS architecture.
The FBM205 occupies a critical position in the Foxboro Fieldbus Module lineup. As a combined analog input and output module, it eliminates the need for separate AI and AO cards in mixed-signal applications, reducing rack space and wiring complexity. Backed by Schneider Electric’s global engineering heritage and deployed across thousands of process plants worldwide, the FBM205 / P0914XG is a proven, field-hardened component trusted by process engineers on every continent.
Technical Specifications
- Part Number: FBM205 / P0914XG
- Manufacturer: Foxboro (Schneider Electric)
- Platform: I/A Series Distributed Control System (DCS)
- Module Type: Analog Input / Analog Output (AI/AO)
- Signal Type: 4–20 mA (standard process current loop)
- Input Channels: 8 analog input channels
- Output Channels: 4 analog output channels
- Resolution: 16-bit A/D and D/A conversion
- Isolation: Channel-to-channel and channel-to-bus isolation
- Communication Bus: Nodebus / Fieldbus (I/A Series backplane)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Humidity: 5% to 95% RH, non-condensing
- Power Supply: Supplied via I/A Series baseplate
- Weight: Approx. 630 g
- Compliance: CE, UL listed (per I/A Series system certification)
Note: Specifications are based on Foxboro published documentation. Always verify against your system’s engineering drawings before installation.
Key Features & Benefits
- Combined AI/AO in one module — reduces card count and simplifies cabinet layout in mixed-signal applications
- High-resolution 16-bit conversion — ensures accurate measurement and precise output control for tight process loops
- Full channel isolation — protects against ground loops and cross-channel interference in noisy industrial environments
- HART-compatible signal path — supports superimposed HART communication for smart field device diagnostics
- Hot-swap capable — enables module replacement without full system shutdown, minimizing process interruption
- Plug-and-play with I/A Series — auto-recognized by the Foxboro control software upon insertion; no manual address configuration required
- Long service life — industrial-grade components rated for continuous 24/7 operation in demanding process environments
Industry & Equipment Applications
- Oil & Gas: Flow, pressure, and temperature loop control in upstream/downstream processing units
- Petrochemical & Refining: Distillation column control, reactor temperature management, and product blending
- Power Generation: Boiler drum level control, turbine inlet pressure regulation, and feedwater flow measurement
- Pulp & Paper: Digester pressure and temperature control, stock consistency measurement
- Water & Wastewater: Flow metering, chemical dosing control, and level management in treatment plants
- Pharmaceuticals: Bioreactor parameter monitoring and clean-in-place (CIP) system control
System Integration & Compatible Parts
The FBM205 is designed for seamless integration within the Foxboro I/A Series DCS ecosystem. Compatible and commonly paired components include:
- Baseplates: FBM baseplate assemblies (P0916 series) — verify slot compatibility with your rack configuration
- Terminators: FBM field termination assemblies (FTA) for 4–20 mA wiring
- Processors: CP60, CP270, CP280 control processors running IA Series software
- Power Supplies: I/A Series redundant power supply modules
- Related Modules: FBM201 (AI only), FBM202 (AO only), FBM207 (HART AI), FBM237 (HART AO)
Always consult your I/A Series system configuration documentation or contact our technical team to confirm compatibility with your specific DCS revision.
Our Quality Assurance Process
At Konmask.com, every module undergoes a structured verification process before shipment:
- Visual Inspection: Board-level examination for physical damage, corrosion, or component anomalies
- Label & Marking Verification: Part number, revision code, and serial number cross-checked against manufacturer records
- Functional Pre-check: Where test equipment is available, modules are powered and basic I/O response is verified
- Packaging: Anti-static ESD bags, foam-lined boxes, and moisture-barrier packaging for international transit
- Documentation: Certificate of conformance and packing list included with every shipment
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email support@konmask.com
- Provide your required quantity, delivery timeline, and destination country
- Our team will respond within 1 business day with availability confirmation and a formal quotation
- Upon PO acceptance, we arrange export documentation, customs clearance support, and tracked international shipping
- Lead time: In-stock items ship within 3–5 business days; sourced items within 2–4 weeks
Why Choose Konmask.com?
- Specialized in industrial automation components — PLC, DCS, drives, and field instruments
- Global sourcing network with access to both new and refurbished surplus inventory
- Export experience to 50+ countries with full customs documentation support
- Technical pre-sales support from engineers familiar with Foxboro, Siemens, ABB, and Honeywell platforms
- Secure payment terms and flexible logistics options (DHL, FedEx, sea freight)
Frequently Asked Questions
Q: Is the FBM205 P0914XG new or refurbished?
A: We stock both new-surplus (unused, original packaging) and professionally refurbished units. Condition is clearly stated in your quotation. All units pass our QA process regardless of condition grade.
Q: Can the FBM205 be used as a direct replacement for FBM201 or FBM202?
A: Not directly — the FBM205 combines AI and AO channels in a single module with a different channel map. Substitution requires a control software configuration change. Consult your I/A Series system engineer before swapping.
Q: Do you provide a warranty?
A: Yes. We offer a standard 90-day warranty covering manufacturing defects and functional failures under normal operating conditions. Extended warranty options are available on request.
Q: Can you ship to my country?
A: We ship globally. We handle export licensing, commercial invoices, packing lists, and country-of-origin certificates. Contact us with your destination for a shipping cost estimate.
Q: What if I need technical support after purchase?
A: Our engineering team is available via email and phone to assist with installation questions, compatibility checks, and troubleshooting guidance post-delivery.
