Genuine YOKOGAWA ADM12 S4 - Industrial Automation Part

YOKOGAWA | ADM12 S4 | Contact Output I/O Card

Send your required quantity, target delivery time, and destination country. Konmask will reply with availability and lead time.

SKU: ADM12 S4 Category: YOKOGAWA

Description

Process Control & Safety Shutdown Solution — YOKOGAWA ADM12 S4 | CENTUM / ProSafe Series

Where This Product Is Used

The YOKOGAWA ADM12 S4 Contact Output I/O Card is deployed in mission-critical industrial automation environments where reliable discrete output signaling is non-negotiable. Typical installation sites include:

Oil & Gas Upstream / Midstream: Wellhead control panels, compressor station ESD systems, and pipeline isolation valve actuation.
Petrochemical & Refining: Reactor interlock loops, furnace burner management systems (BMS), and emergency shutdown (ESD) sequences.
Power Generation: Turbine protection relay interfaces, boiler drum-level alarm annunciation, and load-shedding logic outputs.
Pulp & Paper / Chemical: Batch sequencing, agitator start/stop control, and motor control center (MCC) command outputs.
Water & Wastewater Treatment: Pump station on/off control, valve open/close commands, and alarm horn/beacon activation.
Pharmaceutical & Food Processing: CIP/SIP cycle control, clean-room HVAC damper actuation, and regulatory interlock enforcement.

Wherever a YOKOGAWA CENTUM VP / CS 3000 DCS or ProSafe-RS Safety Instrumented System (SIS) requires contact-type discrete outputs to drive relays, solenoids, or indicator lamps, the ADM12 S4 is the factory-specified card.

Technical Specifications

Manufacturer	YOKOGAWA Electric Corporation
Part Number	ADM12 S4

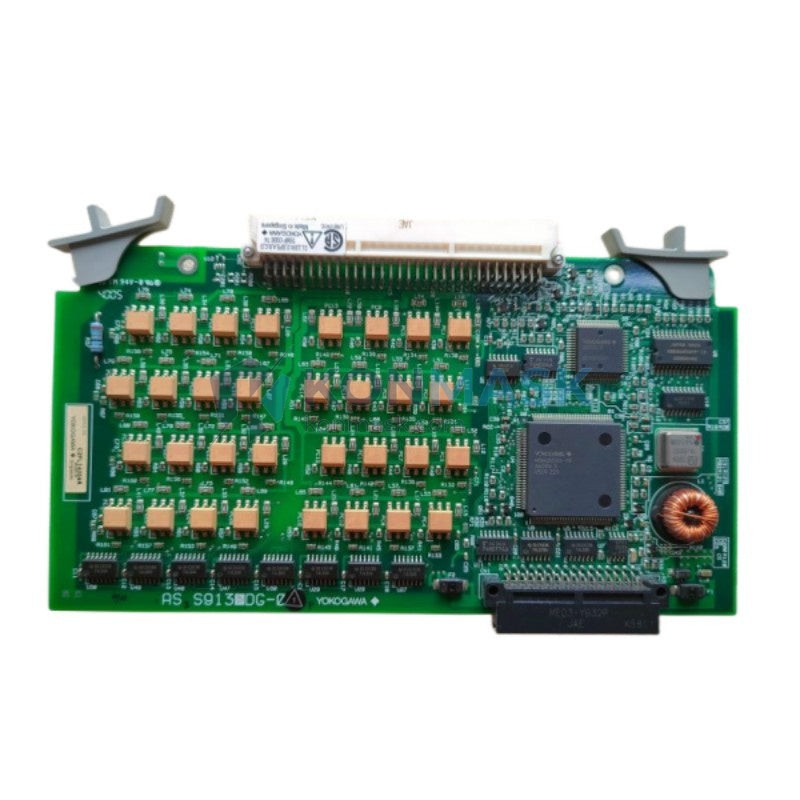

Card Type	Contact Output I/O Card
Compatible Platform	CENTUM VP, CENTUM CS 3000, ProSafe-RS
Output Type	Dry contact (relay) discrete outputs
Number of Output Points	12 channels (per standard ADM12 series)
Output Rating	Refer to YOKOGAWA ADM12 datasheet for voltage/current ratings
Isolation	Channel-to-channel and channel-to-bus isolation
Mounting	Node unit / I/O nest slot (CENTUM standard form factor)
Communication	V-net / ER bus (internal backplane)
Diagnostics	Online self-diagnostics; fault annunciation via DCS HMI
Operating Temperature	0 °C to 60 °C (storage: −20 °C to 70 °C)
Humidity	5 % to 95 % RH, non-condensing
Weight	Approx. 100 g (card only)

Always cross-reference with the official YOKOGAWA ADM12 S4 hardware manual (IM 33J01B30-01EN) for the most current electrical ratings before installation.

Why Engineers Specify This Model

Platform Compatibility: Designed exclusively for YOKOGAWA CENTUM and ProSafe-RS architectures — no third-party driver or adapter required.
Hot-Swap Capability: Supports online card replacement in redundant node configurations, eliminating planned shutdowns for maintenance.
Integrated Diagnostics: Continuous self-test routines surface wiring faults and relay failures directly on the CENTUM VP HMI, reducing MTTR.
Relay Contact Outputs: Dry-contact design provides galvanic isolation, making it suitable for driving 24 VDC solenoids, 110/220 VAC motor starters, and alarm annunciators from a single card.
Proven Field Reliability: Part of YOKOGAWA’s long-lifecycle I/O family with multi-decade installed base in SIL-rated safety loops.
Compact Density: 12 output points per slot maximizes cabinet real estate in brownfield retrofit projects.

Complete System Bill of Materials

A typical CENTUM VP node using the ADM12 S4 may include the following companion components (available from Konmask.com):

Node Unit / I/O Nest (e.g., ANB10S, ANR10S)
Field Control Station (FCS) — e.g., AFV10S, AFV30S
Power Supply Module — e.g., APM11, APM21
Communication Bus Module — V-net coupler / ER bus terminator
Terminal Board — e.g., ATB series (screw or spring-clamp)
Cable Assembly — I/O nest to terminal board (shielded, per YOKOGAWA spec)
Redundant I/O Card (ADM12 S4 ×2 for 1:1 redundancy configurations)
Marshalling Cabinet / DIN-rail relay modules for field-side isolation

Contact our team for a complete BOM review tailored to your node configuration and safety integrity level (SIL) requirements.

Compliance & Industry Standards

IEC 61511 / ISA-84: Compatible with Safety Instrumented System (SIS) architectures when applied per YOKOGAWA’s functional safety manual.
IEC 61508: YOKOGAWA CENTUM / ProSafe-RS platform holds SIL 2 / SIL 3 certification; consult the Safety Manual for ADM12 series usage constraints.
CE Marking: Compliant with applicable EU directives (EMC, Low Voltage) as part of the CENTUM system.
RoHS: YOKOGAWA hardware manufactured in compliance with RoHS Directive 2011/65/EU.
ATEX / IECEx: Card itself is non-Ex rated; field-side isolation barriers or Zener barriers required for Zone 1/2 hazardous area applications.
JIS / ANSI: Designed and tested to applicable Japanese Industrial Standards and ANSI/ISA instrumentation standards.

Quality Assurance & Sourcing

Authentic Parts: Konmask.com sources YOKOGAWA I/O cards through verified industrial distribution channels. Each unit is inspected for physical integrity, label authenticity, and firmware revision prior to dispatch.
Condition: New surplus, refurbished (tested), or factory-new stock — clearly stated on each listing. Contact us to confirm current stock condition.
Traceability: Batch records and supplier documentation available upon request for regulated industries (pharma, nuclear, offshore).
Warranty: 90-day functional warranty on all tested units. Extended warranty available on request.
Packaging: Anti-static ESD bag + foam-lined carton. Export packaging available for international shipments.

How to Source This Part

Confirm your part number: Verify ADM12 S4 against your CENTUM VP / CS 3000 node drawing or YOKOGAWA BOM. Check suffix codes (S4 denotes a specific hardware revision/option).
Check stock & lead time: Contact Konmask.com via the form below or email [email protected] — we will confirm availability and estimated delivery within 1 business day.
Request a quote: Provide quantity, required condition (new/refurbished), and destination country for a firm CIF/EXW price.
Place order: Orders accepted via T/T bank transfer, PayPal, or trade-term arrangements for established accounts.
Shipping: DHL / FedEx Express for urgent requirements; sea freight consolidation available for bulk orders. Export documentation (CO, packing list, commercial invoice) included.

Application-Specific FAQ

Q: Is the ADM12 S4 compatible with both CENTUM VP and CENTUM CS 3000?
A: Yes. The ADM12 series is part of YOKOGAWA’s unified I/O family and is backward-compatible across CENTUM CS 3000 and CENTUM VP platforms. Always verify the node unit generation with your system integrator.

Q: Can this card be used in a ProSafe-RS Safety Instrumented System?
A: The ADM12 S4 is a CENTUM DCS I/O card. For ProSafe-RS SIS applications, YOKOGAWA specifies dedicated safety I/O cards (e.g., the SSC series). Contact us if you need ProSafe-RS compatible output cards.

Q: What is the difference between ADM12 and ADM12 S4?
A: The suffix “S4” denotes a specific hardware revision or option code within the ADM12 family. Differences may include relay rating, isolation class, or firmware version. Always match the exact part number to your system’s I/O assignment drawing.

Q: Do you supply the terminal board and cable for this card?
A: Yes. Konmask.com stocks compatible ATB-series terminal boards and I/O nest cables. Provide your node model and we will recommend the correct accessories.

Q: What is the lead time for urgent requirements?
A: In-stock units ship within 1–2 business days via DHL Express. For out-of-stock items, typical lead time is 2–4 weeks depending on sourcing channel.

Q: Can you provide a test report or functional test certificate?
A: Yes, for refurbished units a functional test report is available. For new surplus, original YOKOGAWA factory documentation is provided where available.
