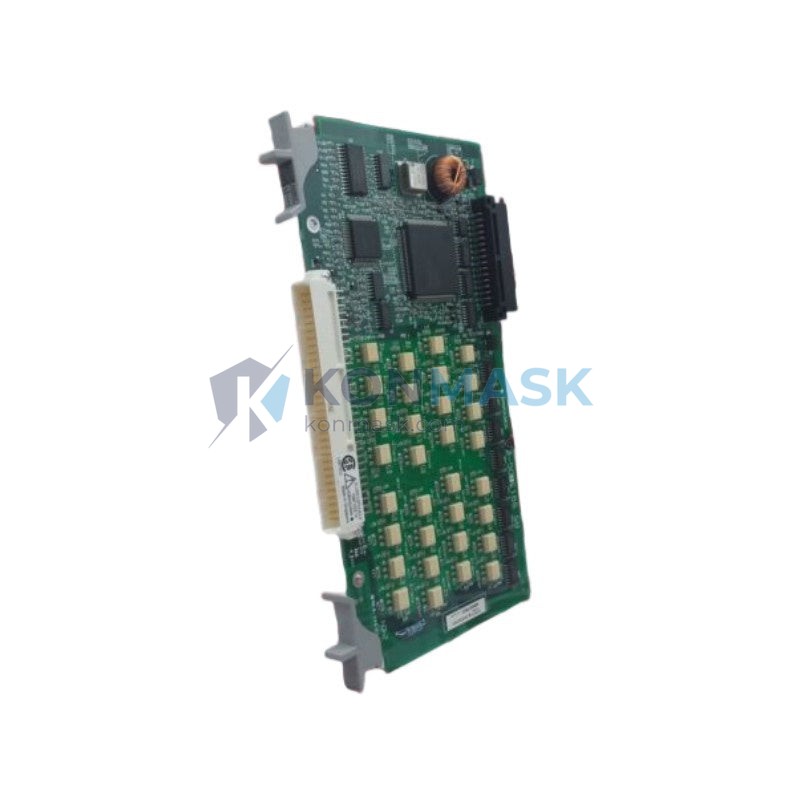

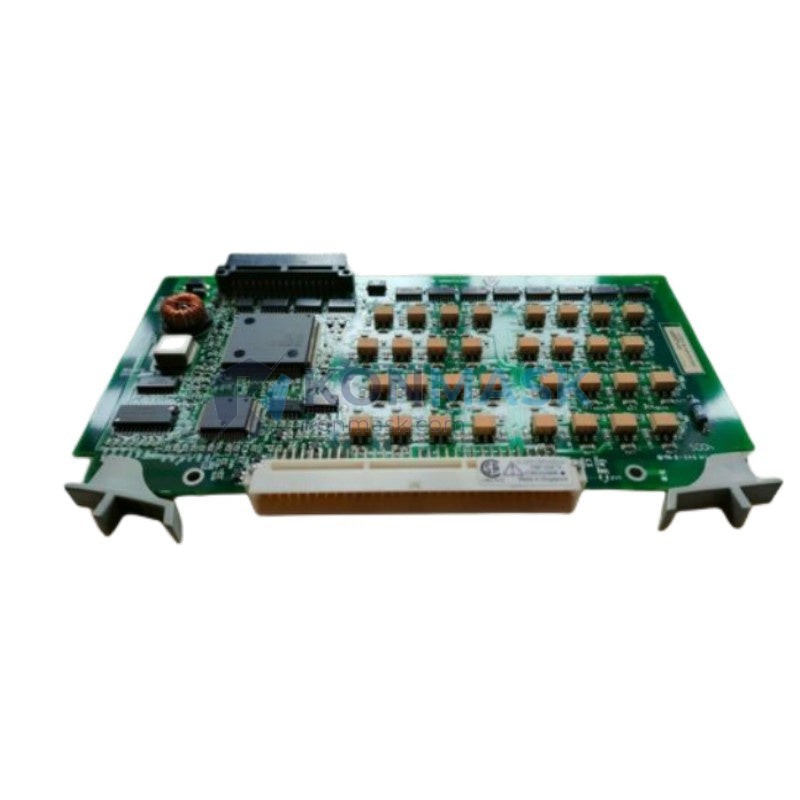

YOKOGAWA ADM52-2 S4 – Contact Output I/O Card | CENTUM VP / CS 3000 Platform
Engineering Background
The ADM52-2 S4 is a relay contact output I/O card designed for YOKOGAWA’s CENTUM VP and CS 3000 Distributed Control System (DCS) platforms. It provides hardwired discrete output capability for field devices requiring dry contact or voltage-free switching signals — a fundamental requirement in process automation for actuator control, alarm annunciation, and interlock logic execution.
Product Positioning
Targeted at process industries including oil & gas, petrochemical, power generation, and pulp & paper, the ADM52-2 S4 serves as a reliable field interface between the DCS controller and final control elements. Its modular form factor integrates directly into YOKOGAWA I/O nest assemblies, supporting both greenfield installations and brownfield upgrades where legacy CS 3000 infrastructure is being extended or migrated to CENTUM VP.
Complete Technical Specifications
- Model: ADM52-2 S4
- Manufacturer: YOKOGAWA Electric Corporation
- Module Type: Contact Output I/O Card (Relay)
- Compatible Platform: CENTUM VP, CENTUM CS 3000
- Output Channels: 16 channels (relay contact output)
- Contact Type: Dry contact (voltage-free), Form A (SPST-NO)
- Rated Load Voltage: 250 V AC / 30 V DC
- Rated Load Current: 2 A per channel
- Minimum Switchable Load: 10 mA at 5 V DC
- Electrical Isolation: Channel-to-bus isolation; optical isolation on signal path
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -20°C to +70°C
- Humidity: 5% to 95% RH (non-condensing)
- Power Consumption: Supplied via I/O nest backplane
- Mounting: Plug-in module into YOKOGAWA I/O nest (standard nest compatible)
- Dimensions: Standard YOKOGAWA I/O card form factor
- Weight: Approx. 100 g
- Certifications: CE Marking; compliant with IEC 61131-2
- Part Number / SKU: ADM52-2 S4
- Country of Origin: Japan
Proven Application Environments
- Oil & Gas: Wellhead control panels, compressor station ESD outputs, valve actuator discrete control
- Petrochemical & Refining: Reactor interlock outputs, pump start/stop commands, alarm horn/beacon activation
- Power Generation: Turbine auxiliary control, breaker trip/close commands, annunciator panel interfaces
- Pulp & Paper / Chemical: Conveyor control, agitator start/stop, safety shutdown relay outputs
- Water & Wastewater: Pump station control, valve open/close discrete outputs
- Pharmaceutical: Clean-room equipment control, batch process interlock outputs
Engineering Advantages
- High Channel Density: 16 relay outputs per card minimizes nest slot consumption and reduces wiring infrastructure cost.
- Voltage-Free Contact Output: Eliminates ground loop issues and simplifies field device compatibility across mixed-voltage installations.
- Optical Isolation: Protects DCS backplane from field-side transients, surges, and EMI — critical in heavy industrial environments.
- Hot-Swap Capable: Supports online replacement within CENTUM VP architecture, enabling maintenance without process shutdown.
- Seamless Platform Integration: Native compatibility with CENTUM VP and CS 3000 I/O builder; no additional configuration adapters required.
- Long Service Life: Mechanical relay rated for high cycle endurance; suitable for both high-frequency switching and latched-state applications.
System Architecture & Signal Flow
The ADM52-2 S4 resides in a YOKOGAWA I/O nest, which connects to the Field Control Station (FCS) via the V net or ESB bus depending on the CENTUM generation. The DCS controller writes discrete output values to the card’s internal register via the backplane. Each channel drives an onboard relay coil; the relay contact closes or opens to switch the field-side circuit. The optical isolation barrier between the logic side and the relay coil ensures that field-side faults (voltage spikes, short circuits) do not propagate to the controller bus. Field wiring terminates at the I/O terminal unit (ITU) connected to the card via a cable assembly, maintaining a clean separation between the DCS cabinet and field junction boxes.
Sourcing & Quality Verification
- Source: Konmask.com sources ADM52-2 S4 modules from authorized distributors, certified surplus channels, and direct OEM inventory — all with documented chain of custody.
- Inspection: Each unit undergoes visual inspection, label verification (part number, revision, date code), and functional continuity check prior to dispatch.
- Packaging: Anti-static ESD bag + foam-lined carton; humidity indicator card included for long-distance shipments.
- Documentation: Certificate of conformance (CoC) available on request; original YOKOGAWA datasheet provided with shipment.
- Warranty: 12-month replacement warranty against manufacturing defects and DOA (Dead on Arrival) units.
Procurement Process
- Submit RFQ: Email support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive Quote: Pricing and lead time confirmed within 1 business day for in-stock units.
- Order Confirmation: Purchase order or proforma invoice issued; payment via T/T, PayPal, or trade credit (approved accounts).
- Dispatch & Tracking: Ships via DHL / FedEx / SF Express with full tracking; export documentation (commercial invoice, packing list, COO) included.
- After-Sales Support: Technical support available post-delivery for installation verification and compatibility queries.
Technical FAQ
Q: Is the ADM52-2 S4 compatible with both CENTUM VP and CS 3000?
A: Yes. The ADM52-2 series is designed for use across YOKOGAWA’s CENTUM platform family. Confirm nest and ITU compatibility with your specific FCS generation before installation.
Q: Can this card be used in a Safety Instrumented System (SIS)?
A: No. The ADM52-2 S4 is a standard DCS I/O card and is not SIL-rated. For SIS applications, YOKOGAWA’s ProSafe-RS series should be specified.
Q: What is the difference between ADM52-2 and ADM52-2 S4?
A: The “S4” suffix denotes a specific hardware revision or configuration variant. Always specify the full part number including suffix when ordering to ensure exact form/fit/function compatibility.
Q: Is the relay output normally open (NO) or normally closed (NC)?
A: The standard configuration is Form A (SPST-NO) — normally open. Confirm with the YOKOGAWA I/O builder configuration for your specific application.
Q: Do you provide YOKOGAWA factory test reports?
A: Factory acceptance test (FAT) reports are available for new OEM stock. For surplus units, functional test records from our incoming inspection are provided.
