YOKOGAWA AIP562 S1 V-Net Coupler Module | Replacement, Equivalent & Selection Guide

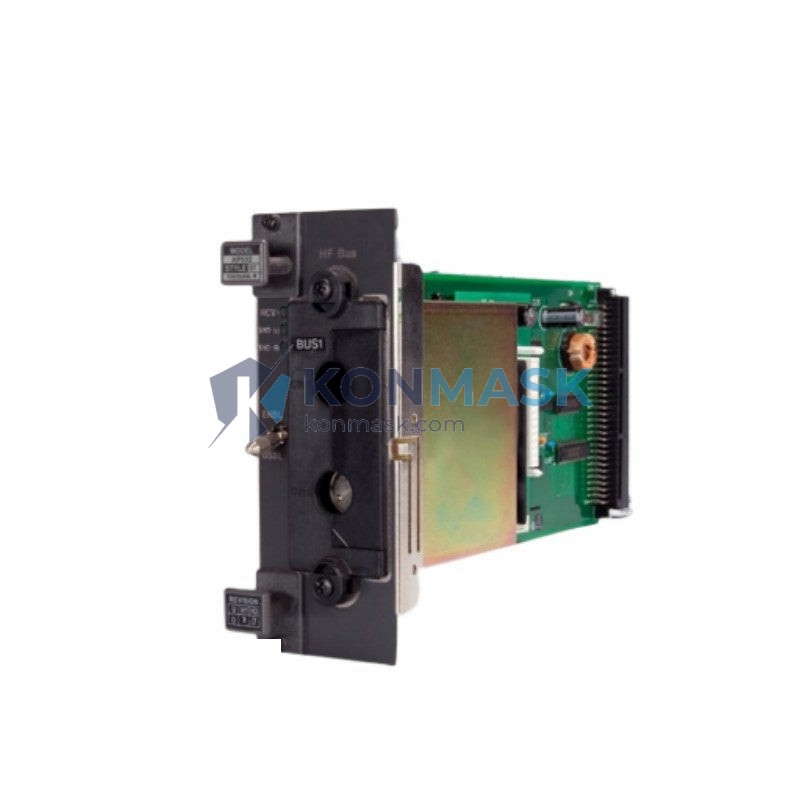

The YOKOGAWA AIP562 S1 is a V-Net Coupler Module designed for use in YOKOGAWA’s CENTUM DCS (Distributed Control System) platform. It serves as a critical communication interface node on the V-net control bus, enabling reliable data exchange between field controllers, I/O modules, and the engineering/operator stations. This page provides full technical specifications, compatible replacement options, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Manufacturer: YOKOGAWA Electric Corporation
- Part Number: AIP562 S1
- Module Type: V-Net Coupler Module
- Network: V-net (YOKOGAWA proprietary control bus)
- Compatible Platform: CENTUM CS / CENTUM CS 3000 / CENTUM VP DCS
- Communication Protocol: V-net (token-passing bus)
- Power Supply: Supplied via backplane / station bus
- Mounting: DIN rail / dedicated YOKOGAWA station chassis
- Weight: Approx. 600 g
- Operating Temperature: 0°C to 55°C
- Storage Temperature: −25°C to 70°C
- Humidity: 5% to 95% RH (non-condensing)
- Certifications: CE, UL (subject to revision; verify with datasheet)
Compatible Replacement & Equivalent Models
When the AIP562 S1 is unavailable or end-of-life, the following models may serve as functional replacements or equivalents depending on your system revision and firmware version. Always verify compatibility with your system integrator before substitution.
- YOKOGAWA AIP562 S2 — Revised hardware version; direct functional equivalent in most CENTUM CS 3000 / VP installations. Preferred upgrade path.
- YOKOGAWA AIP562 (without suffix) — Earlier base variant; compatible in legacy CENTUM CS environments. May require firmware alignment.
- YOKOGAWA AIV542 — Alternative V-net interface module; applicable in specific station configurations. Confirm slot compatibility.
- YOKOGAWA AIP562-S1 (refurbished/tested) — OEM-equivalent refurbished units; suitable for non-critical or backup applications with proper testing certification.
Note: Cross-referencing part numbers does not guarantee drop-in compatibility. Always validate against your CENTUM system revision documentation.
Why Choose the Original Model
- Guaranteed firmware compatibility with CENTUM CS / CS 3000 / VP without additional configuration.
- Factory-tested and calibrated to YOKOGAWA’s quality standards for mission-critical process control.
- Full technical support from YOKOGAWA and authorized service partners.
- Traceability — original parts carry full manufacturing traceability for regulated industries (pharma, oil & gas, power).
- Warranty coverage — eligible for YOKOGAWA’s standard hardware warranty and extended service agreements.
Typical Applications
- Oil & gas upstream/downstream process control (DCS backbone communication)
- Petrochemical and refinery automation systems
- Power generation plant control networks
- Pharmaceutical batch process control (CENTUM VP platforms)
- Pulp & paper and chemical plant DCS installations
- Water treatment and utility automation
System Compatibility
- CENTUM CS — Compatible (legacy; verify firmware)
- CENTUM CS 3000 — Fully compatible
- CENTUM VP R4 / R5 / R6 — Compatible (confirm with YOKOGAWA release notes)
- ProSafe-RS — Not applicable (separate safety bus architecture)
- STARDOM / FAST/TOOLS — Not applicable
For multi-node V-net topologies, ensure that the total coupler count and cable segment lengths comply with YOKOGAWA’s V-net engineering guidelines (IM 33S01B30-01EN or equivalent).
Selection Guide
Use the following criteria to determine whether the AIP562 S1 is the right module for your application:
- Step 1 — Identify your DCS platform: Confirm you are running CENTUM CS, CS 3000, or CENTUM VP. The AIP562 S1 is not applicable to STARDOM or ProSafe-RS.
- Step 2 — Check station type: Verify the target station (FCS, BCV, or HIS) supports the AIP562 coupler slot assignment per your system engineering drawings.
- Step 3 — Confirm hardware revision: Match the S1 suffix to your existing installed base. Mixing S1 and S2 revisions in the same V-net segment may require firmware alignment.
- Step 4 — Assess redundancy requirements: For redundant V-net configurations, two AIP562 S1 modules are required per station node.
- Step 5 — Evaluate lifecycle status: If AIP562 S1 is approaching end-of-life in your region, consider migrating to AIP562 S2 during the next planned maintenance window.
Quality Assurance & Sourcing
- All units sourced through Konmask.com are inspected prior to dispatch.
- New, surplus-new, and tested-refurbished stock clearly labeled with condition grade.
- Serialized units available with test reports upon request.
- Export compliance screening performed for all international orders.
- Secure anti-static packaging with shock-absorbing inserts for safe transit.
How to Order
- Online: Add to cart directly on this page. Bulk pricing available — contact us for quotes on 5+ units.
- Email: [email protected] — include part number, quantity, required condition (new/refurbished), and delivery timeline.
- Phone/WhatsApp: +0086 19859288691 — available for urgent procurement and technical pre-sales consultation.
- Lead Time: In-stock units ship within 1–3 business days. Special-order or factory-new units: 4–8 weeks (subject to YOKOGAWA availability).
- Payment: T/T (bank transfer), PayPal, and major credit cards accepted. LC available for large orders.
Replacement & Compatibility FAQ
Q: Can I replace AIP562 S1 with AIP562 S2 without reconfiguration?
A: In most CENTUM CS 3000 and VP installations, the S2 is a direct hardware replacement. However, a firmware version check is recommended before hot-swapping in a live system.
Q: Is the AIP562 S1 still in production?
A: YOKOGAWA periodically revises hardware suffixes. Contact Konmask or your local YOKOGAWA representative to confirm current production status and recommended successor.
Q: Can I use a refurbished AIP562 S1 in a safety-critical loop?
A: Refurbished units are generally not recommended for SIL-rated safety loops. Use factory-new or YOKOGAWA-certified units for ProSafe-RS or safety-instrumented systems.
Q: What is the V-net maximum segment length?
A: Per YOKOGAWA engineering guidelines, V-net coaxial segments are typically limited to 500 m per segment with up to 16 nodes. Refer to IM 33S01B30-01EN for exact topology rules.
Q: Do you provide a warranty?
A: Yes. New units carry the manufacturer’s warranty. Tested-refurbished units carry a 90-day Konmask functional warranty. Extended warranty available upon request.
