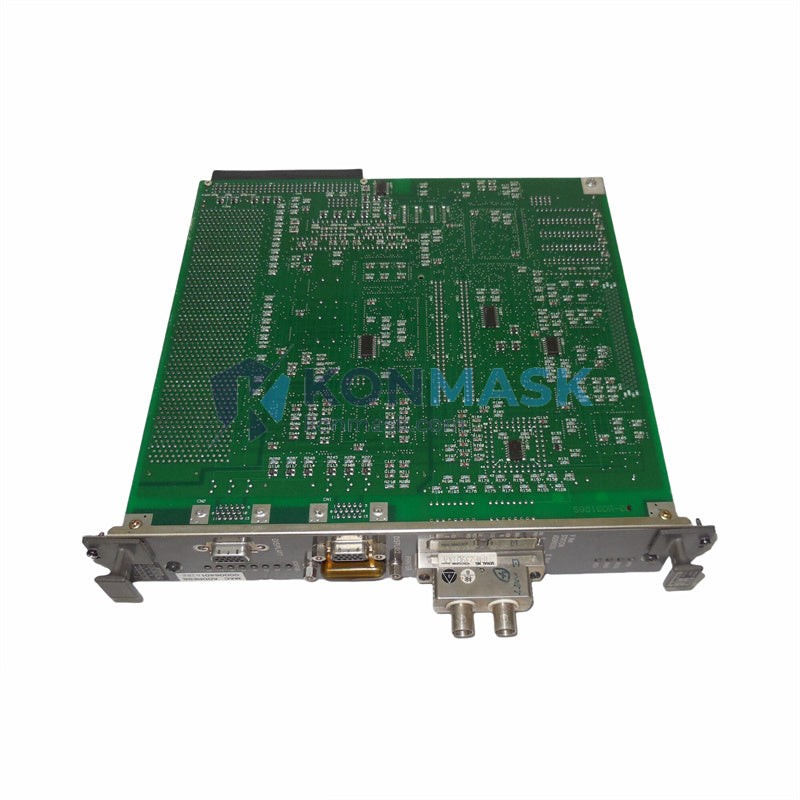

YOKOGAWA CP134E-16-S1 – Central Processing Unit Board | CENTUM CS / CS3000 DCS Platform
Engineering Background: The CENTUM CS and CENTUM CS3000 platforms represent YOKOGAWA’s flagship Distributed Control System architecture, deployed across thousands of process plants worldwide since the mid-1990s. Designed for continuous, high-availability operation, these platforms underpin refining, petrochemical, power generation, and pharmaceutical manufacturing — industries where control system uptime is directly tied to production revenue and safety compliance. The CP134E-16-S1 is the Central Processing Unit board at the heart of the Field Control Station (FCS), responsible for executing all control logic, managing I/O bus communication, and maintaining real-time process data integrity.
Product Positioning: Konmask.com supplies the CP134E-16-S1 to maintenance engineers, MRO procurement teams, and system integrators who require a verified, shelf-ready replacement or expansion module. Each unit is sourced through traceable industrial channels and undergoes functional inspection prior to dispatch. Whether you are managing a planned turnaround, responding to an unplanned failure, or building a strategic spares inventory, Konmask.com provides the technical expertise and supply chain access to support your operational continuity.
Complete Technical Specifications
- Part Number / SKU: CP134E-16-S1
- Manufacturer: YOKOGAWA Electric Corporation
- Product Family / Series: CENTUM CS / CENTUM CS3000
- Module Type: Central Processing Unit (CPU) Board
- Application: Field Control Station (FCS) processor module
- Form Factor: PCB card module, rack-mount compatible
- Weight: Approx. 2,100 g (packaged)
- Country of Origin: Japan
- Compatibility: CENTUM CS, CENTUM CS3000 FCS racks
- Communication Bus: V-net / Vnet/IP backbone (platform-dependent)
- Redundancy Support: Dual-redundant CPU configuration supported
- Operating Environment: Industrial DCS cabinet, controlled temperature/humidity
- HS Code: 8537.10 – Boards, panels, consoles for electric control
Proven Application Environments
- Oil & Gas refining and upstream processing facilities
- Petrochemical and chemical batch/continuous process plants
- Power generation — thermal, nuclear auxiliary systems
- Pharmaceutical and biotech manufacturing (GMP-regulated environments)
- Pulp, paper, and water treatment automation
- LNG terminals and pipeline SCADA integration nodes
Engineering Advantages
- Proven Platform Longevity: CENTUM CS3000 has an installed base spanning 20+ years, ensuring long-term parts availability and engineering familiarity.
- Redundant Architecture: Supports hot-standby CPU redundancy for zero-downtime failover in critical process loops.
- Deterministic Scan Cycle: Guarantees real-time control execution with predictable cycle times essential for tight PID and cascade control.
- Integrated Diagnostics: On-board self-diagnostics report fault codes to the HIS (Human Interface Station) for rapid maintenance response.
- Broad I/O Compatibility: Interfaces with the full range of CENTUM CS3000 analog, digital, and fieldbus I/O modules.
System Architecture & Signal Flow
Within the CENTUM CS3000 architecture, the CP134E-16-S1 resides in the FCS rack and communicates upstream via the V-net control bus to the Engineering Workstation (EWS) and Human Interface Station (HIS). Downstream, it manages I/O node communication through the ESB (Extended Serial Bus) or ER bus, coordinating real-time data acquisition from field transmitters, control valves, and discrete I/O modules. In redundant configurations, the primary and secondary CPU boards synchronize state continuously, enabling bumpless transfer upon primary fault detection.
Sourcing & Quality Verification
- All units sourced from traceable industrial MRO channels or decommissioned plant inventories with documented service history.
- Visual inspection: PCB integrity, connector pin condition, component seating, and label verification against YOKOGAWA part numbering standards.
- Functional bench test performed where test fixtures are available; results documented on request.
- Anti-static packaging with humidity indicator card; double-boxed for international freight.
- Certificate of conformance and inspection report available upon request for regulated industries.
Procurement Process
- Inquiry: Submit your RFQ via support@konmask.com or WhatsApp +0086 19859288691 with quantity and required delivery date.
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing.
- Quality Check & Dispatch: Unit inspected, photographed, and packed; tracking number provided within 1–2 business days of payment clearance.
- After-Sales Support: Technical assistance available for installation verification and compatibility queries.
Technical FAQ
Q: Is the CP134E-16-S1 compatible with CENTUM VP?
A: The CP134E-16-S1 is designed for CENTUM CS and CS3000 platforms. CENTUM VP uses a different CPU module series (e.g., CP345). Cross-platform compatibility is not supported without hardware migration.
Q: Can this board be used in a non-redundant FCS configuration?
A: Yes. The CP134E-16-S1 operates in both simplex and dual-redundant FCS configurations. Redundancy is enabled through rack wiring and software configuration, not hardware variants.
Q: What is the typical lead time?
A: In-stock units ship within 2–3 business days. For sourced units, lead time is typically 7–15 business days depending on availability.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all verified units. Terms are detailed in the sales confirmation.
Q: Can you supply multiple quantities for a plant-wide spares program?
A: Yes. Contact us for volume pricing and consignment stocking arrangements tailored to your maintenance strategy.
