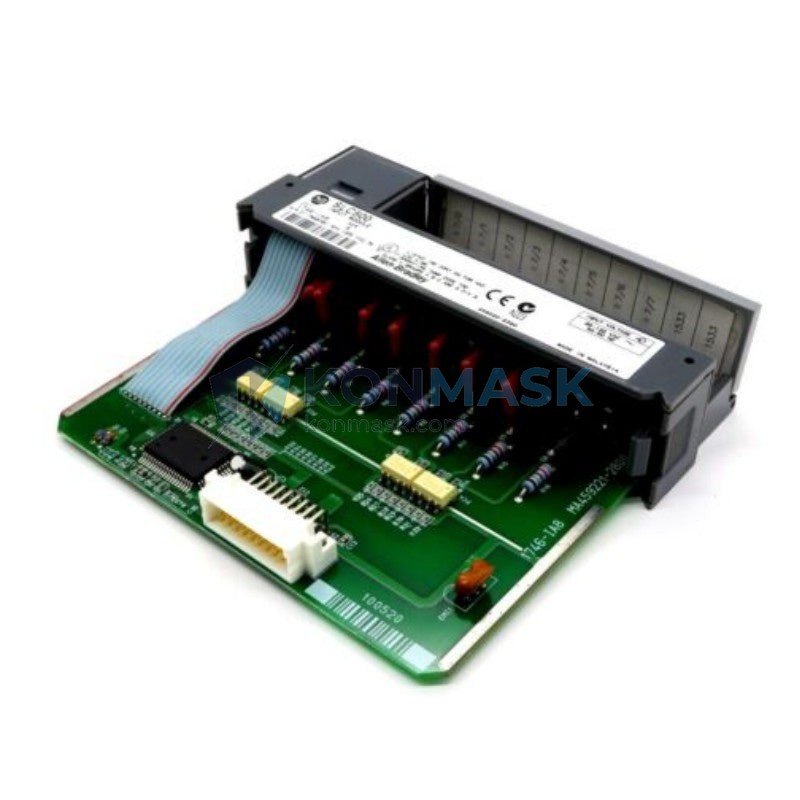

Allen-Bradley 1746-IA8 – 8-Point 120V AC Discrete Input Module | SLC 500 Platform
Engineering Background: The Allen-Bradley SLC 500 (Small Logic Controller) platform has been a backbone of discrete manufacturing and process automation since the early 1990s. Deployed across hundreds of thousands of installations in automotive assembly, water/wastewater treatment, power distribution substations, and petrochemical skid controls, the SLC 500 rack-based architecture remains actively maintained by Rockwell Automation. The 1746-IA8 occupies the discrete input layer of the I/O chassis, serving as the electrical interface between field-level 120V AC sensing devices—limit switches, proximity sensors, pushbuttons, and relay contacts—and the SLC 5/01 through 5/05 processors. Without a correctly specified input module, the processor cannot read field status; the 1746-IA8 is therefore a mission-critical component in any SLC 500 control loop.
Product Positioning: Within the 1746 discrete AC input family, the 1746-IA8 provides 8 input points at 120V AC nominal—distinguishing it from the 1746-IA16 (16-point, higher density) and the 1746-IB8 (24V DC logic). The 8-point configuration is the preferred choice when field wiring runs are long (reducing capacitive leakage risk), when individual point fusing is required by local electrical codes, or when the application demands clear channel-to-channel isolation without the cost premium of the IM series. It is not a fit for 24V DC sensor networks or applications requiring analog signal conditioning.
Complete Technical Specifications
Electrical
- Input Voltage Range: 74–132V AC (nominal 120V AC)
- Input Frequency: 47–63 Hz
- Input Current (ON state): 10 mA @ 120V AC
- Input Impedance: ~12 kΩ @ 60 Hz
- ON-State Voltage Threshold: ≥74V AC
- OFF-State Voltage Threshold: ≤20V AC
- Input Points: 8 (single group, common neutral)
- Isolation: 1500V AC optical isolation (field side to backplane)
- Backplane Current Draw: 75 mA @ 5V DC
- Power Dissipation: 3.5W max
Mechanical
- Form Factor: 1746 single-slot I/O module
- Wiring: Removable terminal block (RTB), screw-type
- Weight: Approx. 200 g
- Dimensions: Standard SLC 500 I/O module profile
- Keying: Mechanical keying pins prevent incorrect slot insertion
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5–95% (non-condensing)
- Vibration: 2g @ 10–500 Hz (IEC 68-2-6)
- Shock: 30g operational (IEC 68-2-27)
- Enclosure Rating: IP20 (panel-mount chassis required)
Certifications
- UL Listed (UL 508)
- CE Marked (EMC Directive 2014/30/EU; LVD 2014/35/EU)
- CSA Certified
- RoHS Compliant
Data source: Rockwell Automation Publication 1746-IN009, SLC 500 I/O Modules Installation Instructions; Rockwell Automation Product Certification File.
Proven Application Environments
- Petrochemical / Refinery: Pump station control panels | Motor starter feedback monitoring | Continuous duty cycling at elevated ambient temperatures up to 55°C
- Electric Power / Substation: Switchgear status indication panels | 120V AC auxiliary contact monitoring | High-noise environments with strong electromagnetic interference from bus bars
- Water & Wastewater Treatment: Lift station control systems | Float switch and level sensor interfacing | Wet, humid enclosure environments requiring reliable optical isolation
- Automotive Assembly: Conveyor line limit switch arrays | End-of-travel detection on transfer presses | High-cycle applications exceeding 10 million operations per year
- Food & Beverage Processing: Packaging line gate and door interlock monitoring | Washdown-adjacent panels | Applications requiring UL 508 panel certification compliance
- Pulp & Paper / Heavy Industry: Winder and rewinder position feedback | 120V AC field devices on legacy machine tools | Retrofit modernization of relay logic panels to SLC 500 PLC control
Engineering Advantages
- For long field wiring runs in petrochemical plants, this input module maintains signal integrity, because its 12 kΩ input impedance minimizes capacitive leakage current that would otherwise cause false ON states on extended cable runs.
- For high-noise substation environments, this input module rejects electromagnetic interference reliably, because 1500V AC optical isolation physically separates the field circuit from the backplane logic bus.
- For retrofit projects replacing relay logic, this input module accelerates commissioning, because the removable terminal block (RTB) allows pre-wiring before module insertion, eliminating live-wire work during cutover.
- For applications with strict electrical code requirements, this input module simplifies compliance, because the 8-point single-group architecture allows straightforward per-point fusing at the field terminal strip.
- For water treatment facilities with humid enclosures, this input module sustains long-term reliability, because the conformal-coated PCB assembly resists moisture ingress and corrosive atmospheric conditions.
- For maintenance teams managing aging SLC 500 fleets, this input module reduces mean time to repair (MTTR), because it is a direct slot-for-slot replacement requiring no processor configuration changes when substituting a failed unit.
System Architecture & Signal Flow
Signal Flow: Field device (120V AC) → Terminal block input screw → RC filter network → Optocoupler (1500V AC isolation) → Backplane data bus → SLC 500 processor input image table (I:x.0 / Bx.0 bit addressing).
Compatible Processors & Chassis:
- 1746-A4 / A7 / A10 / A13 chassis — all slot positions
- SLC 5/01 (1747-L511/L514), SLC 5/02 (1747-L524), SLC 5/03 (1747-L531/L532/L533), SLC 5/04 (1747-L541/L542/L543/L551), SLC 5/05 (1747-L551/L552/L553) — full compatibility; the 1746 I/O bus protocol is uniform across all SLC 500 processor generations.
- 1746-A2 expansion chassis — compatible when used with 1746-BAS or 1746-C7/C9/C16 cables.
Substitution Conditions: The 1746-IA16 can replace the 1746-IA8 if slot space is available and the application can accept 16-point density; address mapping must be updated in the processor program. The 1746-IM8 (120/220V AC isolated) is the appropriate upgrade when per-point isolation is required by safety standards (e.g., IEC 62061 SIL applications).
Sourcing & Quality Verification
Units offered through Konmask.com are sourced from authorized distribution channels, decommissioned OEM equipment, and verified secondary market suppliers. Every unit undergoes a structured incoming inspection before listing:
- Visual Inspection: Housing integrity check, terminal block condition, label legibility, and absence of burn marks, corrosion, or mechanical damage.
- Backplane Connector Test: Pin continuity and seating force verification against Rockwell Automation connector specification tolerances.
- Functional Power-On Test: Module inserted into a live SLC 500 test chassis; each input point exercised with a calibrated 120V AC test signal; LED indicator response and processor I/O image table bit state confirmed.
- Firmware / Revision Verification: Catalog number, series letter, and firmware revision recorded and matched against the order specification.
Documentation available upon request: Rockwell Automation datasheet (1746-IN009), test report, photos of actual unit, certificate of conformance, and export compliance documentation (HS code, country of origin declaration).
Procurement Process
- Inquiry Submission: Submit the catalog number (1746-IA8), required quantity, series revision preference (if any), and delivery timeline via the product page contact form or directly to support@konmask.com.
- Quote & Stock Confirmation: A response with confirmed stock status, unit price, lead time, and shipping options will be provided within 24 hours on business days. Expedited response is available for urgent plant-down situations.
- Order Fulfillment: Payment confirmation triggers same-day or next-business-day dispatch. Export documentation, tracking information, and the inspection report are issued with each shipment. Technical support for installation and compatibility questions is available post-delivery via email and phone.
Technical FAQ
- Q: Is the 1746-IA8 compatible with the MicroLogix 1000 or MicroLogix 1100?
- A: No. The MicroLogix series uses a different I/O bus architecture and does not accept 1746 I/O modules. The 1746-IA8 is exclusively compatible with the SLC 500 chassis family (1746-Axx). For MicroLogix expansion, the 1762 (MicroLogix 1200/1500) or 1769 (CompactLogix) I/O families are applicable.
- Q: Can the 1746-IA8 substitute for a 1746-IA8-CC (conformal coat) variant in a high-humidity environment?
- A: The standard 1746-IA8 includes a factory conformal coating on the PCB assembly per Rockwell Automation’s standard manufacturing process. If the application requires a specific IPC-CC-830 Class AR or SR coating certification, request the documentation at time of order to confirm the unit’s coating specification matches the site requirement.
- Q: What is the maximum number of 1746-IA8 modules that can be installed in a single SLC 500 chassis?
- A: The limit is determined by the chassis power supply’s 5V DC backplane current budget. Each 1746-IA8 draws 75 mA @ 5V DC. A 1746-P4 power supply (10A @ 5V DC) can theoretically support up to 133 modules on current alone, but the practical limit is the chassis slot count (maximum 13 I/O slots in a 1746-A13) and the total backplane current draw of all installed modules combined. Always perform a power budget calculation per Rockwell Automation Publication 1746-UM001 before finalizing the chassis configuration.
