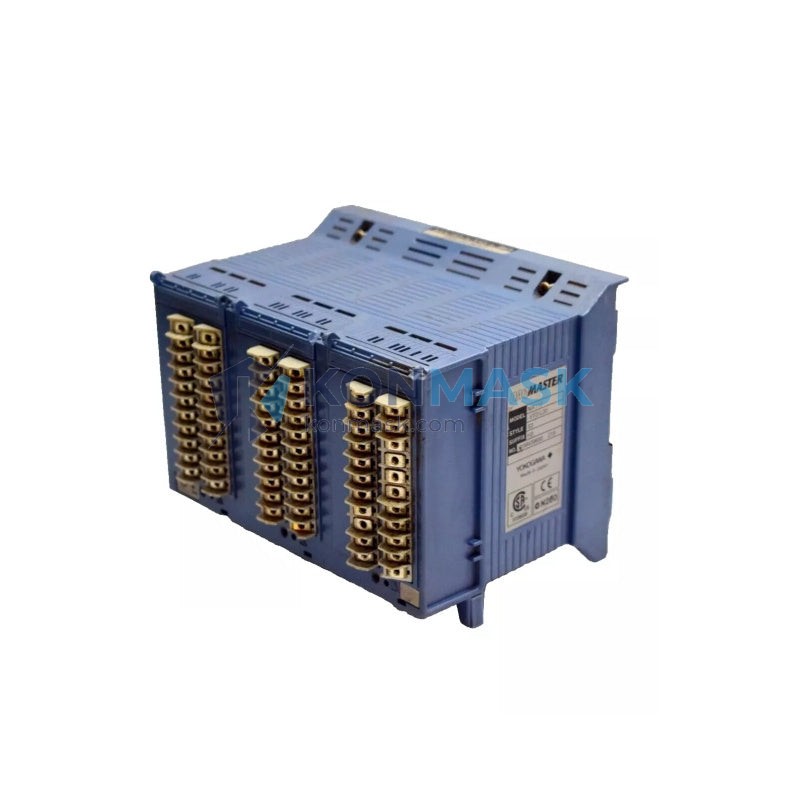

YOKOGAWA MX110-VTD-L30 – 30-Channel Thermocouple/mV Input Module | MX100 ScopeCorder Platform
Engineering Background: The MX100 ScopeCorder platform was developed by YOKOGAWA to bridge the gap between traditional data loggers and high-speed oscilloscopes. Designed for demanding field and laboratory environments, the MX100 series delivers synchronized, multi-channel measurement with plug-in module flexibility. The MX110-VTD-L30 is the high-density thermocouple and mV input module purpose-built for this platform.
Product Positioning: The MX110-VTD-L30 provides 30 isolated input channels in a single module slot, enabling engineers to monitor large thermocouple arrays or low-level mV signals simultaneously. It is the preferred choice for thermal mapping, burn-in testing, environmental chamber validation, and multi-point process monitoring where channel density and measurement accuracy are critical.
Complete Technical Specifications
- Model: MX110-VTD-L30
- Platform: YOKOGAWA MX100 ScopeCorder
- Input Channels: 30 channels per module
- Measurement Types: Thermocouple (TC), mV (millivolt)
- Thermocouple Types: K, J, T, E, L, U, N, R, S, B, W (YOKOGAWA standard support)
- Voltage Input Range: ±100 mV, ±500 mV, ±1 V, ±2 V (model-dependent)
- Input Isolation: Channel-to-channel isolated
- A/D Resolution: 16-bit
- Measurement Accuracy: ±0.05% of reading (mV range, typical)
- Sampling Rate: Synchronized with MX100 mainframe (up to 10 ms/ch)
- Cold Junction Compensation (CJC): Built-in, automatic
- Connector Type: Screw terminal block (30-point)
- Module Form Factor: Plug-in card for MX100 mainframe
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Weight: Approx. 700 g
- Compliance: CE, RoHS
- Country of Origin: Japan
Proven Application Environments
- Thermal Mapping & Burn-In Testing: Monitor 30 thermocouple points simultaneously across PCB assemblies, battery packs, or power electronics during thermal stress tests.
- Environmental Chamber Validation: Verify temperature uniformity across multiple zones in climatic test chambers with synchronized logging.
- Industrial Process Monitoring: Multi-point temperature acquisition in furnaces, reactors, heat exchangers, and HVAC systems.
- Automotive & Aerospace R&D: High-channel-count thermal profiling during component qualification and endurance testing.
- Energy & Power Systems: Transformer winding temperature monitoring, battery thermal management, and solar inverter diagnostics.
Engineering Advantages
- High Channel Density: 30 isolated channels per module slot reduces mainframe count and wiring complexity versus single-channel alternatives.
- True Channel Isolation: Eliminates ground loop interference in multi-sensor installations — critical for accurate mV-level measurements.
- Automatic CJC: Built-in cold junction compensation removes the need for external reference junctions, simplifying field deployment.
- Synchronized Acquisition: All channels sample in synchronization with the MX100 mainframe clock, ensuring time-correlated data across all modules.
- Universal TC Support: Compatible with all major thermocouple types (K, J, T, E, R, S, B, N, W), eliminating the need for type-specific modules.
- Plug-and-Play Integration: Hot-swappable module design allows reconfiguration without mainframe shutdown in supported configurations.
System Architecture & Signal Flow
The MX110-VTD-L30 connects directly to the MX100 mainframe via the internal module bus. Each of the 30 input channels passes through an individual isolation barrier before entering a multiplexed 16-bit A/D converter. The built-in CJC sensor compensates for terminal block temperature in real time. Digitized data is transferred to the mainframe CPU for timestamping, scaling, and storage to internal memory or external media (CF card / USB). The YOKOGAWA MX100 software (MXLogger) provides real-time display, alarm management, and data export in CSV or proprietary format.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels with full traceability.
- Each module undergoes incoming inspection: visual check, connector integrity, and functional power-on verification prior to shipment.
- Original YOKOGAWA labeling, serial number, and firmware version are preserved and documented.
- Calibration certificates available upon request for units requiring metrology traceability.
- Packaging: anti-static bag + foam-lined carton, compliant with IEC 61340-5-1 ESD protection standards.
Procurement Process
- Step 1 – Inquiry: Contact us via support@konmask.com or +0086 19859288691 with your required quantity and delivery timeline.
- Step 2 – Quote: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options.
- Step 3 – Order Confirmation: Submit PO or place order directly on Konmask.com. Payment via T/T, PayPal, or credit card accepted.
- Step 4 – Shipment: Units dispatched within 3–7 business days. DHL / FedEx / UPS express available. Export documentation (commercial invoice, packing list, COO) provided.
- Step 5 – After-Sales: 90-day warranty on all units. Technical support available for integration and commissioning queries.
Technical FAQ
- Q: Is the MX110-VTD-L30 compatible with the MX100 and MW100 mainframes?
- A: The MX110-VTD-L30 is designed for the MX100 ScopeCorder platform. Compatibility with MW100 should be verified against YOKOGAWA’s module compatibility matrix — contact us for confirmation.
- Q: Can I mix MX110-VTD-L30 modules with voltage or strain gauge modules in the same mainframe?
- A: Yes. The MX100 mainframe supports mixed module configurations. Each slot is independently configurable, allowing simultaneous TC, voltage, and other measurement types.
- Q: What is the maximum number of channels achievable with multiple MX110-VTD-L30 modules?
- A: The MX100 mainframe supports up to 6 module slots. With six MX110-VTD-L30 modules installed, a maximum of 180 thermocouple/mV channels can be acquired simultaneously.
- Q: Does the module support TEDS (Transducer Electronic Data Sheet)?
- A: The MX110-VTD-L30 does not natively support TEDS. Sensor identification must be configured manually in the MXLogger software.
- Q: What software is required to operate this module?
- A: YOKOGAWA MXLogger software (included with MX100 mainframe) is required for configuration, data acquisition, and export. Third-party SCPI/LAN control is also supported via the mainframe’s Ethernet interface.
