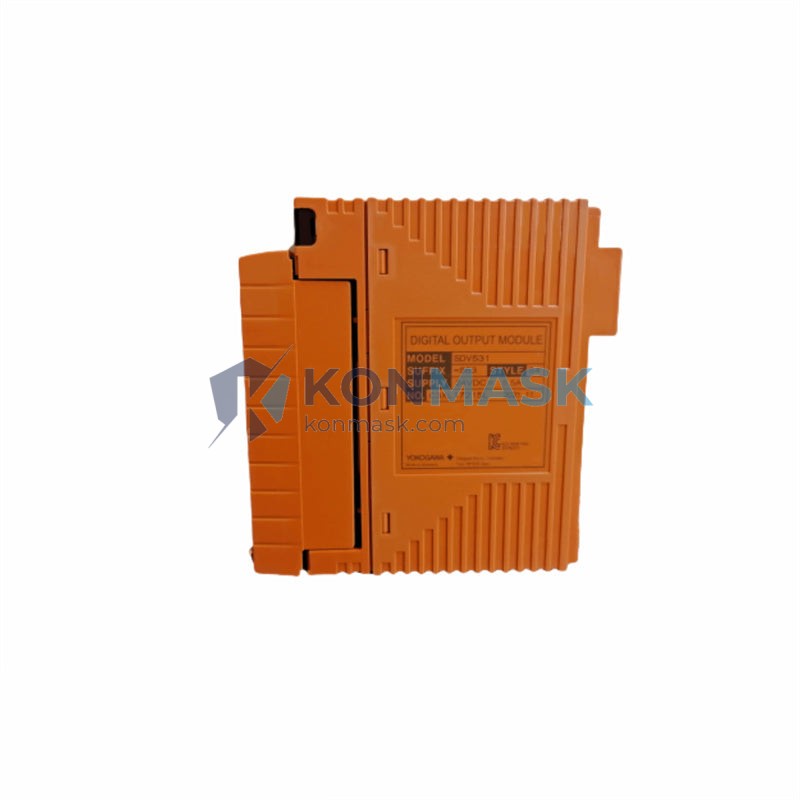

Process Control Solution – YOKOGAWA SDV531-S63 | CENTUM VP Digital Output Module
Where This Product Is Used
The YOKOGAWA SDV531-S63 is a 32-channel digital output (DO) module designed for the CENTUM VP Distributed Control System (DCS). It is deployed in mission-critical industrial environments where reliable, high-density discrete output control is essential:
- Oil & Gas Processing Plants – Controlling solenoid valves, motor starters, and shutdown actuators in upstream/downstream facilities
- Petrochemical & Chemical Plants – Driving on/off valves and interlock relay outputs in batch and continuous process units
- Power Generation (Thermal, Nuclear, Hydro) – Issuing discrete commands to breakers, dampers, and auxiliary equipment
- Pulp & Paper / Steel Mills – Coordinating conveyor drives, pump starters, and process interlocks
- Water & Wastewater Treatment – Activating pumps, blowers, and valve actuators across distributed field stations
- Pharmaceutical Manufacturing – Controlling clean-room HVAC dampers and CIP/SIP valve sequences under GMP compliance
Technical Specifications
- Model: SDV531-S63
- Series: CENTUM VP Field Control Station (FCS) I/O
- Module Type: Digital Output (DO)
- Output Channels: 32 channels
- Output Signal: Transistor sink output (open-collector)
- Rated Load Voltage: 24 V DC
- Maximum Load Current: 0.1 A per channel
- Isolation: Photocoupler isolation between field and system bus
- Connector Type: S63 terminal base (screw-type field wiring)
- Mounting: Plug-in to CENTUM VP I/O nest / node unit
- Weight: 1,380 g (module + terminal base)
- Compatible Platform: CENTUM VP R4.xx / R5.xx / R6.xx
- Manufacturer: YOKOGAWA Electric Corporation, Japan
Why Engineers Specify This Model
- High Channel Density: 32 DO points per slot minimizes rack space and reduces wiring cost in large-scale DCS cabinets
- Photocoupler Isolation: Protects the controller backplane from field-side voltage transients and ground loops common in heavy industrial environments
- S63 Screw Terminal Base: Enables hot-swap module replacement without disconnecting field wiring — critical for plants that cannot tolerate unplanned shutdowns
- Seamless CENTUM VP Integration: Recognized natively by CENTUM VP engineering tools; no additional configuration drivers required
- Proven Reliability: YOKOGAWA’s CENTUM platform has >30 years of installed base in tier-1 process industries worldwide
- Diagnostic Support: Module-level LED status indicators and online self-diagnostics accessible via CENTUM VP HIS (Human Interface Station)
Complete System Bill of Materials
For a fully operational CENTUM VP digital output node, the following components are typically required alongside the SDV531-S63:
- CENTUM VP Field Control Unit (FCU) – e.g., AFV10S / AFV30S
- I/O Node Unit – e.g., ANT1A / ANT2A
- S63 Terminal Base (included or ordered separately)
- 24 V DC Field Power Supply – e.g., PW481 / PW482
- Vnet/IP or ESB Bus Communication Module
- CENTUM VP Engineering License (ENG) for configuration
- Marshalling cabinet / junction box with appropriate cable glands
Compliance & Industry Standards
- CE Marking – EU Low Voltage Directive & EMC Directive compliant
- IEC 61131-2 – Programmable controller hardware requirements
- IEC 61508 / IEC 61511 – Functional safety (SIL) compatibility (verify SIL rating with YOKOGAWA for safety loop applications)
- RoHS Directive – Restriction of Hazardous Substances compliant
- ATEX / IECEx – Consult YOKOGAWA for intrinsically safe barrier pairing in Zone 1/2 hazardous areas
Quality Assurance & Sourcing
Konmask.com sources YOKOGAWA modules through verified industrial automation supply channels. Every unit undergoes the following before dispatch:
- Visual inspection for physical damage, pin integrity, and label authenticity
- Firmware version verification against YOKOGAWA release documentation
- Anti-static packaging with humidity indicator card
- Serialization check against YOKOGAWA’s product traceability records where applicable
We supply both new-in-box (NIB) and tested surplus units. Condition is clearly stated on each listing. All surplus units carry a 90-day functional warranty.
How to Source This Part
- In Stock: Contact us for real-time availability and lead time confirmation
- Request a Quote: Email support@konmask.com with your required quantity and delivery timeline
- Bulk / Project Orders: Volume pricing available for EPC contractors and system integrators — inquire via email or phone
- Expedited Shipping: DHL Express / FedEx International Priority available for urgent plant shutdowns or emergency replacements
- Export Compliance: We handle export documentation (commercial invoice, packing list, COO) for international shipments
Application-Specific FAQ
Q: Is the SDV531-S63 compatible with CENTUM CS 3000?
A: No. The SDV531 series is designed exclusively for CENTUM VP. For CS 3000 systems, the equivalent module is the SDV531 with a different terminal base suffix. Contact us to confirm compatibility with your specific system revision.
Q: Can this module be used in SIL 2 safety loops?
A: The SDV531-S63 is a standard (non-safety) DO module. For SIL-rated applications, YOKOGAWA offers dedicated safety I/O modules (e.g., ADV151-P). Consult your functional safety engineer before specifying this module in a safety instrumented function (SIF).
Q: What is the difference between S63 and S64 terminal base suffixes?
A: The S63 suffix denotes a screw-type terminal base for direct field wiring. S64 typically refers to a connector-type base for pre-wired marshalling. Verify your cabinet wiring standard before ordering.
Q: Do you provide YOKOGAWA factory certificates or test reports?
A: Factory certificates are available for new-in-box units. For surplus stock, we provide our in-house inspection report. Contact us prior to purchase if documentation is a project requirement.
Q: What is the typical lead time for this module?
A: In-stock units ship within 1–3 business days. For out-of-stock items, lead time is typically 4–12 weeks depending on YOKOGAWA’s production schedule. Contact us for the latest availability.
