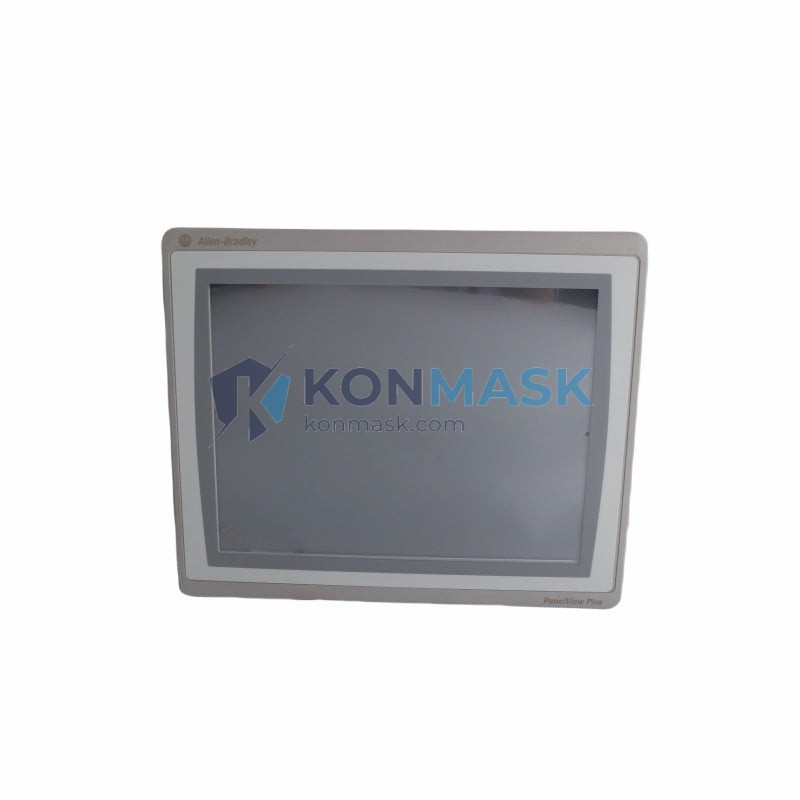

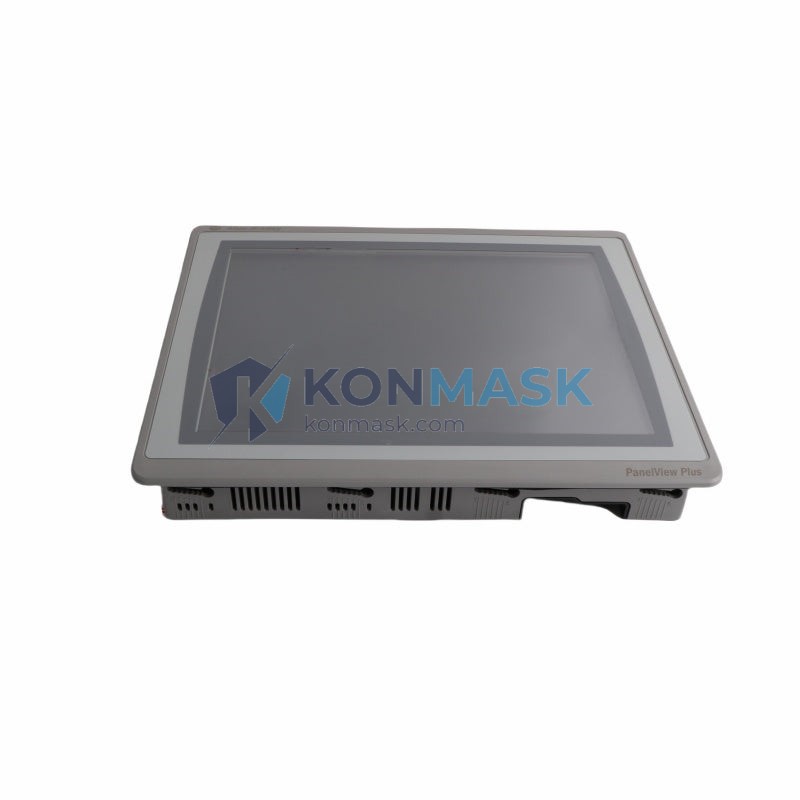

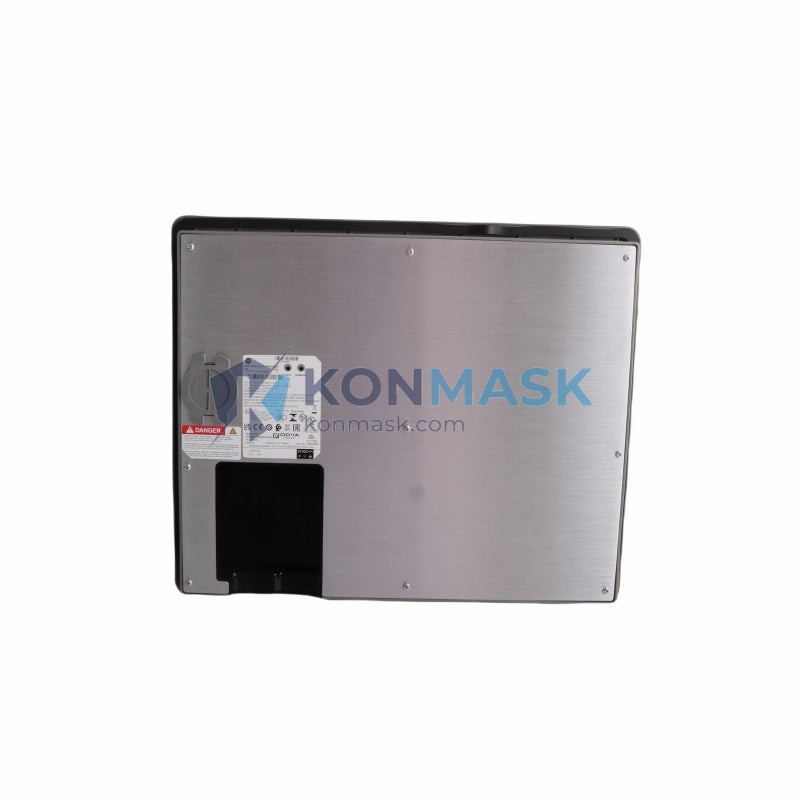

Allen-Bradley 2711P-T12W22D9P-B – 12.1″ Touch Operator Interface | PanelView Plus 7 Standard
Engineering Background: The 2711P-T12W22D9P-B is part of Rockwell Automation’s PanelView Plus 7 Standard series — the industry benchmark for operator interface terminals in discrete and process manufacturing. Designed to integrate natively with Allen-Bradley ControlLogix, CompactLogix, and MicroLogix PLCs via EtherNet/IP, this terminal delivers high-resolution visualization, robust touchscreen control, and deterministic communication in a single panel-mount enclosure.
Product Positioning: Targeted at procurement engineers and system integrators sourcing reliable HMI hardware for new installations, line expansions, or legacy system replacements. The 2711P-T12W22D9P-B offers a proven platform with long-term firmware support, broad FactoryTalk View ME compatibility, and a wide operating temperature range suited to demanding industrial environments.
Complete Technical Specifications
- Part Number: 2711P-T12W22D9P-B
- Series: PanelView Plus 7 Standard
- Manufacturer: Allen-Bradley / Rockwell Automation
- Display Size: 12.1″ SVGA Widescreen TFT LCD
- Resolution: 800 × 600 pixels
- Touch Technology: Analog Resistive Touchscreen
- Input Type: Touch only (no keypad)
- Communication: Dual-port EtherNet/IP (10/100 Mbps)
- USB Ports: 2 × USB Type-A (host), 1 × USB Type-B (device/programming)
- Memory: 512 MB RAM / 512 MB Flash
- Operating System: Windows CE 6.0
- Software: FactoryTalk View ME (pre-loaded runtime)
- Power Supply: 24 VDC (18–32 VDC range)
- Power Consumption: Approx. 35 W
- Operating Temperature: 0°C to +55°C (32°F to 131°F)
- Storage Temperature: −20°C to +70°C
- Relative Humidity: 5–95% non-condensing
- Enclosure Rating: NEMA 4/4X, 12, 13 (front face); IP65 (front face)
- Panel Cutout: 330.2 mm × 254.0 mm (W × H)
- Overall Dimensions: 355.6 mm × 279.4 mm × 73.7 mm (W × H × D)
- Weight: Approx. 3.2 kg
- Certifications: UL, CE, cUL, RCM
- Catalog Series Suffix -B: Indicates black bezel variant
Proven Application Environments
- Automotive Assembly Lines – Real-time process visualization and operator control at machine stations
- Food & Beverage Processing – NEMA 4X-rated washdown-compatible front face for hygienic environments
- Water & Wastewater Treatment – SCADA-integrated HMI for pump and valve control panels
- Oil & Gas Upstream/Midstream – Rugged enclosure rating for harsh ambient conditions
- Pharmaceutical Manufacturing – Audit-trail-capable FactoryTalk View ME for 21 CFR Part 11 compliance support
- Material Handling & Conveyor Systems – High-cycle touchscreen durability for continuous operator interaction
- Building Automation & HVAC – EtherNet/IP connectivity for BMS integration
Engineering Advantages
- Native EtherNet/IP Integration: Dual-port switch eliminates need for external managed switch in daisy-chain topologies, reducing panel BOM cost
- FactoryTalk View ME Ecosystem: Full compatibility with Studio 5000 Logix Designer tag import for rapid application development
- Analog Resistive Touch: Operable with gloved hands — critical for PPE-mandatory production environments
- Wide Input Voltage Range (18–32 VDC): Tolerates real-world power supply fluctuations without additional conditioning hardware
- IP65 Front Face: Protects against dust ingress and directed water jets — suitable for washdown zones
- Long Product Lifecycle: Rockwell Automation’s extended support commitment ensures firmware updates and spare parts availability
- USB Host Ports: Supports USB barcode scanners, keyboards, and memory sticks for application transfer and diagnostics
System Architecture & Signal Flow
The 2711P-T12W22D9P-B operates as an EtherNet/IP Class 1 (I/O messaging) and Class 3 (explicit messaging) device. In a typical architecture:
- Controller Layer: ControlLogix / CompactLogix PLC communicates tag data to the HMI via EtherNet/IP implicit messaging at configurable RPI rates (typically 100–500 ms for display updates)
- HMI Layer: FactoryTalk View ME runtime polls controller tags and renders graphic displays; operator inputs write tag values back to the controller
- Network Layer: Dual-port EtherNet/IP switch supports linear/daisy-chain topology — Port 1 upstream to switch/controller, Port 2 downstream to next device
- Programming: FactoryTalk View Studio ME (v8.0+ recommended) connects via USB Type-B or EtherNet/IP for application download and diagnostics
Sourcing & Quality Verification
- ✅ Genuine Allen-Bradley hardware — sourced from authorized distributors and verified surplus channels
- ✅ Pre-shipment inspection: Visual inspection, label verification (catalog number, series, date code), and power-on functional test
- ✅ Original packaging preferred — anti-static bag, foam insert, and factory carton where available
- ✅ Counterfeit screening: Part number, PCB markings, and firmware version cross-referenced against Rockwell Automation product records
- ✅ Warranty: 90-day Konmask operational warranty covering DOA and functional defects
Procurement Process
- Submit RFQ — Contact [email protected] or call +0086 19859288691 with your required quantity and delivery timeline
- Quotation & Lead Time — Receive a formal quotation within 24 business hours including stock status, unit price, and estimated ship date
- Order Confirmation — Purchase order accepted via email; proforma invoice issued for prepayment or net terms (qualified accounts)
- Quality Inspection & Packing — Each unit inspected, photographed, and packed with ESD protection prior to dispatch
- Shipping — DHL / FedEx / UPS express available; sea freight for bulk orders; export documentation (commercial invoice, packing list, COO) provided
- After-Sales Support — Technical support available for installation, commissioning, and FactoryTalk View ME configuration queries
Technical FAQ
Q: Is the 2711P-T12W22D9P-B compatible with MicroLogix 1400?
A: Yes, via EtherNet/IP using DF1 or CIP messaging. Ensure FactoryTalk View ME driver is configured for MicroLogix Ethernet.
Q: What FactoryTalk View ME version is required?
A: Version 7.0 or later is recommended. Version 8.0+ is required for full PanelView Plus 7 feature support including enhanced security and alarm management.
Q: Can this unit replace a 2711P-T12C22D9P (non-B suffix)?
A: Yes — the -B suffix denotes black bezel only. Electrical, communication, and software specifications are identical. Panel cutout dimensions are the same.
Q: Does it support remote access / VNC?
A: Yes. The PanelView Plus 7 supports VNC server functionality for remote monitoring via FactoryTalk View ME configuration.
Q: What is the backlight lifespan?
A: Rated at approximately 50,000 hours MTBF under normal operating conditions (25°C ambient).
Q: Is CE marking included?
A: Yes. The 2711P-T12W22D9P-B carries CE marking for EMC Directive and Low Voltage Directive compliance, suitable for EU machinery installations.
